2007 Acura TL Wiring Guide


Post ReplyPost New Topic
< Prev Topic Next Topic >
bwright2112
Member - Posts: 5
Member spacespace
Joined: November 12, 2012
Location: Kansas, United States
Posted: November 12, 2012 at 10:05 AM / IP Logged
Looking for a 2007 Acura TL base model wiring diagram for alarm/remote start (Viper 5704) and 529t module for sunroof, 530t for windows, transponder bypass, and smart start
Thanks!
kreg357
Platinum - Posts: 7,804
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: November 12, 2012 at 11:38 AM / IP Logged

Ready Remote has it :  http://www.readyremote.com/main.asp?make=Acura&model=TL

Did a 2008 TL a while ago with the ADS AL CA w/ADS AL(DL) HA1 firmware.  Made things pretty easy.

Here are some photos:

Main Ignition :

2007 Acura TL Wiring Guide -- posted image.

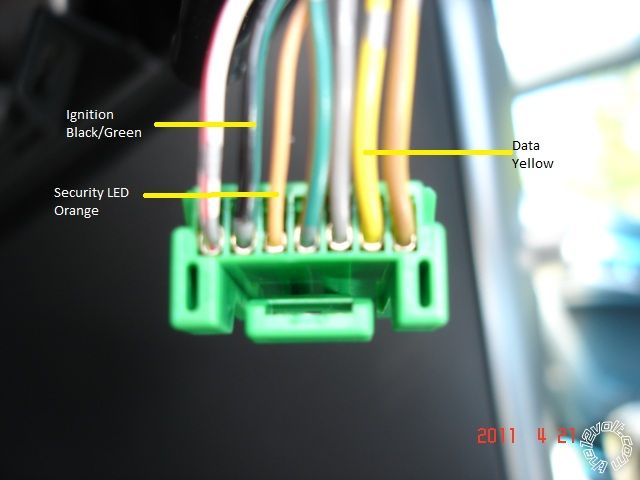

Transponder connector :

2007 Acura TL Wiring Guide -- posted image.

Parking Lights and Door Data :

2007 Acura TL Wiring Guide -- posted image.

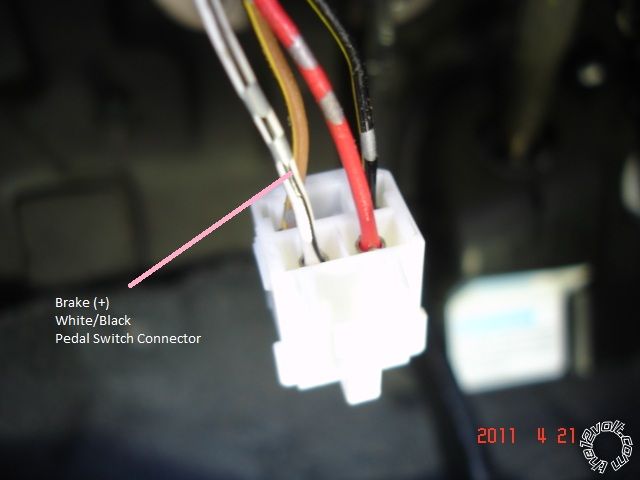

Brake :

2007 Acura TL Wiring Guide -- posted image.

Good Luck!

Soldering is fun!
bwright2112
Member - Posts: 5
Member spacespace
Joined: November 12, 2012
Location: Kansas, United States
Posted: November 12, 2012 at 11:43 AM / IP Logged
Awesome great pics I really appreciate it!!
bwright2112
Member - Posts: 5
Member spacespace
Joined: November 12, 2012
Location: Kansas, United States
Posted: November 17, 2012 at 12:52 AM / IP Logged
Know anywhere I can get the windows and sunroof wiring diagram??
kreg357
Platinum - Posts: 7,804
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: November 17, 2012 at 6:07 AM / IP Logged

Audiovox has it listed with their version of vehicle wiring info.  The WEB site is free to use after free sign-up.

Here is a link to the sign-up page : http://techservices.audiovox.com/AccessRequest.aspx

Just a general note of caution.  These wiring guide listings ( Bulldog, Ready Remote, Audiovox, etc ) almost always

have conflicting info ( with Audiovox usually being odd-man-out ) so always test and verify.  This is even more
important with relays and added features like 5 wire reverse windows, etc.

For actual vehicle wiring diagrams, try a WEB search.  Most likely an Acura Users Forum will have it, too.

Soldering is fun!
