2004 Chevrolet Colorado, Which Bypass? (Pictorial Replies)

Home / the12volt's Install Bay / Car Security and Convenience - Alarm/Remote Start Pictorials / 2004 Chevrolet Colorado, Which Bypass? (Pictorial Replies) (

Topic Closed)

Welcome Guest :)

Members

< Prev Topic Next Topic >

specs

Copper - Posts: 120

Joined: October 02, 2009

Location: Saskatchewan, Canada

Posted: November 23, 2012 at 6:06 PM / IP Logged

Hello all....need a bit of advice on which bypass to choose for 2004 Chevrolet Colorado and Autostart AS2371TW, xpresskit preferred as I've used a few of theirs in past installs and familiar with installing software on these. I was going to use PLJX, but just realized it doesn't handle locks.....DB-ALL a good choice? Any advice/tips appreciated.....thks, Al

ziggyb222

Silver - Posts: 593

This member has made a donation to the12volt.com. Click here for more info.

Joined: January 04, 2004

Location: Maine, United States

Posted: November 23, 2012 at 6:11 PM / IP Logged

The PLJX works great on these trucks. The locks are easy to do...

voltswagon

Copper - Posts: 75

Joined: November 21, 2012

Location: Iowa, United States

Posted: November 24, 2012 at 12:26 AM / IP Logged

I have 2005 and just completed installation. The PLJX is what i used and it's set default for our colorado. Also cheap about $20-$25. Lock and Unlock door is with your starter.

Here is a pic, it might help.

2004 Chevrolet Colorado, Which Bypass? (Pictorial Replies) -- posted image.

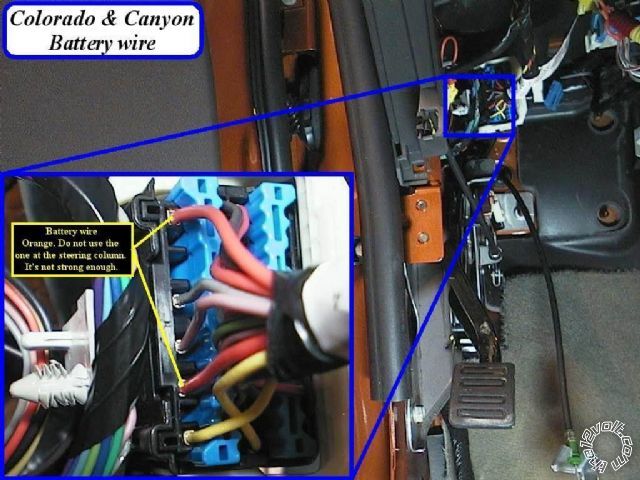

You can use this or direct from Battery as I did using the same hole by the hood cable.

Use this exactly as pictured, specially the jumper.

The brown wire is connect to RS ignition control output when done.

Hope this help.

Dont Drive and Text, but

Do Text Then Drive

specs

Copper - Posts: 120

Joined: October 02, 2009

Location: Saskatchewan, Canada

Posted: November 24, 2012 at 10:29 AM / IP Logged

Thank you both for the recommendation on the PLJX.....voltswagon, appreciate the time and effort in posting the pictures to follow! One question.....the wire colors at your ignition harness picture don't seem to match what the Directed install instructions show..WHITE/ various color stripes versus 3 solid color (orange, blue, brown) wires in the PLJX install instructions?? I'm assuming (as per your photo) the two wires in the ignition harness I will be wiring the PLJX into are the WHITE/ blue and the white green..thks, Al

voltswagon

Copper - Posts: 75

Joined: November 21, 2012

Location: Iowa, United States

Posted: November 24, 2012 at 11:08 AM / IP Logged

Correct. That's why it's labeled. Color code from directed is used for MOST of GM, not all.

Dont Drive and Text, but

Do Text Then Drive

voltswagon

Copper - Posts: 75

Joined: November 21, 2012

Location: Iowa, United States

Posted: November 24, 2012 at 11:16 AM / IP Logged

You will only need 2 wires from the ignition.

1.WHITE/ green(ignition) to RS and PLJX(pink wire)

2.WHITE/ blue(data) splice in half. From ignition to Pink/white(pljx). From PLJX(blue) to the other spliced end.

Dont Drive and Text, but

Do Text Then Drive

specs

Copper - Posts: 120

Joined: October 02, 2009

Location: Saskatchewan, Canada

Posted: November 24, 2012 at 12:40 PM / IP Logged

Gotcha volts! Thks again for your time....much appreciated, Al

voltswagon

Copper - Posts: 75

Joined: November 21, 2012

Location: Iowa, United States

Posted: November 26, 2012 at 11:24 PM / IP Logged

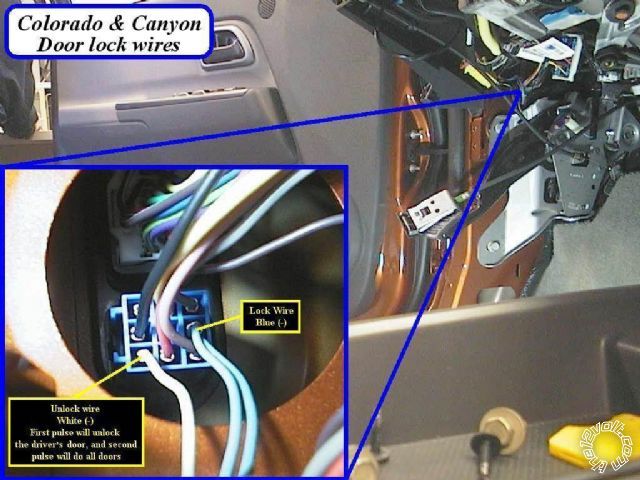

Here's the door locks and unlock.

2004 Chevrolet Colorado, Which Bypass? (Pictorial Replies) -- posted image.

Dont Drive and Text, but

Do Text Then Drive

specs

Copper - Posts: 120

Joined: October 02, 2009

Location: Saskatchewan, Canada

Posted: November 27, 2012 at 8:52 AM / IP Logged

Thks again volts, much appreciated.....will post back and let you know how it went! Thks, Al

voltswagon

Copper - Posts: 75

Joined: November 21, 2012

Location: Iowa, United States

Posted: January 04, 2013 at 7:59 PM / IP Logged

This should be a pictorial if anyone is interested.

I'm really happy with this Bulldog Deluxe 2 way pager with PLJX module.

If anyone interested here's some pictorials.

remove the cover:

Under the plastic also metal cover which I didn't need to move and mount my starter/module on to, that you might need to remove

Instead of 3 clips(blue), actually 4 not picture on bottom right.

Once you remove the steering wheel cover you'll see this

If you dont want to remove the steering cover, you can still access the wires on the other end of the harness.

lock/unlock

You might have to remove the metal cover to get to it. I got small arm.

color code for 2004-2007 colorado that i've used.

I got my 12v straight from the battery via the hold cable.

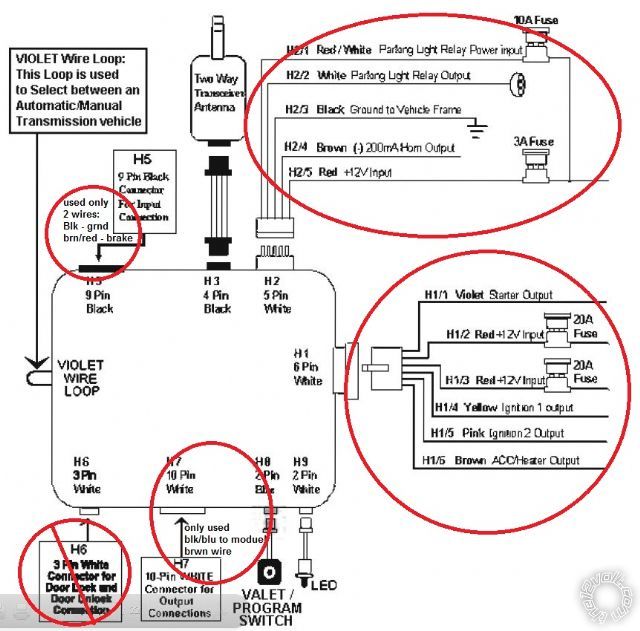

Below: H5, I only used Ground and BRAKE

H1, all except 2nd ign

H2, all except white2/2 light relay, but you could.

H6, for door

H7, online one 7/1 to module

2004 Chevrolet Colorado, Which Bypass? (Pictorial Replies) -- posted image.

Hookup to PLJX below

Picture of where my truck park and where I start it from.

Dont Drive and Text, but

Do Text Then Drive
