wireless momentary switch, air horns.


Post ReplyPost New Topic
< Prev Topic Next Topic >
thooley17
Member - Posts: 16
Member spacespace
Joined: February 08, 2013
Location: Ohio, United States
Posted: February 08, 2013 at 3:33 PM / IP Logged
I have air horns installed on my car. The first setup I had just had a regular momentary switch and it worked fine. There were two wires- one for each lead of the switch. I wanted to make it wireless so I bought a new switch. This one has 6 leads to plug wires into (in+, com, in- on one side, nc, com, no, on the other side).
I only know basic wiring, and the closest I got to having it turn on the compressors was just having the relay in the switch set off. When I hit the wireless button, the switch throws but it doesnt turn on the compressors.
Can you please help me figure this out? I'm just getting confused. Do you think it would have something to do with the other relay for the horns?
Thanks
thooley17
Member - Posts: 16
Member spacespace
Joined: February 08, 2013
Location: Ohio, United States
Posted: February 08, 2013 at 3:35 PM / IP Logged
Oh, and any diagrams/ pictures would be great. Thanks again
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: February 08, 2013 at 4:56 PM / IP Logged
OK the switch is the transmitter, where's the receiver?
You've replaced the wire from switch to relay with what?
What's the point of it if the previous set-up worked fine?
thooley17
Member - Posts: 16
Member spacespace
Joined: February 08, 2013
Location: Ohio, United States
Posted: February 09, 2013 at 12:21 PM / IP Logged
The switch it the reciever. there is a separate button on a key fob (wireless).
I wanted to make it wireless so I could basically scare people, ha.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: February 09, 2013 at 12:43 PM / IP Logged
OK, lets do this again, how were they wired originally please explain along with details of your vehicle, make model and year.
oldspark
Gold - Posts: 4,913
Gold spacespace
Joined: November 03, 2008
Location: Australia
Posted: February 09, 2013 at 12:58 PM / IP Logged
Not that the OP's intent is legal in this country...
I thought it was for the convenience of a wheel mounted button.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: February 09, 2013 at 1:09 PM / IP Logged

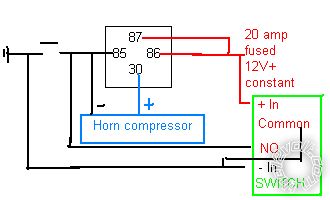

Here's the diagram if you have a POS (+) supply to your momentary switch:-

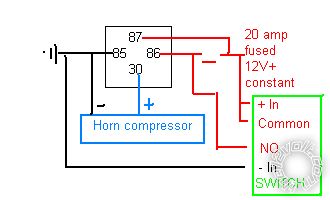

And here's the diagram if you have a NEG (-) supply to your momentary switch:-
NOTE; You're only using one side of that switch.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: February 09, 2013 at 1:12 PM / IP Logged
Let's not even go there, the lad should get out more.
I've always incorporated air horns into the factory horn wiring for convenience.
Let's hope that R/C switch is momentary shall we?
oldspark
Gold - Posts: 4,913
Gold spacespace
Joined: November 03, 2008
Location: Australia
Posted: February 09, 2013 at 1:40 PM / IP Logged
And that it's "secured" LOL! Maybe with a hood pin?
I did the same - st'd horn switch but with an extra on-off, ie - rage mode and country or city mode.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: February 09, 2013 at 2:12 PM / IP Logged
As I said mine are ALWAYS in rage mode. What a surprise.
