new gm's with multiplex 2007+


Post ReplyPost New Topic
< Prev Topic Next Topic >
elway_740
Member - Posts: 13
Member spacespace
Joined: March 23, 2010
Location: Ohio, United States
Posted: February 20, 2013 at 9:26 AM / IP Logged Link to Post Post Reply Quote elway_740
I've installed more remote starts than I can count, however, these newer GM cars such as Cobalt, Cruze, Equinox have become a problem.
I've heard that the ignition output needs to lag by about a 1/4 second behind the GWR or (-) while running wire for the vehicle to start.
The remote starters we install the GWR and ignition energize at exactly the same time.
For some reason these systems work great on the trucks like Sierra, Silverado but the cars have become a real issue.
The guys at Expresskit say we will need to build a time delay relay with a diode, resistor and capacitor on the ignition output to make it lag.
Is this true? Has anyone else ever ran into this issue?
Thank you for any input!
racerjames76
Silver - Posts: 581
Silver spacespace
Joined: November 22, 2008
Location: Ohio, United States
Posted: February 20, 2013 at 9:32 AM / IP Logged Link to Post Post Reply Quote racerjames76
The timing is indeed very important. We use only audiovox and clifford systems for this reason.
To master and control electricity is perfection. *evil laugh*
Chris Luongo
Platinum - Posts: 3,746
Platinum spaceThis member consistently provides reliable informationspace
Joined: May 21, 2002
Location: Massachusetts, United States
Posted: February 20, 2013 at 6:25 PM / IP Logged Link to Post Post Reply Quote Chris Luongo
Helps to know what kind of remote starter you're installing.
Not everyone will agree with me, but I just hook up ignition and accessory and call it a day. The car will start and run fine without all those resistors.
I've heard rumors that this can leave "soft" codes that won't turn on a check engine light, but that the GM mechanics will see while scanning the car. I haven't confirmed this, though.
offroadzj
Gold - Posts: 2,041
Gold spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: June 03, 2005
Location: New York, United States
Posted: February 20, 2013 at 8:36 PM / IP Logged Link to Post Post Reply Quote offroadzj
Before the idatalink data modules came out, I always used to do the same as Chris and I never once had a problem. To be honest, I never even installed tach on those since the BCM would take over on accessory drop. But as with him, I couldn't tell you if any of them ever had any 'soft' codes.
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Mike M2
Platinum - Posts: 2,652
Platinum spacespace
Joined: June 29, 2005
Location: United States
Posted: February 20, 2013 at 8:44 PM / IP Logged Link to Post Post Reply Quote Mike M2

I never have issues with them using Audiovox. Now there's a better way, use Idatalink RS interfaces. They now have full remote start software that doesn't even need a remote start, you just install the bypass and it does it all right off the factory remote or you can use an optional one button RF.

Mike M2
Tech Manager
CS Dealer Services
Mark Mizenko
Copper - Posts: 460
Copper spacespace
Joined: October 13, 2004
Location: Pennsylvania, United States
Posted: February 22, 2013 at 12:35 PM / IP Logged Link to Post Post Reply Quote Mark Mizenko

Ignition, accessory and a key in a box, like Chris said.... however I was blasted on this forum for that method, so I dont give advice on here anymore, but I'll agree with Chris about those resistor wires and the soft codes.

digitalcustoms
Member - Posts: 5
Member spacespace
Joined: March 30, 2015
Location: Ohio, United States
Posted: March 30, 2015 at 11:33 AM / IP Logged Link to Post Post Reply Quote digitalcustoms

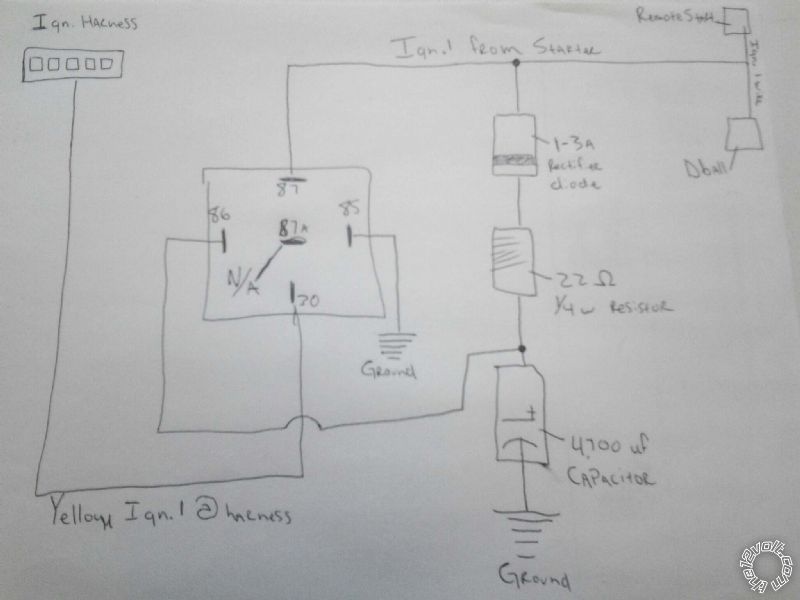

new gm's with multiplex 2007+ -- posted image.
You need to slow down the signal in the Ign.1 wire so the acc circuit can power up first on units where the gwr comes on at the same time as acc and ign.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: March 30, 2015 at 11:37 AM / IP Logged Link to Post Post Reply Quote howie ll
Funny, I've been installing on late UK Astras (same electrics as Cruze), Viper 5X04, no problems.
digitalcustoms
Member - Posts: 5
Member spacespace
Joined: March 30, 2015
Location: Ohio, United States
Posted: March 30, 2015 at 11:39 AM / IP Logged Link to Post Post Reply Quote digitalcustoms
To hotwire a GM with multiplex, you take 2 12v+ wires hold one to acc, then put the other to ign1, and as soon as you power ign 1 drop voltage off at acc and the vehicles computer thinks the key is being turned and sends a crank signal. to remote start acc need to have voltage first, then ign.1 and cut voltage off at acc. the delay circuit posted above slows down the signal in ign.1 1/4 second to let acc fire up first.
digitalcustoms
Member - Posts: 5
Member spacespace
Joined: March 30, 2015
Location: Ohio, United States
Posted: March 30, 2015 at 11:44 AM / IP Logged Link to Post Post Reply Quote digitalcustoms
[QUOTE=howie ll] Funny, I've been installing on late UK Astras (same electrics as Cruze), Viper 5X04, no problems.
viper units the GWR comes on before the acc and ign1 so it won't need that delay.
