2013 Hyundai Santa Fe Vehicle Alarm/RS Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
june1100
Member - Posts: 2
Member spacespace
Joined: October 17, 2005
Location: Arkansas, United States
Posted: March 11, 2013 at 9:43 AM / IP Logged Link to Post Post Reply Quote june1100
I am in need of the wiring information for a 2013 santa fe regular key, for an alarm/remote start.
shortcircuit161
Silver - Posts: 556
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: August 29, 2010
Location: Pennsylvania, United States
Posted: March 11, 2013 at 1:00 PM / IP Logged Link to Post Post Reply Quote shortcircuit161
Enjoy!
DIRECTWIRE™ WIRING INFORMATION - HYUNDAI / SANTA FE / 2013-2016 / Remote Start
12volts red (40A) + ignition switch, black 6 pin plug, pin 1
Starter black + ignition switch, black 6 pin plug, pin 3
Second Starter N/A
Ignition green + ignition switch, black 6 pin plug, pin 4
Second Ignition N/A
Third Ignition N/A
Accessory blue + ignition switch, black 6 pin plug, pin 2
Second Accessory pink + ignition switch, black 6 pin plug, pin 6
Keysense GREEN/ orange - ignition key switch, white 6 pin plug, pin 5
Power Lock BROWN / orange - dash fuse box, rear, white 32 pin plug (E), pin 5
Power Unlock yellow/black (passenger doors) - dash fuse box, rear, white 32 pin plug (E), pin 6
Notes: To unlock the driver door, you can 5 wire the driver unlock motor or use white (-) at the relay box behind the glove box, white 24 pin plug, pin 21.
Lock Motor orange 5 wire dash fuse box, gray or black 51 pin plug (C), pin 48
Unlock Motor blue 5 wire driver kick, white 48 pin plug, pin 21
Parking Lights+ GREEN/ black (L); yellow/black (R) + dash fuse box, white 24 pin plug (D), pins 14, 16
Parking Lights- pink - headlight switch, white 16 pin plug, pin 15
Hazards pink - dash fuse box, rear, white 24 pin plug (H), pin 13
Turn Signal(L) yellow (F); gray (R) + dash fuse box, blu 31 pin plug (A), pin 6; wht 24 pin plug (D), pin 21
Turn Signal(R) white (F); WHITE/ black (R) + dash fuse box, blu 31 pin plug (A), pin 2; wht 24 pin plug (D), pin 1
Reverse Light red + dash fuse box, gray or black 51 pin plug (C), pin 41
Door Trigger gray/orange - power window main switch, white 32 pin plug, pin 21
Dome Supervision brown - left front pillar, white 34 pin plug, pin 29, or white 36 pin plg, pin 23
Trunk/Hatch Pin white - dash fuse box, white 24 pin plug (D), pin 24
Hood Pin pink/black - dash fuse box, blue 31 pin plug (A), pin 4
Trunk/Hatch Release gray/black (rear handle switch) - dash fuse box, white 24 pin plug (D), pin 3
Notes: On models with power tail gate, the open/close is GREEN/ black (-) in the driver kick, white 48 pin plug, pin 45.
Power Sliding Door N/A
Factory Alarm Arm brn/blk (key lock); RED / og (detect)(Tech Doc 1300) - and open power window main switch, white 32 pin plug, pins 22, 24
Factory Alarm Disarm pink/blk (key unlock); RED / org(lock/unlock detect) both - power window main switch, white 32 pin plug, pins 23, 24
Disarm No Unlock (see factory alarm disarm)
Tachometer white, blue, red, or white (2.0L or 2.4L) ac lower front of engine, black 12 pin plug, pin 2, 8, 4, or 6
Notes: On 3.3L models, the fuel injectors are red, white, red, black, green, or green in the underhood fuse box, black 96 pin plug, pin 2, 34, 15, 35, 79, or 48.
Wait to start N/A
Brake Wire RED / orange + driver kick, black 46 pin plug, pin 20
Parking Brake gray/orange - dash fuse box, white 24 pin plug (D), pin 2
Horn Trigger gray - driver kick, black 46 pin plug, pin 30
Memory Seat 1 blue - power window main switch, white 32 pin plug, pin 19
Memory Seat 2 RED / black - power window main switch, white 32 pin plug, pin 18
Memory Seat 3 N/A -
Also, look in the download section for Tech Tip 1300 for the door locks to work properly. Very easy vehicle otherwise (in my opinion).
dbmophead
Member - Posts: 2
Member spacespace
Joined: February 18, 2012
Location: Florida, United States
Posted: April 23, 2014 at 8:55 AM / IP Logged Link to Post Post Reply Quote dbmophead
So im having an issue finding the tach wire on this vehicle. I have done multiple remote starts before and never had an issue finding a tach wire. There is only one 12 pin plug on the front side of the motor so figured that this one would be easy but I cannot find the injector wiring in that plug. I have tested all of the wires and have had no luck. Anyone else run into this issue on this model ?
june1100
Member - Posts: 2
Member spacespace
Joined: October 17, 2005
Location: Arkansas, United States
Posted: April 23, 2014 at 9:13 AM / IP Logged Link to Post Post Reply Quote june1100
I used voltage for tach and had no issues but it also depends on what brand and model system you are installing. Good luck
dbmophead
Member - Posts: 2
Member spacespace
Joined: February 18, 2012
Location: Florida, United States
Posted: April 23, 2014 at 9:52 AM / IP Logged Link to Post Post Reply Quote dbmophead
what wire did you use ? and location ?
wissam1981
Copper - Posts: 116
Copper spacespace
Joined: July 24, 2014
Location: Florida, United States
Posted: January 10, 2015 at 8:11 AM / IP Logged Link to Post Post Reply Quote wissam1981

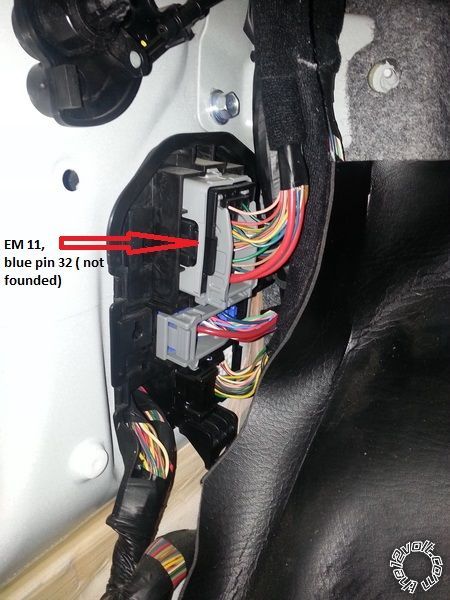

2013 Hyundai Santa Fe Vehicle Alarm/RS Wiring -- posted image.
any help!!!
shark mobile
Copper - Posts: 83
Copper spacespace
Joined: November 22, 2014
Location: Ontario, Canada
Posted: January 10, 2015 at 1:58 PM / IP Logged Link to Post Post Reply Quote shark mobile
On 3.3L models, the fuel injectors are red, white, red, black, green, or green in the underhood fuse box, black 96 pin plug, pin 2, 34, 15, 35, 79, or 48.
Solder, tape, repeat!
wrath
Member - Posts: 1
Member spacespace
Joined: December 31, 2011
Location: Colorado, United States
Posted: February 14, 2015 at 9:24 AM / IP Logged Link to Post Post Reply Quote wrath
Having the same issue with blue 32 (data) not present in the location anyone know an alternative location
Alarmer1
Member - Posts: 5
Member spacespace
Joined: October 21, 2002
Location: United States
Posted: October 25, 2015 at 1:14 PM / IP Logged Link to Post Post Reply Quote Alarmer1
I have the same issue...any luck with a solution?
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: October 27, 2015 at 2:01 PM / IP Logged Link to Post Post Reply Quote howie ll
Just look at the injectors, each will have two wires, one colour is common to all the injectors, use any of the other colours, job done.
