Hi guys. Do you have 12 Focus Sony 8" My Ford Touch Wiring Diagram? Any help will be appreciated. Thanks..

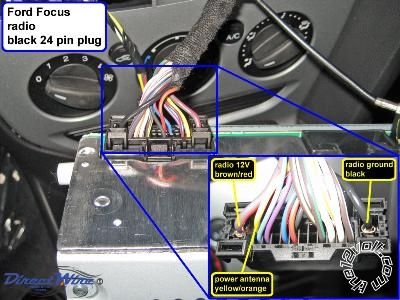

Here you go : Radio 12V     BROWN / red     +     radio, black 24 pin plug, pin 1 Radio Ground     black     -     radio, black 24 pin plug, pin 13 Radio Ignition     (Infotainment CAN) Radio Illumination     brown (without SYNC)     + dimmer     radio controls, 8 pin plug, pin 3 Factory Amp Turn-on     yellow/purple     +     radio, black 26 pin plug, pin 18 Power Antenna     yellow/orange     +     radio, black 24 pin plug, pin 2 Left Front Speaker (+/-)     white - WHITE/ brown     +,-     radio, black 24 pin plug, pins 22 and 10 On models with amplifiier, the speaker wires are white - WHITE/ brown (woofer); PURPLE / orange - yellow/orange (tweeter) at the amplifier in LF cargo floor, gray 16 pin plug, pins 2 and 10; 3 and 11. Right Front Speaker (+/-)     WHITE/ purple - WHITE/ orange     +,-     radio, black 24 pin plug, pins 23 and 11 On models with amplifiier, the speaker wires are WHITE/ purple - WHITE/ orange (woofer); GREEN/ orange - gray/orange (tweeter) at the amplifier in LF cargo floor, gray 16 pin plug, pins 6 and 14; 7 and 15. Left Rear Speaker (+/-)     WHITE/ green or BROWN / green - BROWN / yellow     +,-     radio, black 24 pin plug, pins 21 and 9 On models with amplifiier, the speaker wires are WHITE/ green - BROWN / yellow at the amplifier in LF cargo floor, gray 16 pin plug, pins 4 and 12. Right Rear Speaker (+/-)     BROWN / white - BROWN / blue     +,-     radio, black 24 pin plug, pins 24 and 12 On models with amplifiier, the speaker wires are BROWN / white - BROWN / blue at the amplifier in LF cargo floor, gray 16 pin plug, pins 8 and 16. Center Channel (+/-)     blue - PURPLE / green     +,-     radio, black 24 pin plug, pins 20 and 8 On models with amplifiier, the speaker wires are green - gray / YELLOW at the amplifier in LF cargo floor, gray 16 pin plug, pins 1 and 9. Subwoofer (+/-)     purple - yellow (1); GREEN/ purple - gray (2)     +,-     amplifier in LF cargo floor, blue 16 pin plg, pins 1 and 9; 2 and 10 Aux. Audio Input Left (+/-)     blue/red - (shield) (without SYNC)     +,-     radio, black 24 pin plug, pins 17 and 6 Aux. Audio Input Right (+/-)     BROWN / red - (shield) (without SYNC)     +,-     radio, black 24 pin plug, pins 18 and 6 RSE Video (+/-)     blu-grn (rear view cam); brn-brn/yel (aux. video)     +,-     SYNC Mod/display, bk 54 pin plg, pins 14-15; 34-35 RSE Audio Left (+/-)     green - gray or blue - gray/orange (SYNC audio)     +,-     radio, black 26 pin plug, pins 12 and 25 RSE Audio Right (+/-)     purple - yellow or pur/grn - brn/wht (SYNC audio)     +,-     radio, black 26 pin plug, pins 13 and 26 Satellite Radio 12 Volts     N/A Satellite Radio Ground     N/A Satellite Radio Ignition     N/A Satellite Radio Antenna     N/A Satellite Audio Left (+/-)     N/A Satellite Audio Right (+/-)     N/A Item     Size     Depth     Location Headunit     irregular center of dash Left Front Speaker     6 x 8     3.8     left front door Left Front Tweeter   left front door Right Front Speaker     6 x 8     3.8     right front door Right Front Tweeter   right front door Left Rear Speaker     6 x 8     4 - 5     left rear door Left Rear Tweeter   left rear door Right Rear Speaker     6 x 8     4 - 5     right rear door Right Rear Tweeter   right rear door Center Channel   top center of dash Subwoofer   right side of cargo compartment Left Front Headrest    Right Front Headrest    Left Rear Headrest    Right Rear Headrest    Satellite Radio Tuner     (built into radio) Gary Sather

tonanzith wrote: Here you go : Radio 12V     BROWN / red     +     radio, black 24 pin plug, pin 1 Radio Ground     black     -     radio, black 24 pin plug, pin 13 Radio Ignition     (Infotainment CAN) Radio Illumination     brown (without SYNC)     + dimmer     radio controls, 8 pin plug, pin 3 Factory Amp Turn-on     yellow/purple     +     radio, black 26 pin plug, pin 18 Power Antenna     yellow/orange     +     radio, black 24 pin plug, pin 2 Left Front Speaker (+/-)     white - WHITE/ brown     +,-     radio, black 24 pin plug, pins 22 and 10 On models with amplifiier, the speaker wires are white - WHITE/ brown (woofer); PURPLE / orange - yellow/orange (tweeter) at the amplifier in LF cargo floor, gray 16 pin plug, pins 2 and 10; 3 and 11. Right Front Speaker (+/-)     WHITE/ purple - WHITE/ orange     +,-     radio, black 24 pin plug, pins 23 and 11 On models with amplifiier, the speaker wires are WHITE/ purple - WHITE/ orange (woofer); GREEN/ orange - gray/orange (tweeter) at the amplifier in LF cargo floor, gray 16 pin plug, pins 6 and 14; 7 and 15. Left Rear Speaker (+/-)     WHITE/ green or BROWN / green - BROWN / yellow     +,-     radio, black 24 pin plug, pins 21 and 9 On models with amplifiier, the speaker wires are WHITE/ green - BROWN / yellow at the amplifier in LF cargo floor, gray 16 pin plug, pins 4 and 12. Right Rear Speaker (+/-)     BROWN / white - BROWN / blue     +,-     radio, black 24 pin plug, pins 24 and 12 On models with amplifiier, the speaker wires are BROWN / white - BROWN / blue at the amplifier in LF cargo floor, gray 16 pin plug, pins 8 and 16. Center Channel (+/-)     blue - PURPLE / green     +,-     radio, black 24 pin plug, pins 20 and 8 On models with amplifiier, the speaker wires are green - gray / YELLOW at the amplifier in LF cargo floor, gray 16 pin plug, pins 1 and 9. Subwoofer (+/-)     purple - yellow (1); GREEN/ purple - gray (2)     +,-     amplifier in LF cargo floor, blue 16 pin plg, pins 1 and 9; 2 and 10 Aux. Audio Input Left (+/-)     blue/red - (shield) (without SYNC)     +,-     radio, black 24 pin plug, pins 17 and 6 Aux. Audio Input Right (+/-)     BROWN / red - (shield) (without SYNC)     +,-     radio, black 24 pin plug, pins 18 and 6 RSE Video (+/-)     blu-grn (rear view cam); brn-brn/yel (aux. video)     +,-     SYNC Mod/display, bk 54 pin plg, pins 14-15; 34-35 RSE Audio Left (+/-)     green - gray or blue - gray/orange (SYNC audio)     +,-     radio, black 26 pin plug, pins 12 and 25 RSE Audio Right (+/-)     purple - yellow or pur/grn - brn/wht (SYNC audio)     +,-     radio, black 26 pin plug, pins 13 and 26 Satellite Radio 12 Volts     N/A Satellite Radio Ground     N/A Satellite Radio Ignition     N/A Satellite Radio Antenna     N/A Satellite Audio Left (+/-)     N/A Satellite Audio Right (+/-)     N/A Item     Size     Depth     Location Headunit     irregular center of dash Left Front Speaker     6 x 8     3.8     left front door Left Front Tweeter  Â left front door Right Front Speaker     6 x 8     3.8     right front door Right Front Tweeter  Â right front door Left Rear Speaker     6 x 8     4 - 5     left rear door Left Rear Tweeter  Â left rear door Right Rear Speaker     6 x 8     4 - 5     right rear door Right Rear Tweeter  Â right rear door Center Channel  Â top center of dash Subwoofer  Â right side of cargo compartment Left Front Headrest  Â  Right Front Headrest  Â  Left Rear Headrest  Â  Right Rear Headrest  Â  Satellite Radio Tuner     (built into radio)

Thanks a lot but I need which wires are going where do you have a diagram style of that?

Uhm, I visual diagram no. But ut clearly states the wires pin location in the radio harness as well as states the wire colors from the amp to the speakers if equipped. If you can't work with this pin out then I'm sorry you need actual help. Or perhaps alldata can give yiu a visual but this is usually more understandable than alldata.Gary Sather

tonanzith: Really appreciate your help. I am upgrading my audio with Sony and my car has only 24-pin plug but the sony have two more which are 24-pin and 54-pin. The problem is that I do not know how I will make the connections between 3 plugs. Sony's 24-pin plug is exactly the same as my car's but I need to figure out how I will make the wire connection between the three plugs any help will be appreciated. Thanks..
