2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial


Post ReplyPost New Topic
< Prev Topic Next Topic >
smokeman1
Platinum - Posts: 1,588
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: September 14, 2009
Location: Wisconsin, United States
Posted: June 13, 2013 at 8:08 PM / IP Logged

Installed a Clifford 20.7x with DB-ALL in wire to wire mode in a 2007 Dodge Nitro, factory keyless entry, NO factory alarm.  I was tempted to do this one D2D but chickened out.  DB-ALL flashed with 401.CHRYSLER v5.06.  DB-ALL programed first time per the instructions.

Was a pretty easy install. Four connections at ignition switch, three to 12 Volt Constant, Parking Light wire, Ground wire, and Horn.     Brake, TACH, Ignition, starter, GWR status, and door locks were through the DB-ALL.  Lots of room under the dash and a easy access grommet to the engine compartment, left side of drivers side firewall.

Also was removing the sometimes working, mostly not, Compustar CM 5200 with a PKUCH2X. The Compustar was installed by a local install shop. NO Hood pin installed and no connections were soldered. Most connections had crimp caps. 12 volt was just wraped and taped, NO solder.

2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.

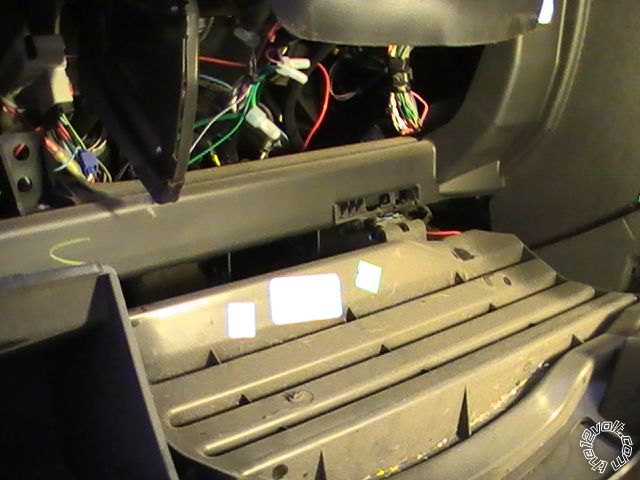

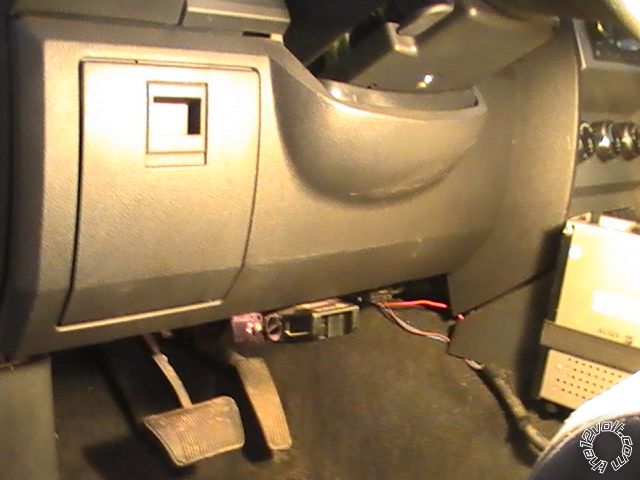

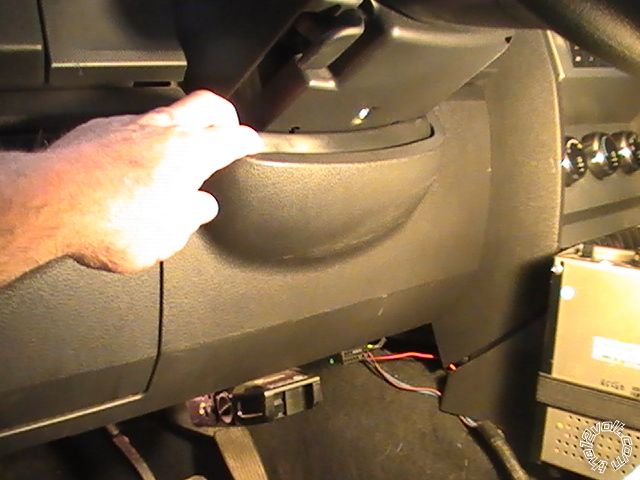

Dash panel removes by pulling down from under the steering column and then sliding it to the left.

2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.

2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.

2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.

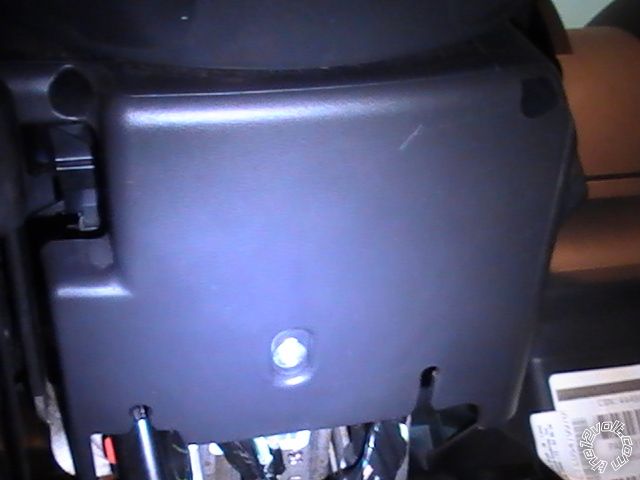

Lower steering cover is held in place by three T-15 Torx screws.

2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.

2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.

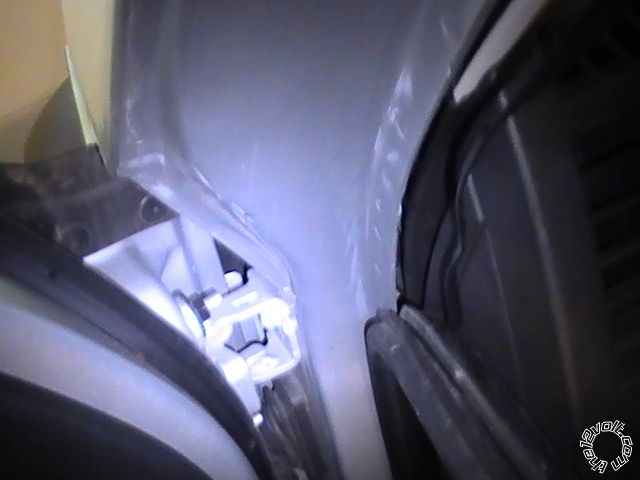

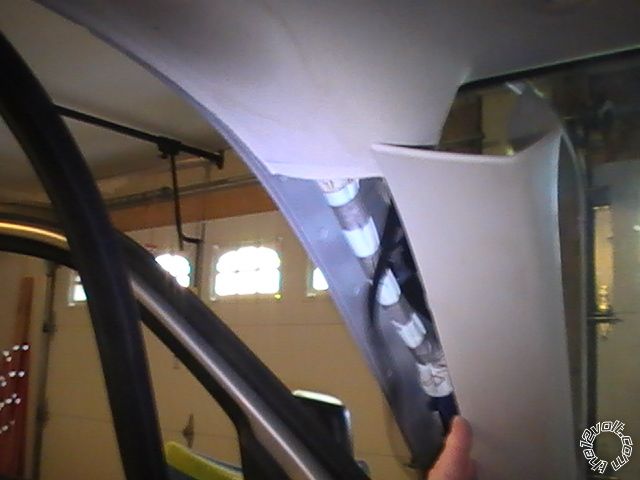

Drivers door weather seal pulled back to remove "A" pillar cover to run antenna wire up to windshield.

2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.

2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.

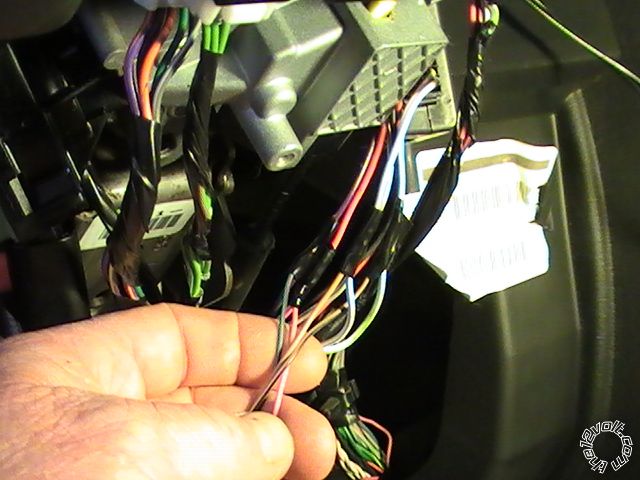

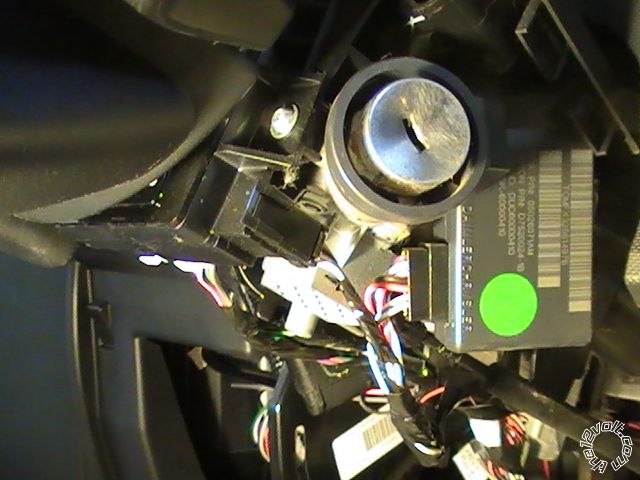

Key Cylinder and four connections at ignition switch.  MUX, Ignition, CAN High, and CAN Lo.

2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.

2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.

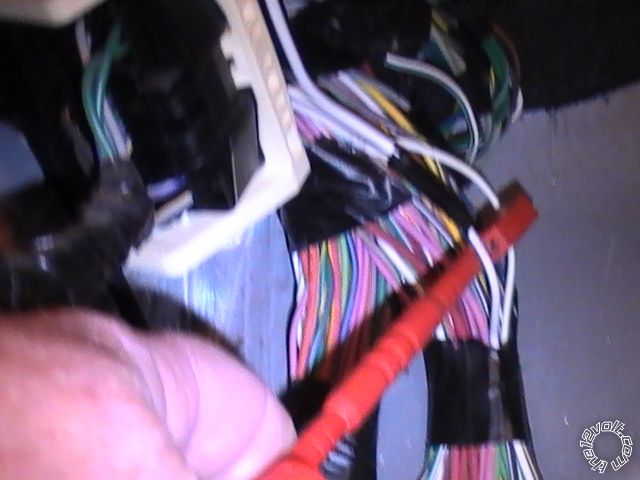

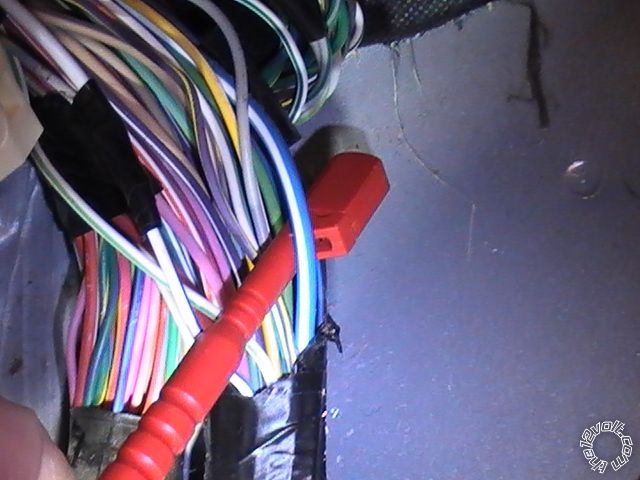

Blue/White, Rear Defrost in DKP, 12 + Latched,  and Parking Light, WHITE/ Violet, + in DKP

2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.

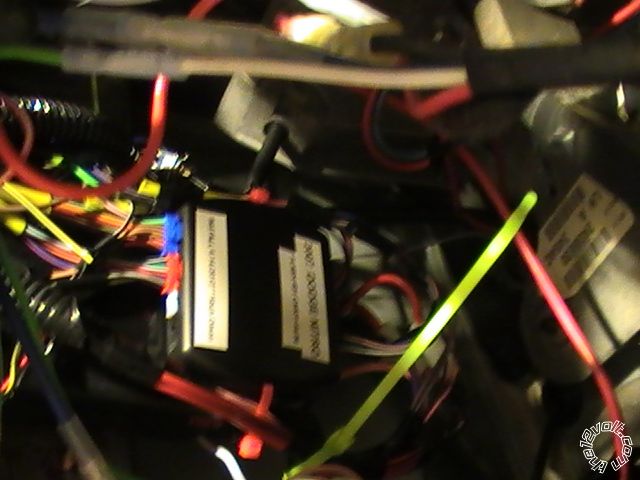

Clifford and DB-ALL all tucked up above DKP

2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.

2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.

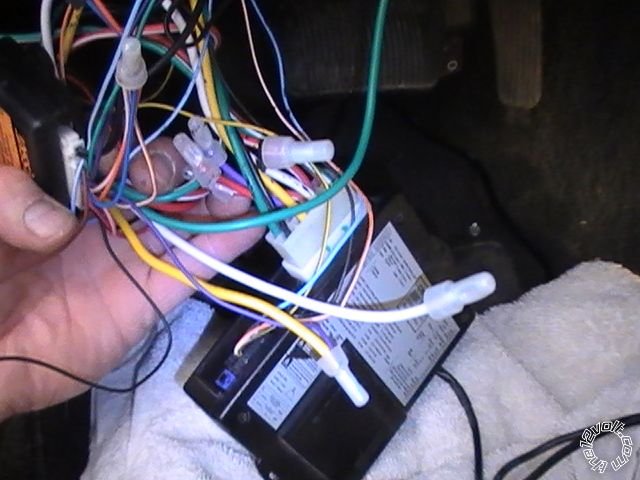

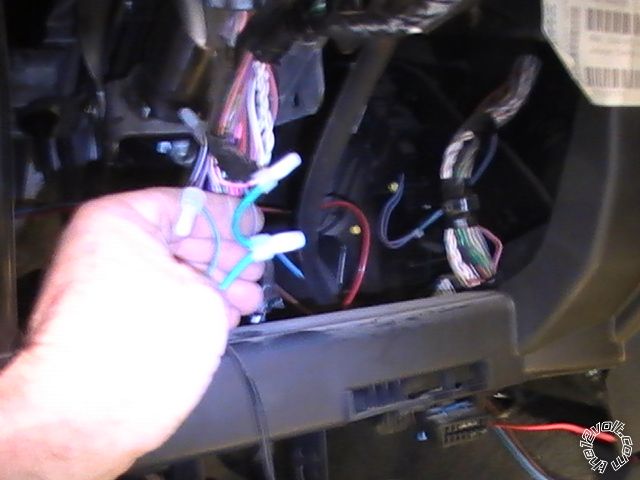

Compustar system and connections being removed.

When all else fails, Read the Instructions
Support the12volt.com Make a Donation
kreg357
Platinum - Posts: 7,802
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: June 13, 2013 at 9:25 PM / IP Logged
Nice Pictorial and great photos.   2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.
You can always learn something when removing a problem system. Surprised that a Compustar system,
that has a lifetime warranty, was installed like that. And without a Hood Pin! Wonder if the PKUMUX2X was
part of the problem due to it's "chip and antenna" transponder bypass. The new "Data" style ones work
so much better.
Soldering is fun!
smokeman1
Platinum - Posts: 1,588
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: September 14, 2009
Location: Wisconsin, United States
Posted: June 14, 2013 at 7:25 PM / IP Logged
I was very surprised that a Install Shop would do an install without the hood pin. Quite a liability, should something have happened.
Thank you for your positive comments. I owe all that I know, to this site and the Pro's who supply their advice and guidance. Without it I'd probably still be trying this with scotchloks and duct tape.2007 Dodge Nitro, Clifford 20.7x with DB-ALL Pictorial -- posted image.
When all else fails, Read the Instructions
Support the12volt.com Make a Donation
lucasoil4u
Copper - Posts: 317
Copper spacespace
Joined: May 11, 2009
Location: Minnesota, United States
Posted: July 17, 2013 at 2:52 PM / IP Logged
Good you got everything figured out!
lucasoil4u
Copper - Posts: 317
Copper spacespace
Joined: May 11, 2009
Location: Minnesota, United States
Posted: August 23, 2013 at 8:44 AM / IP Logged
Most shops dont use metal hood pins in Mn cause they will rust out in 2 months. Mercury switches FTW
