adding tailgate actuator connected to aux


Post ReplyPost New Topic
< Prev Topic Next Topic >
texas-al
Member - Posts: 25
Member spacespace
Joined: January 02, 2009
Location: Texas, United States
Posted: July 05, 2013 at 1:30 AM / IP Logged
Hello everyone. I have a question, and I am hoping someone can help. I have a 2008 Chevy Silverado 5.3 engine Crew cab. It has a Viper 5901 two way alarm. I just purchase a tailgate power actuator (2 wire model). I want to connect this actuator to open with my AUX button. I know I will need to use a relay to make this work.
Questions:
Will I need to use one AUX channel or will I have to use two?
Do you guys have any other advice?
I really don't want to damage my alarm. It has worked flawlessly for 4 years, so I would really appreciate your expertise. Thanks in advance for your time.

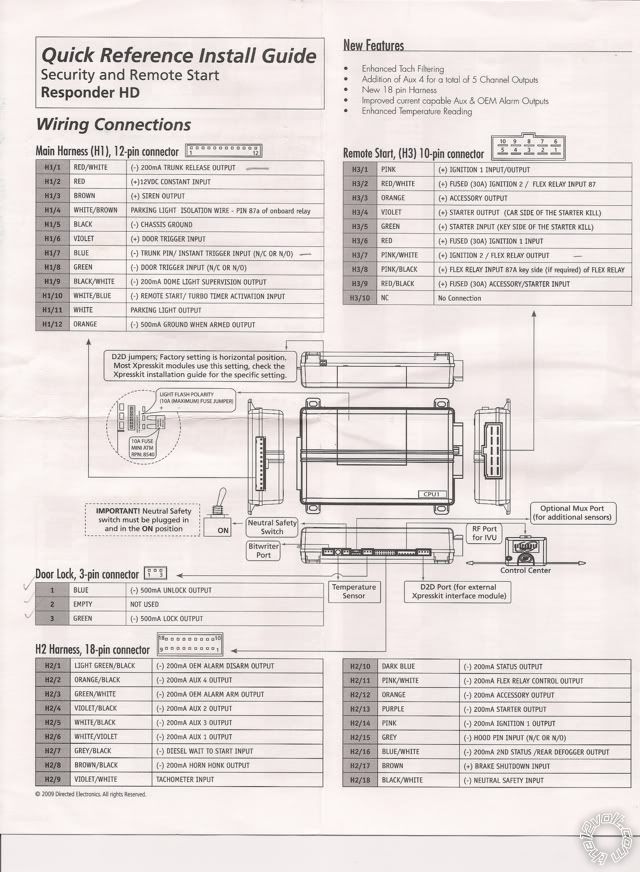

adding tailgate actuator connected to aux -- posted image.
texas-al
Member - Posts: 25
Member spacespace
Joined: January 02, 2009
Location: Texas, United States
Posted: July 05, 2013 at 1:32 AM / IP Logged
Here are the tailgate instructions:
https://www.dropbox.com/s/usi3kal3975kg74/PL8120Q%20POP%20LOCK%20INSTALL%20INSTRUCTIONS.pdf
texas-al
Member - Posts: 25
Member spacespace
Joined: January 02, 2009
Location: Texas, United States
Posted: July 05, 2013 at 2:06 AM / IP Logged
One more thing I need to clarify. I need the actuator to lock/unlock with the AUX button. I don't want to set it up with the regular door actuators because I need this door actuator to be totally separate from the door lock setup (for security reasons). If somebody were to break into the truck, they could simply push the unlock button, and gain access to the contents that is being secured in the bed of the truck (I have a bed metal cover).
texas-al
Member - Posts: 25
Member spacespace
Joined: January 02, 2009
Location: Texas, United States
Posted: July 05, 2013 at 8:43 PM / IP Logged
Any advice would greatly be appreciated.
BUMP.
chev104275
Gold - Posts: 1,428
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: July 06, 2013 at 6:32 AM / IP Logged
https://www.the12volt.com/relays/relaydiagram32.html
Should work for you
If i Can't Install it    I Don't need it   Joe
texas-al
Member - Posts: 25
Member spacespace
Joined: January 02, 2009
Location: Texas, United States
Posted: July 06, 2013 at 3:30 PM / IP Logged
You are a genius! That is exactly what I needed. Thank you very much!
chev104275
Gold - Posts: 1,428
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: July 06, 2013 at 3:41 PM / IP Logged
No problem glad I could help
If i Can't Install it    I Don't need it   Joe
