2014 Kia Optima Remote Start Pictorial


Post ReplyPost New Topic
< Prev Topic Next Topic >
chev104275
Gold - Posts: 1,396
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: January 23, 2014 at 10:29 AM / IP Logged
This is a 2014 Kia Optima Regular Key
This car has no transponder. Key and remote in one. The remote doesnt work when car is running.
I used a DEI 4103
    Disassembly
2014 Kia Optima Remote Start Pictorial -- posted image.

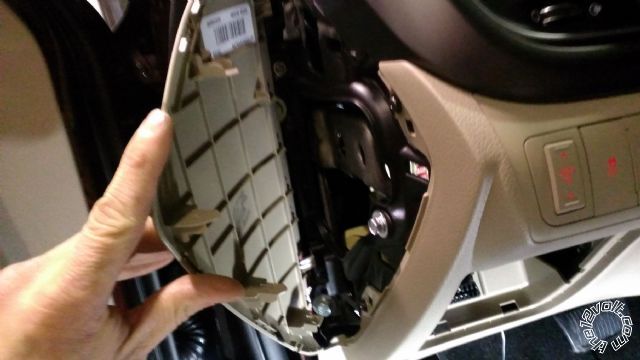

    Plastic clips hold the side cover on use a non marring tool to remove
2014 Kia Optima Remote Start Pictorial -- posted image.

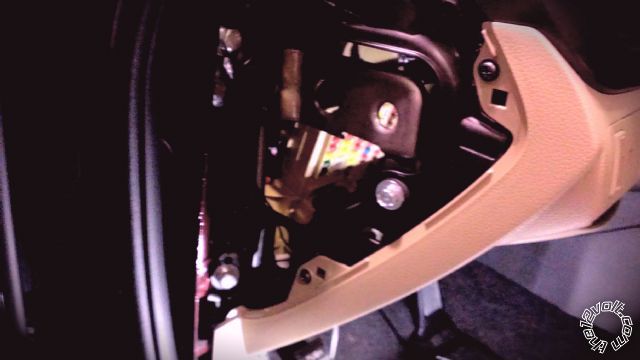

    Under the cover is 2 phillps head screws holding on the left side dash
2014 Kia Optima Remote Start Pictorial -- posted image.

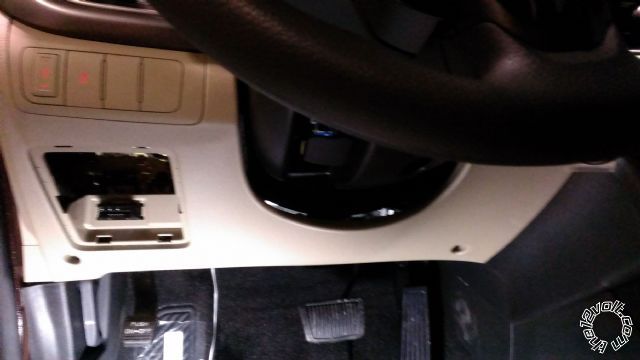

    Overall dash view    Note the 2 bottom corners have 2 phillps head screws and the rest is held in by plastic clips
2014 Kia Optima Remote Start Pictorial -- posted image.

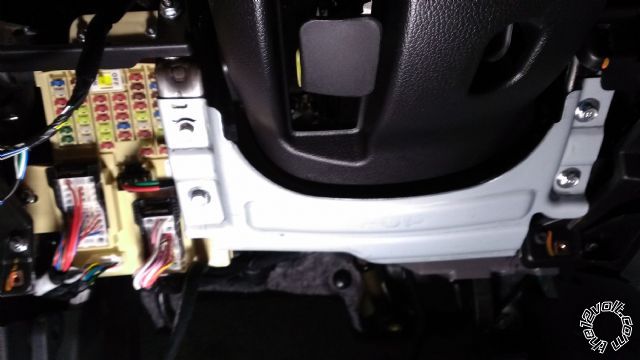

    Under dash metal is held in by 4 10mm Bolts
2014 Kia Optima Remote Start Pictorial -- posted image.

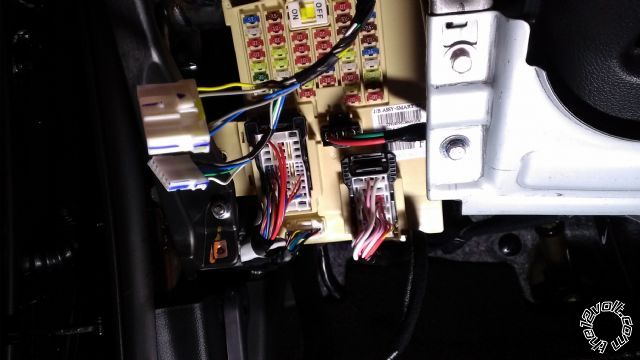

    Overall Fusebox View
2014 Kia Optima Remote Start Pictorial -- posted image.

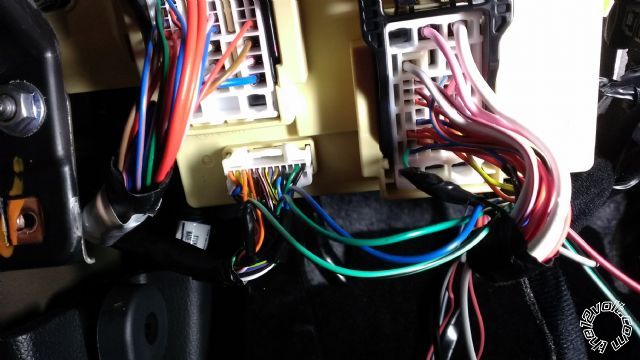

     Closer view of fusebox bottom left connector is where you will find the locks,FAD,trunk release, Drivers door pin
2014 Kia Optima Remote Start Pictorial -- posted image.

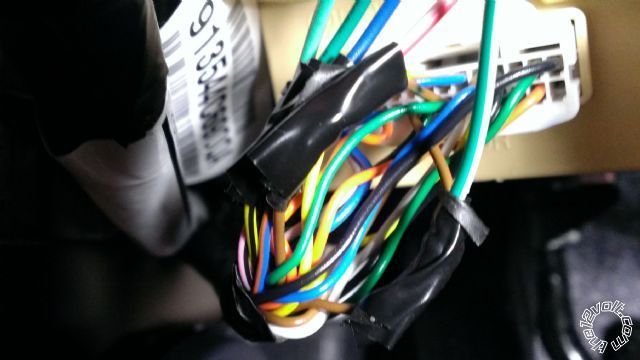

    Drivers door pin (brown) Pin 16 This is used to turn the auto lights off after shut down
2014 Kia Optima Remote Start Pictorial -- posted image.

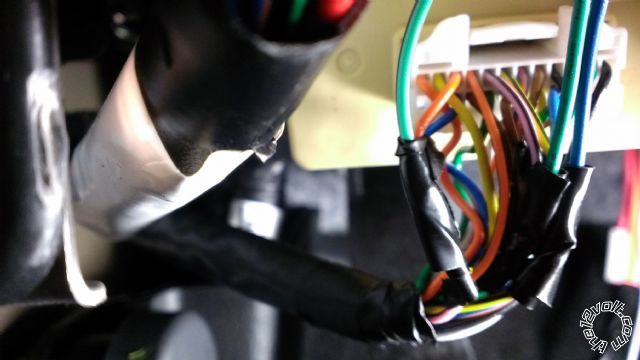

    Factory alarm Disarm (orange) Pin 3
2014 Kia Optima Remote Start Pictorial -- posted image.

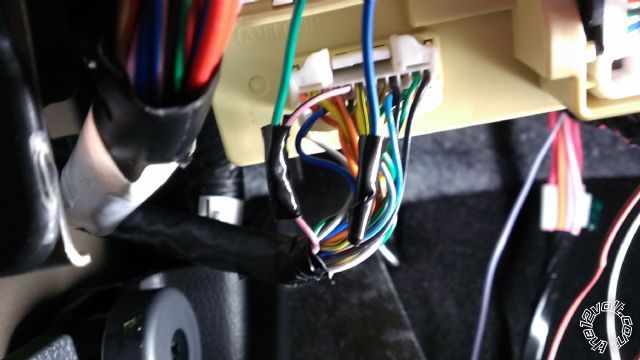

    Lock Type B (pink/Black) Pin 5
    Unlock Type B (Yellow/Black) Pin 6
2014 Kia Optima Remote Start Pictorial -- posted image.

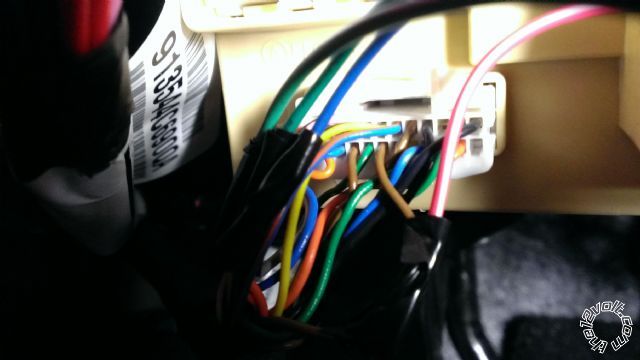

    Trunk Release Negitive (brown) Pin 18
2014 Kia Optima Remote Start Pictorial -- posted image.

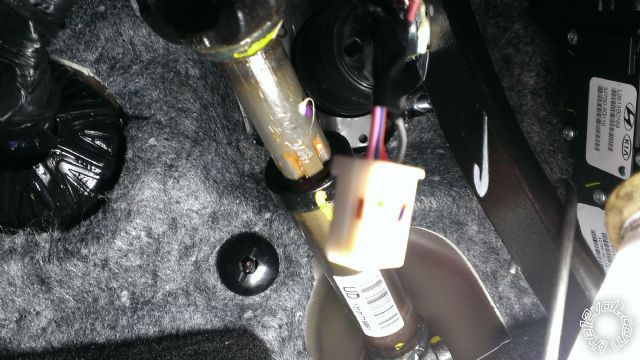

    Brake Wire (Gray) @ Brake switch
2014 Kia Optima Remote Start Pictorial -- posted image.

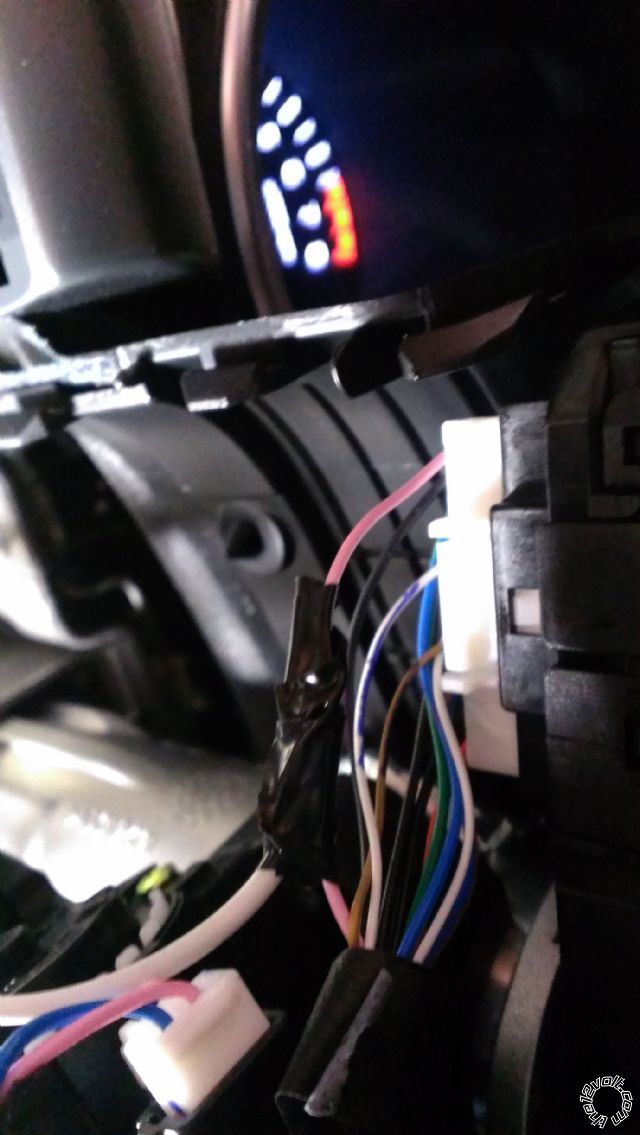

    Parking lights Negitive (pink) pin 1 @ light switch
2014 Kia Optima Remote Start Pictorial -- posted image.

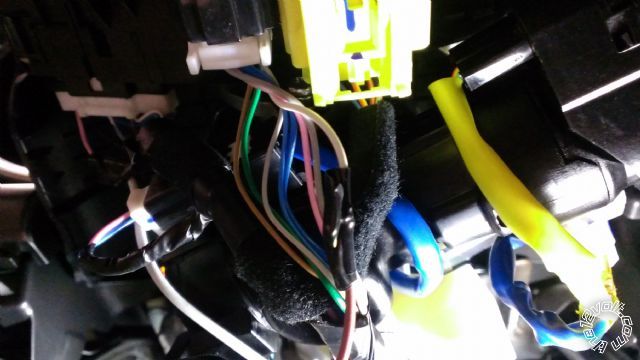

    Horn (white) @ clock spring connector
2014 Kia Optima Remote Start Pictorial -- posted image.

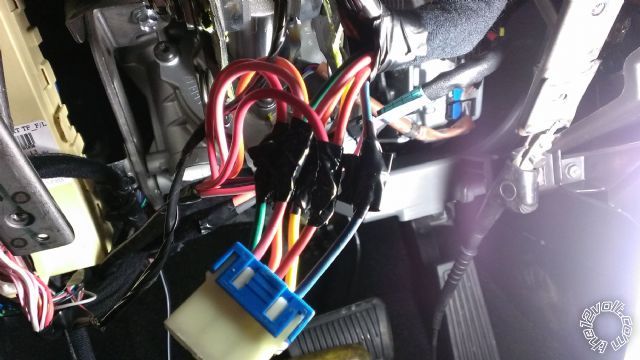

    12 volts (green) Pin 1
    12 volts (Red) Pin 5
    Ingition (pink) Pin4
    Acc1     (orange Pin 2
    Acc2     (Blue) Pin 6
    Starter (Yellow) Pin 3
Not shown Tach I used CYL 4 uncommon wire, Ground I went to the kick panel
If i Can't Install it    I Don't need it   Joe
ziggyb222
Silver - Posts: 593
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: January 04, 2004
Location: Maine, United States
Posted: July 22, 2014 at 1:19 PM / IP Logged
That is a awesome amount of information.. I am doing one soon.Thanks so much!!!!!
