2012 Infiniti G37 Alarm/Remote Start, Stereo Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
voltageGSR
Member - Posts: 16
Member spacespace
Joined: October 13, 2003
Location: Pennsylvania, United States
Posted: September 26, 2014 at 8:11 PM / IP Logged
remote start wiring diagram please
planning to install Avital 4113LX Remote Start with Two 1-Button
Thanks!
tonanzith
Gold - Posts: 583
Gold spaceThis member consistently provides reliable informationspace
Joined: July 18, 2008
Location: Washington, United States
Posted: September 26, 2014 at 8:18 PM / IP Logged
12 Volts     white (40A)     +     BCM in passenger kick, black 3 pin plug, pin 1
Second 12 Volts     red (80A)     +     dash fuse box, rear, white 1 pin plug, pin 1
Starter     brown (push-button start)     -     push-button ign sw or BCM in pass kick, gray 40 pin plug, pin 29
Second Starter     red (sedan, coupe); brown (convertible)     -     BCM in passenger kick, gray 40 pin plug, pin 21
Ignition     lt. blue (sedan, coupe); red (convertible)     +     BCM in passenger kick, black 40 pin plug, pin 11
Second Ignition     yellow     -     BCM in passenger kick, gray 40 pin plug, pin 16
Third Ignition     N/A
Accessory     beige     +     BCM in passenger kick, black 40 pin plug, pin 31
Second Accessory     beige     +     BCM in passenger kick, black 40 pin plug, pin 24
Third Accessory     N/A
Keysense     lt. blue     +     key slot or BCM in passenger kick, green 40 pin plug, pin 10
Data Bus     gray (clock); white (data)     data     key slot or BCM in passenger kick, black 40 pin plug, pins 9, 10
The security light is white (sedan, coupe); red (convertible) (-) at the BCM in passenger kick, green 40 pin plug, pin 30.
Can Bus High     blue     data     data lnk conn or BCM in passenger kick, black 40 pin plug, pin 20
Can Bus Low     pink     data     data lnk conn or BCM in passenger kick, black 40 pin plug, pin 19
Can Bus Sw     purple (sdn, cpe); lt green (cnv)(pwr wnd sw comm)     data     BCM in passenger kick, green 40 pin plug, pin 21
Power Lock     (use factory alarm arm or insert pin)     -     BCM in passenger kick, green 40 pin plug, pin 37
Power Unlock     (use factory alarm disarm or insert pin)     -     BCM in passenger kick, green 40 pin plug, pin 15
Lock Motor     purple     5 wire     BCM in passenger kick, white 16 pin plug, pin 5
Driver Unlock Motor     green     5 wire     BCM in passenger kick, white 16 pin plug, pin 6
Passenger Unlock Motor     pink     5 wire     BCM in passenger kick, white 16 pin plug, pin 2
Parking Lights (-)     N/A
Parking Lights (+)     red     +     driver kick (w/DRL); dash fuse box, white 10 pin plug, pin 8 (w/o DRL)
Hazards     green     -     BCM in passenger kick, black 40 pin plug, pin 39
Turn Signal (Left)     beige (F); yellow (R)     +     BCM in passenger kick, wht 16 pin plug, pin 15; wht 12 pin plg, pin 6
Turn Signal (Right)     white (sedan, coupe), brown (conv) (F); purple (R)     +     BCM in passenger kick, wht 16 pin plug, pin 14; wht 12 pin plg, pin 1
Headlight     purple (sedan), pink (coupe, conv) (L); red (R)     +     headlights or underhood fuse box, white 8 pin plug, pins 2, 1
AutoLights     N/A
Reverse Light     beige     +     driver kick, harness to rear or radio, white 32 pin plug, pin 19 or 21
Left Front Door Trigger     gray (sedan, coupe); red (convertible)     -     BCM in passenger kick, green 40 pin plug, pin 39
Right Front Door Trigger     red (sedan, coupe); beige (convertible)     -     BCM in passenger kick, green 40 pin plug, pin 13
Left Rear Door Trigger     blue     -     BCM in passenger kick, gray 40 pin plug, pin 38
Right Rear Door Trigger     beige     -     BCM in passenger kick, gray 40 pin plug, pin 37
Dome Supervision     purple (dome lamp); lt. blue (step lamp)     -     BCM in passenger kick, white 16 pin plug, pins 16, 4
Trunk/Hatch Pin     beige (sedan, coupe); green (convertible)     -     BCM in passenger kick, gray 40 pin plug, pin 19
Rear Glass Pin     N/A
Hood Pin     lt. green     -     hood switch or underhood fuse box, white 16 pin plug, pin 14
Trunk/Hatch Release     gray     -     BCM in passenger kick, gray 40 pin plug, pin 36
Trunk Release Motor     lt. green (sedan, coupe); yellow (convertible)     5 wire     BCM in passenger kick, white 12 pin plug, pin 4
Fuel Door Release     (unlocks along with driver door)
Power Sliding Door (Left)     N/A
Power Sliding Door (Right)     N/A
Factory Alarm Arm     purple (sdn, cnv); gray (cpe) (driv door key lock)     -     power window main switch, white 16 pin plug, pin 4 or 6
Factory Alarm Disarm     yellow (sdn); white (cpe, cnv)(dr door key unlock)     double -     power window main switch, white 16 pin plug, pin 6 or 7
Disarm No Unlock     (Intelligent Key and ignition)
Trunk Alarm Shunt     N/A
Tachometer     red (sedan, coupe); brown (convertible)     ac     Power Steering Cntrl Unit behind glove box, wht 12 pin plug, pin 10
Wait to Start     N/A
Neutral Safety     N/A
Clutch Pedal     gray     +     clutch switch, blue 2 pin plug, pin 2
Fuel Pump     pink (sedan, coupe); blue (convertible)     +     driver kick, harness to rear
Rear Defroster     green     - latched     dash fuse box, wht 10 pin plg, pin 4 or BCM, grn 40 pin plug, pin 40
Mirror Defroster     (same as rear defroster)
Left Front Heated Seat     gray (sedan, coupe, conv AT); green (conv MT)     + resistor     driver heated seat switch, white 10 pin plug, pin 2
On models with climate controlled seats, it is pink (+ resistor) at the driver climate controlled seat switch, white 10 pin plug, pin 3.
Right Front Heated Seat     lt. blue     + resistor     passenger heated seat switch, brown 8 pin plug, pin 2
On models with climate controlled seats, it is blue (+ resistor) at the passenger climate controlled seat switch, brown 8 pin plug, pin 3.
Speed Sense     red (sedan, coupe); gray (convertible)     8-Pulse     radio, white 32 pin plug, pin 17 or 22
Brake Wire     pink or brown     +     dash fuse box, wht 10 pin plg, pin 3 or BCM, grn 40 pin plug, pin 7
Parking Brake     beige (A/T); gray (sedan), purple (cpe, cnv) (M/T)     -     parking brake switch, white or black 1 pin plug, pin 1
Also found lt. blue (-) at the radio, white 32 pin plug, pin 18 or 5.
Horn Trigger     lt. green     -     horn switch, gray 8 pin plug, pin 8
Wipers     purple (L); blue (H)     +     wiper motor or underhood fuse box, white 36 pin plug, pins 2, 3
Left Front Window (Up/Down)     (use factory alarm arm/disarm)
Right Front Window (Up/Down)     (see left front window)
Left Rear Window (Up/Down)     white - green (without anti-pinch)     A     driver kick, door harness
Right Rear Window (Up/Down)     lt. blue - lt. green (without anti-pinch)     A     driver kick, door harness

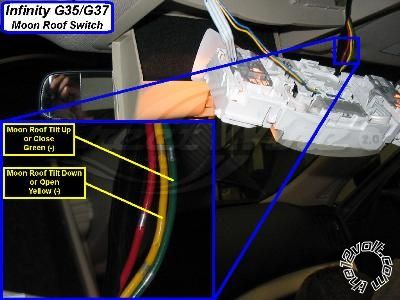

Sun Roof (Open/Close)     pnk - gry (sdn); org - grn (cpe)(with ign on only)     -     sunroof switch, white 3 pin plug, pins 1 - 3
On convertibles, the retractable hardtop open - close are purple - brown (-) at the roof open/close switch, white 6 pin plug, pins 6 - 1.
Sun Roof (Limit/Close)     N/A
Memory Seat 1     brown     -     Auto Drive Position Cntrl Unit right of column, wht 32 pin plug, pin 9
Memory Seat 2     purple     -     Auto Drive Position Cntrl Unit right of column, wht 32 pin plug, pin 25
Memory Seat 3     N/A
Radio 12V     yellow or brown     +     radio, white 20 pin plug, pin 19
Radio Ground     black     -     radio, white 20 pin plug, pin 20
Radio Ignition     purple     +     radio, white 20 pin plug, pin 7
Radio Illumination     blue     +     radio, white 20 pin plug, pin 9 or white 32 pin plug, pin 19
Factory Amp Turn-on     gray     +     radio, white 12 pin plug, pin 9 or white 20 pin plug, pin 1
Power Antenna   radio, 3 pin plug, pin 1
Left Front Speaker (+/-)     blue - white, orange - white, or pink - blue     +,-     radio, white 20 pin plug, pins 2 - 3, or white 12 pin plug, pins 12 - 6
On models with amplifier, the speaker wires are black - white at the amplifier under left rear deck (4 door), or in left side of trunk (2 door), brown 14 pin plug, pins 14 - 9. The tweeter wires are blue - white at the amplifier, brown 14 pin plug, pins 1 - 2.
Right Front Speaker (+/-)     brown - red (or gray) or red - green     +,-     radio, white 20 pin plug, pins 11 - 12, or white 12 pin plug, pins 8 - 2
On models with amplifier, the speaker wires are green - red at the amplifier under left rear deck (4 door), or in left side of trunk (2 door), brown 14 pin plug, pins 5 - 6. The tweeter wires are purple - lt. green at the amplifier, brown 14 pin plug, pins 4 - 3.
Left Rear Speaker (+/-)     lt. green - lt. blue or purple - lt. green     +,-     radio, white 20 pin plug, pins 4 - 5, or white 12 pin plug, pins 11 - 5
On models with amplifier, the speaker wires are blue - pink at the amplifier under left rear deck (4 door), or in left side of trunk (2 door), brown 23 pin plug, pins 4 - 5.
Right Rear Speaker (+/-)     blue - pink or brown - yellow     +,-     radio, white 20 pin plug, pins 13 - 14, or white 12 pin plug, pins 7 - 1
On models with amplifier, the speaker wires are lt. green - yellow at the amplifier under left rear deck (4 door), or in left side of trunk (2 door), brown 23 pin plug, pins 17 - 18.
Center Channel (+/-)     blue - beige (BOSE)     +,-     amplifier, brown 23 pin plug, pins 15 - 16
If equipped, the amplifier is under left rear deck (4 door), or in left side of trunk (2 door).
Subwoofer (+/-)     lt. blue - purple (BOSE)     +,-     amplifier, brown 23 pin plug, pins 2 - 3
If equipped, the amplifier is under left rear deck (4 door), or in left side of trunk (2 door). The subwoofer amp turn-on is gray (+) at the amplifier, brown 23 pin plug, pin 8.
Aux. Audio Input Left (+/-)     white - black (without navigation)     +,-     radio, white 32 pin plug, pins 28 - 27
Aux. Audio Input Right (+/-)     red - black (without navigation)     +,-     radio, white 32 pin plug, pins 29 - 27
The aux. video wires are green - red at the radio, white 16 pin plug, pins 2 - 10 (without navigation).
RSE Video (+/-)     bn - yl (sdn/cpe); lt blu - pu (cnv) (frt display)     +,-     radio, white 24 pin plug, pins 12 - 11
On models with navigation, the front display wires are blue - pink at the radio, white 32 pin plug, pins 8 - 7. The rear view camera wires are white - (shield) at the radio, white 16 pin plug, pins 3 - 12 (without navigation).
RSE Audio Left (+/-)     black - white (satellite audio)     +,-     radio, white 12 pin plug, pins 1 - 5
RSE Audio Right (+/-)     green - red (satellite audio)     +,-     radio, white 12 pin plug, pins 2 - 6
Satellite Radio 12 Volts     yellow (4 door); lt. blue (2 door)     +     Satellite Radio, white 16 pin plug, pin 12
If equipped, the Satellite Radio is under right rear deck (4 door), or in right side of trunk (2 door).
Satellite Radio Ground     (chassis) (4 door); black (2 door)     -     Satellite Radio, white 16 pin plug, pin 15
Satellite Radio Ignition     beige (4 door); purple (2 door)     +     Satellite Radio, white 16 pin plug, pin 16
Satellite Radio Antenna     (coaxial cable)
Satellite Audio Left (+/-)     red - green     +,-     Satellite Radio, white 16 pin plug, pins 2 - 1
Satellite Audio Right (+/-)     black - white     +,-     Satellite Radio, white 16 pin plug, pins 4 - 3
Item     Size     Depth     Location
Headunit     irregular center of dash
Left Front Speaker     6.5 or 10 left front door
Left Front Tweeter   left front door
Right Front Speaker     6.5 or 10 right front door
Right Front Tweeter   right front door
Left Rear Speaker     6.5 left rear door (4 dr), rear deck (2 dr)
Left Rear Tweeter   left rear side panel (2 door)
Right Rear Speaker     6.5 right rear door (4 dr), rear deck (2 dr)
Right Rear Tweeter   right rear side panel (2 door)
Center Channel   top center of dash
Subwoofer     10 top of rear deck
Left Front Headrest
Right Front Headrest
Left Rear Headrest
Right Rear Headrest
Satellite Radio Tuner     (built into radio on models with navigation) right rear deck (4 dr), right side of trunk (2 dr)

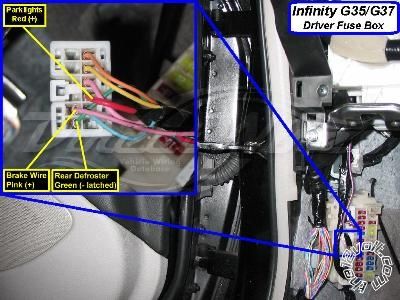

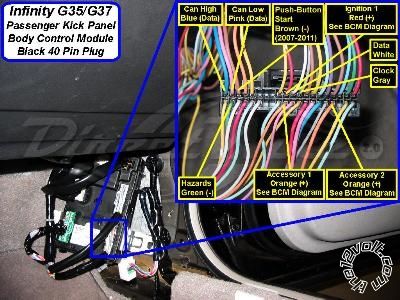

2012 Infiniti G37 Alarm/Remote Start, Stereo Wiring -- posted image.

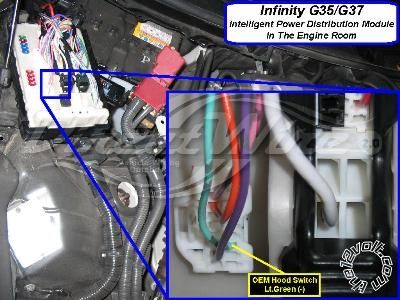

2012 Infiniti G37 Alarm/Remote Start, Stereo Wiring -- posted image.

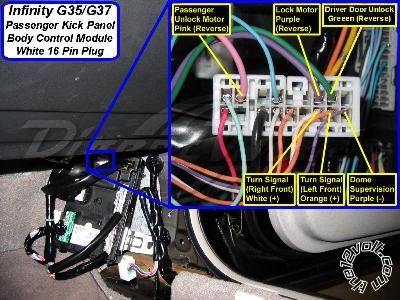

2012 Infiniti G37 Alarm/Remote Start, Stereo Wiring -- posted image.

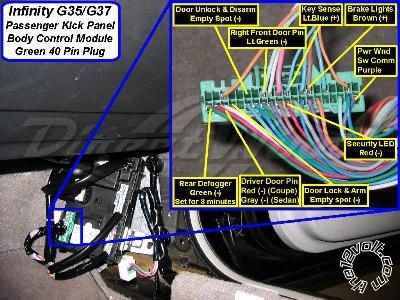

2012 Infiniti G37 Alarm/Remote Start, Stereo Wiring -- posted image.

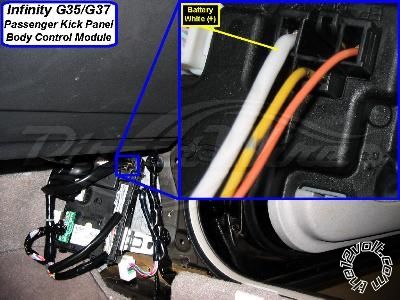

2012 Infiniti G37 Alarm/Remote Start, Stereo Wiring -- posted image.

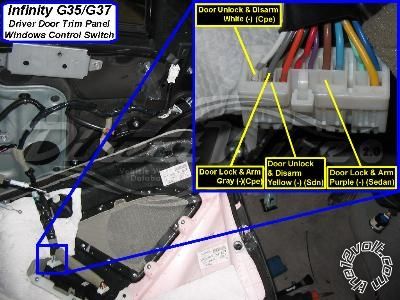

2012 Infiniti G37 Alarm/Remote Start, Stereo Wiring -- posted image.

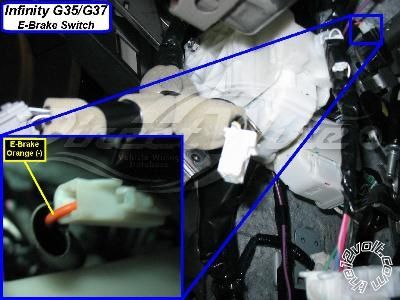

2012 Infiniti G37 Alarm/Remote Start, Stereo Wiring -- posted image.

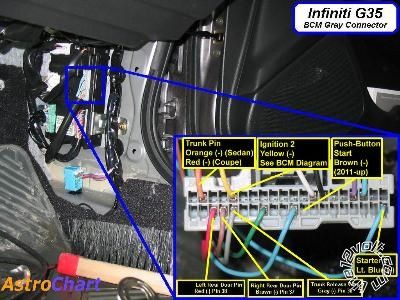

2012 Infiniti G37 Alarm/Remote Start, Stereo Wiring -- posted image.
2012 Infiniti G37 Alarm/Remote Start, Stereo Wiring -- posted image.
2012 Infiniti G37 Alarm/Remote Start, Stereo Wiring -- posted image.
Gary Sather
