The following is a Remote Start and Keyless Entry install Pictorial on the 2007 - 2008 Mazda 3.   This vehicle was a 2008 model

with the non-turbo 4 cylinder engine, automatic transmission, power door locks and PATS immobilizer system.  There are
many ways to effect an install on this vehicle, here is one.

2007-2008 Mazda3 Remote Start Pictorial -- posted image.

Any quality remote start with keyless entry system can be used.   Some specific vehicle needs :

There are two Accessory type wires in the ignition harness.
This car employees a "one-wire" door lock system.
The PATS transponder can be handled by any one of several good data style bypass modules.

For this install, an Ultra Start U1272 remote start system was chosen.  For the bypass duties an XK05 flashed with PKTI

firmware was utilized.  Other choices better suited for the DIY'er are the PKALL, Key-OverRide-ALL and the ADS TBSL KO,
as these units require no special / specific firmware flash prior to use.  Connections between the R/S and the bypass were
made on the bench in the W2W mode.  Below are the connections :

U1272

6 Pin Ignition Harness

1 Yellow  (+)  Starter Output GRAY/BLACK (+)  @ IGNITION SWITCH HARNESS
2 Green (+)   Accessory Output          PINK / YELLOW (+)  @ IGNITION SWITCH HARNESS
3 Red (+)      +12V constant   BLACK/ RED(+)  @ IGNITION SWITCH HARNESS
4 Red (+)      +12V constant   RED(+)  @ IGNITION SWITCH HARNESS
5 White (+)   Flex Relay Output          YELLOW (+)  @ IGNITION SWITCH HARNESS *** Set to ACC2
6 Blue (+)     Ignition Output   GREEN/ YELLOW (+)  IGNITION SWITCH HARNESS

2 Pin Harness

Black (-) Main Chassis Ground           Chassis Ground @ Factory Bolt
White Selectable Parking Light Output           BLACK/ WHITE (-)  @ LIGHT SWITCH Connector    *** Set to (-)

9 Pin Harness

1 Yellow (-) Rearm Output     Not Used
2 Brown (-) Disarm Output       Not Used
3 Black (-) AUX1 Output        Not Used
4 RED / White (-) Trunk Release           Not Used    ( non-electric cable release in car )
5 WHITE/ Blue (-) Horn Output Not Used - at customer request
6 Pink (+) Brake Input RED / WHITE (+)  @ SWITCH ABOVE BRAKE PEDAL
7 GREEN / WHITE (-) Hood Pin Input      to mercury switch mounted to hood hinge bolt
8 Blue/White (AC) Tach Input   to any F.I. - to wire that is Black w/stripe
9 Blue (+/-) Glow Plug/WTS/Trigger Input      Not Used

Lock Harness

Green     (-) Lock BLACK/ Blue (-)   @ DKP harness
Blue        (-) Unlock           BLACK/ White (-)  @ DKP harness

3 Pin Bypass Harness

Red      +12V          XK05 Red wire
Black    Ground     XK05 Black wire
WHITE/ Violet     (-) GWR    XK05 Brown wire

XK05 ( wires not previously listed )

Violet         RX output Mazda 3 WHITE/ Lt Green @ transponder harness
Orange      TX output               Mazda 3 Gray/Orange @ transponder harness

This model Mazda 3 is still fairly easy to disassemble and gain access to all the necessary wires.  Start by lifting the

leading edge of the drivers door sill.  There is one popper type fastener in the drivers kick trim panel to remove and
then pull the DKP straight back and away.

The lower dash panel on the drivers side is held in place with one Phillips screw and several fasteners.  After the screw

has been removed, pull the lower dash panel back & off.

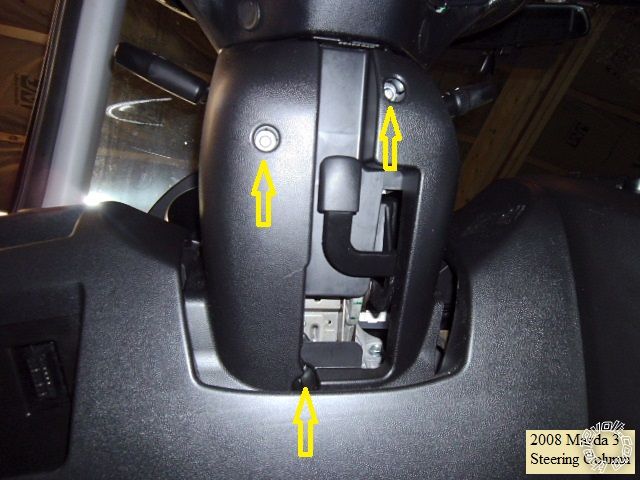

There are 3 Phillips screws holding the two halves of the steering column cover together.  Remove the screws from the

bottom cover and separate the two halves.  Only the lower cover must be removed and placed aside.

2007-2008 Mazda3 Remote Start Pictorial -- posted image.

Wires :

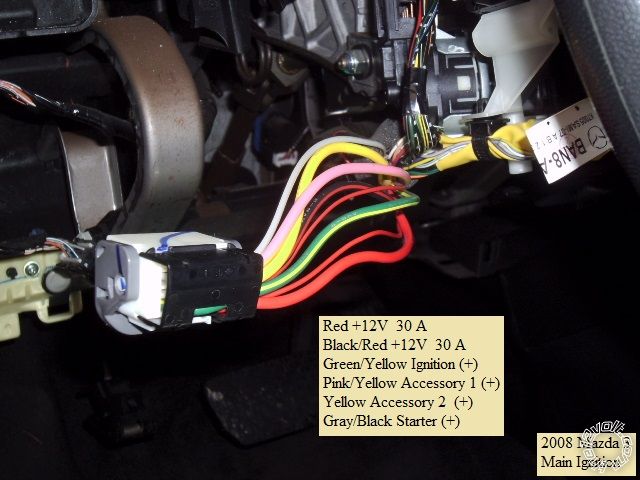

This is a photo of the main ignition connector, removed from the ignition switch with the wires identified :

2007-2008 Mazda3 Remote Start Pictorial -- posted image.

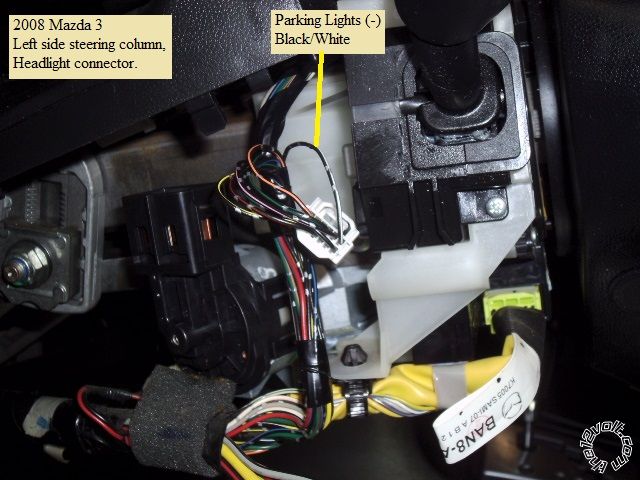

Next is a picture of the left side of the steering column with the Parking Light and the transponder wire locations :

2007-2008 Mazda3 Remote Start Pictorial -- posted image.

Here is a close up the Parking Light wire ( plug disconnected from the headlight switch ) :

2007-2008 Mazda3 Remote Start Pictorial -- posted image.

This is a shot of the right side of the steering column and the transponder plug ( disconnected ) with wires marked :

2007-2008 Mazda3 Remote Start Pictorial -- posted image.

As mentioned above, this car has a "one-wire" door lock system.   Typical installs use this wire and a resistor and relays

( if the R/S system does not have internal door lock relays ).  I chose to handle the locks via the "drivers door key cylinder"
wires.   These wires require a straight (-) pulse.  The Unlock wire needs a pulse long enough to unlock the drivers door
and then the other doors.  The U1272's Unlock default .72 second pulse was long enough to unlock all the doors.  These
wires will also perform the Arm and Disarm functions if the vehicle has the Factory Alarm system.  Below is a picture of the

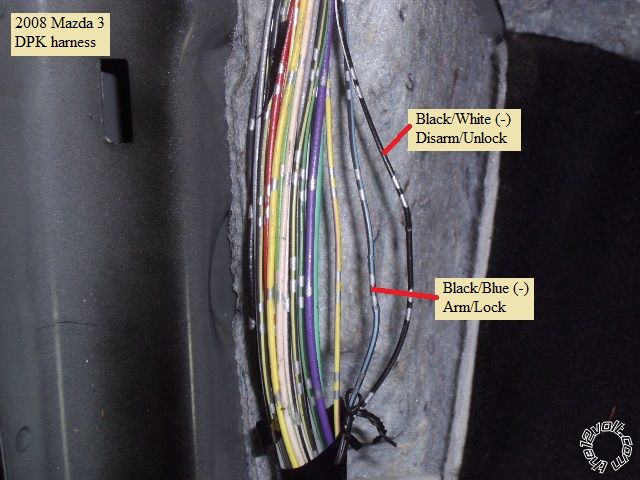

DKP area with a Chassis Ground point and the DKP harness :

2007-2008 Mazda3 Remote Start Pictorial -- posted image.

And here is a close-up of the lock wires :  ( test for these wires by turning the key in the drivers door key cylinder )

2007-2008 Mazda3 Remote Start Pictorial -- posted image.

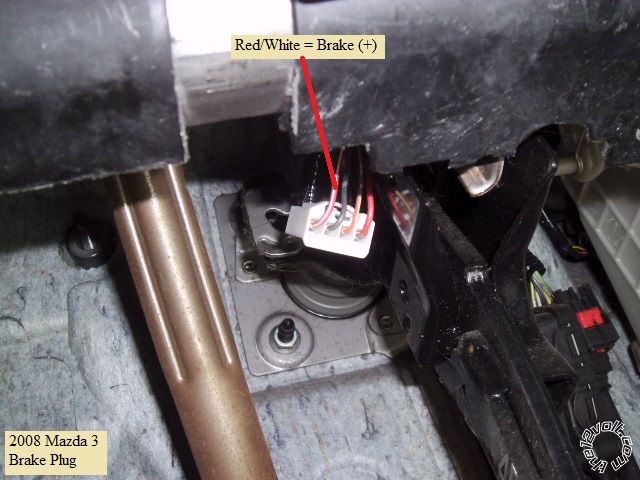

Here is a photo of the Brake wire at the pedal switch connector (  unplugged from the switch ) :

2007-2008 Mazda3 Remote Start Pictorial -- posted image.

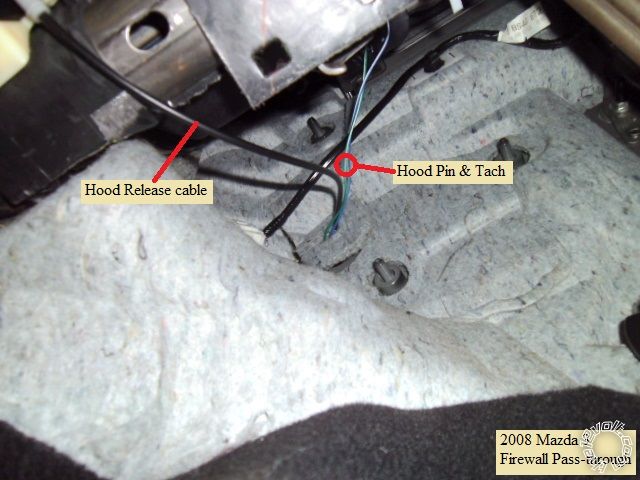

Convenient firewall pass-through can be found under the drivers side dash at the hood release cable grommet shown below :

2007-2008 Mazda3 Remote Start Pictorial -- posted image.

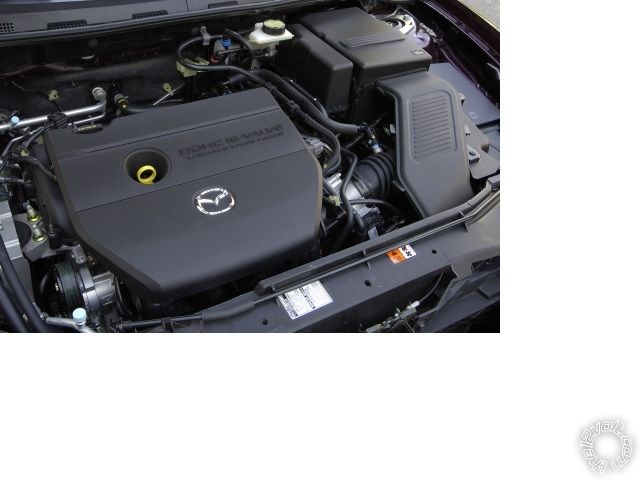

A Tach signal can be found at the Fuel Injectors.  They are located below the plastic engine cover.  This cover is held in

place with 4 posts, just lift / pull the cover straight up.

2007-2008 Mazda3 Remote Start Pictorial -- posted image.

Each injector has two wires.  The Tach signal wire is the one that is Black with any color stripe.  Pictured below is the

#1 F.I. wire :

2007-2008 Mazda3 Remote Start Pictorial -- posted image.

This was a basic remote start with keyless entry install, no alarm functionality.  Total cost is under $100.  Total time

for the DIYer depends on skill level.  No special tools are required but a Digital Multi Meter to locate, test and verify
all wires is essential.  A decent soldering gun / iron is very important for a durable, quality installation.

Transponder notes:

You will need two working, non-clone, ignition keys to program any of the bypass modules listed above.  You can also
use an extra key hidden in a universal "key-in-the-box" style bypass module ( like the DEI 556UW ).  Adding additional
ignition keys to the vehicles immobilizer system is fairly easy if you currently have two working, non-clone keys.  These
keys are available "online" for under $10.  Authorized 12V dealers / installers have special tools and can program a
transponder bypass module using only one working ignition key.

Soldering is fun!
4low
Member - Posts: 2
Member spacespace
Joined: October 10, 2016
Location: Tennessee, United States
Posted: October 11, 2016 at 11:19 PM / IP Logged
Just got done installing a add on remote start on a 07 Mazda 3.
The last wire i need to hook up is the trigger wire from the kit to the BLACK/ blue wire for the security arm feature. 3x lock should start the car. I splice into the factory wire but the car will not start when i push the lock button 3x. need some input.
thing i have tried:
-tested to BLACK/ blue wire and get positive reading with no change when pressing the lock button on key fob, but this is the only black blue wire i see in the drive kick panel.
-if i ground out the remote start trigger wire 3x it will start as designed.
- i have change the settings on the remote start several time to 3x pulse signal.
lurch228
Silver - Posts: 1,338
Silver spacespace
Joined: August 08, 2012
Posted: October 12, 2016 at 2:57 AM / IP Logged
Pull the power door lock switch and test for the lock wire with a DMM. Then find the same color wire in the kick panel and verify with DMM.
4low
Member - Posts: 2
Member spacespace
Joined: October 10, 2016
Location: Tennessee, United States
Posted: October 12, 2016 at 7:10 PM / IP Logged
Thanks for the reply. I will try that this weekend also going to look behind the glove box.
So far the wire I have tried:
BLACK/ blue alarm arm wire show (+) at rest
BLACK/ orange alarm disarm show (+) at rest
Black wire from lock switch on driver door shows (-) at rest but key fob does not trigger it.
pentavolvo
Copper - Posts: 241
Copper spacespace
Joined: September 30, 2003
Location: United States
Posted: October 22, 2016 at 6:51 PM / IP Logged
Might be easiest to grab positive door lock motor wire and go through a relay
