Sometimes you can get lucky if your car has a (-) trigger wire for the rear defogger, heated seats, etc. But what about other features which don't have a trigger wire?
I'll show you how to tie into the momentary switch of your climate control...
I will be controlling the front window defogger using an AUX channel of my remote starter via a relay.

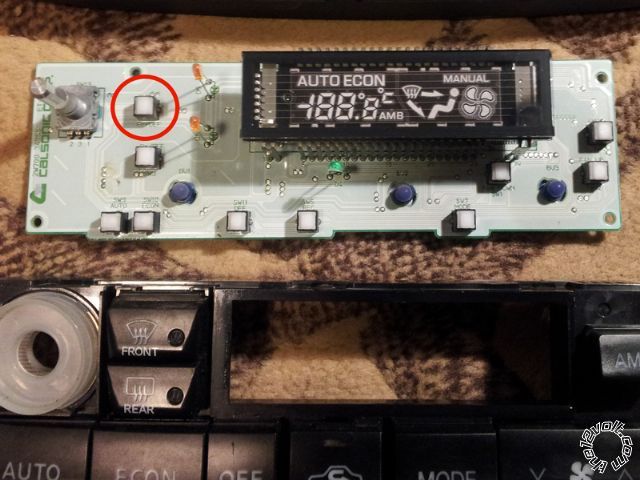

Here's my climate control (2000 Maxima) taken apart. There's the on/off button for the front window defogger.
Connecting Aux to Climate Control Buttons Pictorial -- posted image.

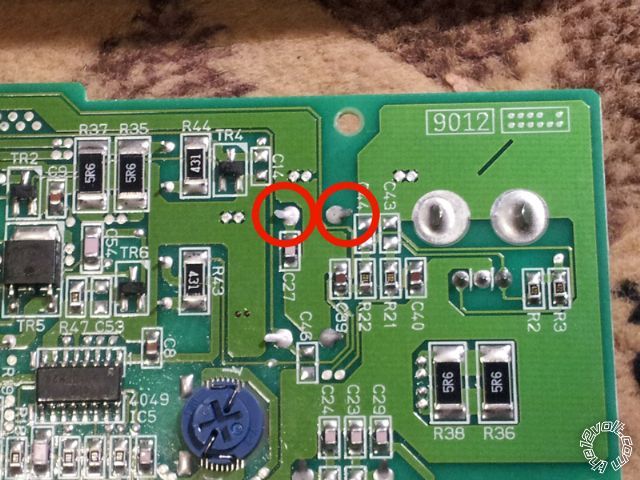

Here's the back of the circuit. The contacts of the button are circled. MAKE SURE TO TEST THE CONTACTS USING DMM. It should read no-continuity normally, and close to 0 ohms while button is pressed.
Connecting Aux to Climate Control Buttons Pictorial -- posted image.

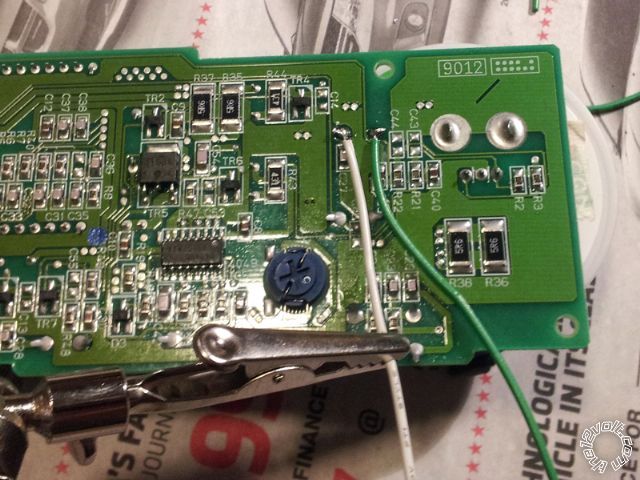

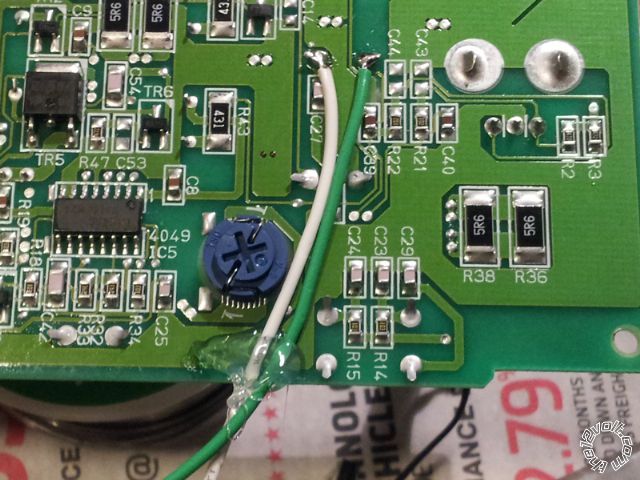

Solder some thin (22-24 gauge) wire onto the contacts. To avoid a poor solder joint, be sure the wires don't move even a fraction while the solder is cooling; I used some "helping hands" to keep them steady.
Connecting Aux to Climate Control Buttons Pictorial -- posted image.
I used hot glue to secure the wires (prevent strain & vibration on the solder joints).
Connecting Aux to Climate Control Buttons Pictorial -- posted image.

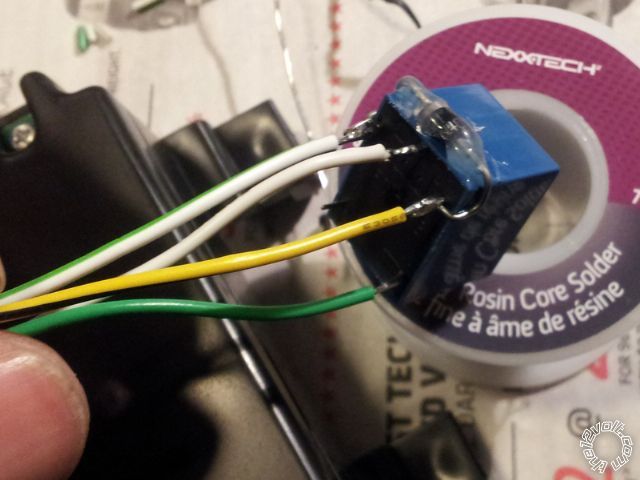

Rather than using a large Bosch style relay, I'm using a mini circuit board relay to avoid the unnecessary bulk.
Connecting Aux to Climate Control Buttons Pictorial -- posted image.

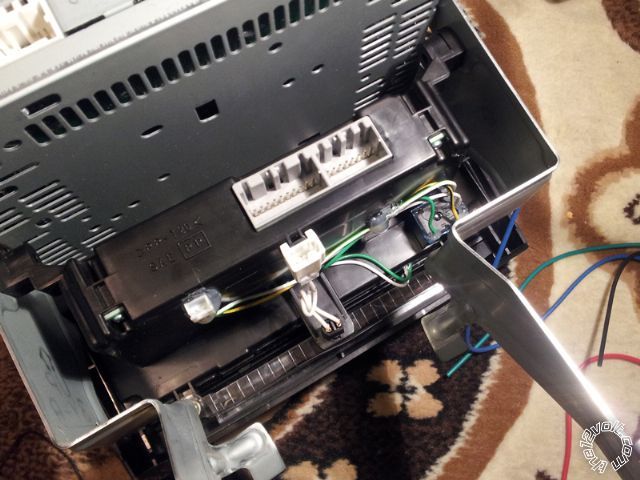

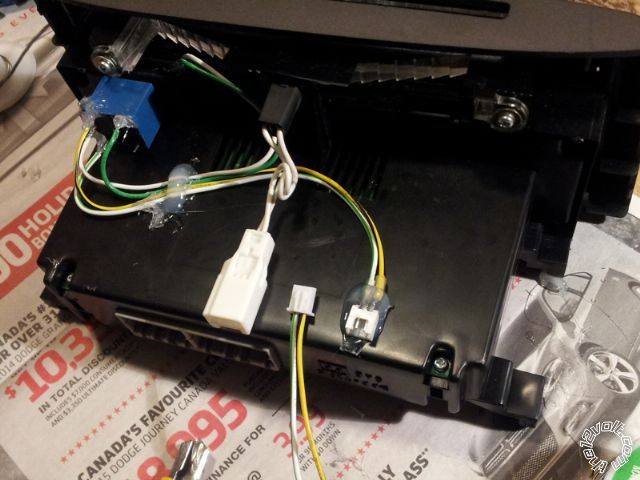

Everything is secured using hot glue. I put a mini-connector to make removal of the HVAC control unit easier.
Connecting Aux to Climate Control Buttons Pictorial -- posted image.
Here's the final look.
Connecting Aux to Climate Control Buttons Pictorial -- posted image.
yellow_cake
Copper - Posts: 178
Copper spacespace
Joined: December 01, 2011
Location: Saskatchewan, Canada
Posted: December 23, 2014 at 10:47 PM / IP Logged
Wiring a Bosch style automotive relay like so:
87 - switch contact 1
30 - switch contact 2
85 - Negative AUX trigger
86 - +12V constant (fused)
