4 pin to 5 pin relay hack


Post ReplyPost New Topic
< Prev Topic Next Topic >
sohc
Member - Posts: 6
Member spacespace
Joined: July 17, 2005
Location: United States
Posted: January 19, 2015 at 2:08 PM / IP Logged
I don't know if this has been covered before.. I was desperately needing a 5 pin relay and only had 4 pin ones, i took the cover off to take a look. i found that there is a good spot to solder a connection to for a normally closed (5th pin) position. This comes in handy because sometimes 5 pin relays are hard to find locally, and pricier. check out the attached pic.
You'll want to drill a 1/8" hole in the relay case near where that wire is soldered.. if you try to wrap it around and come out the bottom of the relay you will probably end up interfering with the high power switch mechanism (happened to me).
sohc
Member - Posts: 6
Member spacespace
Joined: July 17, 2005
Location: United States
Posted: January 19, 2015 at 2:11 PM / IP Logged

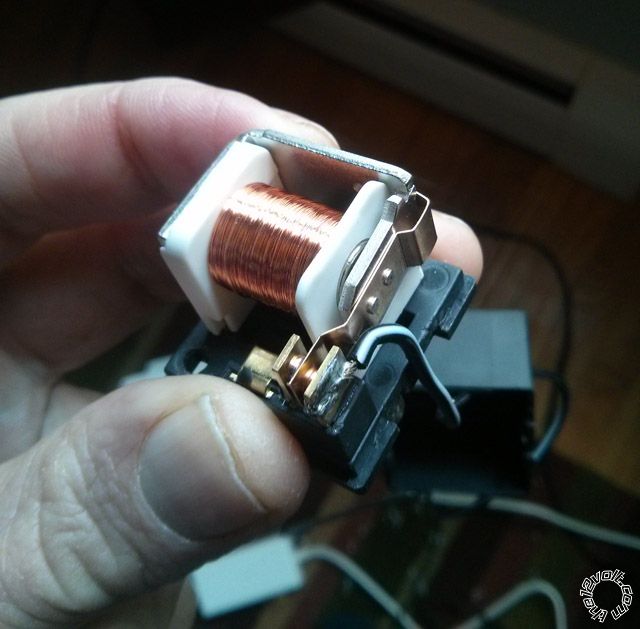

couldnt figure out how to modify my post to include this: 4 pin to 5 pin relay hack -- posted image.
