2007-2014 Chevrolet Suburban Pictorial


Post ReplyPost New Topic
< Prev Topic Next Topic >
tedmond
Gold - Posts: 4,610
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 06, 2007
Location: Ontario, Canada
Posted: March 10, 2015 at 1:39 PM / IP Logged
This pictorial is for the 2007-2014 Chevrolet Suburban. This specific year was 2013. Using a full featured bypass such as the iDataLink ADS-ALCA, Xpresskit DB-ALL2, Fortin Evo-All will minimize your wiring.
For automatic, no need to make any changes on the bypass module, besides having the correct flash.

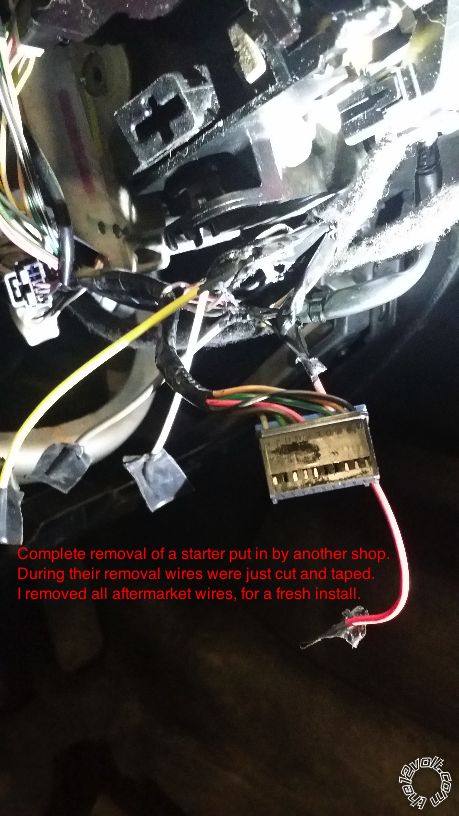

Pictures had to be resized, some may appear blurry. Removal of an existing starter was done prior to installing a new alarm/start system.
Unit: Compustar Pro RF-2W901SS + FT7000

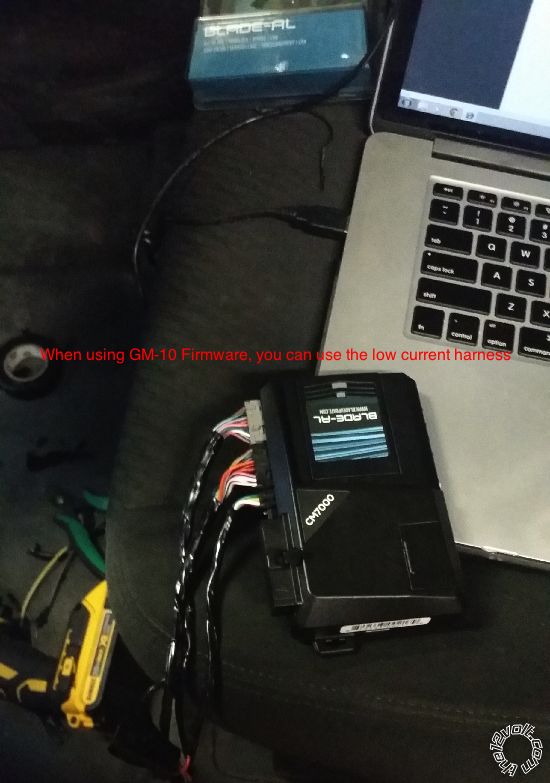

Bypass: iDataLink BLADE-AL
Firmware: BLADE-AL(DL)-GM10

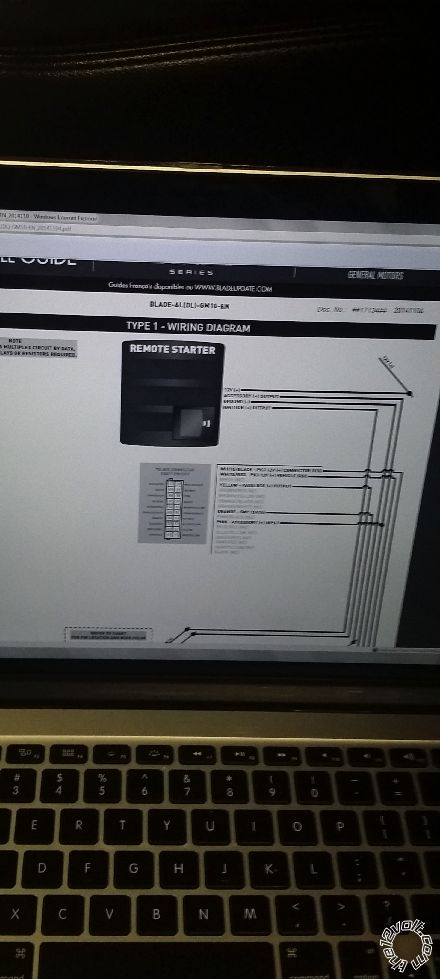

iDataLink Bypass Guide
Vehicle Wiring Guide

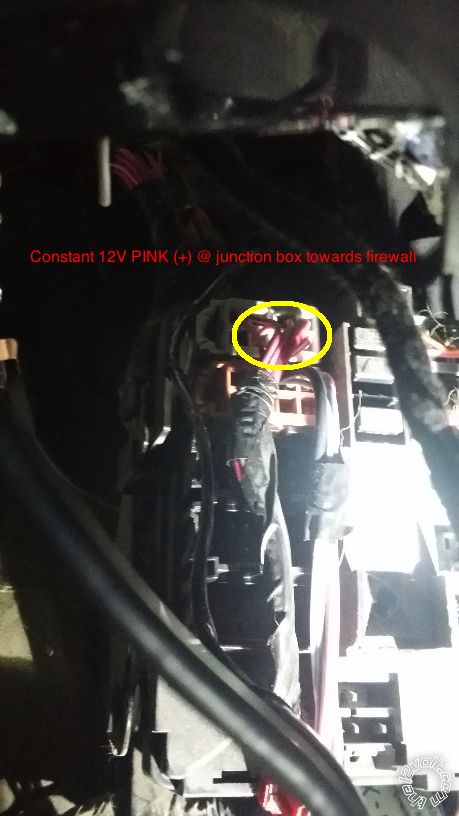

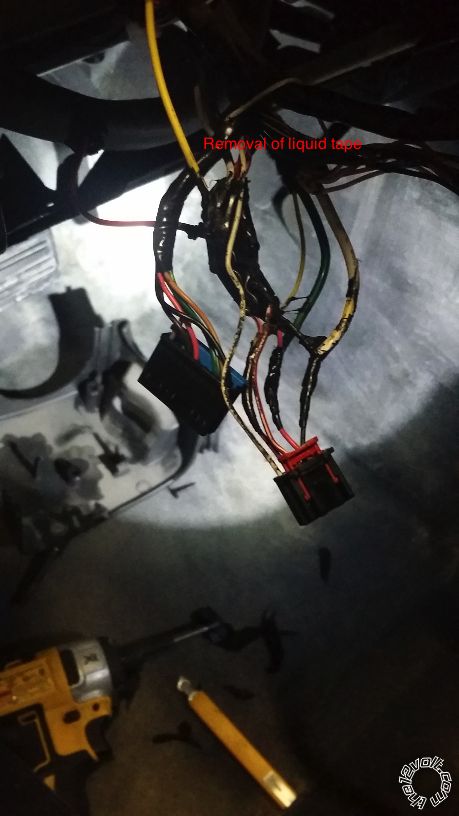

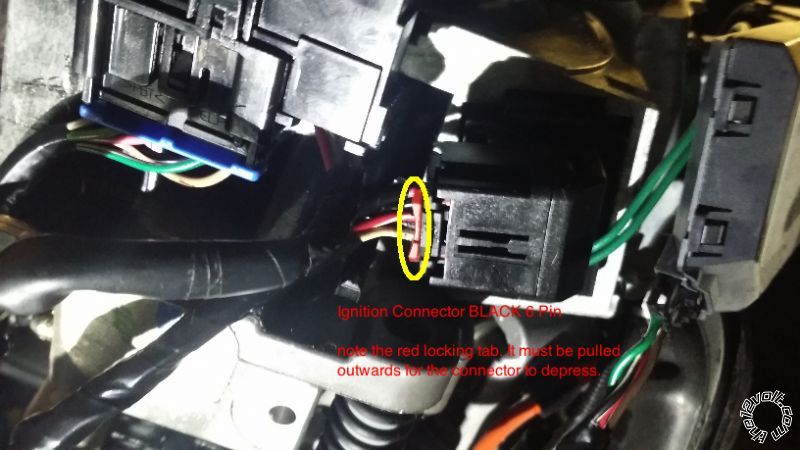

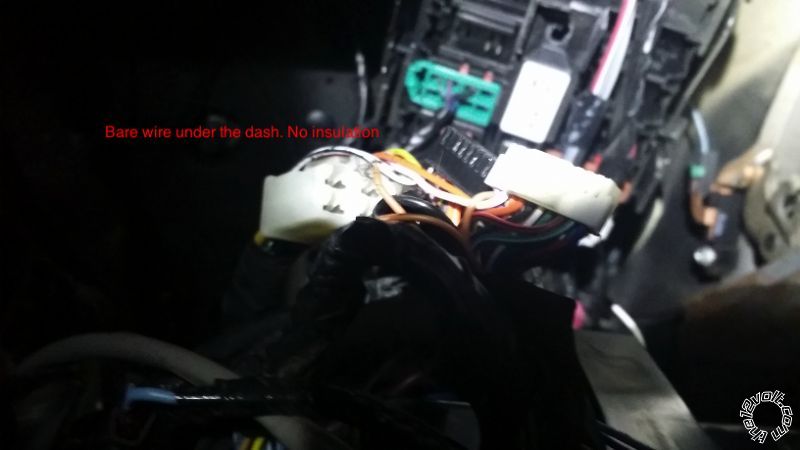

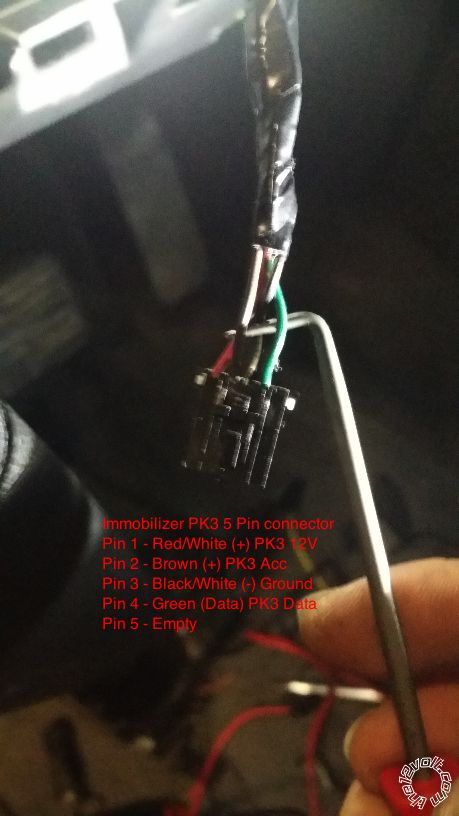

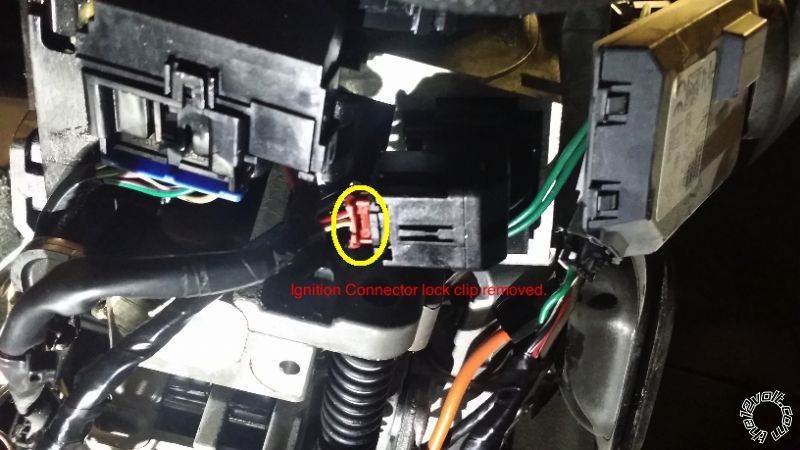

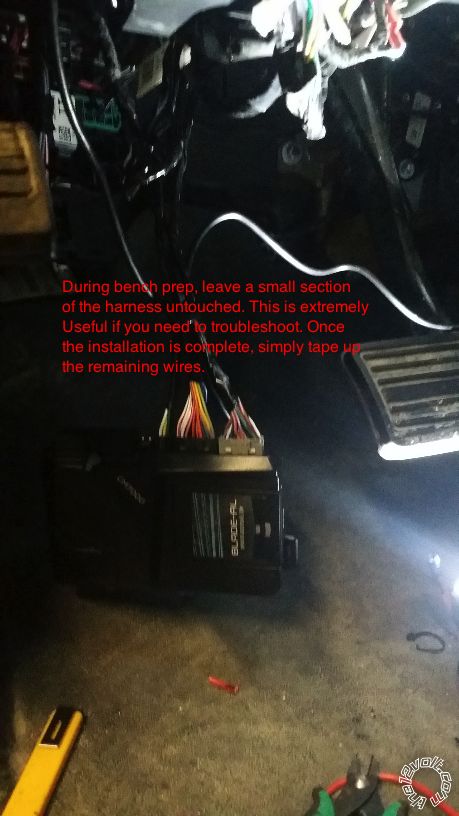

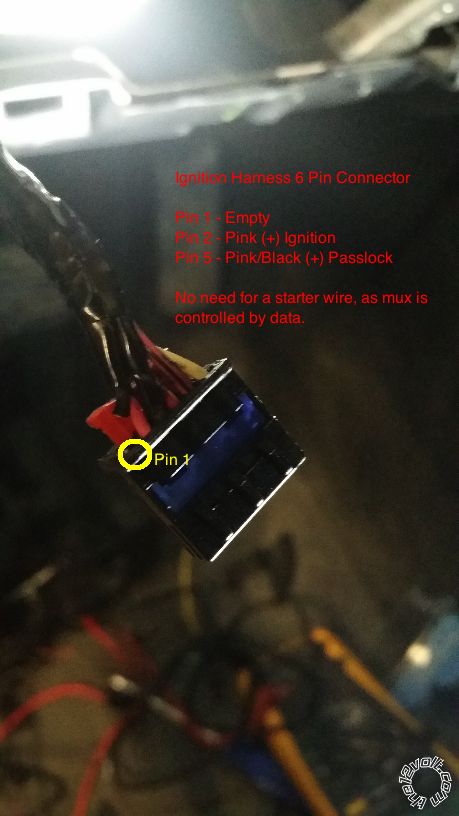

2007-2014 Chevrolet Suburban Pictorial -- posted image.
2007-2014 Chevrolet Suburban Pictorial -- posted image.
2007-2014 Chevrolet Suburban Pictorial -- posted image.
2007-2014 Chevrolet Suburban Pictorial -- posted image.
2007-2014 Chevrolet Suburban Pictorial -- posted image.
2007-2014 Chevrolet Suburban Pictorial -- posted image.
2007-2014 Chevrolet Suburban Pictorial -- posted image.

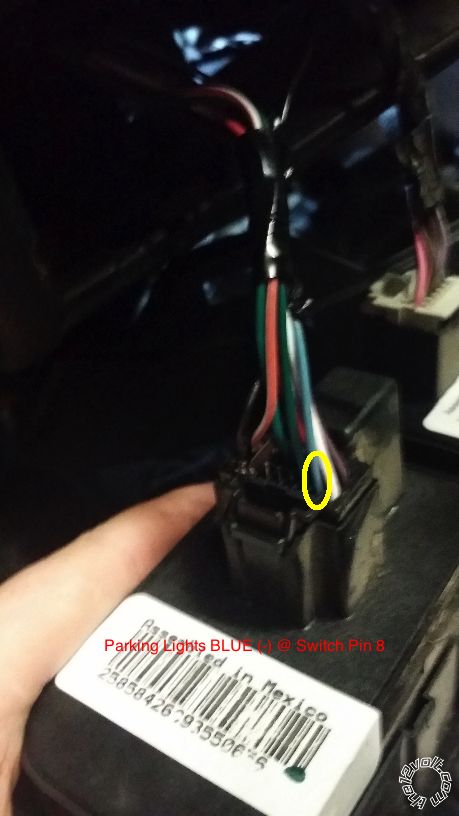

2007-2014 Chevrolet Suburban Pictorial -- posted image.
2007-2014 Chevrolet Suburban Pictorial -- posted image.
2007-2014 Chevrolet Suburban Pictorial -- posted image.
2007-2014 Chevrolet Suburban Pictorial -- posted image.
2007-2014 Chevrolet Suburban Pictorial -- posted image.
2007-2014 Chevrolet Suburban Pictorial -- posted image.
2007-2014 Chevrolet Suburban Pictorial -- posted image.

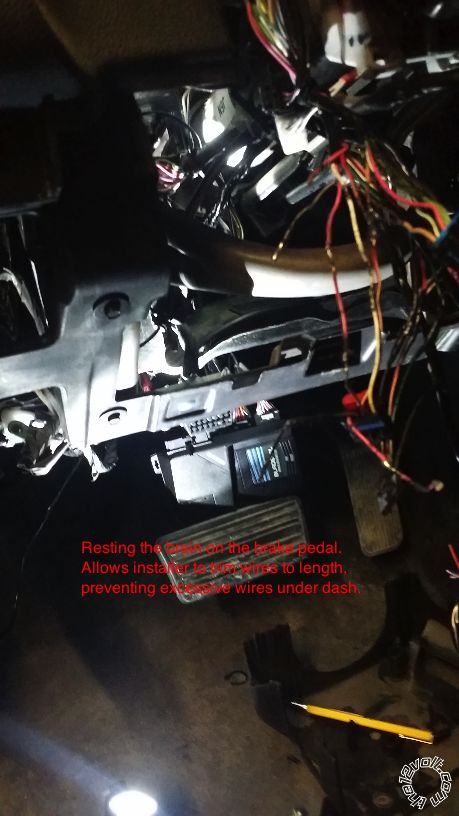

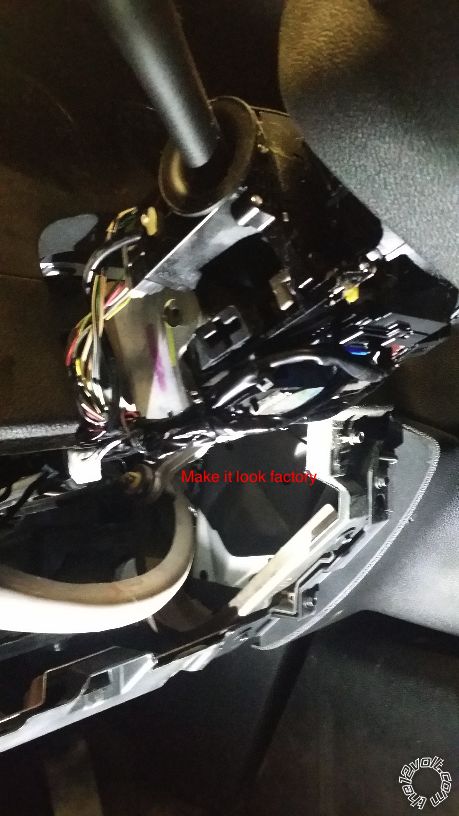

The idatalink controls most if not every convenience feature you can think of (if equipped). Test before packing everything up. Under the dash, there is plenty of room to hide the brain
Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert
