2011-2014 Ford F-150 80 Bit SA Key Pictorial


Post ReplyPost New Topic
< Prev Topic Next Topic >
tedmond
Gold - Posts: 4,610
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 06, 2007
Location: Ontario, Canada
Posted: April 08, 2015 at 11:45 PM / IP Logged
This pictorial is for the 2011-2014 Ford F150 80Bit SA Key. This specific year was a brand new 2014. This guide is applicable on ALL FORD 80Bit:(besides Focus). Using a full featured bypass such as the Fortin Evo-All will minimize your wiring. All F150's have a factory alarm, which disarms by ignition and valid transponder.
Important Notice: If you are using a Compustar 7200 starter brain, you MUST make Programming change 3-06 Option 2 (factory alarm setting to ON) or the system will unlock/disarm 10 seconds after arming. Another option is to turn off Door Triggers on the Evo-All. This is only applicable when using D2D
Unit: Viper 5706V
Bypass: Fortin Evo-All
Firmware: V71.11
Bypass Guide

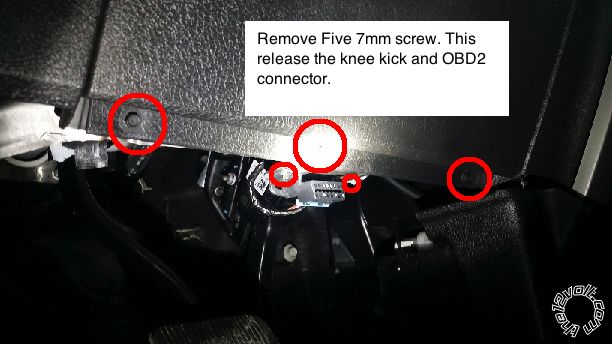

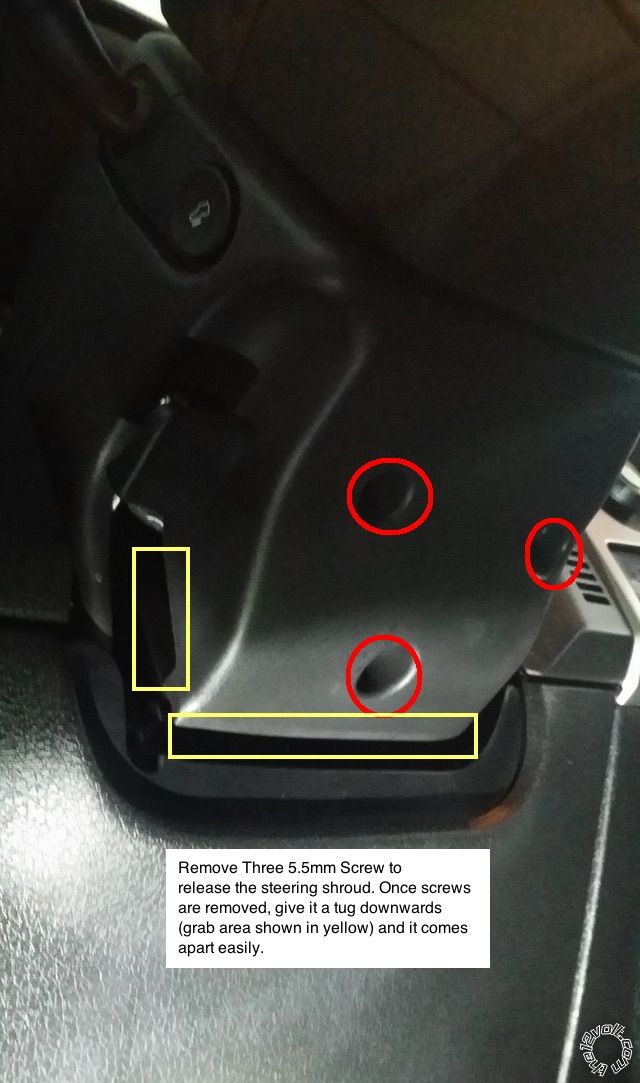

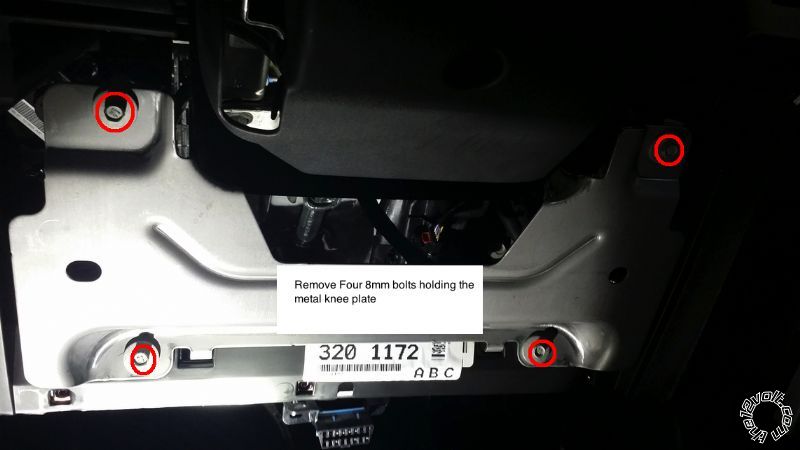

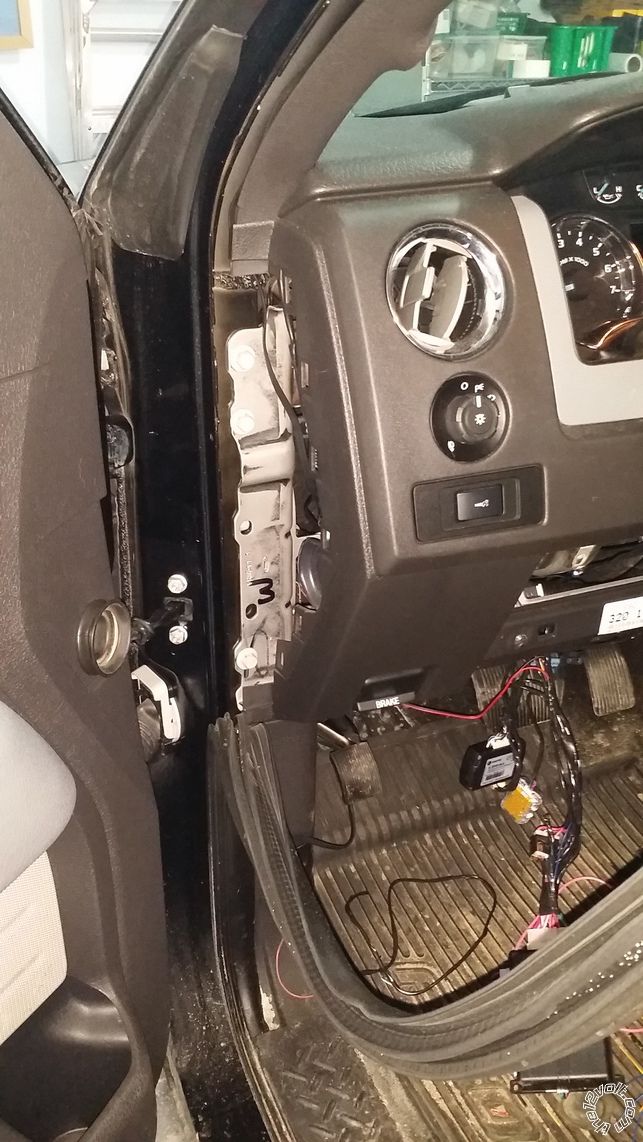

Basic Disassembly:
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.

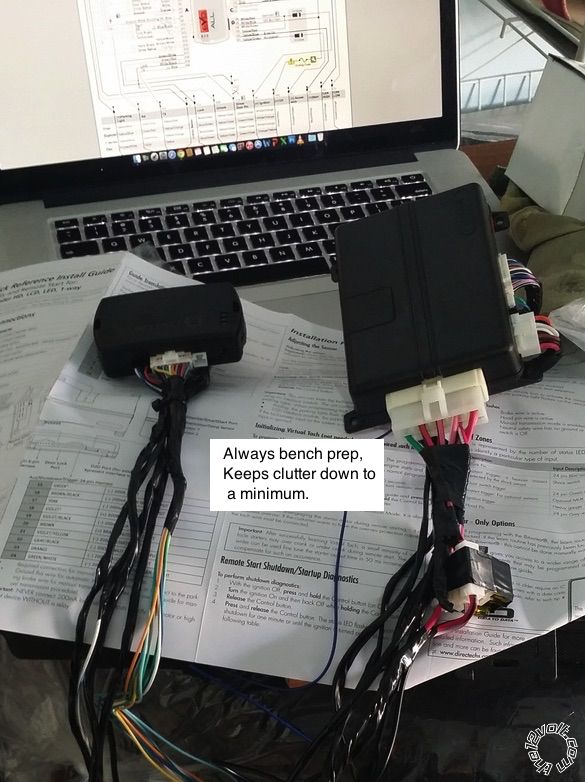

Bench Prepping:
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.

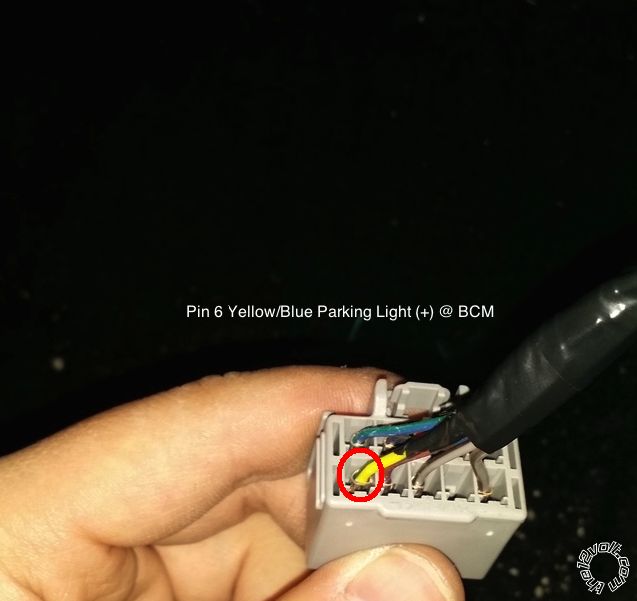

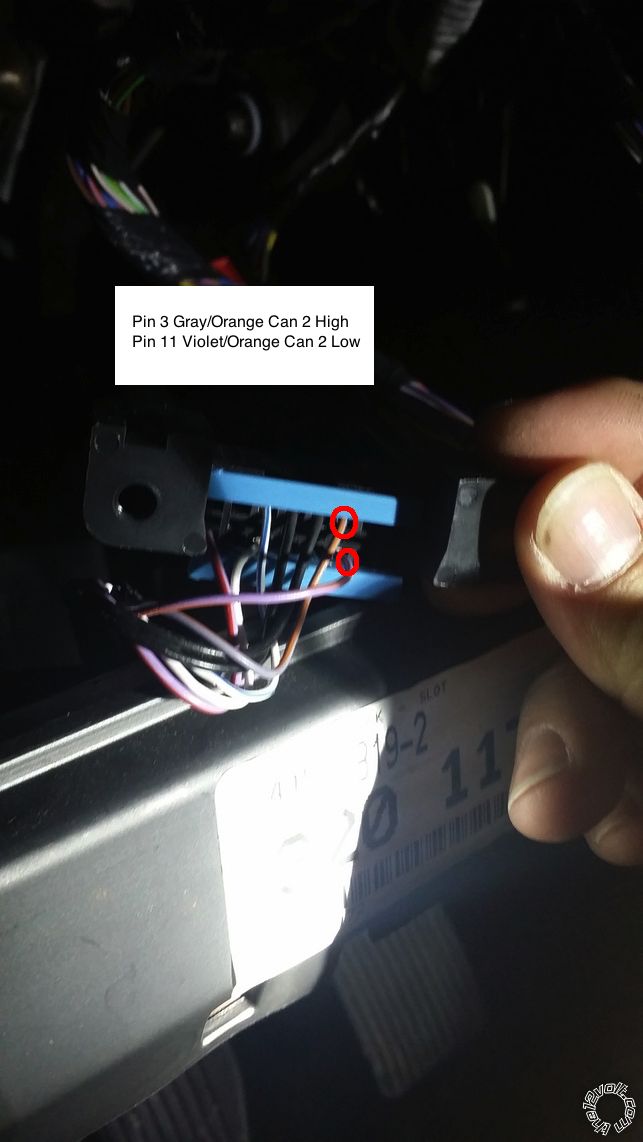

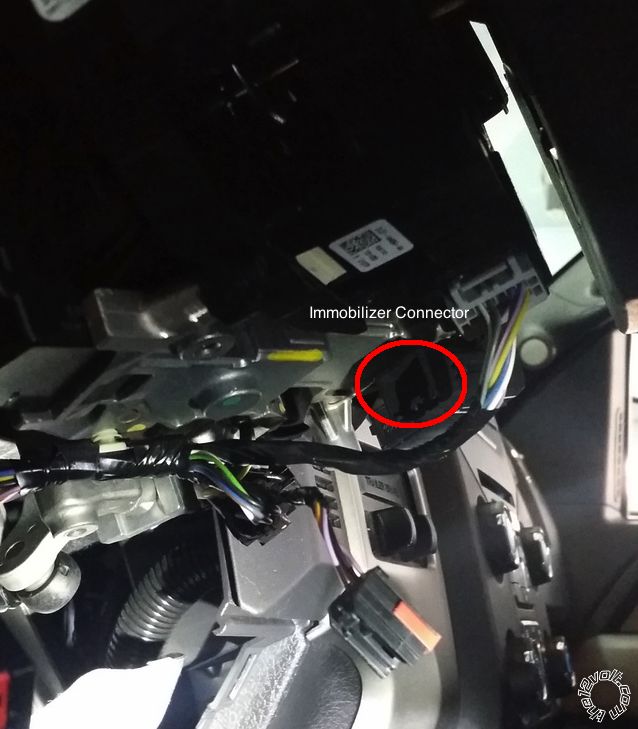

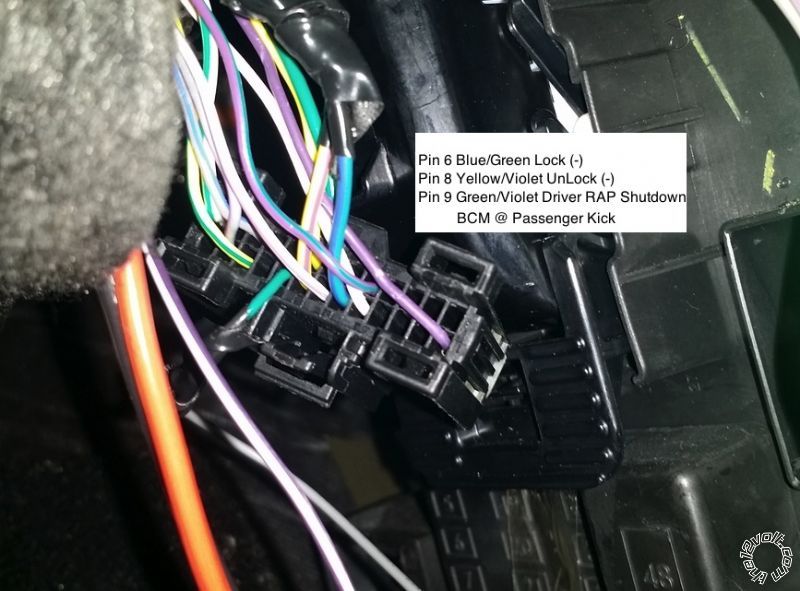

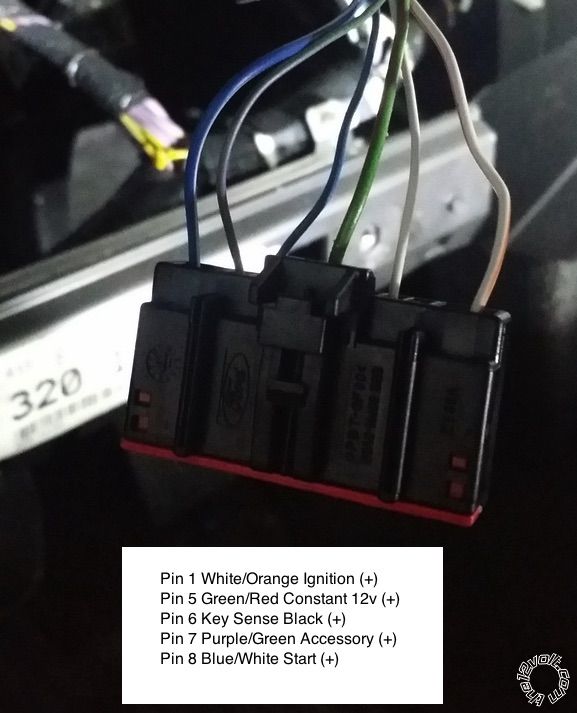

Wire Location:
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.

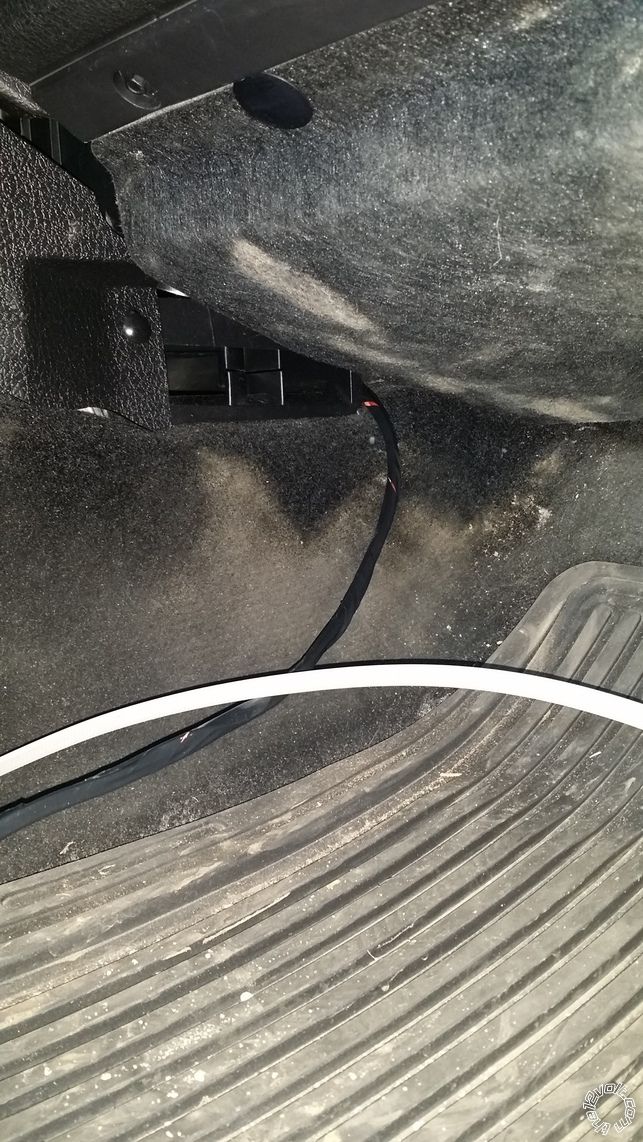

Run wires under the carpet if connections at the BCM are required.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.

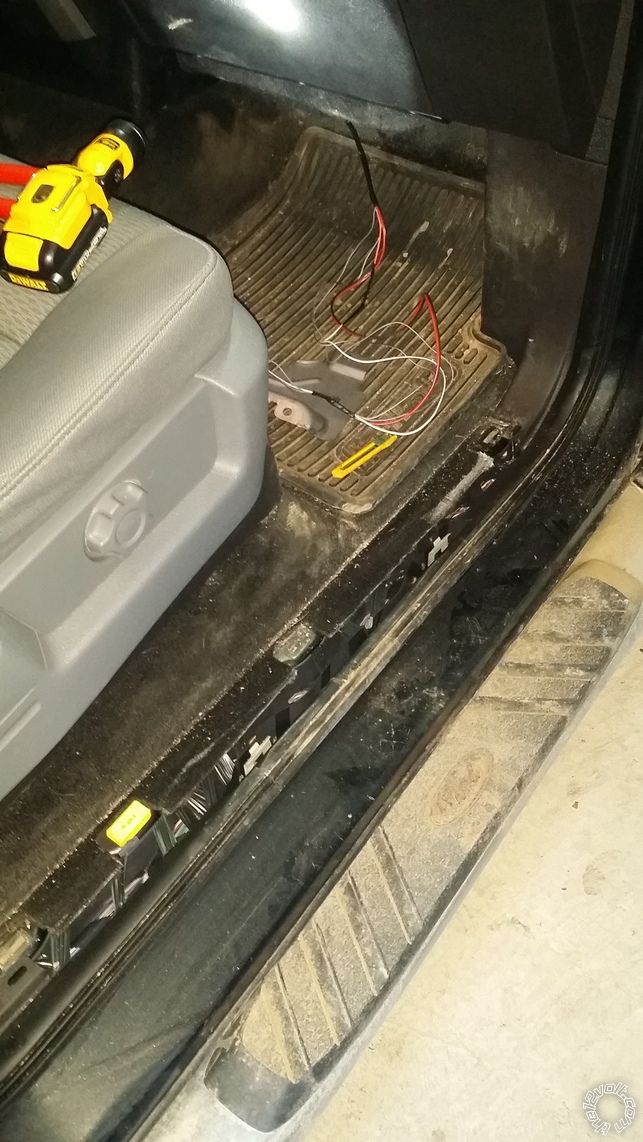

The sill plates on the F150 are VERY fragile. Take extra caution while removing the panels.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.

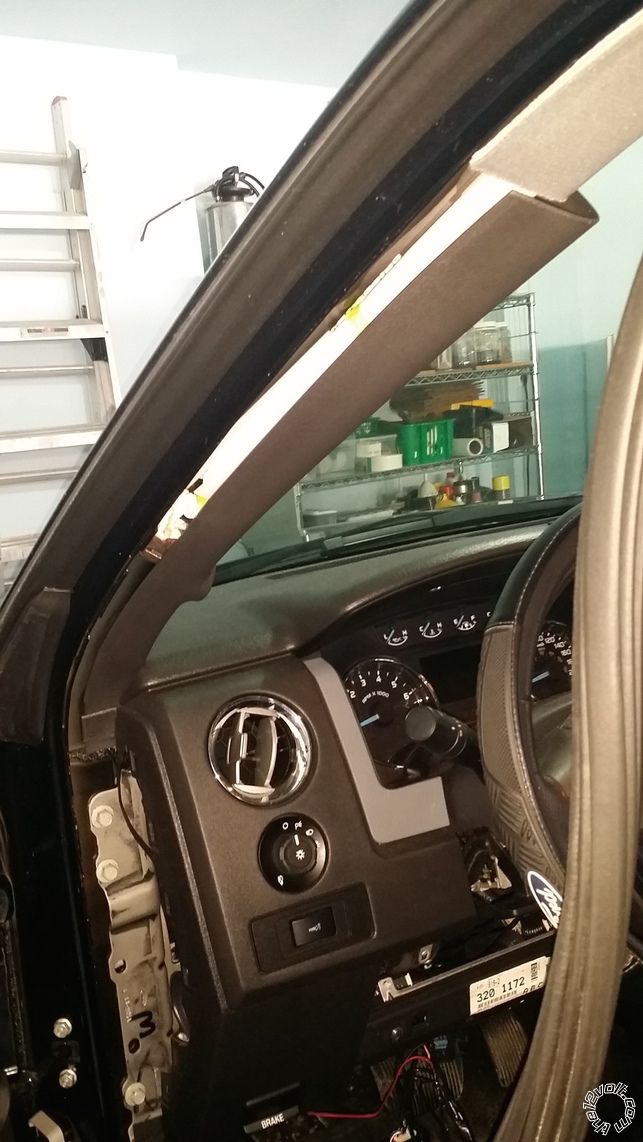

Give the A-Pillar a good pull. The clip will release, giving you ample space to run the antenna wire. Make sure your wires are BEHIND the side curtain airbags.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.
The side trim can be removed as well for more access.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.

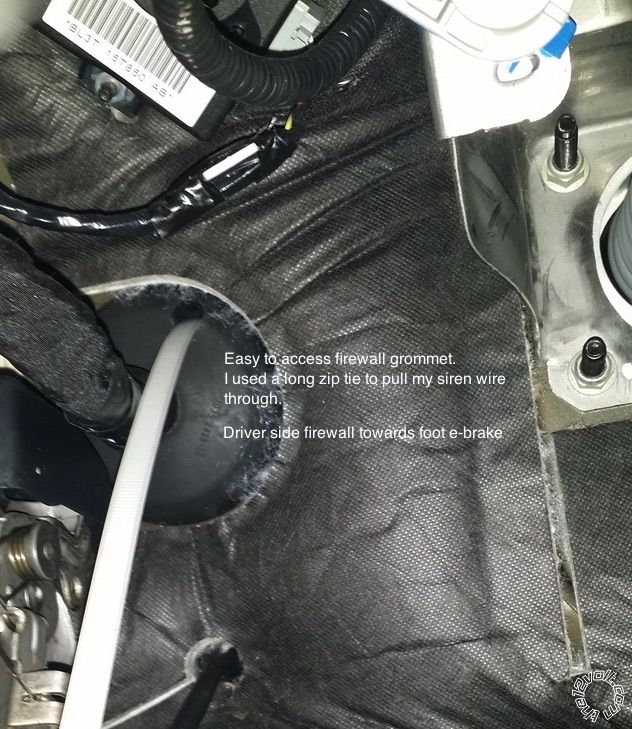

Firewall Grommet:
I use a long sturdy zip tie to pull all my wires. Easy to use and cheap to replace.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.

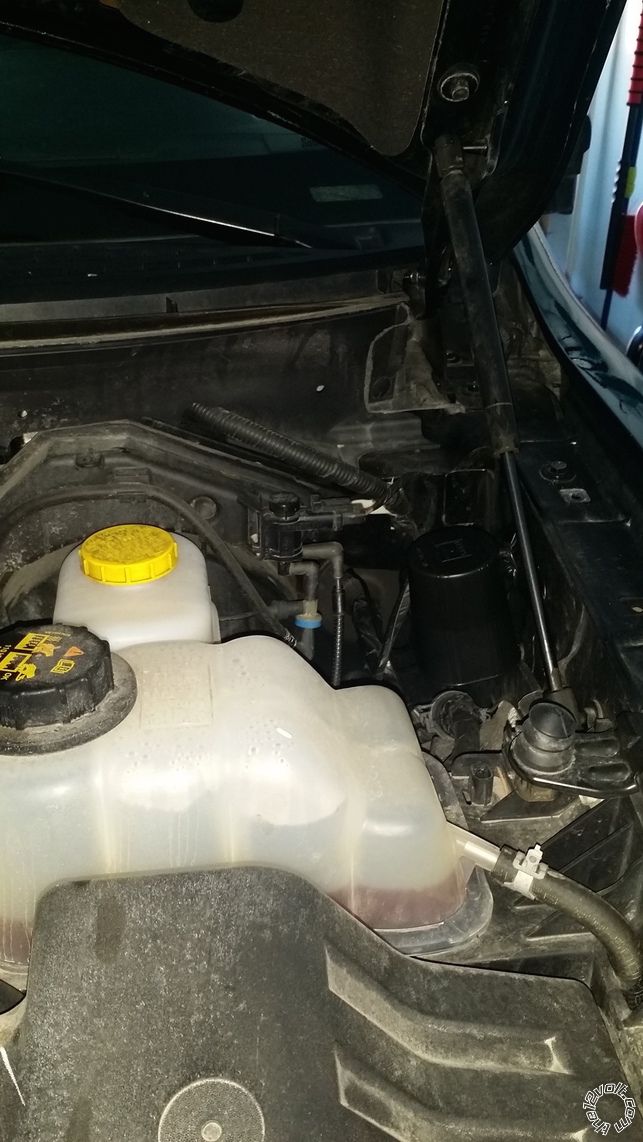

Engine bay - Siren mounting:
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.

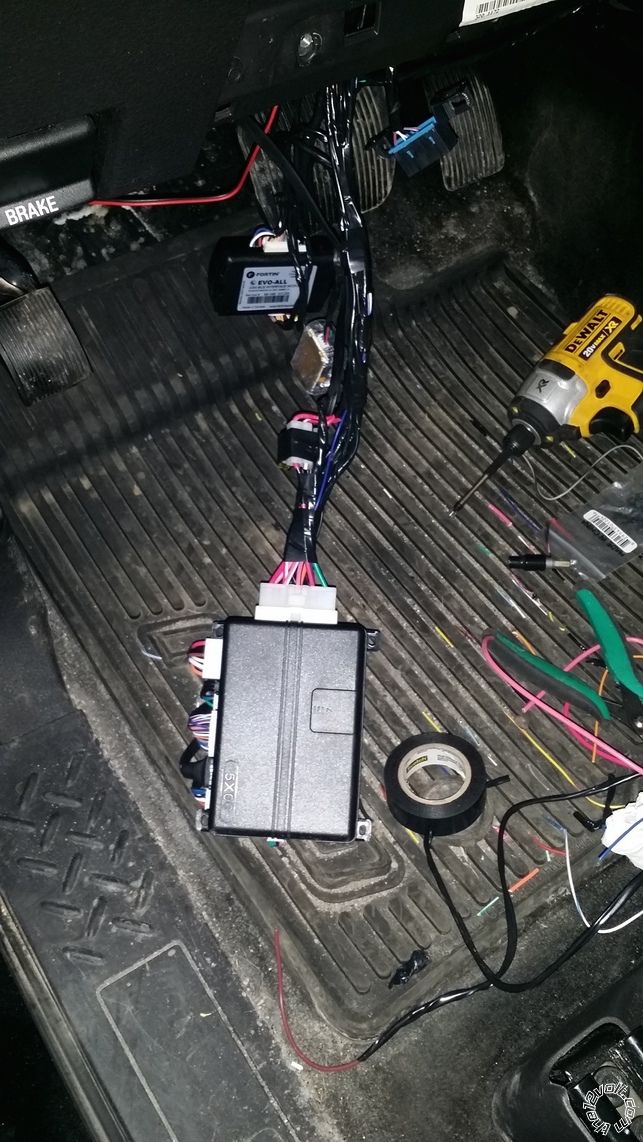

This is what bench prepping can do for your overall installation outcome. Clean and clutter free.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.

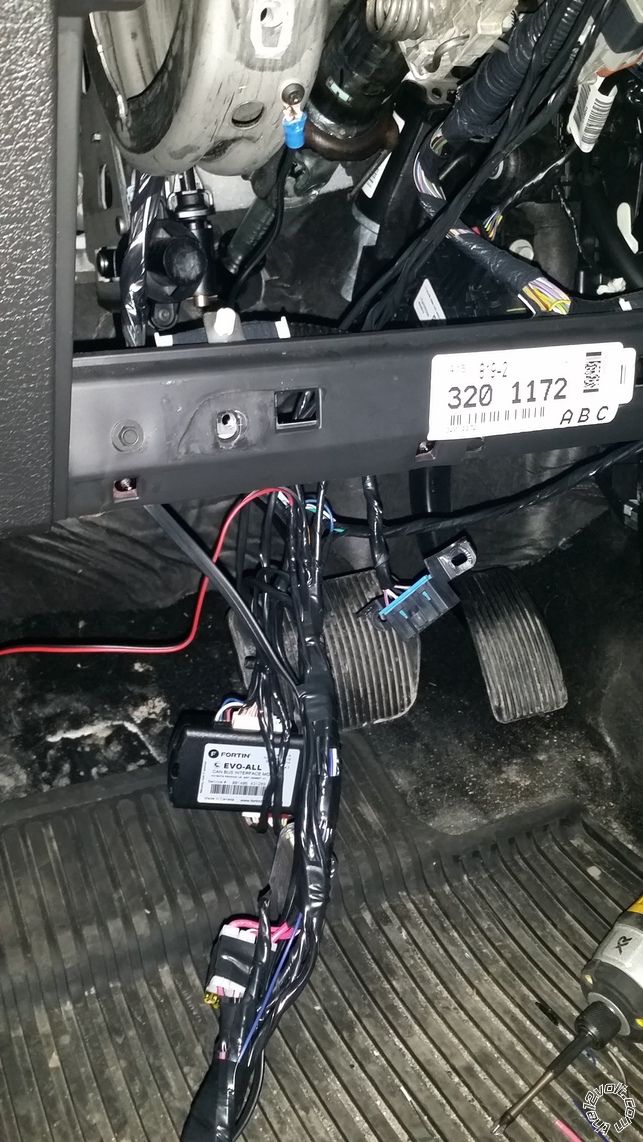

Before packing it all up into the dash.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.

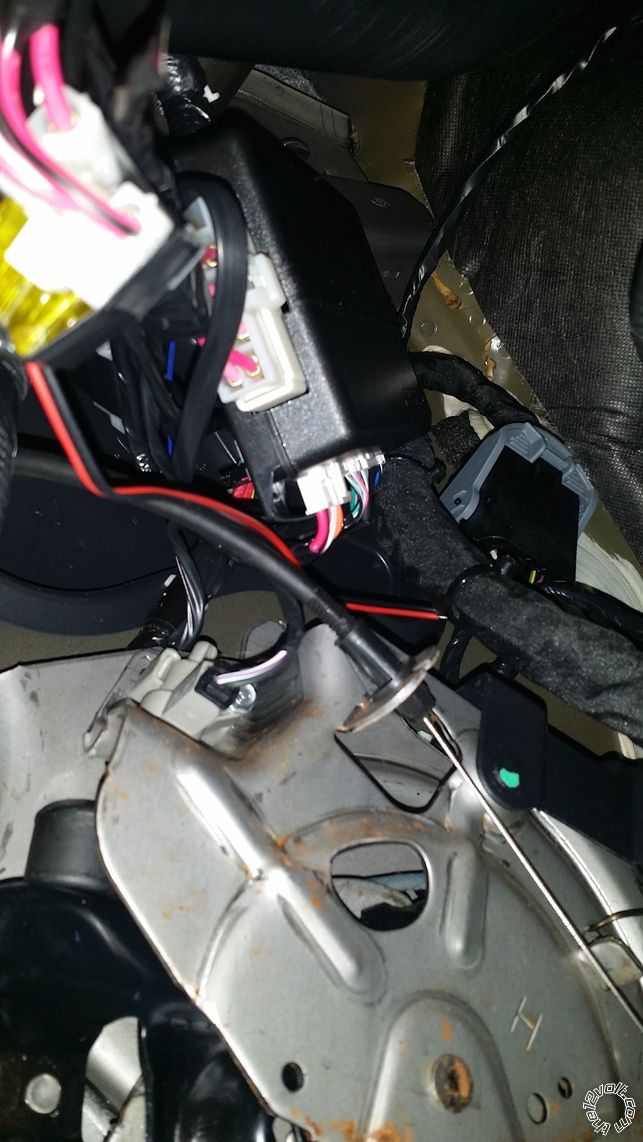

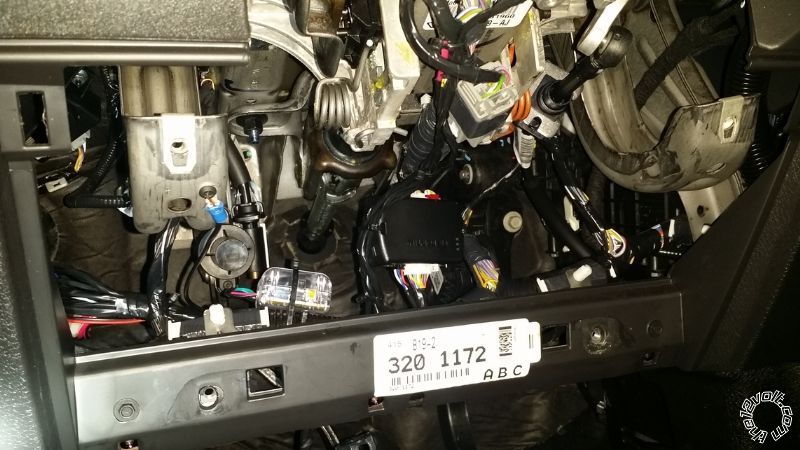

Mounting Brain: On the left side of the dash(above foot ebrake), there is a big pocket where the brain can rest. Zip it to existing harnesses.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.
Wire Tucked and ready to reassembly.
2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.
Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert
bigcyphe
Member - Posts: 15
Member spacespace
Joined: April 17, 2012
Location: New York, United States
Posted: April 09, 2015 at 12:08 AM / IP Logged
Thought i was the only one who taped over the fuses.
You learn something new everyday. Whether or not you fail to file it as useful is up to you.
tedmond
Gold - Posts: 4,610
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 06, 2007
Location: Ontario, Canada
Posted: April 09, 2015 at 12:14 AM / IP Logged
bigcyphe wrote:
Thought i was the only one who taped over the fuses.
I have always done it as a precaution. Would hate for it to touch ground and take out the main fuse under the hood.
Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert
kreg357
Platinum - Posts: 7,449
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: New York, United States
Posted: April 09, 2015 at 6:04 AM / IP Logged

Nice write-up, Ted!  2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.  I'm another one that covers the fuses with a wrap of tape.  Those little exposed test pins are hard to get to

with a DMM meter lead but darn easy to bump against chassis sheet metal during install.   2011-2014 Ford F-150 80 Bit SA Key Pictorial -- posted image.

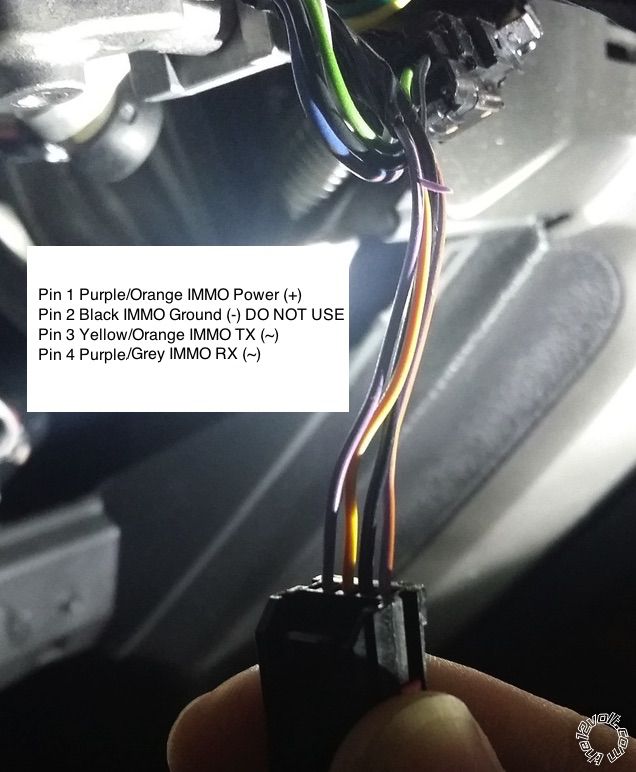

Just a note on the Transponder plug RX wire at Pin 4.  While the color can vary, it's been Violet/Grey on the U.S. market 2014 F150's

I've done.  Go by pin location if in doubt.

Soldering is fun!
tedmond
Gold - Posts: 4,610
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 06, 2007
Location: Ontario, Canada
Posted: April 09, 2015 at 8:52 AM / IP Logged
Thanks Kreg, You're right about pin 4 RX being violet/grey. Not sure why i listed it as violet/red, but I'll fix that pronto. Following pin location is always the best route.
*Edit*... Fixed
Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert
smokeman1
Platinum - Posts: 1,588
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: September 14, 2009
Location: Wisconsin, United States
Posted: April 09, 2015 at 7:43 PM / IP Logged
Real Nice. What else can you say.
