Toyota Dimmer Relay usage


Post ReplyPost New Topic
< Prev Topic Next Topic >
woodpaper327
Member - Posts: 9
Member spacespace
Joined: April 13, 2014
Location: California, United States
Posted: June 10, 2015 at 3:03 PM / IP Logged Link to Post Post Reply Quote woodpaper327

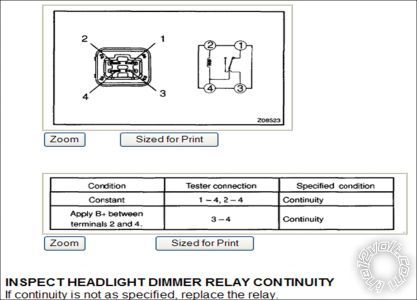

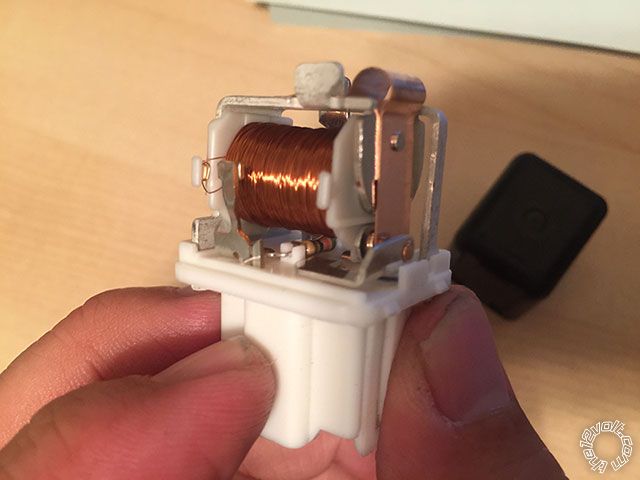

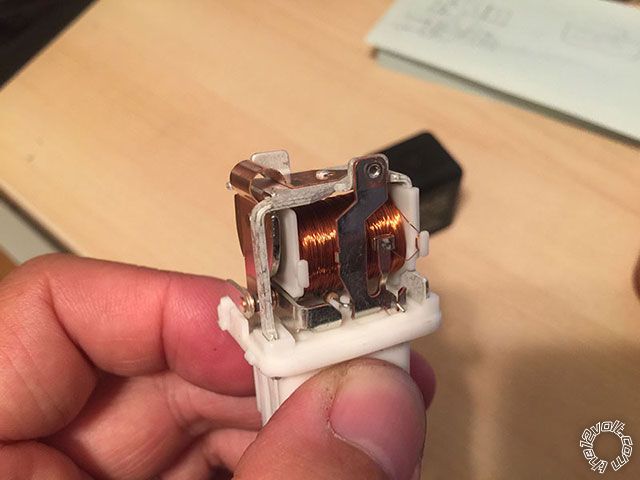

I got Toyota Corolla 1999 headlamp dimmer relay 85926-30020.
Toyota Dimmer Relay usage -- posted image.
Toyota Dimmer Relay usage -- posted image.
Toyota Dimmer Relay usage -- posted image.
I don't know what the difference comparing with other regular SPDT relay.
Can I use this as same as other SPDT relay?
Thanks!
woodpaper327
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: June 11, 2015 at 9:11 AM / IP Logged Link to Post Post Reply Quote howie ll
Yes but it's a 4 terminal doing a 5 terminal SPDT job, be careful how you wire it.
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: June 15, 2015 at 7:35 PM / IP Logged Link to Post Post Reply Quote hotwaterwizard
Not in all applications. Remove the Resistor and install a Jumper instead and it will switch from #1 to #3 when power is applied to the #4 terminal
#4 becomes #30 and #86
#2 is 85
#3 iS 87
#1 is #87a
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: June 15, 2015 at 7:47 PM / IP Logged Link to Post Post Reply Quote hotwaterwizard
Perfect for a latching relay application.
Toyota Dimmer Relay usage -- posted image.
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
