2014 Camry XLE, Alarm/Remote Start, Stereo Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
wyciwug
Copper - Posts: 142
Copper spacespace
Joined: February 08, 2008
Location: Virginia, United States
Posted: October 09, 2015 at 11:55 AM / IP Logged
Hello
Does anyone have complete wiring for alarm/remote? Thanks!
Any recommendation on the kit? Thanks again!
dcd
tonanzith
Gold - Posts: 583
Gold spaceThis member consistently provides reliable informationspace
Joined: July 18, 2008
Location: Washington, United States
Posted: October 10, 2015 at 10:06 PM / IP Logged
2014 Toyota Camry      DirectWire Vehicle Information
All Products
Item     Wire Color     Polarity     Wire Location
12 Volts     green (30A)     +     ignition switch, white 8 pin plug, pin 5
Second 12 Volts     yellow (7.5A)     +     ignition switch, white 8 pin plug, pin 4
Starter     blue     +     ignition switch, white 8 pin plug, pin 7
Second Starter     lt. green     +     ignition switch, white 8 pin plug, pin 3
Ignition     black     +     ignition switch, white 8 pin plug, pin 6
Second Ignition     pink     +     ignition switch, white 8 pin plug, pin 1
Third Ignition     N/A
Accessory     white     +     ignition switch, white 8 pin plug, pin 2
Second Accessory     N/A
Third Accessory     N/A
Keysense     green     -     Body ECU on dash fuse box, white 30 pin plug, pin 17
Data Bus     lt. blue (RX); red (TX)     data     Transponder Key Amplifier on ign switch, black 7 pin plug, pins 4, 5
     The immobilizer light is blue (+) at the A/C control assembly, black 16 pin plug, pin 1. The IMO - IMI are red - green in the driver kick, blue 26 pin plug, pins 4 - 5.
Can Bus High     blue     data     data link connector, white 16 pin plug, pin 6
Can Bus Low     white     data     data link connector, white 16 pin plug, pin 14
Can Bus Sw     blue (RDA keyless data); gray (SIL immobiliz comm)     data     Body ECU, wht 30 pin plug, pin 16; data link conn, wh 16 pin plg, pin 7
Power Lock     blue (passenger door switch)     -     Body ECU on dash fuse box, white 30 pin plug, pin 9
Power Unlock     green (passenger door switch)     -     Body ECU on dash fuse box, white 30 pin plug, pin 10
Lock Motor     red     5 wire     driver kick, white 18 pin plug, pin 18
Driver Unlock Motor     gray     5 wire     driver kick, white 18 pin plug, pin 12
Passenger Unlock Motor     green     5 wire     dash fuse box, white 36 pin plug (3C), pin 11
Parking Lights (-)     black     -     Body ECU on dash fuse box, white 30 pin plug, pin 30
Parking Lights (+)     pink     +     dash fuse box, white 36 pin plug (3C), pin 5
Hazards     white     -     A/C control assembly, black 16 pin plug, pin 4
Turn Signal (Left)     yellow     +     dash fuse box, white 36 pin plug (3C), pin 22
Turn Signal (Right)     green     +     dash fuse box, white 36 pin plug (3C), pin 19
Headlight     pink     -     Body ECU on dash fuse box, white 30 pin plug, pin 29
AutoLights     green (interrupt to turn off autolights)     -     Body ECU on dash fuse box, wht 30 pin plug, pin 28
Reverse Light     pink     +     dash fuse box, white 36 pin plug (3C), pin 7
Left Front Door Trigger     blue     -     dash fuse box, white 36 pin plug (3C), pin 15
Right Front Door Trigger     lt. blue     -     Body ECU on dash fuse box, wht 30 pin plug, pin 19
Left Rear Door Trigger     pink     -     Body ECU on dash fuse box, wht 30 pin plug, pin 1
Right Rear Door Trigger     black     -     Body ECU on dash fuse box, wht 30 pin plug, pin 6
Dome Supervision     lt. green     -     dash fuse box, rear, white 40 pin plug (3B), pin 35
Trunk/Hatch Pin     white     -     dash fuse box, white 36 pin plug (3C), pin 9
Rear Glass Pin     N/A
Hood Pin     purple     -     dash fuse box, white 40 pin plug (3D), pin 25
Trunk/Hatch Release     (use trunk release motor)
Trunk Release Motor     red     5 wire     dash fuse box, white 36 pin plug (3C), pin 10
Fuel Door Release     N/A
Power Sliding Door (Left)     N/A
Power Sliding Door (Right)     N/A
Factory Alarm Arm     red (driver door key lock)     -     Body ECU on dash fuse box, white 30 pin plug, pin 11
Factory Alarm Disarm     gray (driver door key unlock)     double -     Body ECU on dash fuse box, white 30 pin plug, pin 24
Disarm No Unlock     (use keysense)
Trunk Alarm Shunt     N/A
Tachometer     green     ac     data link connector, white 16 pin plug, pin 9
Wait to Start     N/A
Neutral Safety     N/A
Clutch Pedal     N/A
Fuel Pump     black     +     driver kick, harness to rear
Rear Defroster     green     -     passenger kick, gray 18 pin plug, pin 18
Mirror Defroster     (same as rear defroster)
Left Front Heated Seat     black     + resistor     left seat heater switch, black 8 pin plug, pin 6
Right Front Heated Seat     purple     + resistor     right seat heater switch, black 8 pin plug, pin 5
Speed Sense     blue or purple     ac     driver kick, blue 26 pin plug, pin 21 or radio, white 28 pin plug, pin 17
Brake Wire     red     +     brake switch, white 4 pin plug, pin 1
Parking Brake     yellow     -     dash fuse box, white 40 pin plug (3D), pin 20
Horn Trigger     lt. blue     -     dash fuse box, white 40 pin plug (3D), pin 15
Wipers     blue (LO); green (HI); pink (ignition)     +     wiper switch, white 10 pin plug, pins 3, 4, 2
Left Front Window (Up/Down)     (motor is part of module)
Right Front Window (Up/Down)     white - red     A     driver kick, white 18 pin plug, pins 1 - 3
Left Rear Window (Up/Down)     blue - black     A     driver kick, white 26 pin plug, pins 1 - 15
Right Rear Window (Up/Down)     yellow - lt. green     A     driver kick, white 18 pin plug, pins 7 - 2
Sun Roof (Open/Close)     black - green (function with ignition on only)     -     roof console assembly, black 20 pin plug, pins 3 - 2
Sun Roof (Limit/Close)     N/A
Memory Seat 1     N/A
Memory Seat 2     N/A
Memory Seat 3     N/A
Radio 12V     blue / YELLOW     +     radio, white 10 pin plug, pin 4 or white 20 pin plug, pin 1
Radio Ground     brown     -     radio, white 10 pin plug, pin 7 or white 20 pin plug, pin 20
Radio Ignition     gray     +     radio, white 10 pin plug, pin 3 or white 20 pin plug, pin 11
Radio Illumination     green (parking lights); white (dimmer)     +,-     radio, white 10 pin plug, pin 10; white 6 pin plug, pin 5
     On some models, they are in the white 20 pin plug, pins 2, 12.
Factory Amp Turn-on     N/A
Power Antenna     N/A
Left Front Speaker (+/-)     pink - purple     +,-     radio, white 10 pin plug, pins 2 - 6
     On models with amplifier, the speaker wires are pink - purple (woofer); pink - purple (tweeter) at the amplifier under driver seat, white 30 pin plug, pins 11 - 26; 14 - 29.
Right Front Speaker (+/-)     lt. green - blue     +,-     radio, white 10 pin plug, pins 1 - 5
     On models with amplifier, the speaker wires are lt. green - blue or yellow - pink (woofer); lt. green - blue (tweeter) at the amplifier under driver seat, white 30 pin plug, pins 15 - 30; 12 - 27.
Left Rear Speaker (+/-)     black - yellow     +,-     radio, white 6 pin plug, pins 2 - 6
     On models with amplifier, the speaker wires are black - yellow at the amplifier under driver seat, white 30 pin plug, pins 9 - 24.
Right Rear Speaker (+/-)     red - white     +,-     radio, white 6 pin plug, pins 1 - 3
     On models with amplifier, the speaker wires are red - white at the amplifier under driver seat, white 30 pin plug, pins 10 - 25.
Center Channel (+/-)     black - green     +,-     amplifier under driver seat, white 30 pin plug, pins 13 - 28
Subwoofer (+/-)     pink - yellow     +,-     amplifier under driver seat, white 30 pin plug, pins 8 - 23
Aux. Audio Input Left (+/-)     red - white     +,-     radio, white 28 pin plug, pins 28 - 27
Aux. Audio Input Right (+/-)     black - white     +,-     radio, white 28 pin plug, pins 26 - 27
RSE Video (+/-)     white - red (rear view camera video)     +,-     radio, white 16 pin plug, pins 8 - 16
RSE Audio Left (+/-)     black - green (USB and bluetooth audio)     +,-     radio, white 12 pin plug, pins 4 - 5
RSE Audio Right (+/-)     red - white (USB and bluetooth audio)     +,-     radio, white 12 pin plug, pins 2 - 3
Satellite Radio 12 Volts     (built into radio)
Satellite Radio Ground     N/A
Satellite Radio Ignition     N/A
Satellite Radio Antenna     N/A
Satellite Audio Left (+/-)     N/A
Satellite Audio Right (+/-)     N/A
Item     Size     Depth     Location
Headunit     irregular center of dash
Left Front Speaker     7.0 or 7 x 10 left front door
Left Front Tweeter     2.6 or 3.1 left front dash
Right Front Speaker     7.0 or 7 x 10 right front door
Right Front Tweeter     2.6 or 3.1 right front dash
Left Rear Speaker     7.0 or 3.1 left rear shelf
Left Rear Tweeter     N/A
Right Rear Speaker     7.0 or 3.1 right rear shelf
Right Rear Tweeter     N/A
Center Channel     3.1 top center of dash
Subwoofer     7 x 10 left rear shelf
Left Front Headrest
Right Front Headrest
Left Rear Headrest
Right Rear Headrest
Satellite Radio Tuner     (built into radio)

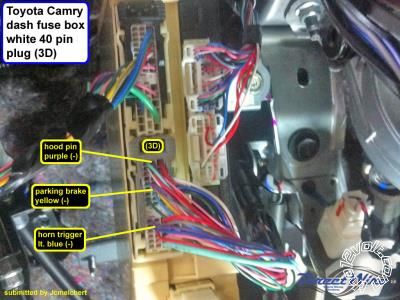

2014 Camry XLE, Alarm/Remote Start, Stereo Wiring -- posted image.

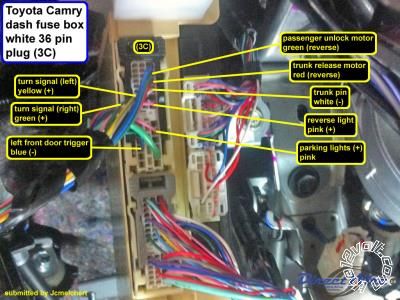

2014 Camry XLE, Alarm/Remote Start, Stereo Wiring -- posted image.

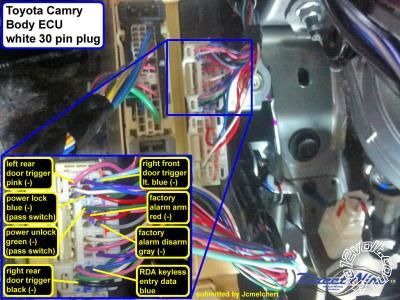

2014 Camry XLE, Alarm/Remote Start, Stereo Wiring -- posted image.

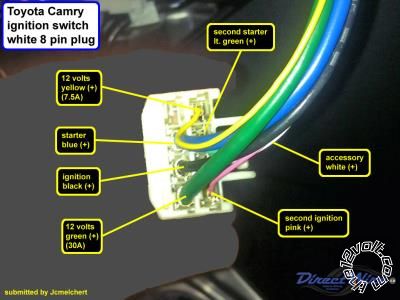

2014 Camry XLE, Alarm/Remote Start, Stereo Wiring -- posted image.
2014 Camry XLE, Alarm/Remote Start, Stereo Wiring -- posted image.
Gary Sather
wyciwug
Copper - Posts: 142
Copper spacespace
Joined: February 08, 2008
Location: Virginia, United States
Posted: October 13, 2015 at 4:22 PM / IP Logged
Thank you tonanzith for the wiring diagram
I just bought this
Viper 4105V 1-Way 4-Button Remote Start System with Keyless Entry
and this Ads-alca bypass idatalink bypass
This is my first time to install remote start for a push start and using this by pass.
Where can I find the Steering Lock connector? Thanks. I am looking at the wires and kindda confusing.
dcd
rs specialist
Copper - Posts: 175
Copper spacespace
Joined: September 30, 2015
Location: Arizona, United States
Posted: October 14, 2015 at 8:15 PM / IP Logged
If you are using the ALCA, what firmware is it flashed for? The module is doing 99% of the install. The remote start you are installing is basically just communicating between the remotes and the module. That is a bit of an over kill for a vehicle like that.
You say smart start in the title of the post, are you installing a system with a phone app or do you mean smart key vehicle?
