soybeanstorm

Member - Posts: 22

Joined: April 11, 2003

Location: United States

Posted: May 27, 2003 at 12:41 PM / IP Logged

I have a hifonics centurion (100x2). Printed on the amp, are the words "1 Ohm stable". I am planning to attach an 12" Orion XTR2 DVC to the amp in a 2 Ohm mono (bridged) load. From my understanding, in a bridged setup, the amp actually "sees" half the impedance you provide it (i.e. in 4 Ohm bridged mono, the amp is actually "seeing" 2 Ohms [on each channel]). So, giving it a 2 Ohm load bridged mono would have the amp running @ 1 ohm, correct?

Anyhow, so the amp "says" it's 1 Ohm stable.. but I dunno.. what do you guys think? Should I just play it safe and only use 1 channel (unbridged), giving each voice coil ~100 watts, or do you think it's ok to put it in a 2 ohm bridged config?

delta737310

Member - Posts: 7

Joined: May 25, 2003

Location: United States

Posted: May 27, 2003 at 3:49 PM / IP Logged

what is the resistance of te speaker per voice coil?

delta737310

Member - Posts: 7

Joined: May 25, 2003

Location: United States

Posted: May 27, 2003 at 3:49 PM / IP Logged

what is the resistance of the speaker per voice coil?

soybeanstorm

Member - Posts: 22

Joined: April 11, 2003

Location: United States

Posted: May 27, 2003 at 3:55 PM / IP Logged

4 Ohms each coil

wvsquirrel

Gold - Posts: 1,237

This member has made a donation to the12volt.com. Click here for more info.

Joined: July 27, 2002

Location: Florida, United States

Posted: May 27, 2003 at 10:07 PM / IP Logged

1) Do not wire the coils independantly! Independant wiring can cause damage to the sub if the inputs/settings are not exact for each channel (that includes when bridged). Read this article for more information on the dangers on independant wiring.

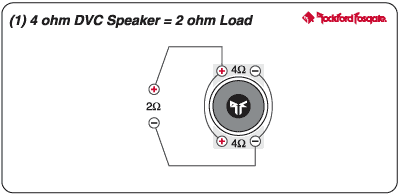

2) I did basic some research on "hifonics centurion" amps and everything I found on the net says the same thing, they're 1ohm stable. Give it a shot, wire the 4ohm DVC in parallel and bridge the amp for max power. If the amp goes into protect mode or starts shutting down let us know (that would be a good indication that it wasn't truly 1ohm stable, but not the only reason).

Squirrel

"No more Cpt. Kirk chit chat"

If its too loud, then you're too old

Donate to the12volt.com

soybeanstorm

Member - Posts: 22

Joined: April 11, 2003

Location: United States

Posted: May 28, 2003 at 9:31 AM / IP Logged

Thanks for the response!

haha.. ok. I'll give it a shot. I've had the amp for about 3-4 years now anyway (transplanted from old car). I'll let you know what happens. (hopefully not alot of smoke =p)

Oh, btw, when I said "just use one channel (unbridged)", I didn't mean each voice coil on a different channel. I was thinking just use 1 channel for both voice coils (parallel, for a 2 ohm load on 1 channel, ~100 watts/coil.. the other channel unused).. but yeah, I'll give it a shot at 2 ohms bridged first.

wvsquirrel

Gold - Posts: 1,237

Joined: July 27, 2002

Location: Florida, United States

Posted: May 28, 2003 at 9:10 PM / IP Logged

If your amp goes into protect mode with a 2ohm bridge then that would be your only other option without getting different equipment. Good luck :)

Squirrel

"No more Cpt. Kirk chit chat"

If its too loud, then you're too old

Donate to the12volt.com
