Switching LED's


Post ReplyPost New Topic
< Prev Topic Next Topic >
90profx
Member - Posts: 5
Member spacespace
Joined: January 28, 2016
Location: Ohio, United States
Posted: January 28, 2016 at 4:00 AM / IP Logged Link to Post Post Reply Quote 90profx

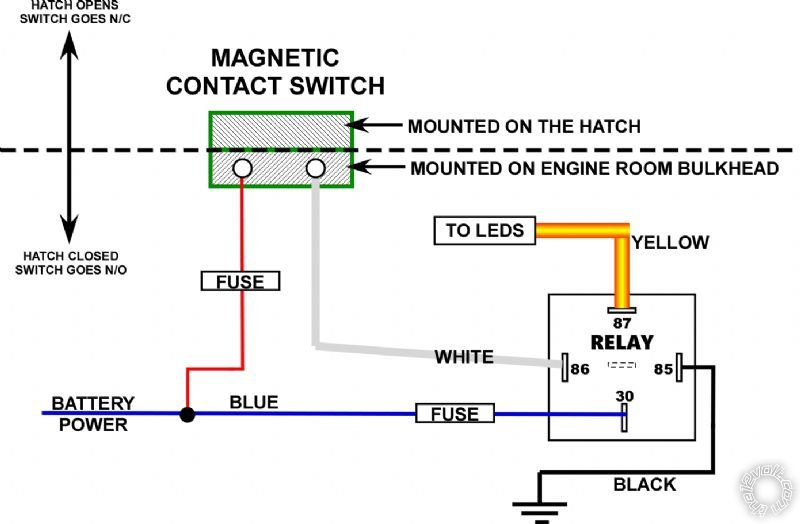

I'd like to have my engine room LED lighting activate upon opening the hatch, hatch is opened by 2 electric ball screw rams. My thought was to us a Magnetic Reed Switch to do this. I understand the basics and have put a sketch together to accomplish this but not sure if this is the way to go, I'd greatly appreciate some feedback. By the way this site is great I've relied on it for my years to help me along the way.Switching LED's -- posted image. Switching LED's -- posted image. Switching LED's -- posted image. Switching LED's -- posted image. Switching LED's -- posted image.
Switching LED's -- posted image.
Thanks, Gary
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: January 28, 2016 at 10:51 AM / IP Logged Link to Post Post Reply Quote geepherder
I've used magnetic reed switches before with varied degrees of success. I have one mounted to trigger my reverse lights. Placement is key to avoid any false activations.
I recommend to use a common part so if your switch ever does go bad, getting another is not a hassle.
My ex once told me I have a perfect face for radio.
90profx
Member - Posts: 5
Member spacespace
Joined: January 28, 2016
Location: Ohio, United States
Posted: January 28, 2016 at 11:21 AM / IP Logged Link to Post Post Reply Quote 90profx
I bought 3 brand new Magnetic Switches (like you suggested) made by GE for commercial use, got'em real cheap so couldn't pass up 3 of them. Their N/O-N/C 3 contact units. I think I'll be good to go for awhile....Switching LED's -- posted image.
Thanks, Gary
