Stereo Wiring diagram for 2016 RAV4 w/JBL

Home / the12volt's Install Bay / Vehicle Wiring Information & File Requests / Stereo Wiring diagram for 2016 RAV4 w/JBL

Welcome Guest :)

Members

Search

Register

Login

< Prev Topic Next Topic >

y0dah

Member - Posts: 1

Joined: March 13, 2016

Location: California, United States

Posted: March 14, 2016 at 12:22 PM / IP Logged

Could you please post the stereo wiring diagram for 2016 RAV4 w/JBL?

Thanks!

Back to Top

icearrow6

Copper - Posts: 497

Joined: February 02, 2009

Location: California, United States

Posted: March 14, 2016 at 6:51 PM / IP Logged

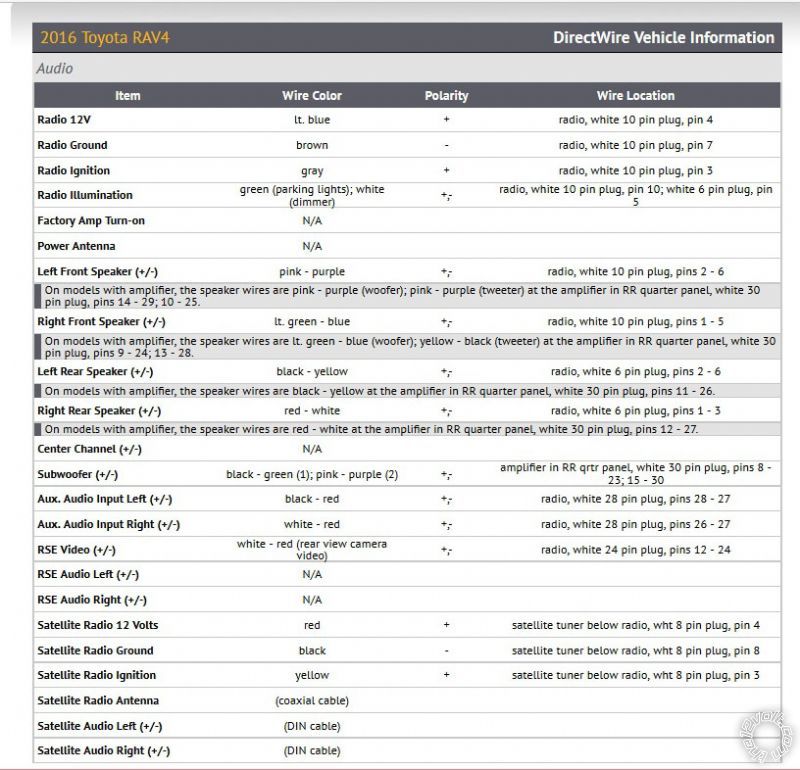

Stereo Wiring diagram for 2016 RAV4 w/JBL -- posted image.
