2013 Chevrolet Silverado 2500/3500 Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
lurch228
Silver - Posts: 1,338
Silver spacespace
Joined: August 08, 2012
Posted: September 17, 2016 at 1:39 AM / IP Logged
Directwire
2013 Chevrolet Silverado 2500/3500 - North America
Remote Start, Security, Keyless Entry, Accessories
Item Wire Color Polarity Wire Location

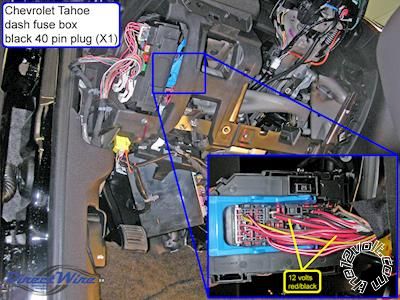

12 Volts RED / black (60A); RED / black (60A) + dash fuse box, black 40 pin plug, pins E3, F1

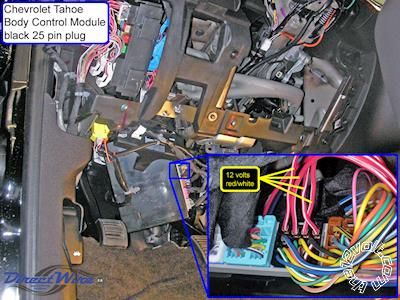

Second 12 Volts RED / white (x4) (15A each) + BCM left of strng column, blk plg, pins 1, 2, 3, 4

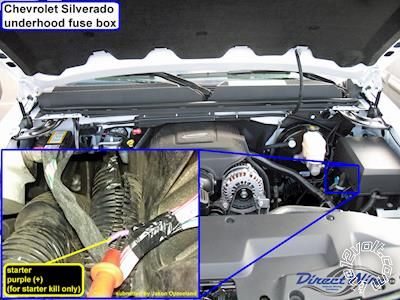

Starter purple (for starter kill only) + starter or underhood fuse box, black 50 pin plug, pin F1
Second Starter pnk/bk or pnk (r-code); wht (5V ref)(TechDoc 1605) +9600 ohms ignition switch or BCM left of strng column, lt. green plug, pins 2, 4

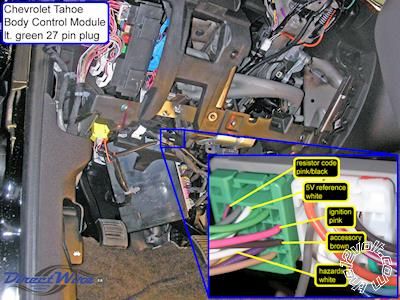

Ignition pink + ignition switch or BCM left of strng column, lt. green plug, pin 14
Accessory brown or yellow + ignition switch or BCM left of strng column, lt. green plug, pin 21
Second Accessory (same as second starter) +6300 ohms
Keysense (same as second starter)

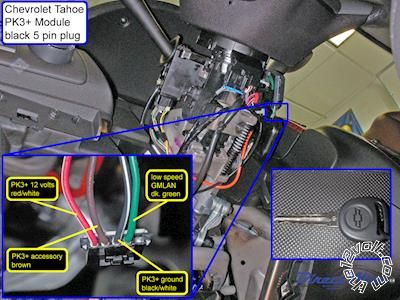

Data Bus dk. green (low speed GMLAN) data PASS-Key III+ Module, black 5 pin plug, pin 4

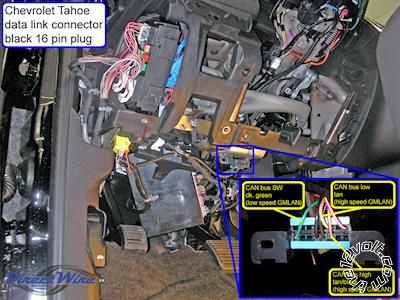

CAN Bus High tan/black (high speed GMLAN) data data link connector, black 16 pin plug, pin 6
CAN Bus Low tan (high speed GMLAN) data data link connector, black 16 pin plug, pin 14
CAN Bus SW dk. green (low speed GMLAN) data data link conn, black 16 pin plug, pin 1 or BCM, lt. blue plug, pin 10
Power Lock pink/black (except premium models) - BCM left of steering column, gray plug, pin 12
Power Unlock ORANGE / black (except premium models) - BCM left of steering column, gray plug, pin 11
Lock Motor gray (except premium models) 5 wire dash fuse box, gray 14 pin plug, pin A3 or A7
Driver Unlock Motor tan (except premium models) 5 wire dash fuse box, gray 14 pin plug, pin A5 or B4
Passenger Unlock Motor tan (except premium models) 5 wire dash fuse box, black 40 pin plug, pin F2
Factory Alarm Arm (arms on lock with door open)
Factory Alarm Disarm lt. green (except premium models) (dr key unlock) - BCM left of steering column, pink plug, pin 20
Disarm No Unlock (Passkey and ignition)
Parking Lights (+) brown (L); brown (R) + underhood fuse box, black 30 pin plug, pins A7, F7
Parking Lights (-) lt. blue - headlight switch or BCM left of strng column, white plug, pin 8
Hazards white - hazard switch or BCM left of strng column, lt. green plug, pin 19

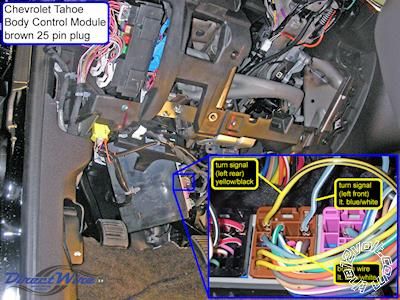

Turn Signal (Left) lt. blue/white (F); yellow (R) + BCM left of steering column, brown plug, pins 4, 1
Turn Signal (Right) dk. blue/white (F); dk. green (R) + BCM left of steering column, black plug, pin 5; brown plug, pin 2

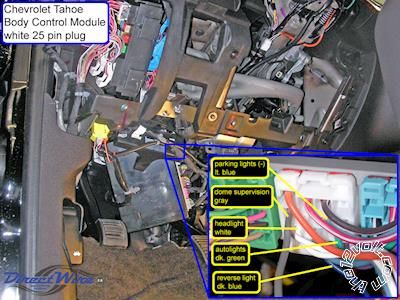

Headlight white - headlight switch or BCM left of strng column, white plug, pin 12
AutoLights dk. green (ground to turn off autolights) - headlight switch or BCM, white plug, pin 17
Reverse Light dk. blue + BCM left of steering column, brown plug, pin 7 or 11
Left Front Door Trigger gray/black (except premium models) - BCM left of steering column, pink plug, pin 10
Right Front Door Trigger tan/white (except premium models) - BCM left of steering column, pink plug, pin 8

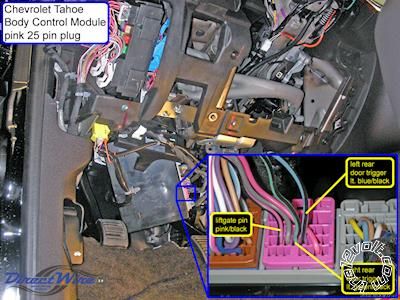

Left Rear Door Trigger lt. blue/black - BCM left of steering column, pink plug, pin 15
Right Rear Door Trigger lt. GREEN/ black - BCM left of steering column, pink plug, pin 14
Dome Light gray (dome lamp); WHITE/ black (cargo lamp) + BCM left of steering column, white plug, pin 5; pink plug, pin 2

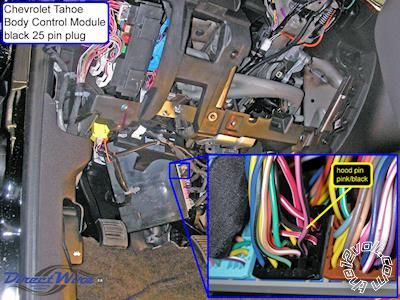

Hood Pin pink/black - hood switch or BCM left of strng column, black plug, pin 17

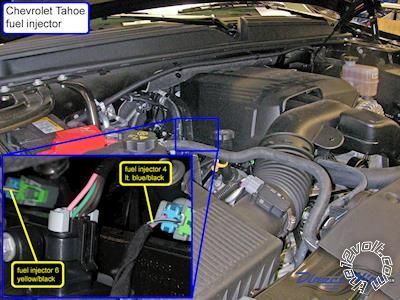

Tachometer NOT pink, pink/black, or pink/white ac any fuel injector
Wait to Start dk. blue - instrument cluster, black 20 pin plug, pin 17
Clutch Pedal dk. green - clutch switch, black 6 pin plug, pin D
Fuel Pump gray (except 4.8L, 5.3L, and hybrid) + underhood fuse box, black 30 pin plug, pin B5

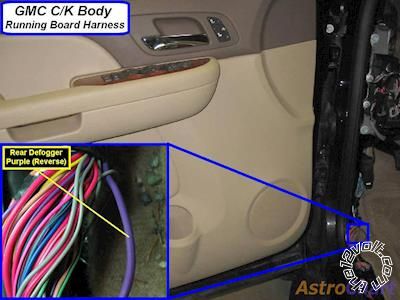

Rear Defroster purple + latched driver kick, harness to rear
Mirror Defroster (same as rear defroster) (except premium models)

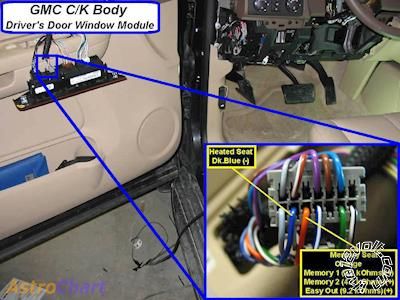

Left Front Heated Seat dk. blue or black - driver window switch, lt. gray 14 pin plug, pin 6
Right Front Heated Seat dk. blue or black - passenger window switch, lt. gray 14 pin plug, pin 6
Speed Sense dk. GREEN / WHITE (some models only) ac radio, brown 16 pin plug, pin 5
Brake Wire lt. blue/white (functions with ignition on only) + BCM left of steering column, brown plug, pin 6
Parking Brake lt. blue - parking brake switch or BCM left of strng column, brown plug, pin 16

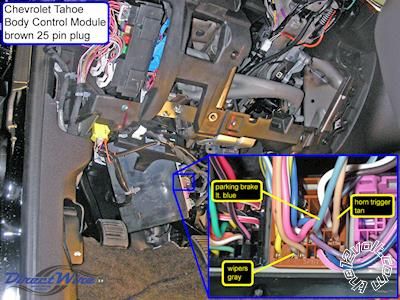

Horn Trigger tan - horn switch or BCM left of strng column, brown plug, pin 18
Wipers gray + BCM left of steering column, brown plug, pin 20
Left Front Window (Up/Down) dk. blue - brown (except premium models) A driver window switch, black 8 pin plug (X2), pins E - D
Right Front Window (Up/Down) dk. blue - brown (except premium models) A passenger window switch, black 8 pin plug, pins E - H
Left Rear Window (Up/Down) dk. blue - brown A left rear window switch, black 8 pin plug, pins E - H
Right Rear Window (Up/Down) dk. blue - brown A right rear window switch, black 8 pin plug, pins E - H

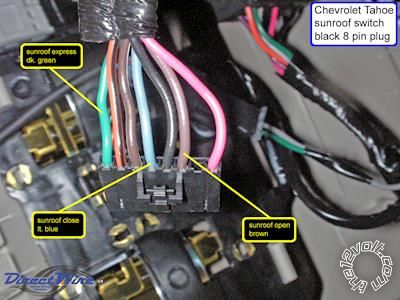

Sun Roof (Open/Close) brown and dk. green (open) (func with ign on only) - sunroof switch, black 8 pin plug, pins 6, 1
Sun Roof (Limit/Close) orange and dk. grn (close) (func with ign on only) - sunroof switch, black 8 pin plug, pins 4, 1
Memory Seat 1 orange +2260 ohms driver window switch, lt. gray 14 pin plug, pin 5
Memory Seat 2 (same as memory seat 1) +4260 ohms
NOTES:
1.Power locks-On premium models, use a Directed interface module or see Tech Doc 1601, using the following wires. The driver door lock - unlock motor wires are tan - purple (5 wire) at the driver window switch, brown 16 pin plug, pins 7 - 8. The passenger door lock - unlock motor wires are tan - gray/black (5 wire) at the passenger window switch, brown 16 pin plug, pins 7 - 8. The rear doors lock - unlock wires are lt. blue (+) - white (-) at the BCM left of steering column, gray plug, pins 7 - 9.
2.Lock motor-On premium models, it is tan at the driver window switch, brown 16 pin plug, pin 7 (regular or extended cab) or gray at the dash fuse box, black 14 pin plug, pin B4 (crew cab).
3.Driver unlock motor-On premium models, it is purple at the driver window switch, brown 16 pin plug, pin 8
4.Passenger unlock motor-On premium models, it is gray/black at the passenger window switch, brown 16 pin plug, pin 8 (regular or extended cab) or tan at the dash fuse box, black 14 pin plug, pin B1 (crew cab).
5.Factory alarm disarm-On premium models, it is lt. green (-) at the driver window switch, brown 16 pin plug, pin 4.
6.Left front door trigger-On premium models, it is gray/black (-) at the driver window switch, brown 16 pin plug, pin 13.
7.Right Front Door Trigger-On premium models, it is tan/white (-) at the passenger window switch, brown 16 pin plug, pin 13.
8.Tachometer-On diesel models, use dk. blue/white at the camshaft position sensor, gray 3 pin plug, pin 1 or the Engine Control Module, plug (X3), pin 65. The camshaft position sensor is on the front of the engine, above the crank pulley. The Engine Control Module is in the left front of the engine compartment, near the fan shroud
9.Fuel pump-On 4.8L, 5.3L, and hybrid models, use pink (+) at the underhood fuse box, black 30 pin plug, pin F5.
10.Left Front Window (Up/Down)-On premium models, they are dk. blue - brown at the driver window switch, black 6 pin plug, pins 3 - 1. On the front windows, use the 529T only.
11.Right Front Window (Up/Down)-On premium models, they are dk. blue - brown at the passenger window switch, black 6 pin plug, pins 3 - 1. On the front windows, use the 529T only.
12.Right Rear Window (Up/Down)-The sliding rear window open - close wires are tan (+) - white (+) at the sliding rear window switch, black 5 pin plug, pins C - B.
lurch228
Silver - Posts: 1,338
Silver spacespace
Joined: August 08, 2012
Posted: September 17, 2016 at 1:42 AM / IP Logged
2013 Chevrolet Silverado 2500/3500 Audio Wiring
Audio
Item Wire Color Polarity Wire Location
Radio 12V RED / white + radio, black 14 pin plug, pin 1
Radio Ground black - radio, black 14 pin plug, pin 8
Radio Ignition (low speed GMLAN)
Radio Illumination yellow (dimmer) + radio, black 14 pin plug, pin 7
Factory Amp Turn-on white + radio, black 14 pin plug, pin 6
Left Front Speaker (+/-) tan - gray or tan - dk. green +,- radio, black 14 pin plug, pins 2 - 9
Right Front Speaker (+/-) lt. green - dk. green or lt. GREEN / WHITE - org/blk +,- radio, black 14 pin plug, pins 3 - 10
Left Rear Speaker (+/-) brown - yellow or BROWN / white - brown +,- radio, yellow or black 16 pin plug, pins 5 - 13
Right Rear Speaker (+/-) dk. blue - lt. blue or dk. blue - tan +,- radio, yellow or black 16 pin plug, pins 6 - 14
Center Channel (+/-) yellow/black - lt. blue (luxury edition) +,- amplifier, black 16 pin plug (X2), pins 13 - 12
Subwoofer (+/-) dk blu/wht - lt grn/blk(1); dk grn - lt blu/blk(2) +,- amplifier, black 8 pin plg, pins 1-2; 7-3 or gray 8 pin plg, pins 7-3; 6-2
Aux. Audio Input Left (+/-) yellow - (bare wire) +,- radio, gray 16 pin plug, pins 1 - 9
Aux. Audio Input Right (+/-) white - (bare wire) +,- radio, gray 16 pin plug, pins 2 - 9
RSE Video (+/-) dk. green - WHITE/ black +,- radio, gray 16 pin plug, pins 7 - 15
RSE Audio Left (+/-) lt. blue - purple +,- radio, gray 16 pin plug, pins 3 - 11
RSE Audio Right (+/-) white - purple +,- radio, gray 16 pin plug, pins 4 - 11
Satellite Radio 12 Volts RED / white + Sat Radio behind glove box, blk 16 pin plg, pin 16
Satellite Radio Ground black - Sat Radio behind glove box, blk 16 pin plg, pin 9
Satellite Radio Ignition (low speed GMLAN)
Satellite Radio Antenna (coaxial cable)
Satellite Audio Left (+/-) BROWN / white - tan/white +,- Satellite Radio, black 16 pin plug, pins 2 - 1
Satellite Audio Right (+/-) dk. GREEN / WHITE - gray +,- Satellite Radio, black 16 pin plug, pins 3 - 4
What Fits
Item Size Depth Location
Headunit double DIN center of dash
Left Front Speaker 6.5 left front door
Left Front Tweeter left front pillar
Right Front Speaker 6.5 right front door
Right Front Tweeter right front pillar
Left Rear Speaker 5.25 left rear door or pillar
Right Rear Speaker 5.25 right rear door or pillar
Center Channel top center of dash
Subwoofer under front of center console
Satellite Radio Tuner behind glove box
NOTES:
1.Left Front Speaker (+/-)-On models with amplifier, the speaker wires are tan - gray at the amplifier under rear of center console, black 16 pin plug (X2), pins 4 - 3 (except luxury edition) or 4 - 5 (luxury edition).
2.Right Front Speaker (+/-)-On models with amplifier, the speaker wires are lt. green - dk. green at the amplifier under rear of center console, black 16 pin plug (X2), pins 2 - 1 (except luxury edition) or 7 - 6 (luxury edition).
3.Left Rear Speaker (+/-)-On models with amplifier, the speaker wires are brown - yellow at the amplifier under rear of center console, black 16 pin plug (X2), pins 8 - 7 (except luxury edition) or 15 - 14 (luxury edition).
4.Right Rear Speaker (+/-)-On models with amplifier, the speaker wires are dk. blue - lt. blue at the amplifier under rear of center console, black 16 pin plug (X2), pins 6 - 5 (except luxury edition) or 16 - 8 (luxury edition).
5.Aux. Audio Input Left (+/-)-The auxiliary video input wires are purple - (bare wire) at the radio, gray 16 pin plug, pins 8 - 16.
6.RSE Video (+/-)-The rearview camera input wires are white - lt. blue or gray/dk. blue - gray/orange at the radio, brown 16 pin plug, pins 6 - 7.
lurch228
Silver - Posts: 1,338
Silver spacespace
Joined: August 08, 2012
Posted: September 17, 2016 at 2:32 AM / IP Logged
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
2013 Chevrolet Silverado 2500/3500 Wiring -- posted image.
