Splitting AC into two DC


Post ReplyPost New Topic
< Prev Topic Next Topic >
turboled
Member - Posts: 22
Member spacespace
Joined: December 29, 2006
Posted: October 25, 2016 at 8:38 AM / IP Logged Link to Post Post Reply Quote turboled
Hi
I need to connect a digital control that requires 24V and closes a relay when a certain humidity is reached (a dehumidistat). The problem is that I have only two wires between my HVAC (load) and the humidistat (control).

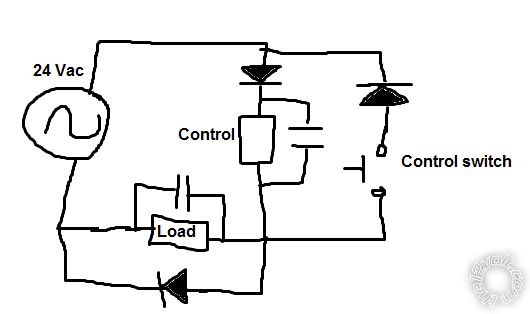

I was thinking about the following idea: Create 2 DC sources (+33.6V and -33.6V) from one 24VAC source, by using two half-wave rectifiers. One rectifier would drive the control and the other one would drive the output, but only when the control relay is closed, using a diode to control the direction. Like this:
Splitting AC into two DC -- posted image.
Let's assume that the control and load supports 33Vdc, would this circuit work? Am I missing something?
Is there another easy way to achieve what I need? Can I avoid using DC and keeping full-wave AC on the control without driving current through the load?
Keep in mind that I need maximum 2 conductors going to the control. The source and the load are away from the control.
tonanzith
Gold - Posts: 582
Gold spaceThis member consistently provides reliable informationspace
Joined: July 18, 2008
Location: Washington, United States
Posted: November 02, 2016 at 2:47 PM / IP Logged Link to Post Post Reply Quote tonanzith
I would use this::
https://www.amazon.com/dp/B000LESCI2/ref=cm_sw_r_sms_awd_x_RjKgyb9GPVDXM
Relay operates with AC or DC voltage
Works within the realm of what your needing.
If you already have the power source you don't need rectifiers etc
Gary Sather
turboled
Member - Posts: 22
Member spacespace
Joined: December 29, 2006
Posted: November 04, 2016 at 5:06 PM / IP Logged Link to Post Post Reply Quote turboled
tonanzith wrote:
If you already have the power source you don't need rectifiers etc
My power source and the load (a relay) are in the closet. There is only a pair of wires going to the control in the wall (humidistat). So basically, I'm trying to carry 2 signals over the same pair of wires:
-A constant 24V input
-A switched 24V output
Usually, 3 wires are used to achieve this. But I have only two and I can't run a new wire inside the wall. I'm basically missing a common (or neutral) wire.
My idea in the circuit above is to use the positive half-wave for the input and the negative half-wave for the switched output. It's a sort of simplified power-stealing circuit that doesn't involve complex electronic and logic.
turboled
Member - Posts: 22
Member spacespace
Joined: December 29, 2006
Posted: November 15, 2016 at 9:42 AM / IP Logged Link to Post Post Reply Quote turboled
Update: My circuit works even without the capacitor across the control, a Honeywell H6062 working on 24VAC. It can handle half-wave 24VAC. I can activate the relay remotely using only 1 output wire. I only have to be careful not to plug anything in reverse.
