2014 Hyundai Santa Fe Ignition Wiring Diagram


Post ReplyPost New Topic
< Prev Topic Next Topic >
thking2002
Member - Posts: 2
Member spacespace
Joined: December 10, 2016
Location: Texas, United States
Posted: December 10, 2016 at 6:23 PM / IP Logged Link to Post Post Reply Quote thking2002
I'm looking for the ignition wiring diagram for a 2014 Hyundai Santa Fe with the push to start. Any help would be much appreciated. Thx in advance.
bogucki
Copper - Posts: 91
Copper spacespace
Joined: July 11, 2016
Location: Alberta, Canada
Posted: December 11, 2016 at 12:21 AM / IP Logged Link to Post Post Reply Quote bogucki

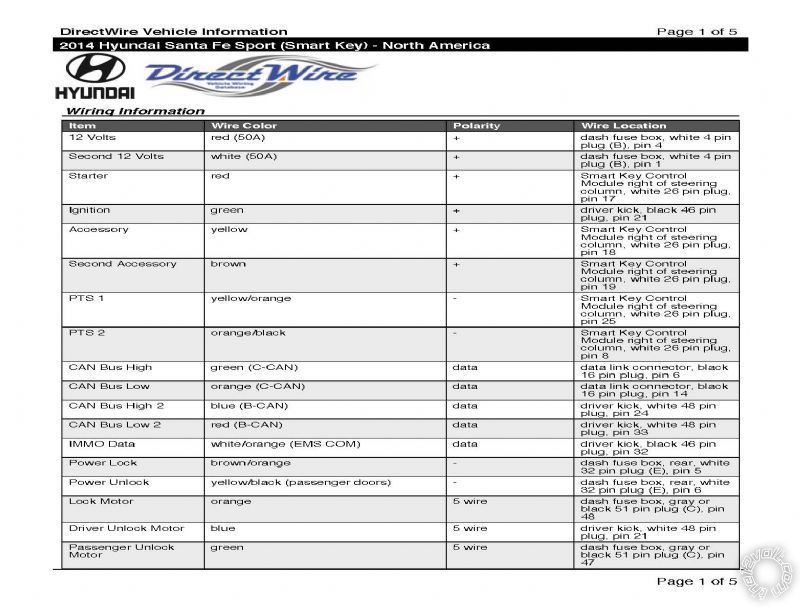

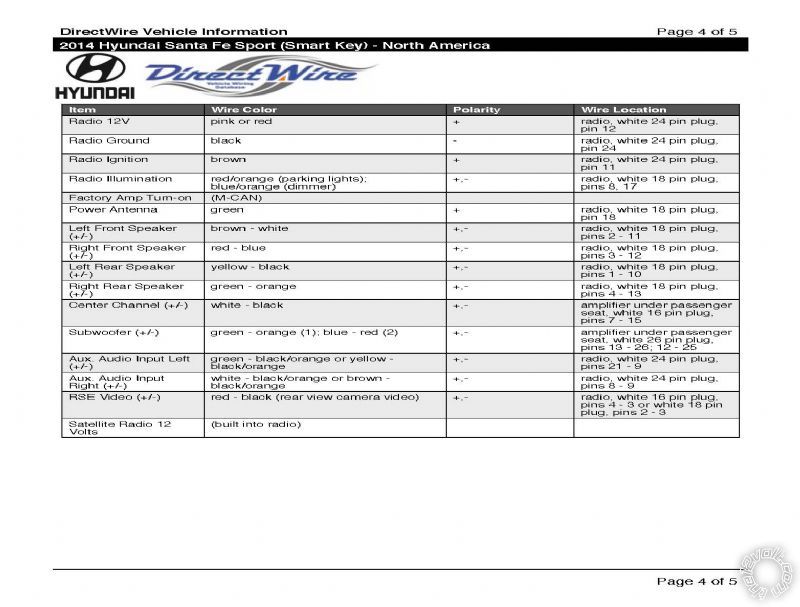

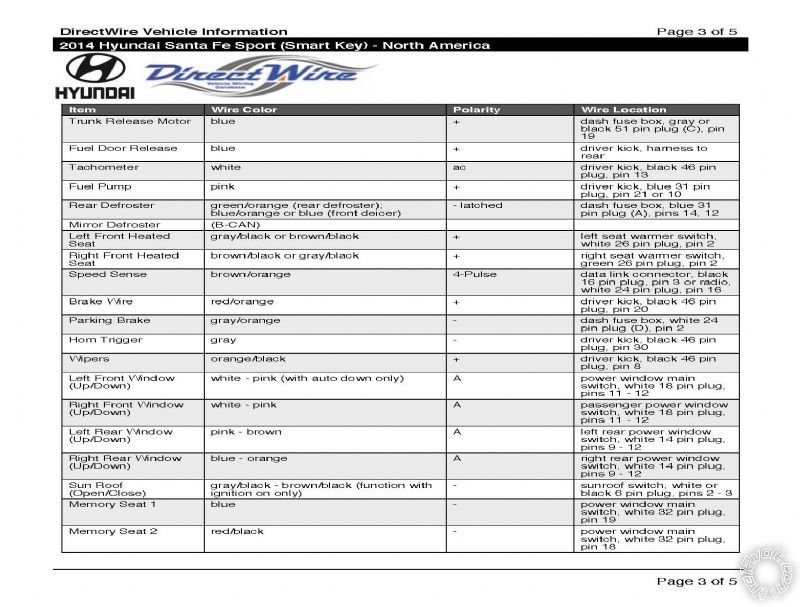

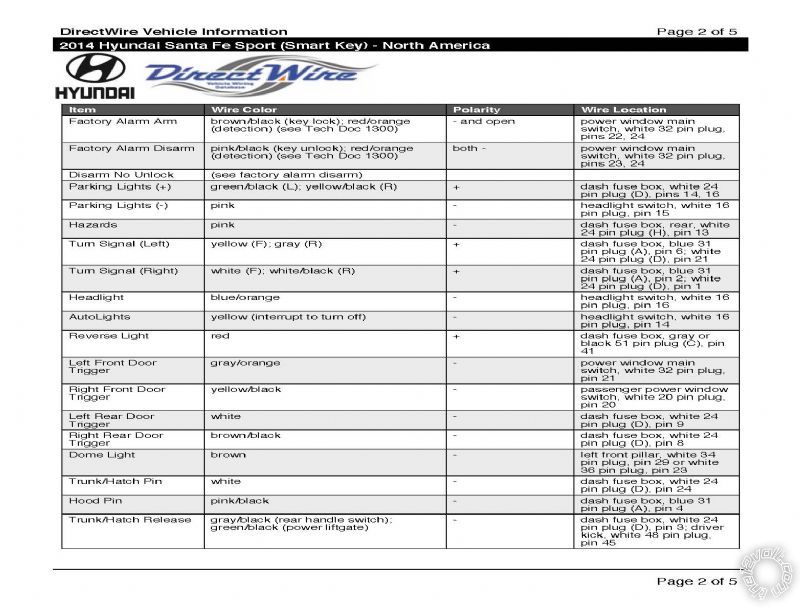

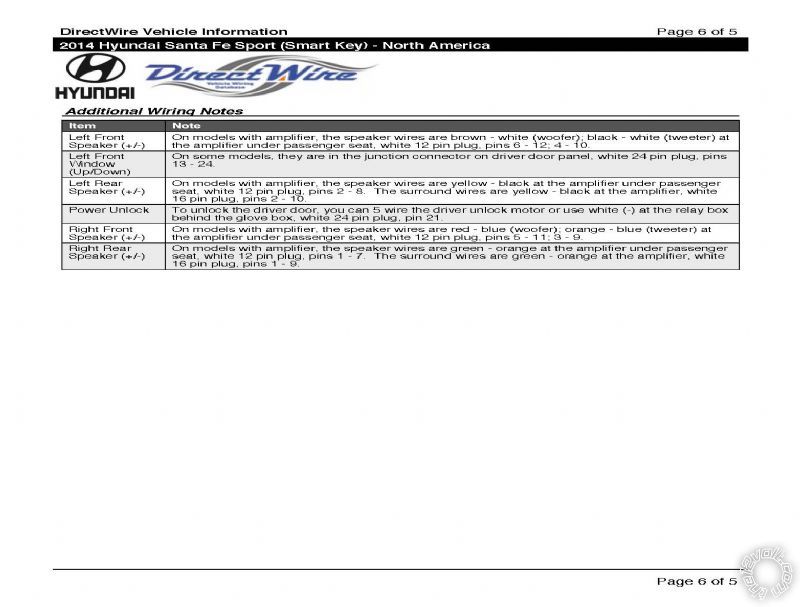

2014 Hyundai Santa Fe Ignition Wiring Diagram -- posted image. 2014 Hyundai Santa Fe Ignition Wiring Diagram -- posted image. 2014 Hyundai Santa Fe Ignition Wiring Diagram -- posted image. 2014 Hyundai Santa Fe Ignition Wiring Diagram -- posted image. 2014 Hyundai Santa Fe Ignition Wiring Diagram -- posted image. 2014 Hyundai Santa Fe Ignition Wiring Diagram -- posted image.
boguckialex
bogucki
Copper - Posts: 91
Copper spacespace
Joined: July 11, 2016
Location: Alberta, Canada
Posted: December 11, 2016 at 12:23 AM / IP Logged Link to Post Post Reply Quote bogucki
well my pics dont want to upload, whats your email and i can email you the pdf file of wire sheet
boguckialex
the12volt
Administrator - Posts: 3,955
Administrator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 07, 2002
Location: Louisiana, United States
Posted: December 11, 2016 at 7:34 AM / IP Logged Link to Post Post Reply Quote the12volt
bogucki wrote:
well my pics dont want to upload...
I just corrected the file names for your images. In the future, please do not include parenthesis in the file names.
2014 Hyundai Santa Fe Ignition Wiring Diagram -- posted image. the12volt • Support the12volt.com
