Viper 5706v, 2000 Jeep Grand Cherokee


Post ReplyPost New Topic
< Prev Topic Next Topic >
ircorona
Member - Posts: 5
Member spacespace
Joined: February 15, 2017
Posted: February 15, 2017 at 6:29 PM / IP Logged Link to Post Post Reply Quote ircorona
Hello everyone,
I recently wired up a dball2 and a 5706v connected it to the car and the remote start worked great the first time with the pad on off never tried the key or brake.
The next time I turned it on, everything went haywire, the remote start keeps on firing to start the car which caused a lengthy grind on my starter.
So I disconnected the ten pin double checked and now the moment the contacts for the ten pin touches the brain it tries to start up without end.
I have no idea what I did wrong. According to forums I have read it appears others have had this issue and resolved it by switching three wires around for different cars. They did not mention what wires it was.
Here is the wiring diagram
Item Wire Color Polarity Wire Location
12 Volts            red and pink/black + ignition harness
Starter        yellow + ignition harness
Ignition        dk. blue + ignition harness
Accessory       RED / black + ignition harness
Second AccessoryBLACK/ orange + ignition harness
J1850           yellow/purple data data link connector, 16 pin plug, pin 2
Power Lock      use Directed interface module
Power Unlock    see power lock
Lock Motor      ORANGE / black 5wi driver door lock switch
Driver Unlock Motor            pink/black 5wi driver door lock switch
Passenger Unlock Motor        pink/purple 5wi passenger kick panel
Factory Alarm Arm              use Directed interface module
Factory Alarm Disarm           use Directed interface module
Parking Lights (+)             use negative wire
Parking Lights MUX             yellow (see Tech Doc 1082) -1300 ohms headlight switch
Hazards        dk. blue/pink - hazard switch
Headlight       yellow - headlight switch
Left Front Door Trigger        see notes - see notes
Dome Light      yellow/dk. green - BCM, above diagnostic plug
Trunk/Hatch     Pin tan/black - BCM, above diagnostic plug
Tachometer      see notes ac see notes
Speed Sense     WHITE/ orange cluster or PCM, pass. side firewall
Brake Wire      WHITE/ tan + brake pedal switch
Horn Trigger    gray/orange - horn switch
Wipers          dk. GREEN/ red - windshield wiper switch

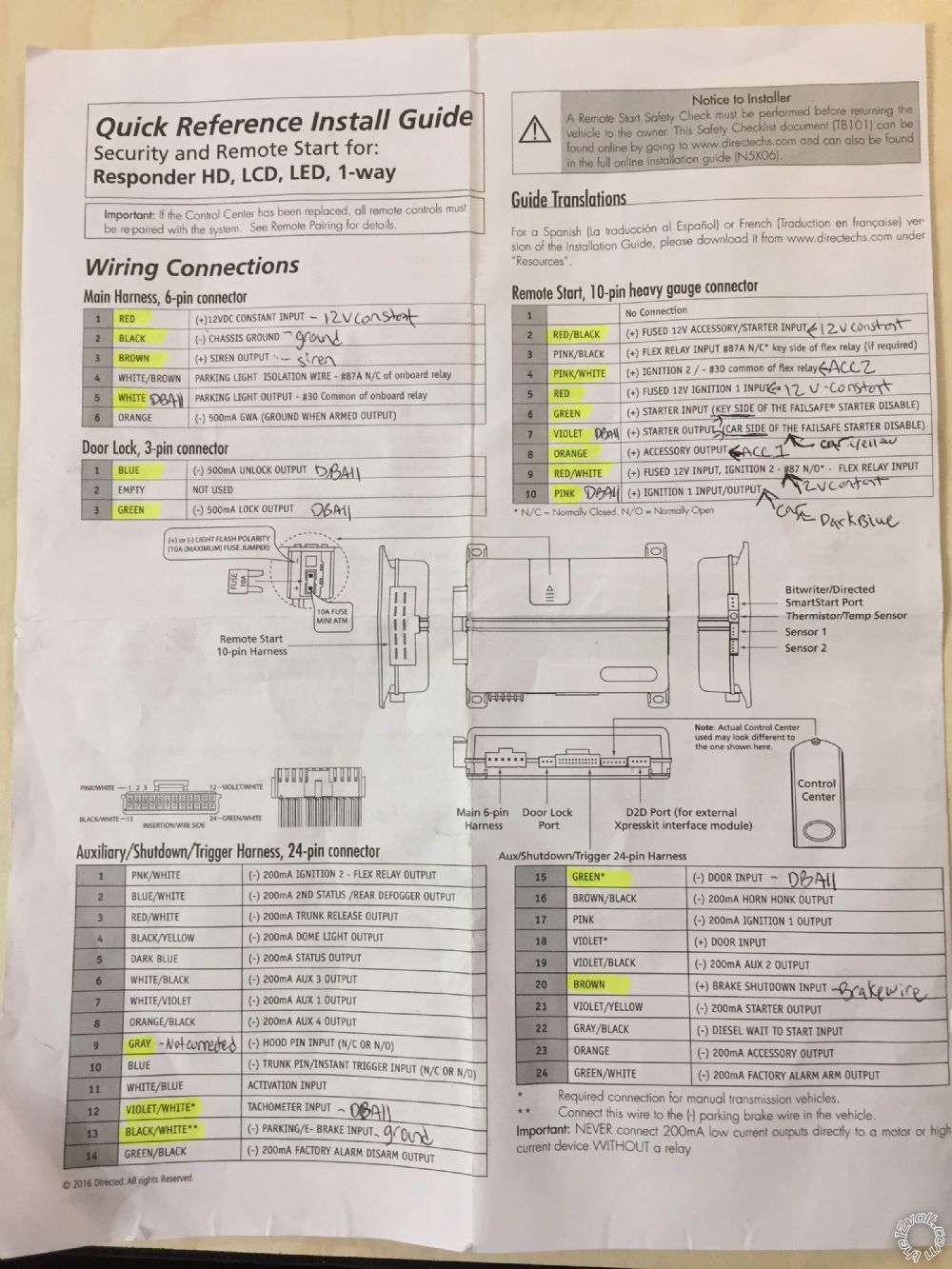

Here is the DBALL Wiring and everything that I hooked up
I would also like to note that I have the RED / white 4 pin from the Dball hooked up to the remote start. I am not sure it was not suppose to be?.
Viper 5706v, 2000 Jeep Grand Cherokee -- posted image.
Viper 5706v, 2000 Jeep Grand Cherokee -- posted image.
ircorona
Member - Posts: 5
Member spacespace
Joined: February 15, 2017
Posted: February 15, 2017 at 6:35 PM / IP Logged Link to Post Post Reply Quote ircorona
Viper 5706v, 2000 Jeep Grand Cherokee -- posted image.
kaezoo
Copper - Posts: 125
Copper spacespace
Joined: April 26, 2005
Location: United States
Posted: February 15, 2017 at 7:19 PM / IP Logged Link to Post Post Reply Quote kaezoo
It sounds like the starter relay is stuck on for some reason.
Can you verify that nothing is connected to the violet / YELLOW wire in the 24-pin harness (it didn't get mixed up with the violet/white tach wire, for example)?
ircorona
Member - Posts: 5
Member spacespace
Joined: February 15, 2017
Posted: February 15, 2017 at 7:35 PM / IP Logged Link to Post Post Reply Quote ircorona
Thanks for the reply, I will have to check but I really took my time doing the wiring so I can say so far 98% sure its not.
ircorona
Member - Posts: 5
Member spacespace
Joined: February 15, 2017
Posted: October 15, 2017 at 4:54 AM / IP Logged Link to Post Post Reply Quote ircorona
Hello everyone I thank you for any assistance ahead of time.
I attempted to install my first remote start in my 2000 JGC, this is a dball2 (I have a 3 on hand) and a Viper 5706v.
Multiple problems ensued from the remote start continuously starting to exchanging for a new brain. anyway now...
I hooked up the dball2 and the replacement viper brain.
When I initially connected the dball2 I was under the impression when you turn the key to accessory the dball should have green lit and register. This did not occur it remained red until I cranked the engine then turned green.
The alarm works fine lock/unlock, sirens etc but no remote start.
When I attempt to remote start there is a click sound that happens 8 times. I have no idea what to do.
