John Deere Linear Actuator


Post ReplyPost New Topic
< Prev Topic Next Topic >
wyandotford
Member - Posts: 4
Member spacespace
Joined: October 08, 2017
Location: Ohio, United States
Posted: October 08, 2017 at 7:22 PM / IP Logged Link to Post Post Reply Quote wyandotford
Hello, seeking assistance for an automation project on a John Deere zero turn commercial mower. The project involves a 2" linear actuator with internal limit switches, that will raise and lower the deck chute. I have finished the mechanicals and I'm in over my head electrically. I wish for the actuator to extend when a button switch is pressed at the end of the steering handle and then automatically retract when the button switch is released. Can anyone offer help or a wiring schematic?
Regards,
Wyandot
Wyandot
i am an idiot
Platinum - Posts: 13,679
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: October 09, 2017 at 8:51 AM / IP Logged Link to Post Post Reply Quote i am an idiot
This will require a latching switch of some sort and 2 relays.
Relays wired as follows.
Relay 1
Power to 87
ground to 87a
30 to one wire of actuator
ground to 85
power from switch to 86
Relay 2
Ground to 87
power to 87a
30 to other wire of actuator
ground to 85
power from switch to 86
You must provide power to the switch.
If it working backwards simply switch the actuator wires around.
wyandotford
Member - Posts: 4
Member spacespace
Joined: October 08, 2017
Location: Ohio, United States
Posted: October 10, 2017 at 2:13 PM / IP Logged Link to Post Post Reply Quote wyandotford
Will any automotive relay work?
Wyandot
i am an idiot
Platinum - Posts: 13,679
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: October 10, 2017 at 9:27 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Must be a Single pole double throw relay.
wyandotford
Member - Posts: 4
Member spacespace
Joined: October 08, 2017
Location: Ohio, United States
Posted: October 29, 2017 at 1:26 PM / IP Logged Link to Post Post Reply Quote wyandotford

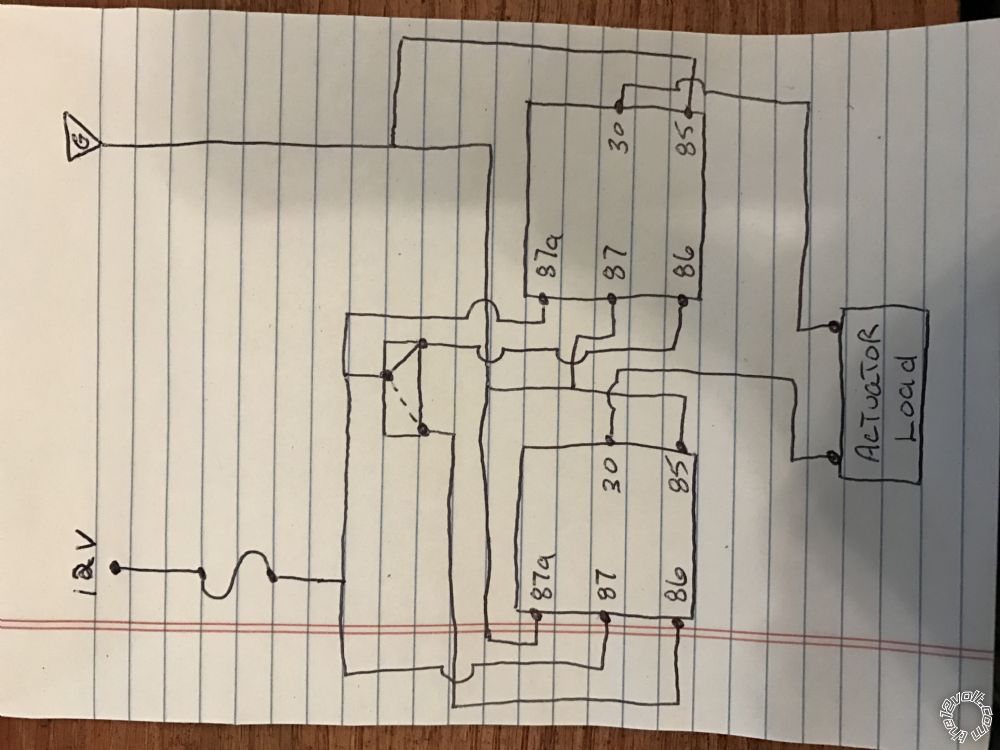

My attempt to a schematic based on the info supplied. Correct?
Wyandot
John Deere Linear Actuator -- posted image.
Wyandot
i am an idiot
Platinum - Posts: 13,679
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: October 29, 2017 at 2:56 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Yes
wyandotford
Member - Posts: 4
Member spacespace
Joined: October 08, 2017
Location: Ohio, United States
Posted: February 09, 2018 at 1:49 PM / IP Logged Link to Post Post Reply Quote wyandotford

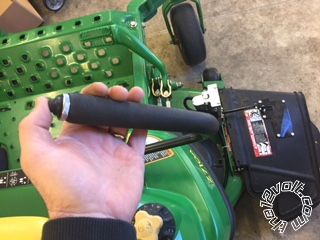

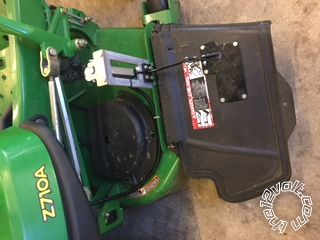

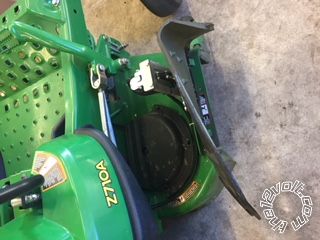

Thanks to this site and IAAI, attached is the completed project. The action is a little slow than what I had envisioned but it works great. Next step is to add a button on the other handle to lower a deflector to keep clippings out of landscaping.
John Deere Linear Actuator -- posted image.
John Deere Linear Actuator -- posted image.
John Deere Linear Actuator -- posted image.
Thanks again,
Wyandot
Wyandot
