Looking for latching relay.

Home / the12volt's Install Bay / Relays / Looking for latching relay.

Welcome Guest :)

Members

Search

Register

Login

< Prev Topic Next Topic >

blackimpala

Member - Posts: 16

Joined: December 31, 2006

Posted: February 11, 2018 at 11:29 AM / IP Logged

First off I am not an electronics guy, don't use big words. I have a classic car that I am using an A/C compressor to build compressed air. I need something to control the compressor, I want to turn it on with a switch and have it turn off when I turn the key off (but) when I start the car again the compressor will stay off until I use the switch again. I have search this online until I am confused.

Thanks for any help.

Floyd

Back to Top

the12volt

Administrator - Posts: 3,955

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Mobile Audio and Video. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: March 07, 2002

Location: Louisiana, United States

Posted: February 11, 2018 at 11:42 AM / IP Logged

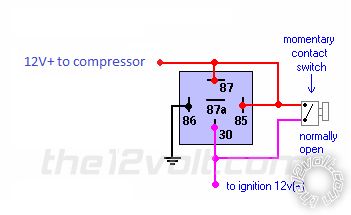

You can use the right relay only from the following setup. Instead of connecting the lead going to terminal 85 of the left relay, connect it to the 12V+ input of your compressor.

Looking for latching relay. -- posted image.

the12volt • Support the12volt.com

Back to Top

the12volt

Administrator - Posts: 3,955

Joined: March 07, 2002

Location: Louisiana, United States

Posted: February 11, 2018 at 11:54 AM / IP Logged

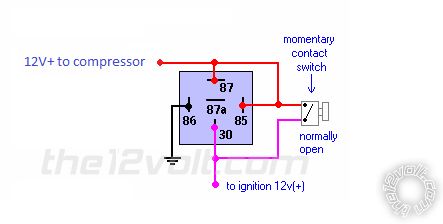

the12volt • Support the12volt.com

Back to Top

blackimpala

Member - Posts: 16

Joined: December 31, 2006

Posted: February 11, 2018 at 5:25 PM / IP Logged

Thank you very much. Looks like what I was needing.---Question,the 12volt ingnition input is not clear but I am guessing it is (+)? Is that correct?

Floyd

Back to Top

the12volt

Administrator - Posts: 3,955

Joined: March 07, 2002

Location: Louisiana, United States

Posted: February 11, 2018 at 6:25 PM / IP Logged

Yes.

the12volt • Support the12volt.com
