Thickness of Ground Wire?


Post ReplyPost New Topic
< Prev Topic Next Topic >
euph111
Member - Posts: 5
Member spacespace
Joined: January 19, 2018
Location: California, United States
Posted: March 30, 2018 at 11:41 AM / IP Logged Link to Post Post Reply Quote euph111

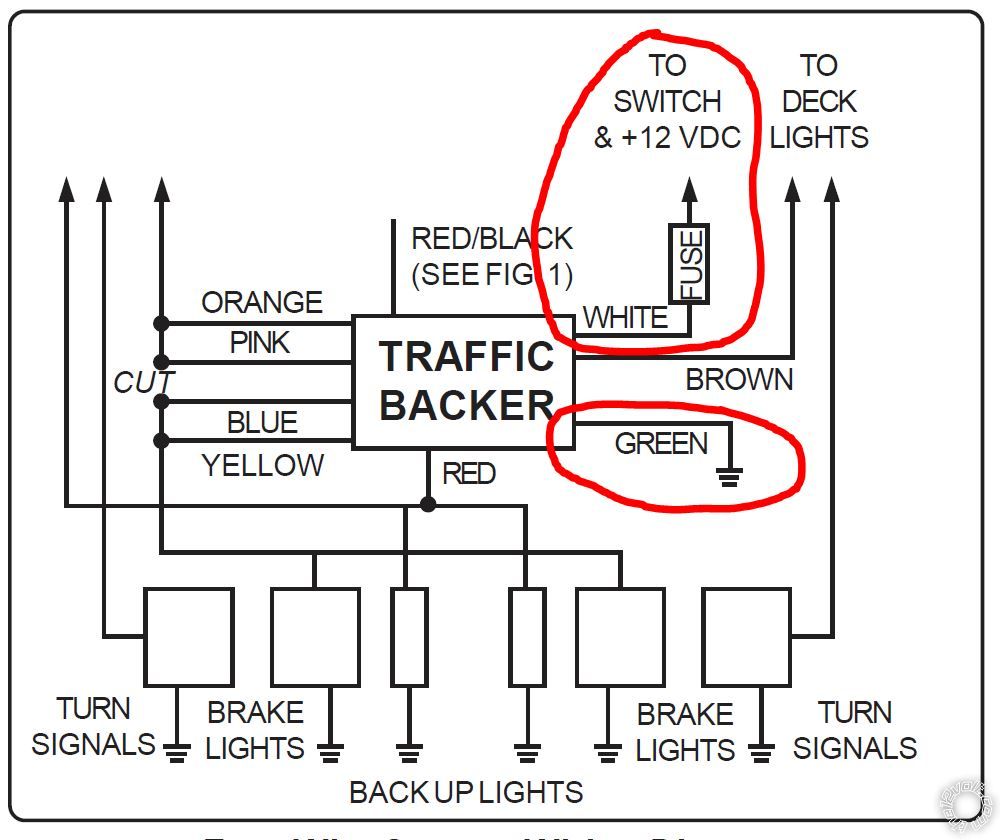

Thickness of Ground Wire? -- posted image.
I am installing a traffic backer (it alternates the brake lights and the back up lights) on my car.
Instructions recommend I use a 16 gauge for the positive (white) wire and it be connected to a switch.
Two questions:
1. Would it be OK if I just have it ALWAYS connected to power and instead connect the ground to a switch?
2. Can I use a thinner wire for the ground or does it also have to be 16 gauge?
Thank you
eguru
Copper - Posts: 340
Copper spacespace
Joined: February 04, 2018
Location: Quebec, Canada
Posted: March 30, 2018 at 8:30 PM / IP Logged Link to Post Post Reply Quote eguru
1. No, not a good idea.
2. The ground can be a smaller gauge as it only has to handle the current required by the controller itself - not all the loads. 20 or 22ga would be fine.
sparkie
Platinum - Posts: 2,061
Platinum spacespace
Joined: November 06, 2003
Location: Canada
Posted: March 31, 2018 at 8:13 AM / IP Logged Link to Post Post Reply Quote sparkie
The switch is required to prevent a constant draw on the power source which would drain the battery. The ground wire should be the same gauge of the input power wire. The schematic does not indicate the fuse rating on the circuit. The ground wire must be the correct gauge for the current load of the circuit. Generally speaking unless the ground wire is for relays which don't consume current, then always match the gauge of the ground wire to the power wire. If the wire must be extended, then use a lower gauge (thicker) wire to reduce voltage drop.
sparky
eguru
Copper - Posts: 340
Copper spacespace
Joined: February 04, 2018
Location: Quebec, Canada
Posted: March 31, 2018 at 9:10 AM / IP Logged Link to Post Post Reply Quote eguru
sparkie wrote:
The switch is required to prevent a constant draw on the power source which would drain the battery. The ground wire should be the same gauge of the input power wire. The schematic does not indicate the fuse rating on the circuit. The ground wire must be the correct gauge for the current load of the circuit. Generally speaking unless the ground wire is for relays which don't consume current, then always match the gauge of the ground wire to the power wire. If the wire must be extended, then use a lower gauge (thicker) wire to reduce voltage drop.
Making the ground conductor the same size as the feed conductor is necessary if all the current supplied to the loads must pass through one ground conductor. That is not the case here as the loads all have their own grounding conductors. The only current flowing through the dedicated ground wire from the controller is the current consumed by the controller's electronics.
euph111
Member - Posts: 5
Member spacespace
Joined: January 19, 2018
Location: California, United States
Posted: March 31, 2018 at 9:53 AM / IP Logged Link to Post Post Reply Quote euph111
Thank you everyone, I'll keep the positive wire switched and use the same gauge wire for the negative as for the positive.
