2018 Nissan Altima Stereo Wire Diagram


Post ReplyPost New Topic
< Prev Topic Next Topic >
blazingkong101
Member - Posts: 3
Member spacespace
Joined: June 01, 2018
Location: California, United States
Posted: June 01, 2018 at 7:22 PM / IP Logged
I will be installing an LC7I loc and amp and need the speaker wire diagram for the stereo... Any help would be highly appreciated! Installation tips also welcomed
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: June 01, 2018 at 8:21 PM / IP Logged
Left Front Speaker (+/-)      violet - lt. blue or black - white      +,-      radio, white 20 pin plug, pins 2 - 3
Right Front Speaker (+/-)      yellow - brown or black - white      +,-      radio, white 20 pin plug, pins 11 - 12
Left Rear Speaker (+/-)      brown - yellow or green - red      +,-      radio, white 20 pin plug, pins 4 - 5
Right Rear Speaker (+/-)      lt. green - violet or green - red      +,-      radio, white 20 pin plug, pins 13 - 14
Center Channel (+/-)      green - red      +,-      amplifier under rear deck, brown 14 pin plug, pins 11 - 12
Subwoofer (+/-)      white - green (L); white - green (R) (rear deck speakers with amp)      +,-      amplifier under rear deck, brown 14 pin plug, pins 6 - 1; 7 - 8
blazingkong101
Member - Posts: 3
Member spacespace
Joined: June 01, 2018
Location: California, United States
Posted: June 01, 2018 at 9:39 PM / IP Logged
I should of specified.. I have the 4 speaker set up no center speakers or rear door. It's has the front component and the rear deck.. are the colors still the same?
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: June 01, 2018 at 10:48 PM / IP Logged
The 4 corners have 2 possible sets. 1 set should be the colors behind the radio.
blazingkong101
Member - Posts: 3
Member spacespace
Joined: June 01, 2018
Location: California, United States
Posted: June 05, 2018 at 11:09 PM / IP Logged
So i removed the stereo and the speaker wire colors don't match with the wire colors on the wire harness on the back of the stereo.. it's not a bose model so it shouldn't have an amp.. Not sure what to do..
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: June 06, 2018 at 9:55 AM / IP Logged
https://www.the12volt.com/installbay/forum_posts.asp?tid=74637
My ex once told me I have a perfect face for radio.
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: June 06, 2018 at 4:08 PM / IP Logged

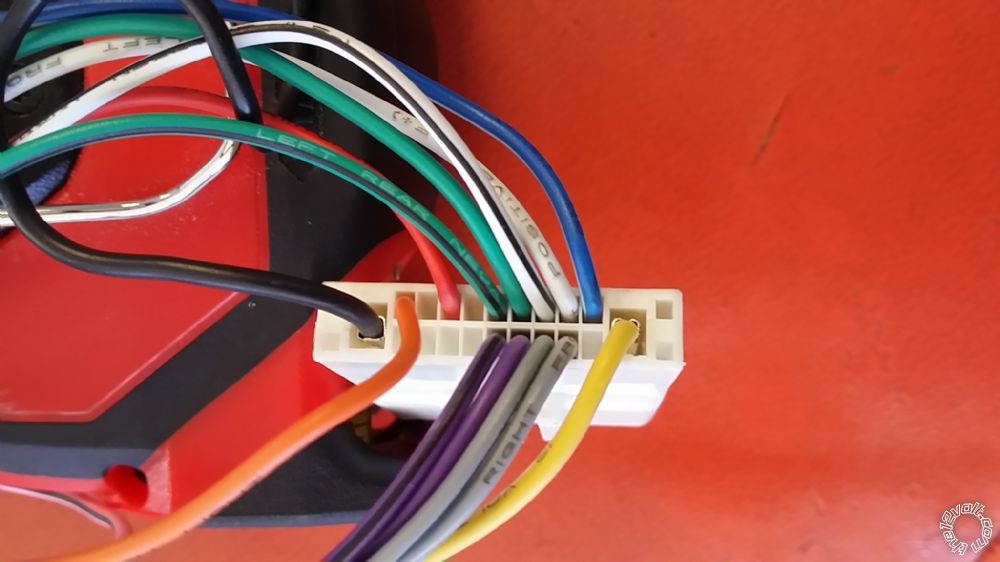

This is a picture of a metra 70 7552 harness. Nissan 07 and up. No idea if they changed it in 2018. This harness plugs into the factory harness and is used to change the radio to aftermarket. Yellow wire is constant 12 volts. Find constant so you know the orientation of other wires compared to it. Your plug probably does not have a wire where the black wire is on this harness. If you do not have a meter, you should be able to use this info to figure it out.
2018 Nissan Altima Stereo Wire Diagram -- posted image.

Sorry, you can NOT post a reply.
This topic is closed.
