2009 Infiniti G37 Nav to a 2013 G37 Nav


Post ReplyPost New Topic
< Prev Topic Next Topic >
zmann96
Member - Posts: 4
Member spacespace
Joined: June 25, 2018
Location: New Hampshire, United States
Posted: June 25, 2018 at 11:55 AM / IP Logged
I'm going to install a 2013 Nav into my 2009 G37 non-nav. I've purchased a 2013 controller, head unit, nav screen and gps plug in to Head unit. All parts are from a 2013. I cannot find a color coded wiring diagram on the forums, Infiniti has had them remove the all the schematic from the sites due ti infringements. I was told most of the plugs will work but some will have to be hardwired into a pigtail. Does anyone have or know the diagrams for both years so I can figure out how to wire this up. Thanks in advance.
Thanks Peter
the12volt
Administrator - Posts: 3,946
Administrator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 07, 2002
Location: Louisiana, United States
Posted: June 25, 2018 at 12:56 PM / IP Logged
Try here: http://www.bbbind.com/tsb-wiring-diagrams/
2009 Infiniti G37 Nav to a 2013 G37 Nav -- posted image. the12volt • Support the12volt.com
zmann96
Member - Posts: 4
Member spacespace
Joined: June 25, 2018
Location: New Hampshire, United States
Posted: June 25, 2018 at 1:16 PM / IP Logged
Thank you, I'll check it out.
Thanks Peter
KPierson
Platinum - Posts: 3,526
Platinum spaceThis member consistently provides reliable informationspace
Joined: April 14, 2005
Location: Ohio, United States
Posted: June 26, 2018 at 3:37 PM / IP Logged
You used to be able to purchase a 24 hour membership to Infiniti's technical website with unlimited downloads for cheap. If you can still do this it will be well worth the money spend to make sure you get the exact service manuals you need. They are not always labeled well and are different from sedan to coupe. For a project like this I would NOT trust someone else to download the right manuals then upload them to a library.
Kevin Pierson
zmann96
Member - Posts: 4
Member spacespace
Joined: June 25, 2018
Location: New Hampshire, United States
Posted: July 01, 2018 at 7:47 AM / IP Logged

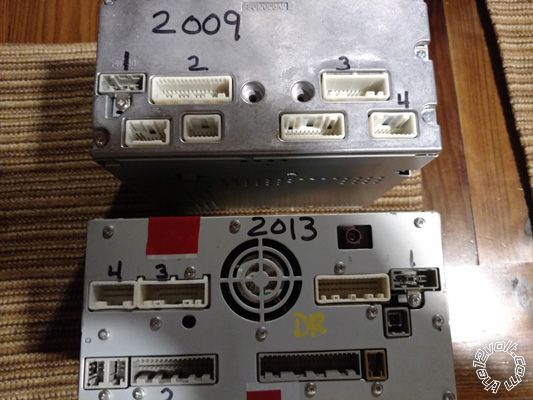

I tried to go on BBBind. the diagrams are not very clear. they only have general number IDs with no way of knowing what the labeled numbers refer to. I''l try the Infiniti tech website. I'm having a difficult time doing this. Been on all the forums and noting yet. the picture shows the UHs I have about 3-4 plugs I don't know how to resolve.
2009 Infiniti G37 Nav to a 2013 G37 Nav -- posted image.
Thanks Peter
zmann96
Member - Posts: 4
Member spacespace
Joined: June 25, 2018
Location: New Hampshire, United States
Posted: July 09, 2018 at 6:54 AM / IP Logged
I finally got it all figured out.
Thanks Peter
