’05 F250 Diesel 6.0 Powerstroke


Post ReplyPost New Topic
< Prev Topic Next Topic >
oldgravy23
Member - Posts: 1
Member spacespace
Joined: July 12, 2018
Location: Texas, United States
Posted: July 12, 2018 at 7:46 AM / IP Logged Link to Post Post Reply Quote oldgravy23
Anyone have a wiring diagram for an '05 Ford F250 Diesel 6.0? Someone attempted to steal my truck and pulled a black wire that's split from the ignition switch module. The wire runs 12v constant when trying to turn the truck on, but the truck does not start. I took it to several techs but they don't know as well. The blue/green wire is the one in question. Any help would be great.

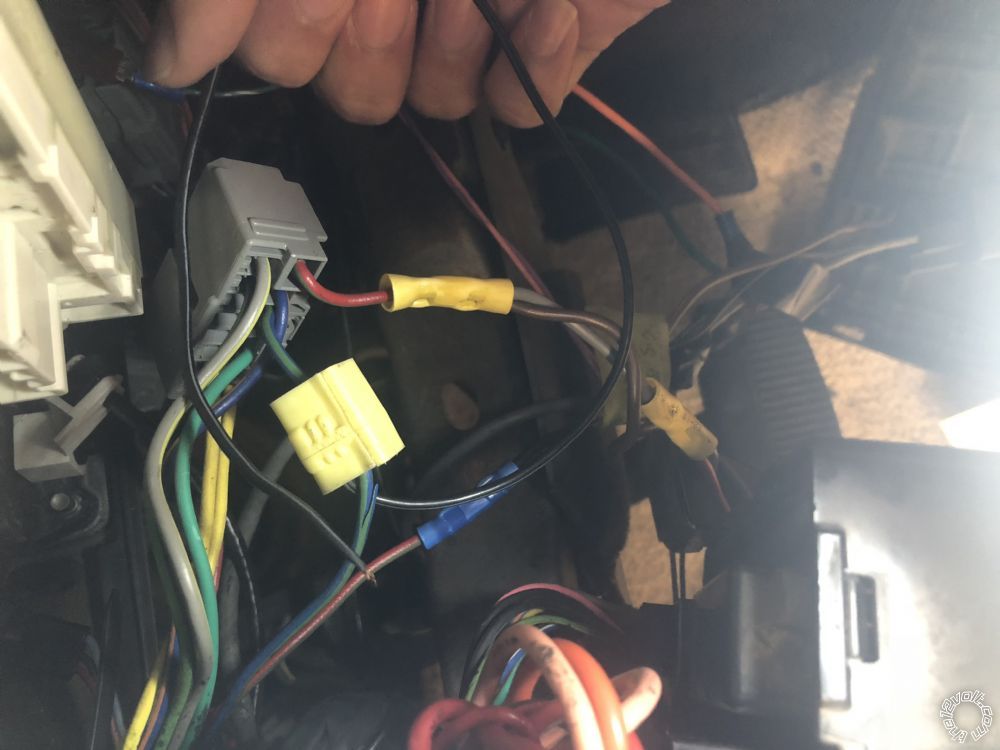

’05 F250 Diesel 6.0 Powerstroke -- posted image.
chev104275
Gold - Posts: 1,419
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: July 12, 2018 at 8:52 PM / IP Logged Link to Post Post Reply Quote chev104275
F250-F350-F450 SUPER DUTY     2002-2005
KEY     T-HARNESS     IMMOBILIZER
FDKEY-1     N/A     FORDS ANTI-THEFT SYSTEM, SEE NOTE #1
PART     COLOR     LOCATION     DIAGRAM
12 VOLT CONSTANT     YELLOW (+) and LIGHT GREEN/PURPLE (+)     @ IGNITION SWITCH HARNESS
STARTER     DARK GREEN (+)     @ IGNITION SWITCH HARNESS
IGNITION 1     WHITE/YELLOW or RED/LIGHT GREEN (+)     @ IGNITION SWITCH HARNESS
IGNITION 2     RED/BLACK (+)     @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 1     GRAY/YELLOW (+)     @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2     DARK BLUE/LIGHT GREEN (+)     @ IGNITION SWITCH HARNESS
Looks like blue/green should be an acc wire
When you say doesn't start is that using the key or remote start ?
If i Can't Install it    I Don't need it   Joe
