2007 Toyota Highlander, Adding Backup Camera to OEM Audio


Post ReplyPost New Topic
< Prev Topic Next Topic >
jflegal
Member - Posts: 1
Member spacespace
Joined: February 26, 2019
Posted: February 27, 2019 at 1:41 PM / IP Logged Link to Post Post Reply Quote jflegal

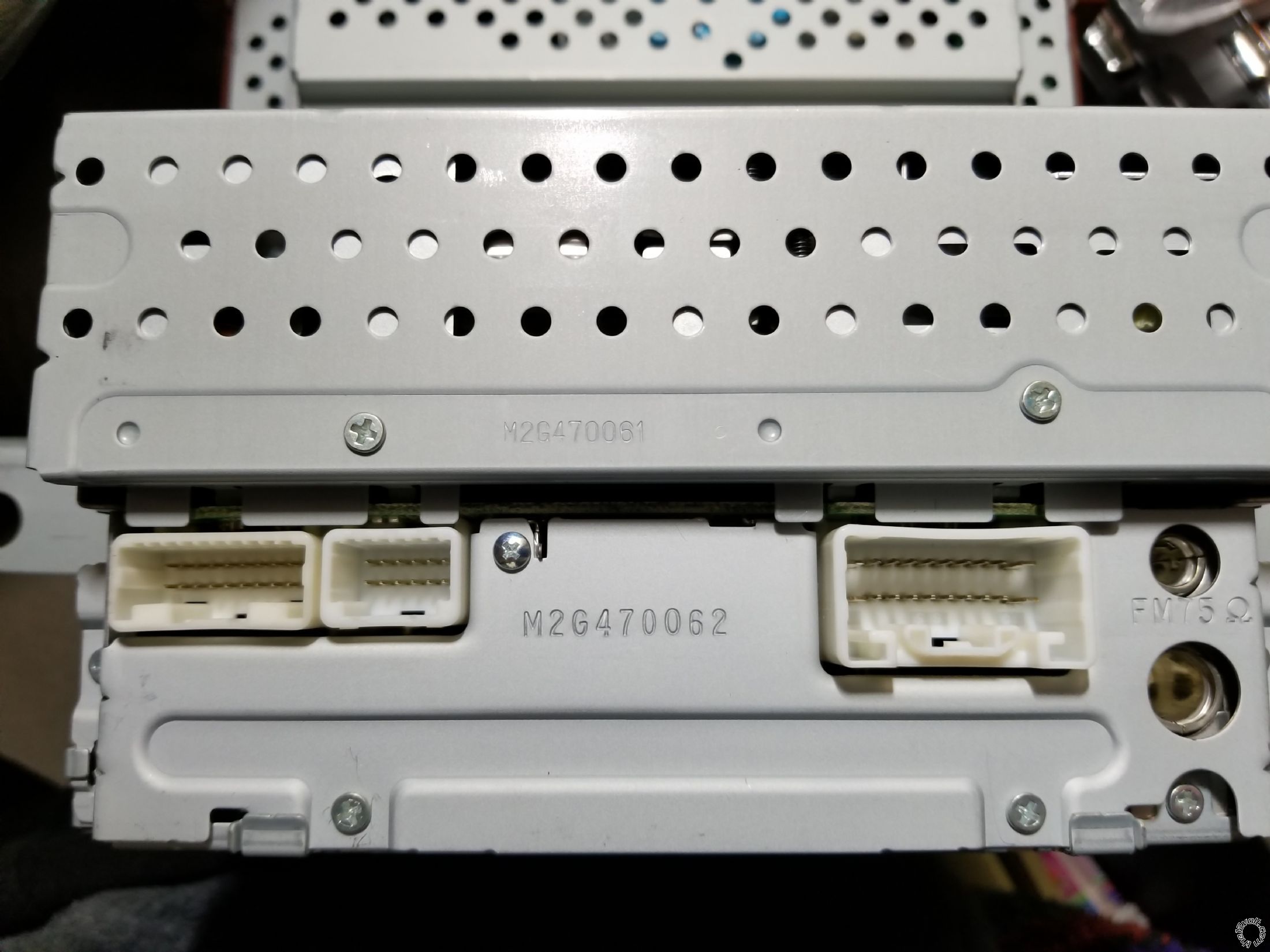

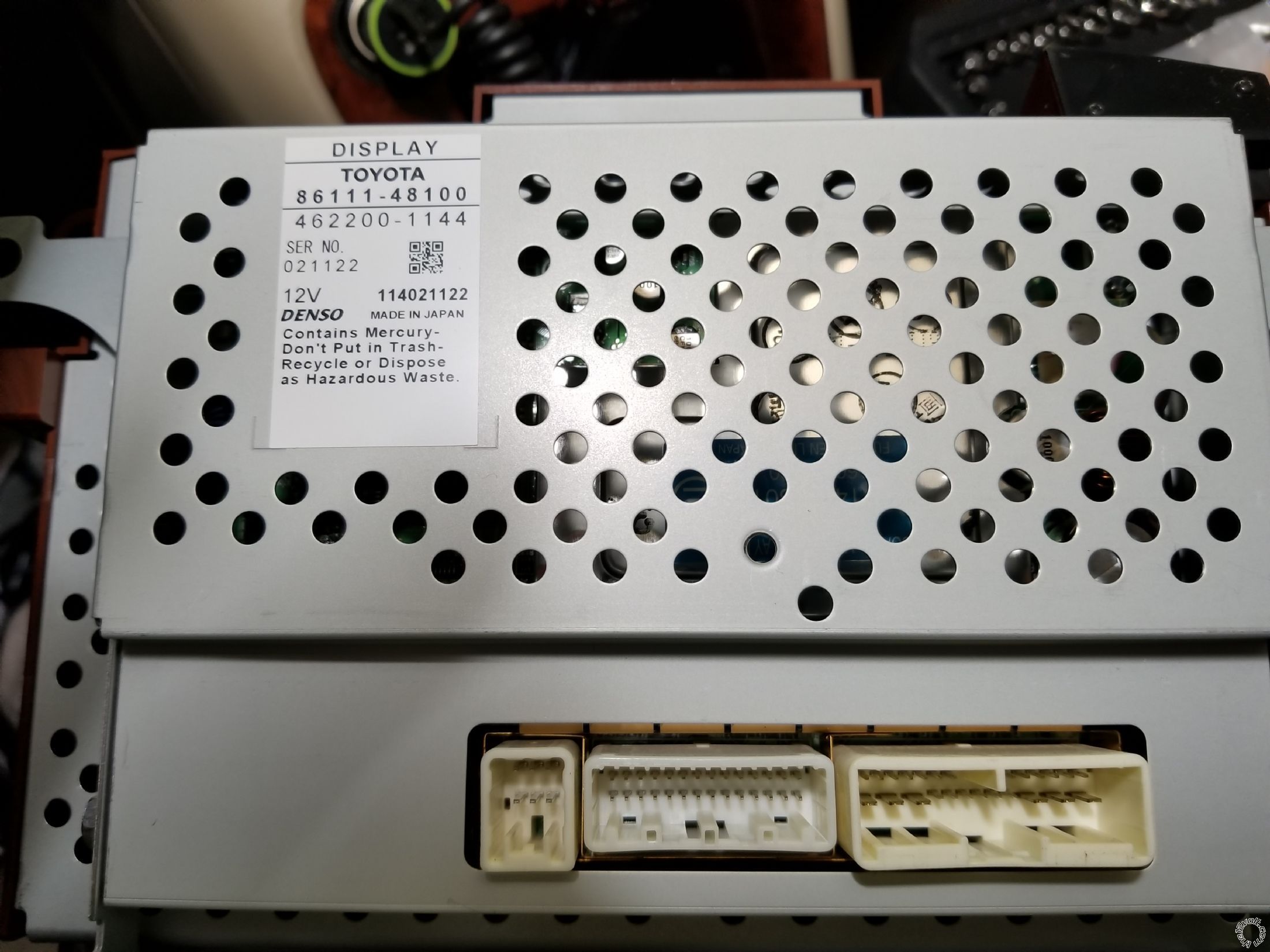

Want to add a backup camera to factory audio at low cost. Looking for wiring diagram for display (86111-48100) and head unit (86120-48480)or low cost wiring harness to add camera. 2007 Toyota Highlander, Adding Backup Camera to OEM Audio -- posted image. 2007 Toyota Highlander, Adding Backup Camera to OEM Audio -- posted image.
mgoetz74
Silver - Posts: 424
Silver spaceThis member consistently provides reliable informationspace
Joined: February 15, 2012
Location: United States
Posted: February 28, 2019 at 2:06 PM / IP Logged Link to Post Post Reply Quote mgoetz74
probably isn't a way, Toyota didnt have that option till 2012. Especially with that one having jbl (im guessing).
33 years as a installer now just a retired old guy. Favorite thing to install/topic are remote starts/car alarms. Stop using test lights!!!
coastw
Member - Posts: 1
Member spacespace
Joined: December 11, 2019
Location: Washington, United States
Posted: December 11, 2019 at 2:06 PM / IP Logged Link to Post Post Reply Quote coastw
FYI- That is not correct! Toyota has that option on 2008 Models and up. For 2007 Highlander, it is possible if you can get the pin out diagram, and locate the video input or connector R10. Some guys have done it on toyotanation forum, and showed the wiring, but images were not too clear. I am looking for a the connectors diagram for the same NAV system as well. Toyota does not provide this info :(
frohro
Member - Posts: 1
Member spacespace
Joined: March 06, 2022
Location: Washington, United States
Posted: March 06, 2022 at 4:45 PM / IP Logged Link to Post Post Reply Quote frohro
Hi,
Did you ever figure this out? I'd like to know what the connectors are for on the back as well, as I'd like to add bluetooth.
Thanks,
Rob
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: March 06, 2022 at 5:40 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Bluetooth streaming or phone calls? Does it have an aux jack?
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
mgoetz74
Silver - Posts: 424
Silver spaceThis member consistently provides reliable informationspace
Joined: February 15, 2012
Location: United States
Posted: March 07, 2022 at 2:14 PM / IP Logged Link to Post Post Reply Quote mgoetz74
you are a year to early, Toyota started cams in those in 2008. Alldatas first mention a back up camera in a 2008 highlander (including hybrid,6 or 8 speaker) and axxess (ax-toycam2) confirms it. You could always get that piece and see if it works, may have 2008 stuff in your highlander specially if it was made after april/may
https://axxessinterfaces.com/product/AX-TOYCAM2
https://metra-static.s3.amazonaws.com/documents/INSTAX-TOYCAM2_web.pdf
33 years as a installer now just a retired old guy. Favorite thing to install/topic are remote starts/car alarms. Stop using test lights!!!
