On/Off/On Switch with Relay


Post ReplyPost New Topic
< Prev Topic Next Topic >
slobaltss
Member - Posts: 1
Member spacespace
Joined: June 12, 2019
Location: California, United States
Posted: June 12, 2019 at 10:41 PM / IP Logged Link to Post Post Reply Quote slobaltss
I would like to wire my double function led bar(white/amber) to an on/off/on switch with a relay. The problem in running is that my light bar has 3 wires, 2 grounds and 1 positive. And my switch has 7 pins. Can someone help me with a quick sketch/diagram to run the wires to the relay and the switch.

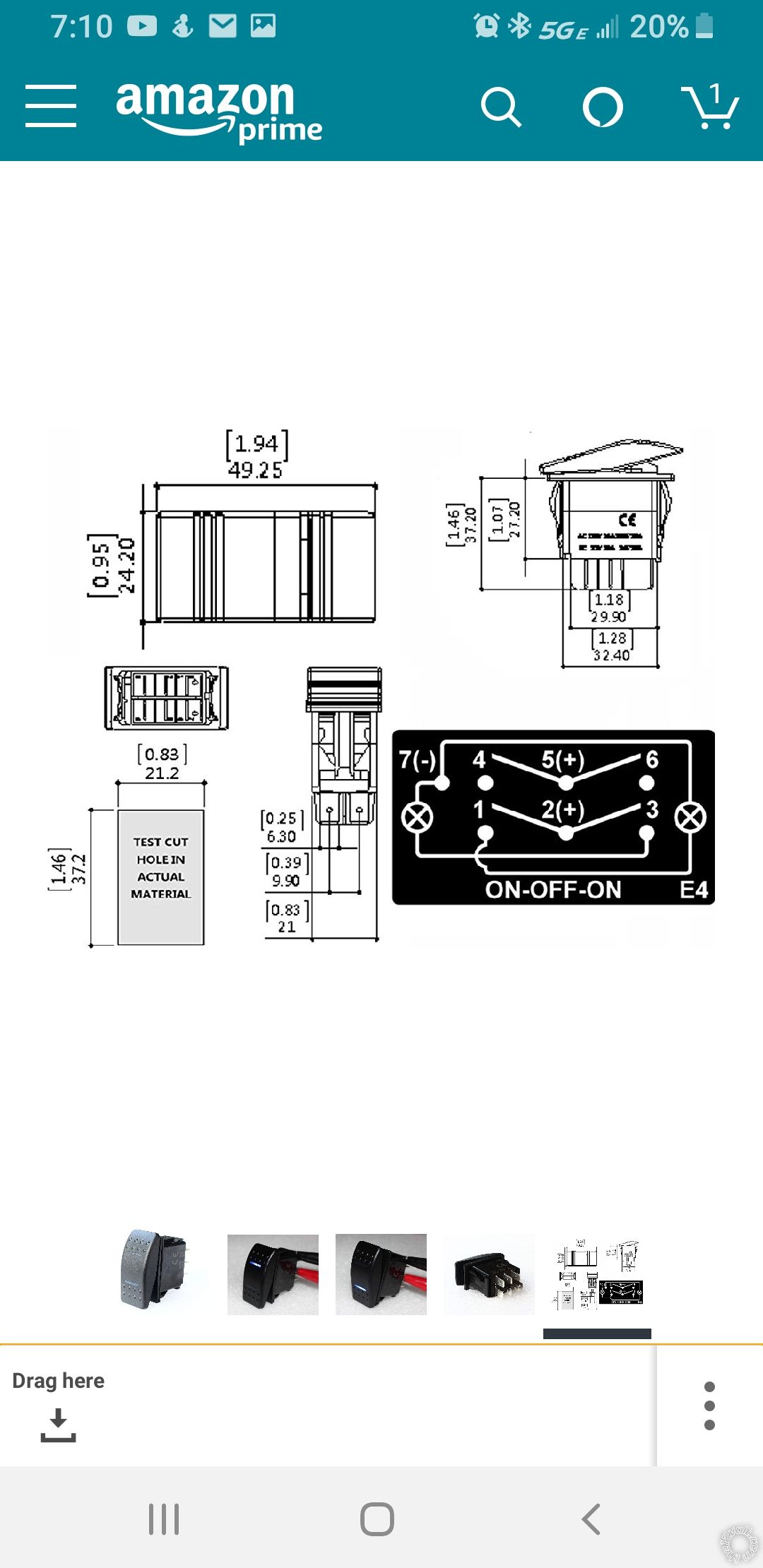

I've attached the rocker switch I'm planning on using.
Thanks for your help
On/Off/On Switch with Relay -- posted image.
