2007 GMC Canyon Radio Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
dapgi
Member - Posts: 1
Member spacespace
Joined: September 26, 2019
Location: Missouri, United States
Posted: September 26, 2019 at 5:14 AM / IP Logged Link to Post Post Reply Quote dapgi
I've found semi relevant wiring information (not specific to 07 GMC Canyon), but it's missing the function of the two purple wires and orange one. Appear to be power related. My manual does not show the wiring diagram. Thanks in advance.

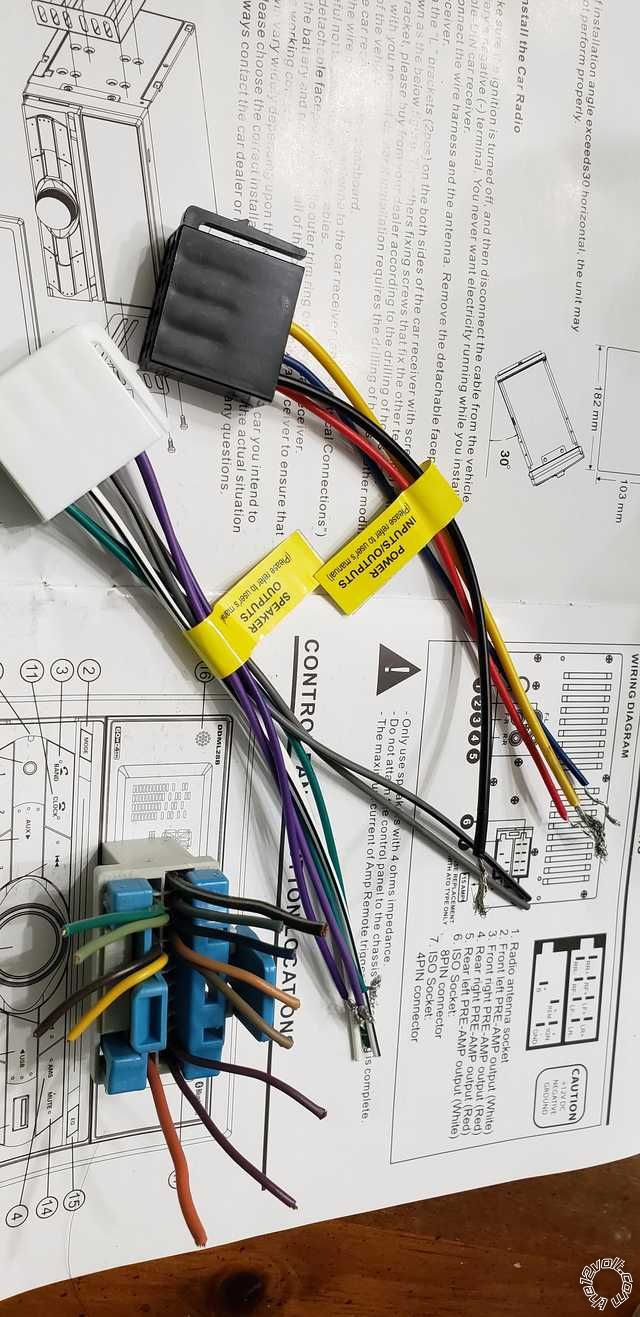

Grey is the 07 wiring, black and white are what I'm hooking it up too.
2007 GMC Canyon Radio Wiring -- posted image.2007 GMC Canyon Radio Wiring -- posted image.
i am an idiot
Platinum - Posts: 13,686
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: September 26, 2019 at 11:58 AM / IP Logged Link to Post Post Reply Quote i am an idiot
Next time Use this
i am an idiot
Platinum - Posts: 13,686
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: September 26, 2019 at 12:08 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Radio 12V      orange      +      radio
Radio Ground      black/white      -      radio
Radio Ignition      (Class 2 Serial Data)
Radio Illumination      (Class 2 Serial Data)
Left Front Speaker (+/-)      tan - gray      +,-      radio
Right Front Speaker (+/-)      lt. green - dk. green      +,-      radio
Left Rear Speaker (+/-)      brown - yellow      +,-      radio
Right Rear Speaker (+/-)      dk. blue - lt. blue      +,-      radio
You will have to find a switched power source to connect to the red wire of the radio. If the Air Conditioner control piece has a plug with larger wires than the other plug, there is a brown wire on the plug with the larger wires.
