2016 Chevrolet Malibu Radio Diagram


Post ReplyPost New Topic
< Prev Topic Next Topic >
myron1431
Member - Posts: 1
Member spacespace
Joined: October†14, 2019
Location: Ohio, United States
Posted: October†14, 2019 at 12:33 AM / IP Logged Link to Post Post Reply Quote myron1431
I have pulled the radio in my 2016 Malibu and never in my life have sean a factory plug with only 5 wires total in the radio plug Iím trying to add rear glass speakers so wanted to come from the head unit and run to the back deck to add the new speakers but the radio plug only have 5 wires total and a antenna wire any one have a wire diagram or info on how to complete this thank you for any help and time
i am an idiot
Platinum - Posts: 13,441
Platinum spaceThis member consistently provides reliable informationspace
Joined: September†21, 2006
Location: Louisiana, United States
Posted: October†14, 2019 at 11:22 AM / IP Logged Link to Post Post Reply Quote i am an idiot
Is there an amplifier behind the trim at the right rear corner of the car? Mounted above the wheel well.
i am an idiot
Platinum - Posts: 13,441
Platinum spaceThis member consistently provides reliable informationspace
Joined: September†21, 2006
Location: Louisiana, United States
Posted: October†14, 2019 at 11:28 AM / IP Logged Link to Post Post Reply Quote i am an idiot
The green 16 pin plug is on the amplifier in the trunk.
Radio Ignition      (low speed GMLAN)
Factory Amp Turn-on      green/yellow (ANC Module turn-on)      +      radio, gray 20 pin plug, pin 12 or 2
Left Front Speaker (+/-)      blue - brown/blue      +,-      radio, green 16 pin plug, pins 1 - 9 or brown 20 pin plug, pins 18 - 17           Notes
Right Front Speaker (+/-)      yellow - yellow/black      +,-      radio, green 16 pin plug, pins 2 - 10 or brown 20 pin plug, pins 16 - 15           Notes
Left Rear Speaker (+/-)      green - green/black      +,-      radio, green 16 pin plug, pins 3 - 11 or brown 20 pin plug, pins 13 - 14           Notes
Right Rear Speaker (+/-)      white - blue/black      +,-      radio, green 16 pin plug, pins 4 - 12 or brown 20 pin plug, pins 11 - 12           Notes
Center Channel (+/-)      yellow/white - blue/yellow      +,-      amplifier in trunk right side, green 16 pin plug, pins 5 - 13
Subwoofer (+/-)      blue/gray - green/black (L); green/violet - gray/black (R)      +,-      ANC Module in trunk right side, black 8 pin plug, pins 1 - 5; 2 - 6           Notes
Aux. Audio Input Left (+/-)      (USB cable)
Aux. Audio Input Right (+/-)      (USB cable)
RSE Video (+/-)      gray/yellow - white/blue (rearview camera video)      +,-      radio, gray 20 pin plug, pins 15 - 14 (without MyLink)
Satellite Radio 12 Volts      (built into radio)†
m226198
Member - Posts: 2
Member spacespace
Joined: November†29, 2019
Location: Virginia, United States
Posted: November†29, 2019 at 7:37 PM / IP Logged Link to Post Post Reply Quote m226198

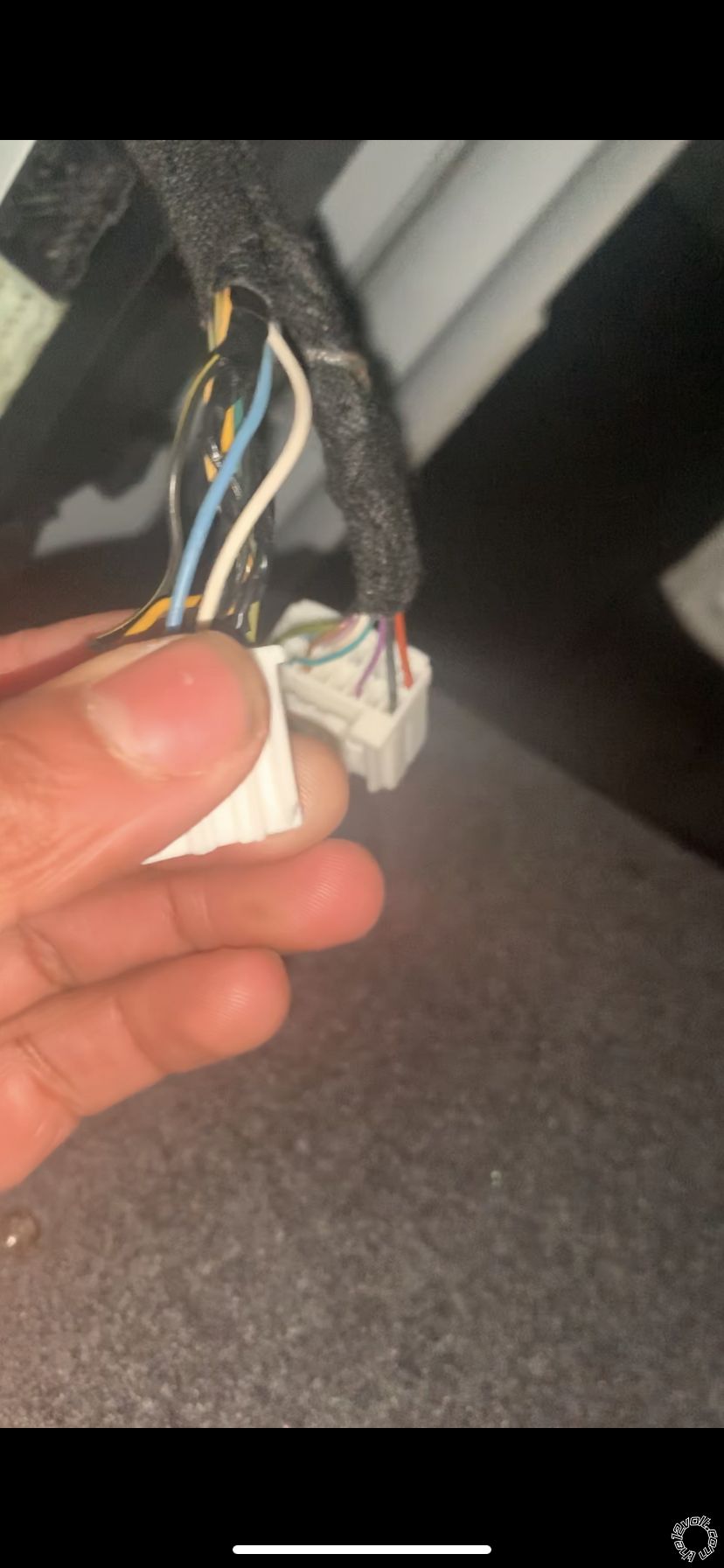

2016 Chevrolet Malibu Radio Diagram -- posted image.
I have a Chevy Malibu limited an these donít match the colors in the trunk amp , is there an updated version of the colors
St helen
