2000 Dodge Ram 1500 Van Radio


Post ReplyPost New Topic
< Prev Topic Next Topic >
sean@damien
Member - Posts: 2
Member spacespace
Joined: October 27, 2019
Location: Ohio, United States
Posted: October 27, 2019 at 10:58 AM / IP Logged Link to Post Post Reply Quote sean@damien

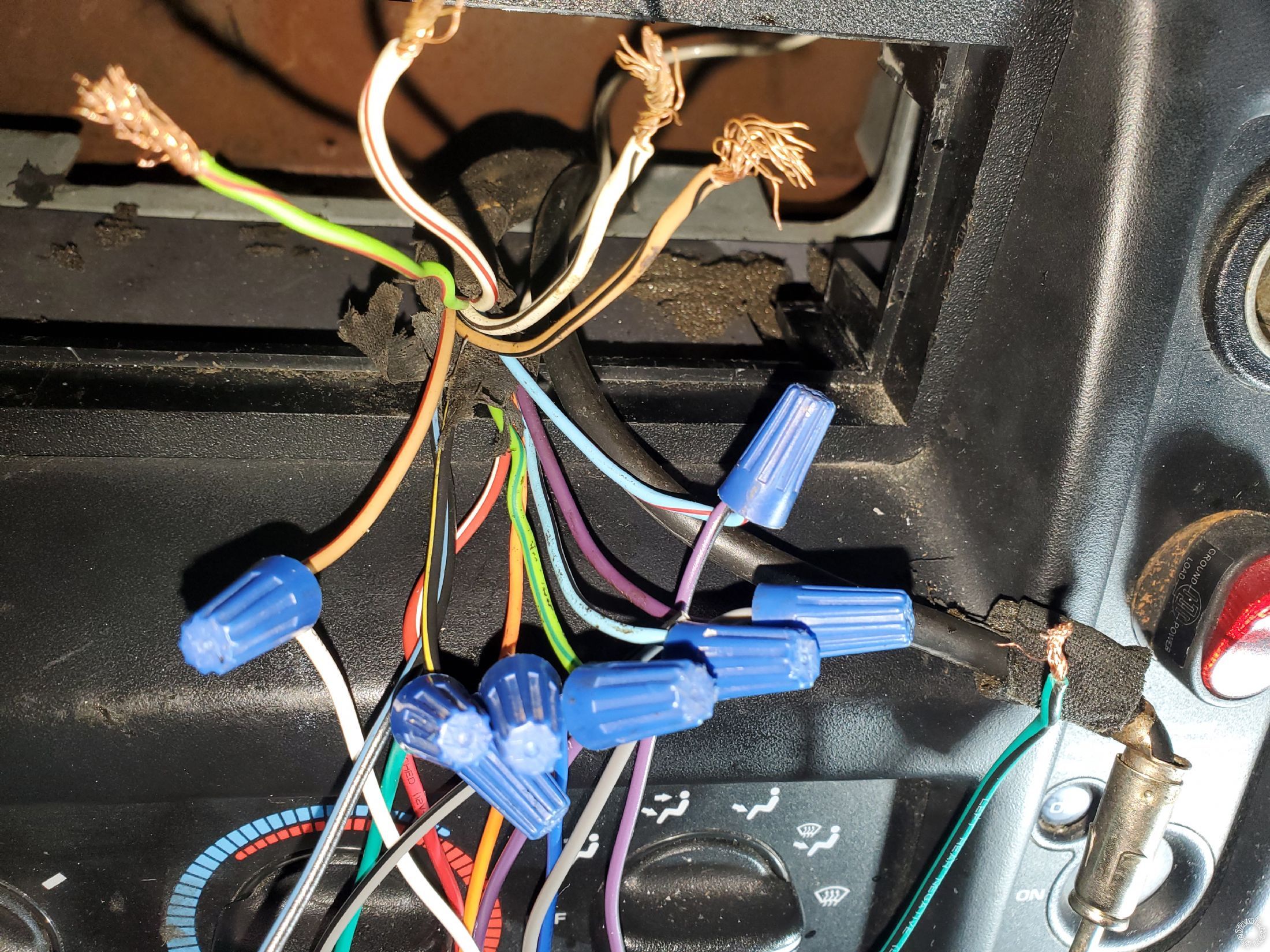

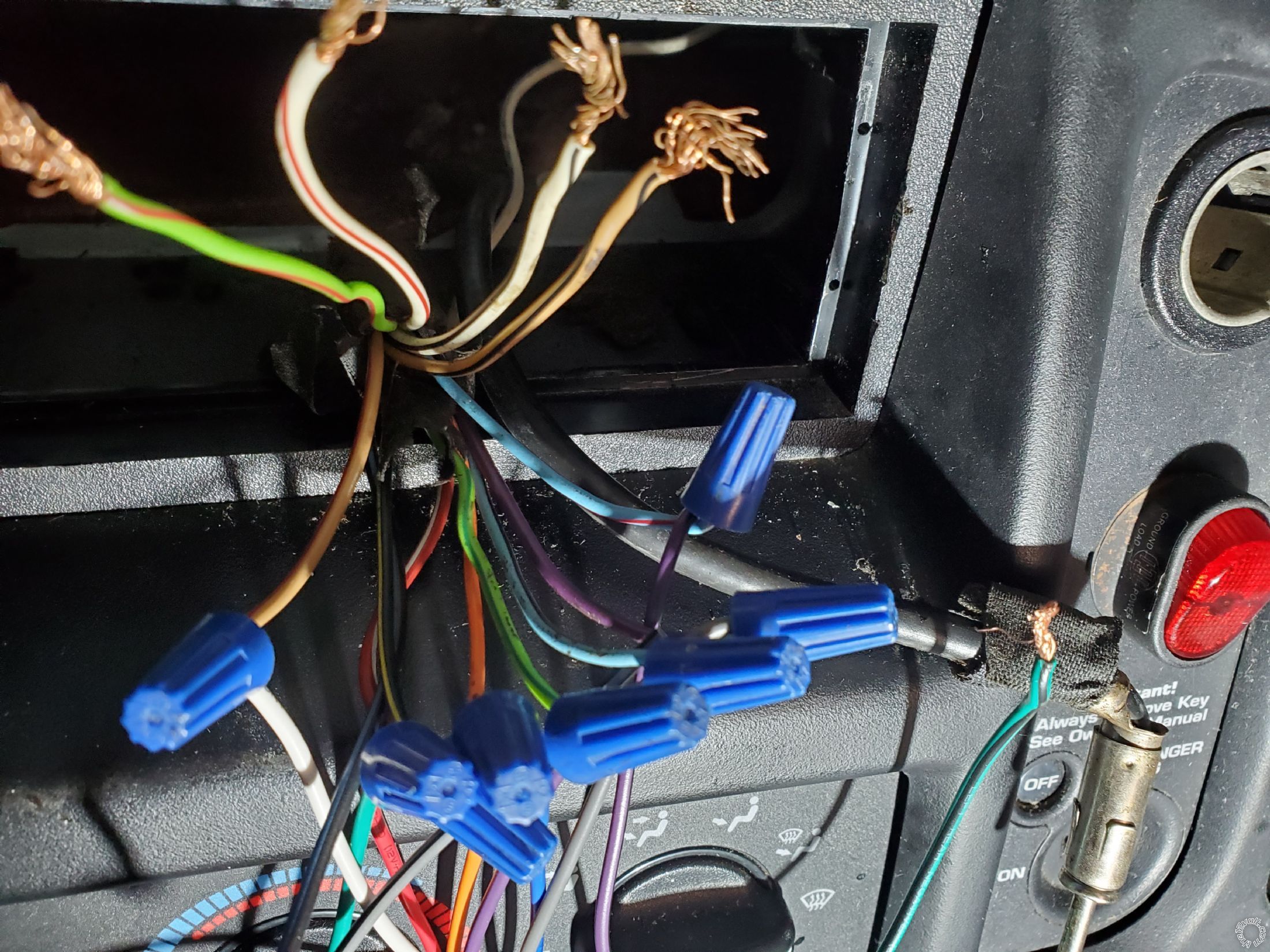

2000 Dodge Ram 1500 Van Radio -- posted image.2000 Dodge Ram 1500 Van Radio -- posted image.
I am new to forums so I apologize , I have searched for 2 days now and can't find any wire diagrams with these color combinations and I even bought a wiring harness adapter but the colors do not match because the old owner must of cut the wires so now it's a headache to figure it out
Sean@streetglide
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: October 27, 2019 at 11:55 AM / IP Logged Link to Post Post Reply Quote geepherder
https://www.the12volt.com/installbay/forum_posts.asp?tid=74637
My ex once told me I have a perfect face for radio.
sean@damien
Member - Posts: 2
Member spacespace
Joined: October 27, 2019
Location: Ohio, United States
Posted: October 27, 2019 at 1:42 PM / IP Logged Link to Post Post Reply Quote sean@damien

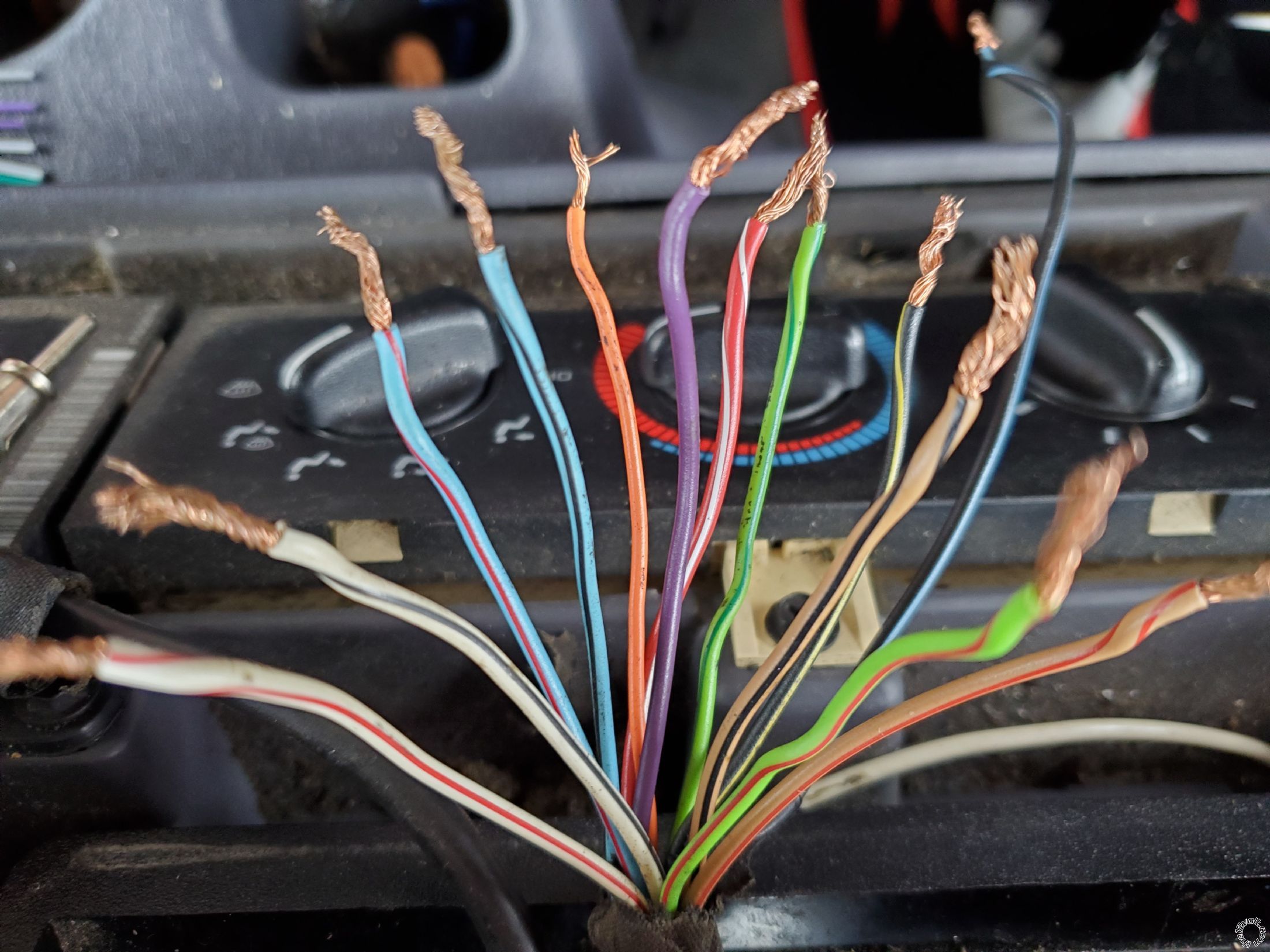

2000 Dodge Ram 1500 Van Radio -- posted image.
A much better picture and it makes me so upset that someone would cut the factory harness.
Date of van is 3-00 last part of vin is yk142375 if this is of any help
Sean@streetglide
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: October 27, 2019 at 2:36 PM / IP Logged Link to Post Post Reply Quote geepherder
You can create a free account to lookup diagrams here:
http://www.bbbind.com/tsb-and-wiring-diagrams-login/

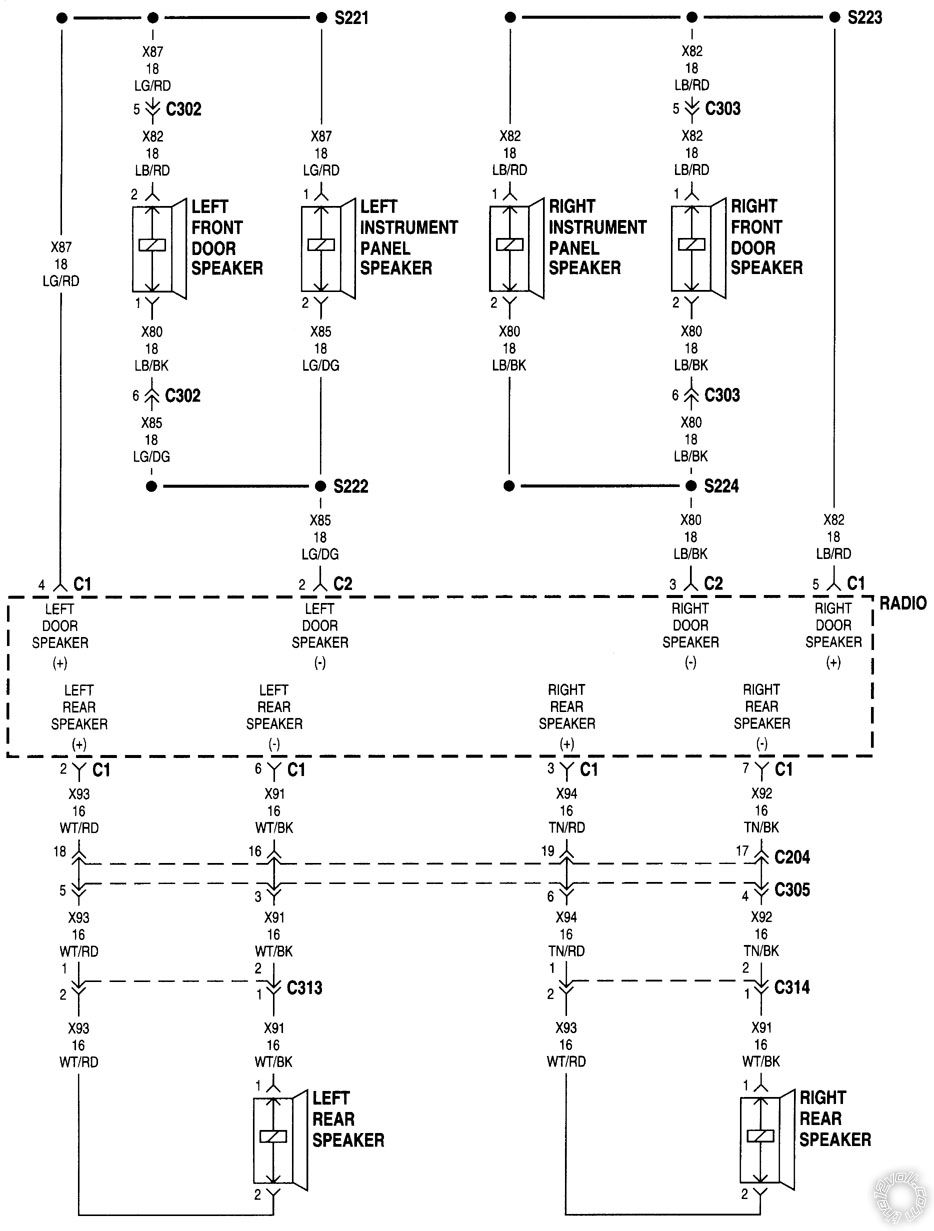

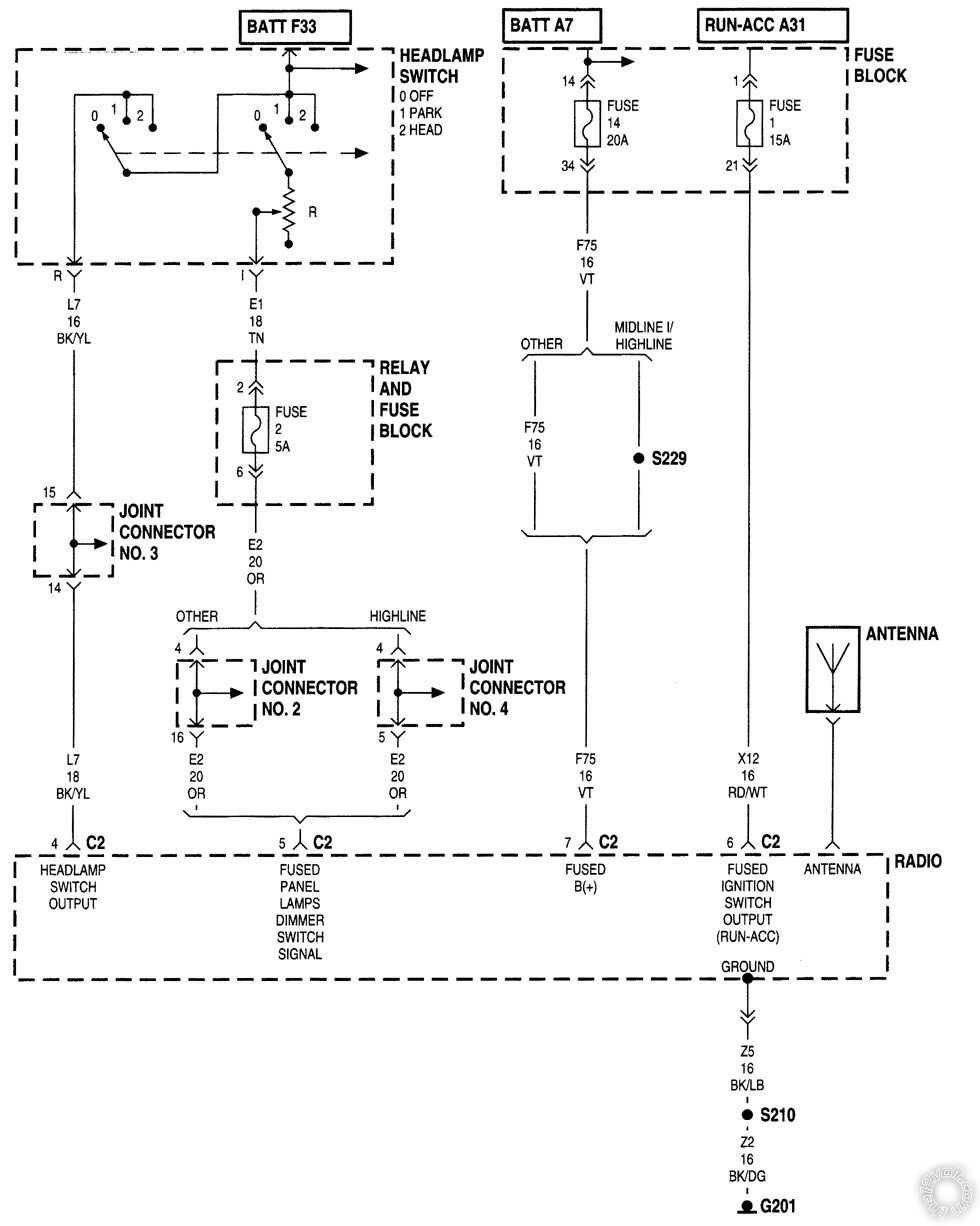

2000 Dodge Ram 1500 Van Radio -- posted image.
2000 Dodge Ram 1500 Van Radio -- posted image.
My ex once told me I have a perfect face for radio.
