2019 Mazda CX-5, Remote Start, Parking Lights

Home / the12volt's Install Bay / Car Security and Convenience / 2019 Mazda CX-5, Remote Start, Parking Lights

Welcome Guest :)

Members

Next Page > < Prev Topic Next Topic >

chev104275

Gold - Posts: 1,422

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: November 26, 2007

Location: Massachusetts, United States

Posted: January 23, 2020 at 7:58 AM / IP Logged

Has anyone done one of these ? It looks pretty straight forward except for the Parking lights. I'm not sure I like the idea disassembling the switch to make the lights work. Anyone tried the hazards ?

Thanks Joe

If i Can't Install it I Don't need it Joe

silvercivicsir

Copper - Posts: 402

Joined: November 21, 2003

Posted: January 23, 2020 at 3:34 PM / IP Logged

park lights are super easy.. push in the pin, and the whole stalk comes out.. once you do one, it's a walk in the park.

Search for other posts by silvercivicsir

chev104275

Gold - Posts: 1,422

Joined: November 26, 2007

Location: Massachusetts, United States

Posted: January 23, 2020 at 4:13 PM / IP Logged

Thanks just trying to avoid a surprise in there driveway

If i Can't Install it I Don't need it Joe

kreg357

Platinum - Posts: 7,783

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

Joined: January 30, 2009

Location: Pennsylvania, United States

Posted: January 23, 2020 at 5:14 PM / IP Logged

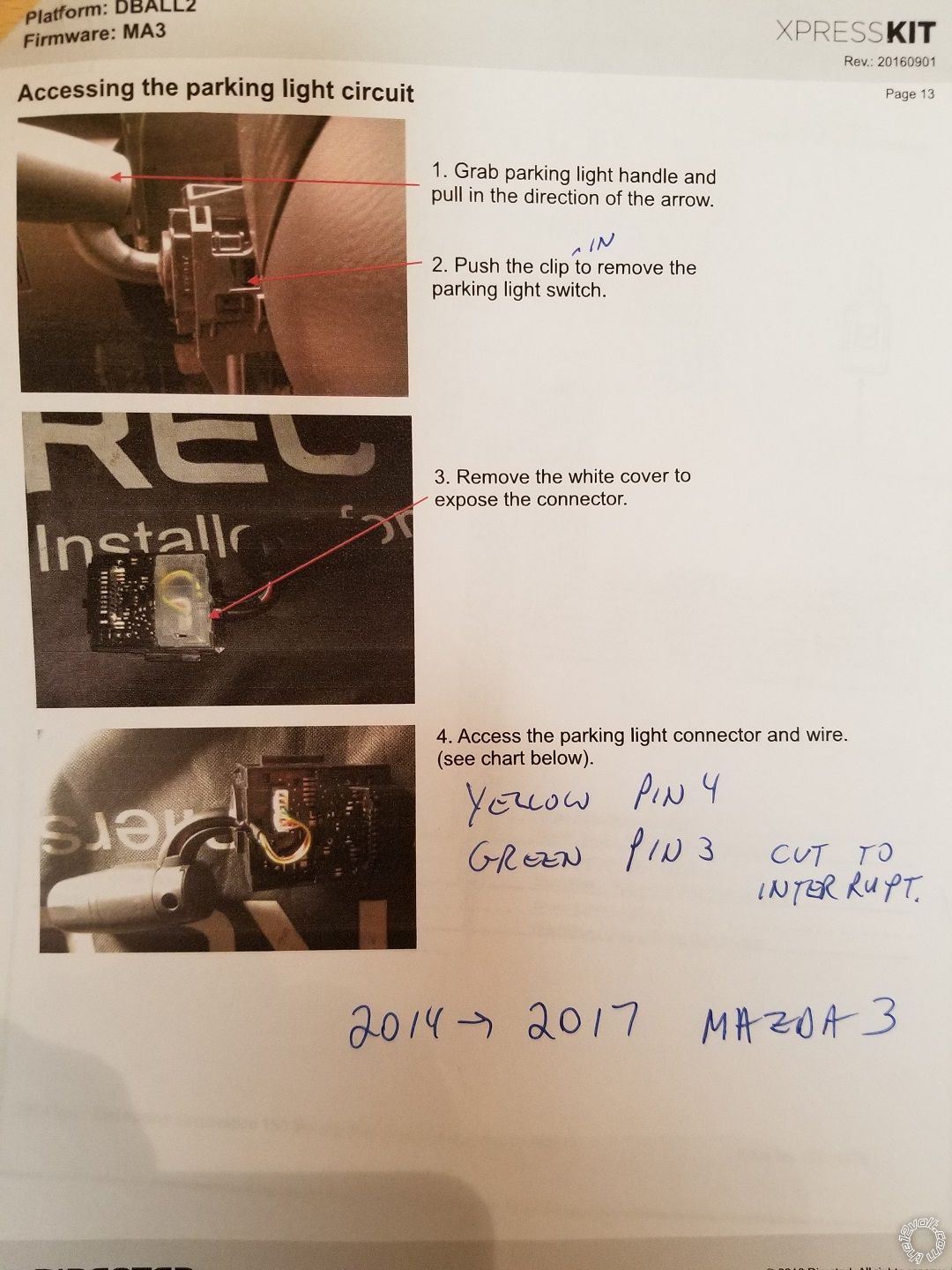

Not sure if you access to DEI anymore, but they had a pretty good write-up on the modification. It is pretty easy, once you've done a few. Here is a photo of the DBALL2 instructions for a Mazda 3.

2019 Mazda CX-5, Remote Start, Parking Lights -- posted image.

Soldering is fun!

chev104275

Gold - Posts: 1,422

Joined: November 26, 2007

Location: Massachusetts, United States

Posted: January 23, 2020 at 6:18 PM / IP Logged

Thanks Kreg no I don’t have access to dei anymore so that pic will come in handy

If i Can't Install it I Don't need it Joe

motosaki

Member - Posts: 24

Joined: January 23, 2019

Location: North Dakota, United States

Posted: January 24, 2020 at 8:26 AM / IP Logged

super easy. done many of them, was worried about pulling the switch the first time also. just dig in you'll be fine.

15yrs. in the industry. everything from simple deck installs, to remote starters, and full custom audio systems. I've Installed it all.

mgoetz74

Silver - Posts: 424

This member consistently provides reliable information

Joined: February 15, 2012

Location: United States

Posted: January 24, 2020 at 12:54 PM / IP Logged

make sure you disconnect the battery's negative before doing RS, the keyless system in these are very easily shorted out. Probably one of the easiest cars out there if you are doing a t harness. Literately less than 15 minute install 2019 Mazda CX-5, Remote Start, Parking Lights -- posted image.

33 years as a installer now just a retired old guy. Favorite thing to install/topic are remote starts/car alarms. Stop using test lights!!!

chev104275

Gold - Posts: 1,422

Joined: November 26, 2007

Location: Massachusetts, United States

Posted: January 24, 2020 at 1:27 PM / IP Logged

I’ll have to look into the t harness I usually use compustar with blade Al in it.

If i Can't Install it I Don't need it Joe

silvercivicsir

Copper - Posts: 402

Joined: November 21, 2003

Posted: January 24, 2020 at 3:50 PM / IP Logged

t harness not necessary.. all the wires are in the two plugs at the start / stop module below the steering wheel. But Yes, disconnect the battery, and the Compustar / idata install is a little easier since you don't need to add extra relays VS Ds4, if you want take over.

mgoetz74

Silver - Posts: 424

Joined: February 15, 2012

Location: United States

Posted: January 24, 2020 at 4:13 PM / IP Logged

chev104275 wrote:

I’ll have to look into the t harness I usually use compustar with blade Al in it.

id just do a dc3 and a t harness, done and done. You don't have to do a t harness but i like to make things simple after 20 years of doing RS's..lol

33 years as a installer now just a retired old guy. Favorite thing to install/topic are remote starts/car alarms. Stop using test lights!!!
