2000 Lexus GS400, Compustar 900AS, Door Lock Relay?


Post ReplyPost New Topic
< Prev Topic Next Topic >
tank181
Member - Posts: 5
Member spacespace
Joined: February 28, 2020
Location: New York, United States
Posted: February 29, 2020 at 11:51 PM / IP Logged Link to Post Post Reply Quote tank181
Hey guys,
Sorry for the noob stuff I'm about to ask.
I am installing a Compustar 900AS into a 2000 Lexus GS400. I have a question about the door locks. after researching on here it looks like the door locks are "Type B" 3 wire (-) negative. The Alarm-R/S lock/unlock outputs both have 250Ma, 800mS negative (-) outputs.
Do I need a relay for the door locks?
Would wiring up the aftermarket alarm to operate the factory alarm in unison work with a relay on the door locks?
(seen here: http://bananags.grantham-international.com/GS_DIY/ALARM/index.html )
Lastly, would it be ok to wire the factory alarm arm/disarm outputs from the Compustar (negative (-) 250mA, 800mS) on the factory disarm wires with diodes?
Thanks in advance.
tank181
Member - Posts: 5
Member spacespace
Joined: February 28, 2020
Location: New York, United States
Posted: February 29, 2020 at 11:52 PM / IP Logged Link to Post Post Reply Quote tank181
The Vehicle has a transponder enabled immobilizer.
djdeito
Copper - Posts: 100
Copper spacespace
Joined: February 19, 2019
Posted: March 01, 2020 at 4:56 PM / IP Logged Link to Post Post Reply Quote djdeito
what bypass will you be using with your compustar 900AS system?
tank181
Member - Posts: 5
Member spacespace
Joined: February 28, 2020
Location: New York, United States
Posted: March 02, 2020 at 3:03 PM / IP Logged Link to Post Post Reply Quote tank181
Blade-AL
tank181
Member - Posts: 5
Member spacespace
Joined: February 28, 2020
Location: New York, United States
Posted: March 02, 2020 at 3:24 PM / IP Logged Link to Post Post Reply Quote tank181

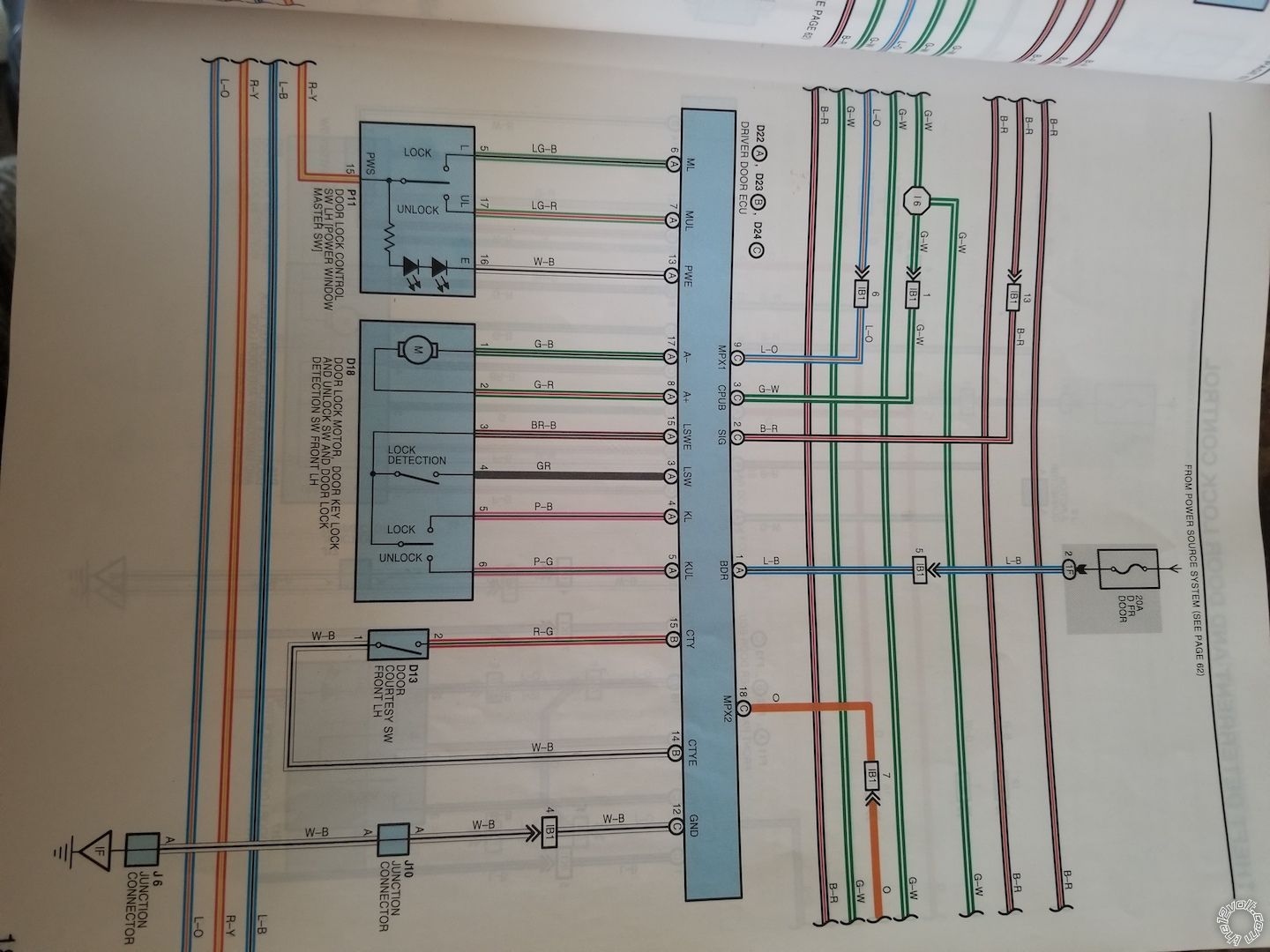

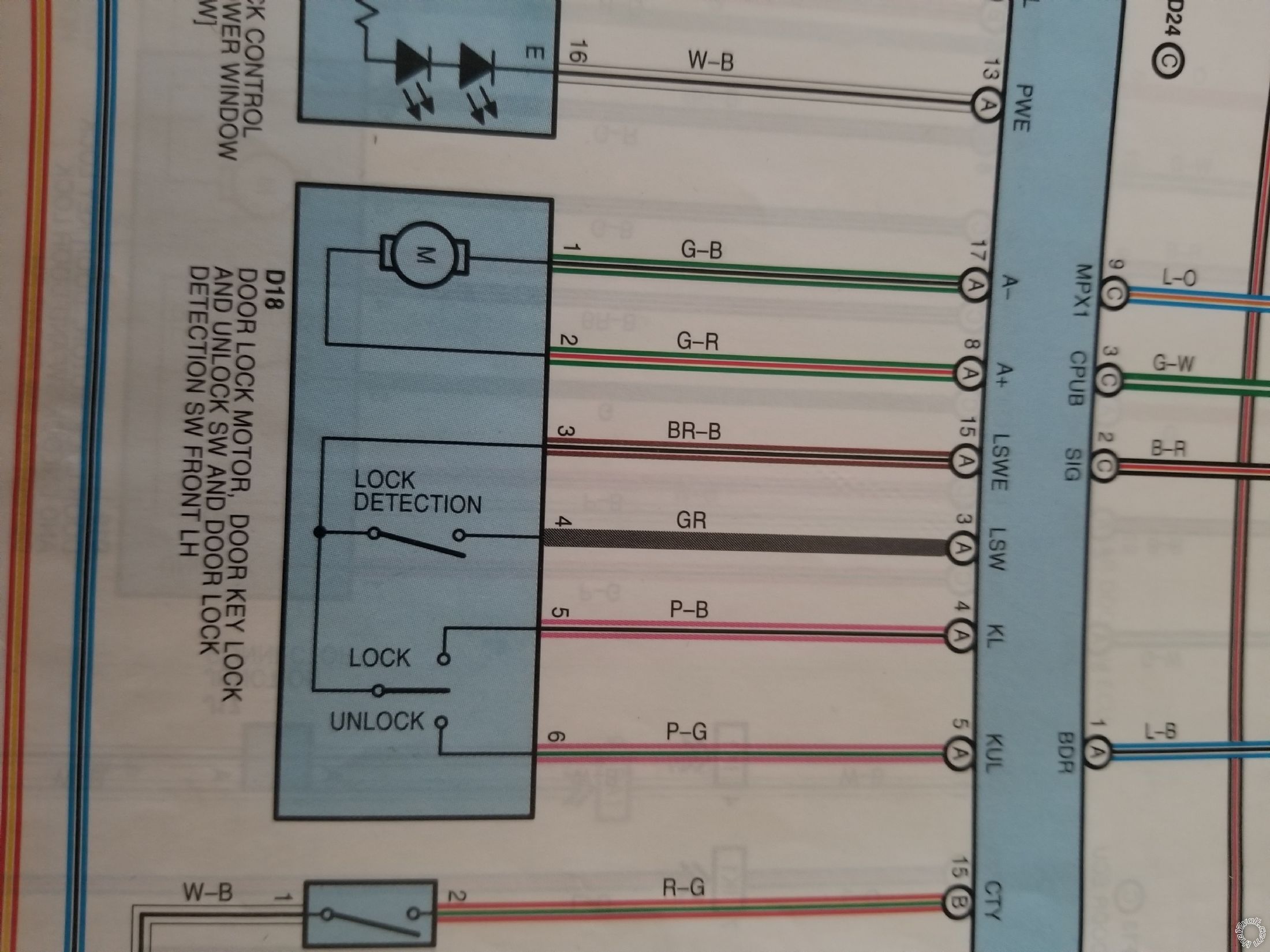

I have included some wiring schematics driectly from the OE manual on the door locks and door ecu for reference. 2000 Lexus GS400, Compustar 900AS, Door Lock Relay? -- posted image. 2000 Lexus GS400, Compustar 900AS, Door Lock Relay? -- posted image.
djdeito
Copper - Posts: 100
Copper spacespace
Joined: February 19, 2019
Posted: March 03, 2020 at 2:19 PM / IP Logged Link to Post Post Reply Quote djdeito
The 1N4004 diode accross the relay pins 86 and 85 are necessary if you use a relay with no built-in diode protection. If you use a relay with built-in diode protection, note the polarity and wire the relay accordingly.
2000 Lexus GS400, Compustar 900AS, Door Lock Relay? -- posted image.
tank181
Member - Posts: 5
Member spacespace
Joined: February 28, 2020
Location: New York, United States
Posted: March 05, 2020 at 3:34 PM / IP Logged Link to Post Post Reply Quote tank181
Awesome, Thanks!
Regarding the previous post, will that configuraton allow the aftermarket alarm and factory alarm to work in unison? or will this configuration sort of "disable" the factory alarm? I am asking this because there are other functions tied into the OEM key fob (alarm) such as window and sunroof open.
(window/sunroof close is tied into the keyed door entry)

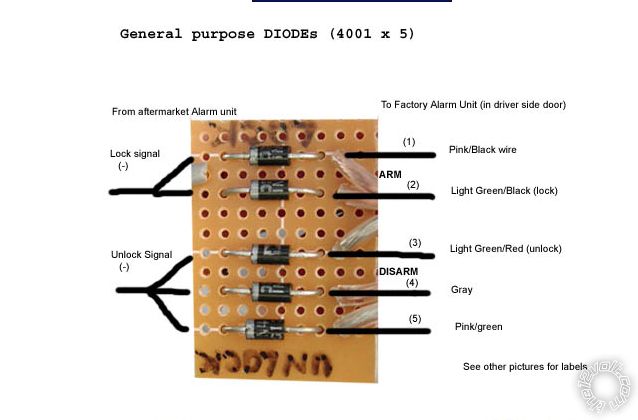

Regarding the following picture;
What do you guys think about this configuration? (see picture)
Will this type of connection work with an alarm/Remote start?
What can go wrong with this type of connection?
That connection was something that a person with an identical car did to make the factory alarm work with the aftermarket alarm he installed, but that was nearly 20 years ago.
2000 Lexus GS400, Compustar 900AS, Door Lock Relay? -- posted image.
