2012 Ford Focus SE Hatchback Stereo


Post ReplyPost New Topic
< Prev Topic Next Topic >
user00
Member - Posts: 8
Member spacespace
Joined: April 01, 2020
Posted: April 01, 2020 at 10:11 PM / IP Logged Link to Post Post Reply Quote user00
Anyone know of a compatible radio harness adapter for this? If not, are there any wiring/color diagrams out there for the car radio harness? I've tried searching for both without any luck.
eguru
Copper - Posts: 340
Copper spacespace
Joined: February 04, 2018
Location: Quebec, Canada
Posted: April 02, 2020 at 6:20 AM / IP Logged Link to Post Post Reply Quote eguru
Focus SE equipped with what radio/nav options and connecting to?
user00
Member - Posts: 8
Member spacespace
Joined: April 01, 2020
Posted: April 02, 2020 at 7:55 AM / IP Logged Link to Post Post Reply Quote user00
No nav, and I'm trying to connect it to just a Dual DXRM57BT.
i am an idiot
Platinum - Posts: 13,491
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
user00
Member - Posts: 8
Member spacespace
Joined: April 01, 2020
Posted: April 02, 2020 at 9:15 PM / IP Logged Link to Post Post Reply Quote user00
I have that harness (without the black box because I don't have navigation, unless I do need it...), but it doesn't work.
i am an idiot
Platinum - Posts: 13,491
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: April 02, 2020 at 10:31 PM / IP Logged Link to Post Post Reply Quote i am an idiot
The box provides switched power to the red wire of the radio. You will have to find a switched power source to connect to the radios red wire. That box provides switched power as well as the connections if you had a nav unit.
user00
Member - Posts: 8
Member spacespace
Joined: April 01, 2020
Posted: April 02, 2020 at 11:34 PM / IP Logged Link to Post Post Reply Quote user00
Yes I noticed that the harness' red ignition wire wasn't going directly to the main female connector. So I guess I actually needed the black nav box... Would it still work to connect the radio's red wire directly to the car's radio harness (i don't mind cutting the car's harness). Actually could I just do the entire thing without the harness?
i am an idiot
Platinum - Posts: 13,491
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: April 03, 2020 at 5:04 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Find a switched power source and connect your radios red wire to that. You already have the harness, why would you even want to cut the plug off your car?
user00
Member - Posts: 8
Member spacespace
Joined: April 01, 2020
Posted: April 04, 2020 at 5:36 PM / IP Logged Link to Post Post Reply Quote user00
Didn't realize I needed the black nav box (which costs $30 more), and I've already cut into the car's harness. Hindsight's twenty twenty...

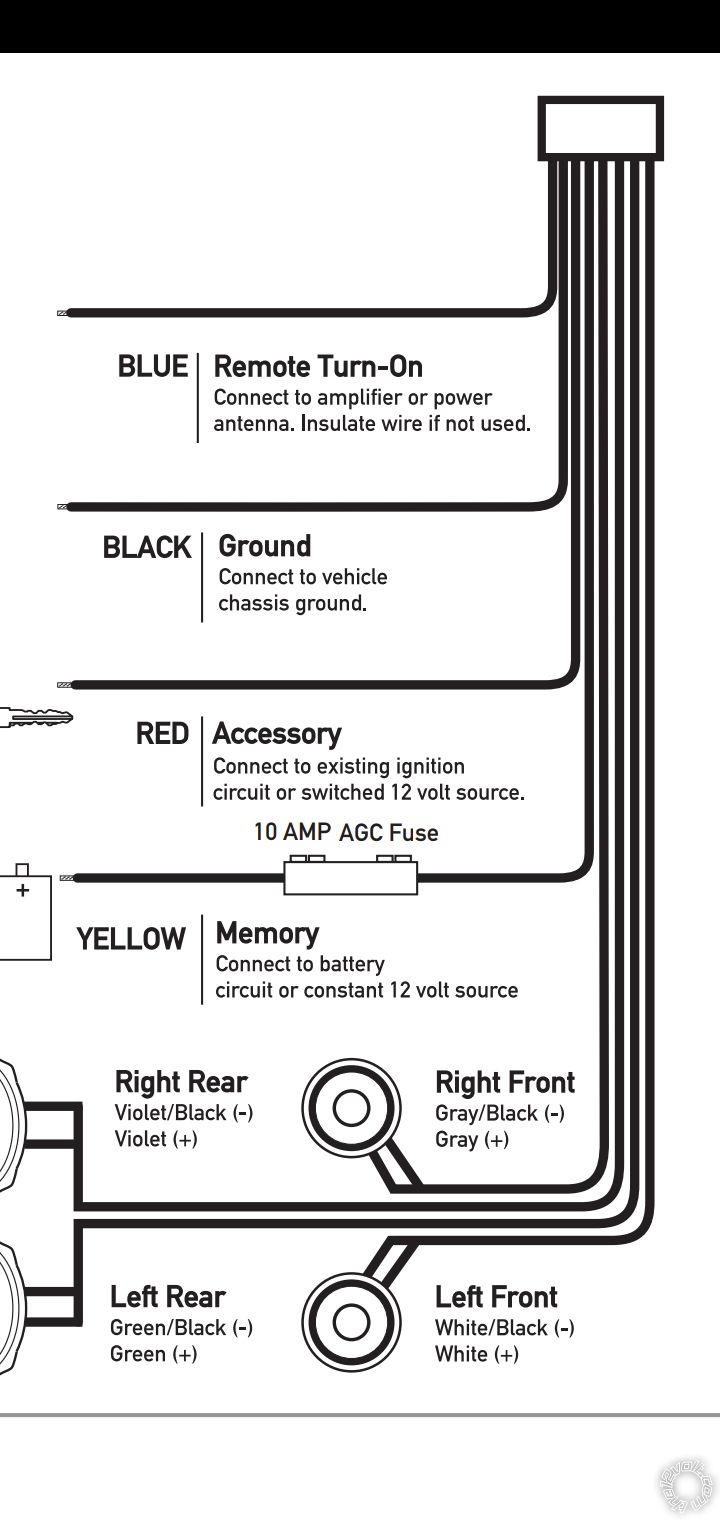

I really don't mind doing it without the adapter harness. Would anyone happen to have the wiring diagram for the vehicle? I have the speakers figured out, but I'm still uncertain about which vehicle wires to connect the red and yellow radio wires to. Here is the aftermarket radio's wires:
2012 Ford Focus SE Hatchback Stereo -- posted image.
And thanks for the help...
i am an idiot
Platinum - Posts: 13,491
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: April 05, 2020 at 6:01 AM / IP Logged Link to Post Post Reply Quote i am an idiot
There is not a suitable wire in that harness to connect to your radios red wire. You will have to find a fuse in the fusebox that only gets power when the key is turned on.
