Triple Function Fog Light Relay Wiring

Post ReplyPost New Topic
< Prev Topic Next Topic >
Member - Posts: 1
Member spacespace
Joined: May 24, 2020
Location: United Kingdom
Posted: May 24, 2020 at 3:37 PM / IP Logged Link to Post Post Reply Quote ukphilster
Hi guys, I want to use my existing fog lights as DRL's when side lights off, then to switch off and still be functional as fog lights when the side lights are activated. I believe I have the basics of the circuit completed in the attached document. However to complicate matters I would like to wire the fogs to blink in unison with the indicators, regardless of the side lights being on or off. Being in the UK I will be changing the lamps to yellow.
Any help or guidance appreciated.

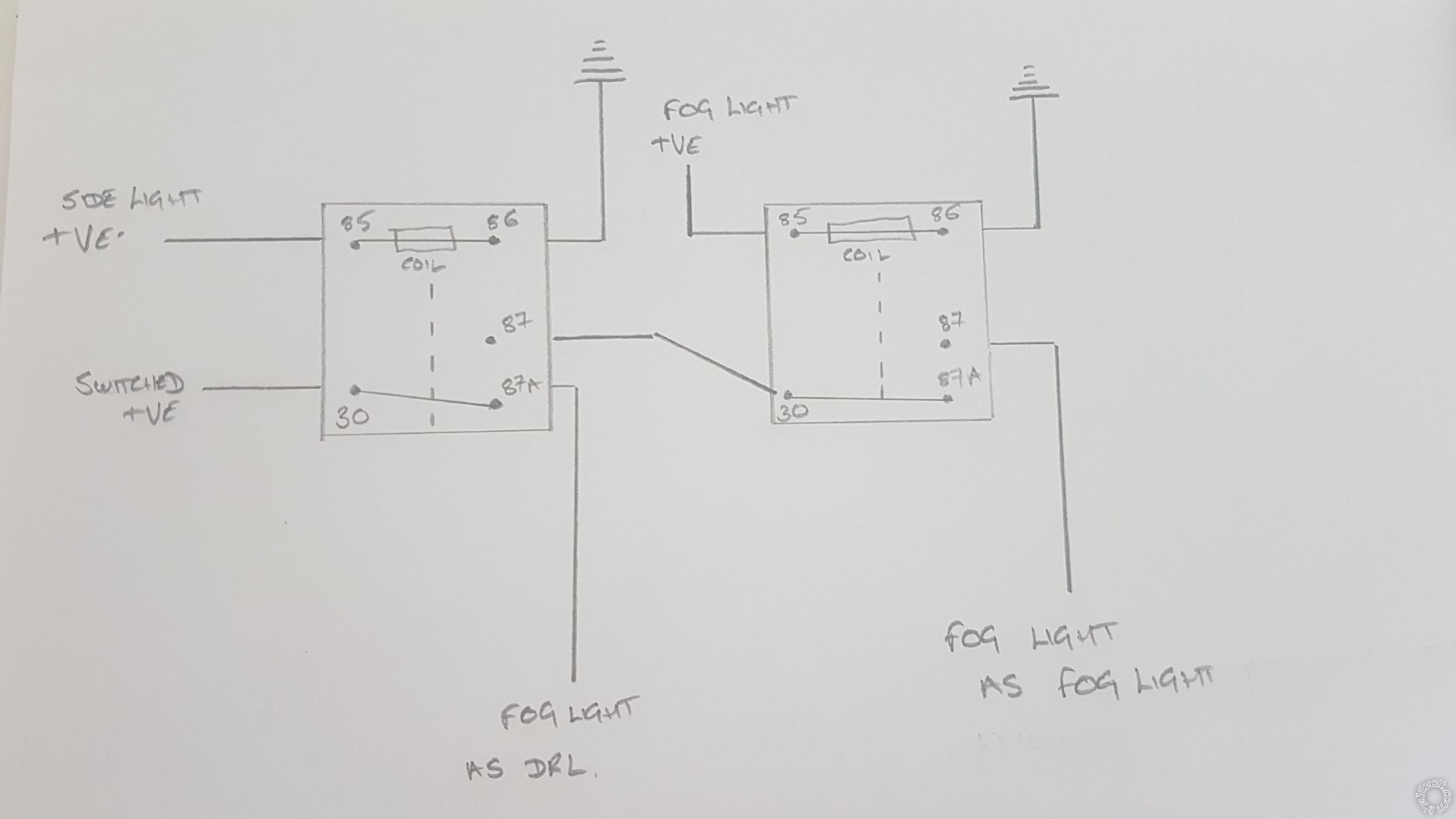

Phill Triple Function Fog Light Relay Wiring -- posted image.
