Polarity of STAK 20 plug


Post ReplyPost New Topic
< Prev Topic Next Topic >
flabbergasted
Member - Posts: 2
Member spacespace
Joined: June 12, 2020
Location: Louisiana, United States
Posted: June 12, 2020 at 9:39 AM / IP Logged Link to Post Post Reply Quote flabbergasted
Hello,
Can someone pls tell me how to wire a STAK 20 plug ? I need it to run an AER Compact Mobile guitar amp, the amp is not working from the mains but it has a 12V in, i bought the Stak 20 plug and want to use a 12V lithium battery but it doesn’t show anywhere the polarity, not on the Stak 20 or the amp, on the plug it just has a 1 and 2 for each pin. How do i wire this ?
This is the Stak 20:
https://www.tme.eu/en/details/stak20/st-connectors/hirschmann/931264106-stak-20/
This is the guitar amp:
http://aer-the-acoustic-people.de/en/products/acoustic-line/detailpage/compact-mobile/
I emailed AER but they haven’t replied so I’m hoping someone here can help, thanks,
Rob
the12volt
Administrator - Posts: 3,955
Administrator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 07, 2002
Location: Louisiana, United States
Posted: June 12, 2020 at 9:47 AM / IP Logged Link to Post Post Reply Quote the12volt

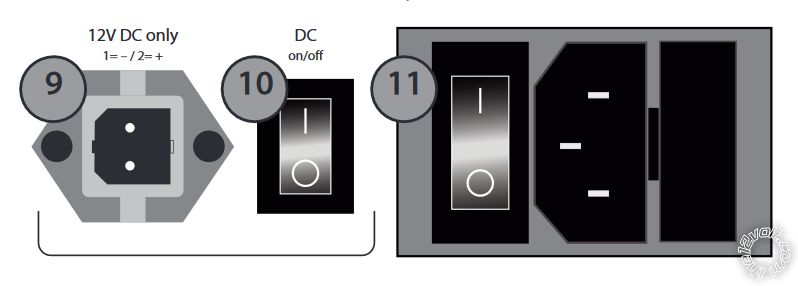

1 is negative, 2 is positive.
Polarity of STAK 20 plug -- posted image.
Polarity of STAK 20 plug -- posted image. the12volt • Support the12volt.com
flabbergasted
Member - Posts: 2
Member spacespace
Joined: June 12, 2020
Location: Louisiana, United States
Posted: June 12, 2020 at 10:06 AM / IP Logged Link to Post Post Reply Quote flabbergasted
Thank you 🙏
