2019 Nissan Altima, Radio Wiring Diagram


Post ReplyPost New Topic
< Prev Topic Next Topic >
sirreal
Member - Posts: 4
Member spacespace
Joined: August†16, 2020
Posted: August†16, 2020 at 1:26 PM / IP Logged Link to Post Post Reply Quote sirreal
Hi all, came here looking for a 2019 Nissan Altima Radio Wiring Diagram, Iíve searched all over the internet and there isnít one or it is eluding me.
Does anyone have this information? I am trying to find the AMP Remote wire so I can hook up an amp and sub.
Thank you!

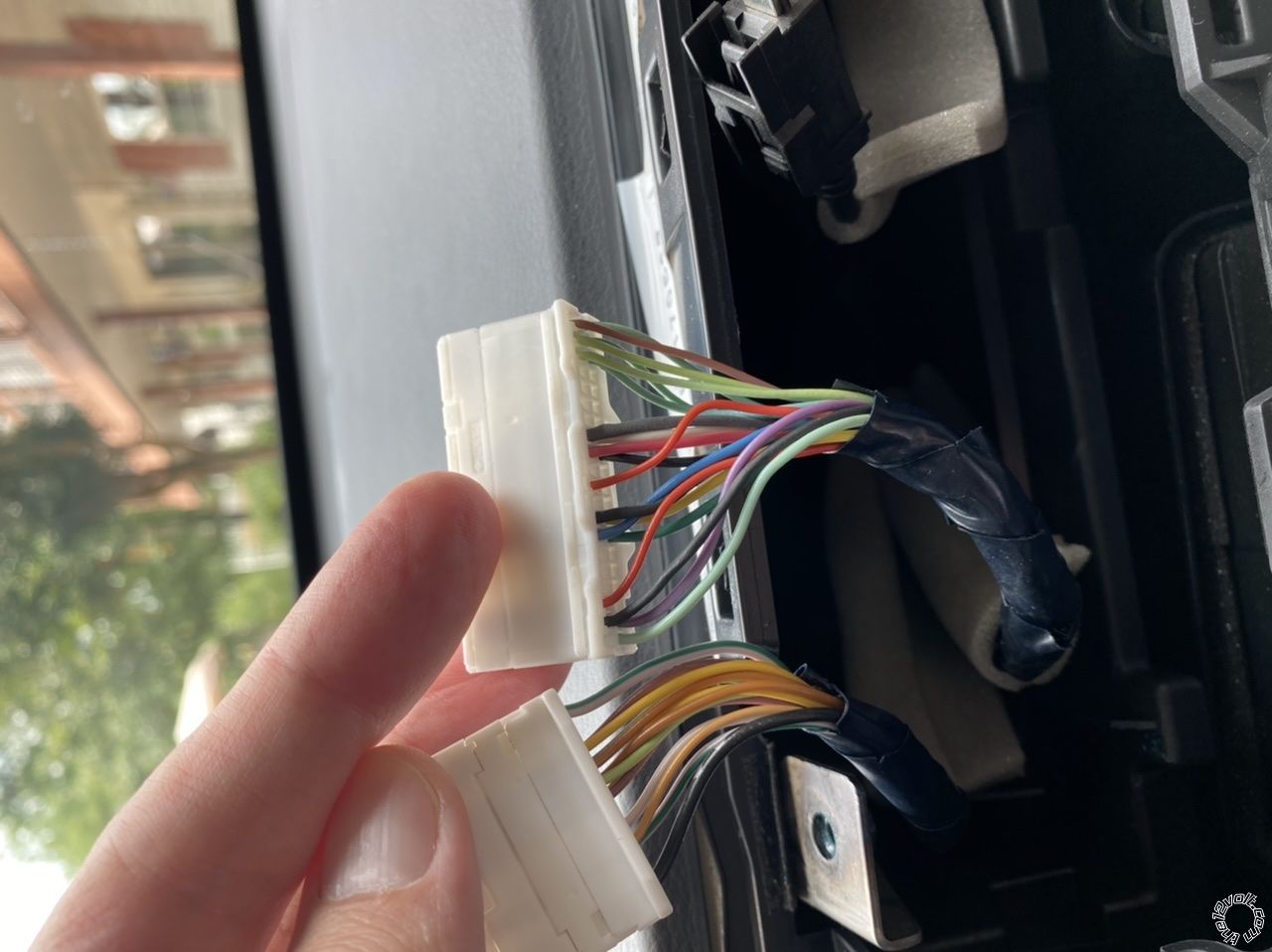

2019 Nissan Altima, Radio Wiring Diagram -- posted image.
mgoetz74
Copper - Posts: 400
Copper spaceThis member consistently provides reliable informationspace
Joined: February†15, 2012
Location: United States
Posted: August†16, 2020 at 1:49 PM / IP Logged Link to Post Post Reply Quote mgoetz74
couple wires to try here
tan pin 17 ignition
purple/white pin 1 amp turn on, may only work if you have bose system (not 100% sure)
may be another purple/white pin 7 that is acc
does the deck have bose or navigation or just a basic deck? new Nissan could have 2 different harness
31 years as a installer. Favorite thing to install/topic are remote starts/car alarms. Stop using test lights!!!
sirreal
Member - Posts: 4
Member spacespace
Joined: August†16, 2020
Posted: August†16, 2020 at 3:02 PM / IP Logged Link to Post Post Reply Quote sirreal
I donít have the Bose system installed , there are 2 wiring harnesses but I think one goes to the display.
I read that the 2019 Sentra remote wire is grey. Could they be related to Altima as well?
sirreal
Member - Posts: 4
Member spacespace
Joined: August†16, 2020
Posted: August†17, 2020 at 9:56 AM / IP Logged Link to Post Post Reply Quote sirreal
Anyone have any idea?
mgoetz74
Copper - Posts: 400
Copper spaceThis member consistently provides reliable informationspace
Joined: February†15, 2012
Location: United States
Posted: August†17, 2020 at 2:17 PM / IP Logged Link to Post Post Reply Quote mgoetz74
best thing to do is get a DMM an start testing wire, there are a few different harnesses in these. Even fwd and awd have different pin outs so its hard to pinpoint the 100% right one. You may be better off going to a cig. lighter plug if it turns off with the car. You should be using DMM and testing any wire anyone tells you to be safe. You may even have ANC mics in the car that have to be disconnected if your putting in a amp/sub
31 years as a installer. Favorite thing to install/topic are remote starts/car alarms. Stop using test lights!!!
sirreal
Member - Posts: 4
Member spacespace
Joined: August†16, 2020
Posted: August†19, 2020 at 1:38 PM / IP Logged Link to Post Post Reply Quote sirreal
mgoetz74 wrote:
couple wires to try here
tan pin 17 ignition
purple/white pin 1 amp turn on, may only work if you have bose system (not 100% sure)
may be another purple/white pin 7 that is acc
does the deck have bose or navigation or just a basic deck? new Nissan could have 2 different harness
Thanks dude , I tried all the purple and tan and finally tapped the ignition. It was the last tan wire I tried.
austin_77
Member - Posts: 1
Member spacespace
Joined: May†21, 2021
Location: Nevada, United States
Posted: May†21, 2021 at 10:38 PM / IP Logged Link to Post Post Reply Quote austin_77
Hello, could you possibly help me out with what wires you ended up using for the speakers? I canít figure it out
Austin
i am an idiot
Platinum - Posts: 13,555
Platinum spaceThis member consistently provides reliable informationspace
Joined: September†21, 2006
Location: Louisiana, United States
Posted: May†23, 2021 at 7:57 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Radio 12V      Lavender/Green      +      Radio, white 20 pin plug, pin 11
Radio Ground      Black      -      Radio, white 20 pin plug, pin 1
Radio Ignition      Lavender/White      +      Radio, white 20 pin plug, pin 4
Radio Illumination      Red      +      Radio, white 40 pin plug, pin 23
Factory Amp Turn-on      Lavender/White      +      Radio, white 20 pin plug, pin 10
Power Antenna      Black      +      Radio, gray 5 pin plug, pin 1
Left Front Speaker (+/-)      Violet - Lt. Blue or Lavender/Green - Lavender/Pink or Green - Red      +,-      Radio, white 20 pin plug, pins 9 - 8
Right Front Speaker (+/-)      Yellow - Brown or Lavender/Brown - Lavender/Violet or Black - White      +,-      Radio, white 20 pin plug, pins 19 - 18
Left Rear Speaker (+/-)      Brown - Yellow or Lavender/Black - Lavender/Blue or Black - White      +,-      Radio, white 20 pin plug, pins 7 - 6
Right Rear Speaker (+/-)      Lt. Green - Violet or Lavender/Green - Lavender/Yellow or Green - Red      +,-      Radio, white 20 pin plug, pins 17 - 16
Left Front Speaker - With Amp      Brown - Green      +,-      Amplifier in trunk right side, black 8 pin plug, pins 3 - 7
Right Front Speaker - With Amp      Brown - Green      +,-      Amplifier in trunk right side, black 16 pin plug, pins 1 - 9
Left Rear Speaker - With Amp      Brown - Yellow (door); White - Black (shelf)      +,-      Amplifier in trunk right side, black 16 pin plug, pins 3 - 2 (door); black 8 pin plug, pins 2 - 6 (shelf)
Right Rear Speaker - With Amp      White - Black (door); Lt. Green - Violet (shelf)      +,-      Amplifier in trunk right side, black 16 pin plug, pins 4 - 5 (door); black 8 pin plug, pins 8 - 4 (shelf)
Center Channel - With Amp      Blue - Pink      +,-      Amplifier in trunk right side, black 16 pin plug, pins 8 - 16
Aux. Audio Input Left (+/-)      Blue - Yellow      +,-      Radio, white 40 pin plug, pins 27 - 8
Aux. Audio Input Right (+/-)      Green - Yellow      +,-      Radio, white 40 pin plug, pins 7 - 8
Rearview Camera Video      Red - (shield) (rear view); Black - (shield) (around view)      +,-      Radio, white 40 pin plug, pins 32 - 33
