2021 Ford F-150 Wiring Guide


Post ReplyPost New Topic
< Prev Topic Next Topic >
b4manek
Member - Posts: 1
Member spacespace
Joined: July 02, 2021
Location: Iowa, United States
Posted: July 02, 2021 at 10:04 AM / IP Logged Link to Post Post Reply Quote b4manek
I'm an emergency vehicle upfit technician and am looking for an overall wiring guide for the 2021 F150s. I've found that some of the wires are the same as the 2015-2020 trucks, but some stuff is completely different. I am having trouble finding the Park signal in particular. Also, is there and ignition signal or start signal at the BCM? The Ignition switch is a PITA to get to in these trucks.
mgoetz74
Copper - Posts: 394
Copper spaceThis member consistently provides reliable informationspace
Joined: February 15, 2012
Location: United States
Posted: July 02, 2021 at 12:16 PM / IP Logged Link to Post Post Reply Quote mgoetz74
this is what I got, hope it helps. To me it looks like the park stuff runs through the hs can wires (data)
12 Volts     Red (40A)     +     BCM in passenger kick, black 22 pin plug (J7-G), pin 22
Second 12 Volts     Yellow/Red (60A)     +     BCM in passenger kick, black 1 pin plug (J8-H), pin 1
Ground     (chassis ground)
Starter Kill     Brown/Green     +     Next to Underhood Fuse Box, black 20 pin plug (C146), pin 10
Starter     Blue/White     +     Ignition Switch, black 6 pin plug, pin 1
Ignition     White/Orange     +     Ignition Switch, black 6 pin plug, pin 2
Accessory     Violet/Green     +     Ignition Switch, black 6 pin plug, pin 6
Keysense     Blue/Gray     +     Ignition Switch, black 6 pin plug, pin 3
CAN Bus High     Blue (HS1 CAN)     Data     Behind Glove Box, gray 30 pin plug (C210), pin 4
CAN Bus Low     White (HS1 CAN)     Data     Behind Glove Box, gray 30 pin plug (C210), pin 3
CAN Bus High 2     Gray/Orange (MS1 CAN)     Data     Driver Kick, gray 30 pin plug (C263), pin 1
CAN Bus Low 2     Violet/Orange (MS1 CAN)     Data     Driver Kick, gray 30 pin plug (C263), pin 2
CAN Bus High 3     Green/Orange (HS2 CAN)     Data     Driver Kick, gray 30 pin plug (C263), pin 25
CAN Bus Low 3     Gray/Blue (HS2 CAN)     Data     Driver Kick, gray 30 pin plug (C263), pin 24
CAN Bus High 4     White/Brown (DIAG CAN)     Data     OBD-Data Link Connector, white 16 pin plug, pin 6
CAN Bus Low 4     Gray/Yellow (DIAG CAN)     Data     OBD-Data Link Connector, white 16 pin plug, pin 14
OBD 12 Volts     Violet/Red (10A)     +     OBD-Data Link Connector, white 16 pin plug, pin 16
OBD Ground     Black/Gray     -     OBD-Data Link Connector, white 16 pin plug, pin 4
OBD Connector     White          Under Driver Dash, Below Electric Parking Brake Switch
IMMO Data     Blue/White (LIN)     Data     PATS Transceiver on ignition switch, black 4 pin plug, pin 3
Power Lock     Gray/Yellow (w/o memory)     -     Driver Door Lock Switch, black 4 pin plug, pin 4
Power Unlock     Violet/Gray (w/o memory)     -     Driver Door Lock Switch, black 4 pin plug, pin 2
Power Lock2     Gray/Yellow (with memory)     -     Driver Door Lock Switch, black 8 pin plug, pin 2
Power Unlock2     Violet/Gray (with memory)     -     Driver Door Lock Switch, black 8 pin plug, pin 1
Lock Motor     Gray/Brown     Reverse     Driver Kick, door harness, black 21 pin plug (C510), pin 16 --or-- BCM in passenger kick, black 36 pin plug (J3-C), pin 35
Driver Unlock Motor     Blue/Green     Reverse     Driver Kick, door harness, gray 18 pin plug (C511), pin 5 --or-- BCM in passenger kick, black 36 pin plug (J3-C), pin 27
Passenger Unlock Motor     Brown/Green     Reverse     BCM in passenger kick, black 36 pin plug (J3-C), pin 32
Factory Alarm Arm     (arms on lock)
Factory Alarm Disarm     (transponder and ignition)
Parking Lights     Blue/White (LF-RF)     +     BCM in passenger kick, black 22 pin plug (J7-G), pin 3
Parking Lights 2     Violet/Green (LR); White/Orange (RR)     +     BCM in passenger kick, blue 52 pin plug (J5-E), pin 25 (LR); pin 51 (RR)
Parking Lights -     (LIN)
Hazards     Brown/Yellow     -     Harness Above Glove Box --or-- Hazard Switch, black 6 pin plug, pin 4     Directwire
Hazards 2     Brown/Yellow (alternate location)     -     BCM in passenger kick, black 52 pin plug (J2-B), pin 19
Turn Signal (Left)     Blue/Green (LF); Gray/Orange (LR)     +     BCM in passenger kick, black 40 pin plug (J6-F), pin 39 (LF); blue 52 pin plug (J5-E), pin 26 (LR)
Turn Signal (Right)     Yellow/Violet (RF); Green/Orange (RR)     +     BCM in passenger kick, black 40 pin plug (J6-F), pin 38 (RF); blue 52 pin plug (J5-E), pin 52 (RR)
Headlight     Brown/Blue (L); Blue/Green (R)     +     BCM in passenger kick, black 22 pin plug (J7-G), pin 4 (L); pin 2 (R)
AutoLights     (LIN)
Reverse Light     Green/Brown     +     BCM in passenger kick, black 36 pin plug (J3-C), pin 11
Reverse Light 2     Green/Brown (alternate location)     +     Driver Kick, harness to rear
Left Front Door Trigger     Green/Violet     -     Driver Kick, door harness, black 21 pin plug (C510), pin 2
Left Front Door Trigger 2     Green/Violet (alternate location)     -     BCM in passenger kick, blue 52 pin plug (J5-E), pin 33
Right Front Door Trigger     White     -     BCM in passenger kick, blue 52 pin plug (J5-E), pin 21
Left Rear Door Trigger     Green     -     BCM in passenger kick, blue 52 pin plug (J5-E), pin 46
Right Rear Door Trigger     Yellow     -     BCM in passenger kick, blue 52 pin plug (J5-E), pin 19
Dome Light     Gray/Violet     +     BCM in passenger kick, black 36 pin plug (J3-C), pin 13
Trunk/Hatch Pin     Yellow/Blue (power tailgate ajar)     -     BCM in passenger kick, blue 52 pin plug (J5-E), pin 34
Hood Pin     Blue/Orange     -     BCM in passenger kick, black 40 pin plug (J6-F), pin 14
Power Liftgate     Gray/Yellow (power tailgate)     -     Power Tailgate Switch, black 6 pin plug, pin 2
Power Liftgate 2     Gray/Yellow (alternate location)     -     Driver Kick, gray 30 pin plug (C263), pin 27
Trunk/Hatch Release     Gray/Yellow (tailgate release)     -     Tailgate Release Switch, black 6 pin plug, pin 2
Trunk-Hatch Release2     Gray/Yellow (alternate location)     -     BCM in passenger kick, black 52 pin plug (J2-B), pin 1     Directwire
Trunk Release Motor     Gray/Orange (tailgate release)     +     Above Passenger Kick, 59 pin plug (C265), pin 24
Fuel Door Release     Yellow/Blue (HEV)     -     Headlight Switch, black 16 pin plug, pin 4     Directwire
Tachometer     Brown/Blue (2.7L, 3.3L, 3.5L, HEV)     AC     PCM on passenger firewall, black 126 pin plug, pin 53
Tachometer 2     White/Green (5.0L)     AC     PCM on passenger firewall, black 126 pin plug, pin 53
Tachometer 3     Brown/Blue (3.0L Diesel)     AC     PCM on passenger firewall, black 126 pin plug, pin 38
Fuel Pump     Blue or Blue/White     +     Driver Fender, black 68 pin plug (C1591), pin 9
Rear Defroster     Yellow/Orange     + Latched     Above Passenger Kick, 59 pin plug (C265), pin 29
Mirror Defroster     (MS1 CAN)
Left Front Heated Seat     (MS1 CAN)
Right Front Heated Seat     (MS1 CAN)
Speed Sense     Brown/Red (2.7L, 3.3L, 3.5L, 5.0L); Brown/Green (HEV)     AC     PCM on passenger firewall, black 90 pin plug, pin 71
Speed Sense 2     Brown (3.0L Diesel)     AC     TCM near frame rail below passenger door, black 50 pin plug, pin 42
Brake Wire     Gray/Orange     +     BCM in passenger kick, gray 22 pin plug (J1-A), pin 1
Parking Brake     (electric parking brake)
Horn Trigger     Green/White     -     BCM in passenger kick, black 52 pin plug (J2-B), pin 18
Horn Trigger 2     Green/White (alternate location)     -     Horn Switch-Clock Spring, gray 18 pin plug, pin 9 or gray 12 pin plug, pin 5
Wipers     (LIN)
Left Front Window (Up/Down)     Blue - Green     A     Driver Door Module, black 24 pin plug, pins 14 - 13
Right Front Window (Up/Down)     White - Gray/Yellow     A     Passenger Door Module, black 24 pin plug, pins 14 - 13
Left Rear Window (Up/Down)     Green/Violet - Brown     A     Left Rear Window Switch, green 8 pin plug, pins 6 - 7
Right Rear Window (Up/Down)     White/Violet - Gray     A     Right Rear Window Switch, green 8 pin plug, pins 6 - 7
Rear Sliding Window Open-Close     Yellow/Green - Violet/Brown     +     Above Passenger Kick, 59 pin plug (C265), pins 43 - 45
Sun Roof (Open/Close)     Violet/Brown - Yellow/Orange (function with ignition on only)     -     Overhead Console, black 16 pin plug, pins 5 - 4
Memory Seat 1     Violet/White     -     Driver Door Lock Switch, black 8 pin plug, pin 5
Memory Seat 2     Yellow     -     Driver Door Lock Switch, black 8 pin plug, pin 6
Memory Seat 3     Blue/Orange     -     Driver Door Lock Switch, black 8 pin plug, pin 7
Radio 12V     Violet/Red     +     Radio, black 32 pin plug, pin 1
Radio Ground     Black/Gray     -     Radio, black 32 pin plug, pin 4
Radio Ignition     Green (delay accessory)     +     BCM in passenger kick, black 36 pin plug (J3-C), pin 30 --or-- Driver Kick, door harness, black 21 pin plug (C510), pin 7
Factory Amp Turn-on     Yellow/Violet (audio is A2B)     +     Radio, gray 32 pin plug, pin
Left Front Speaker (+/-)     White - White/Brown     +,-     Radio, black 32 pin plug, pins 8 - 7
Right Front Speaker (+/-)     White/Violet - White/Orange     +,-     Radio, black 32 pin plug, pins 3 - 2
Left Rear Speaker (+/-)     White/Green - Brown/Yellow     +,-     Radio, black 32 pin plug, pins 6 - 5
Right Rear Speaker (+/-)     Brown/White - Brown/Blue     +,-     Radio, black 32 pin plug, pins 10 - 9
Center Channel (+/-)     Green - Gray/Yellow     +,-     Radio, black 32 pin plug, pins 13 - 24
Left Front Speaker - With Amp     White - White/Brown     +,-     Amplifier on driver rear cabin wall, black 20 pin plug, pins 17 - 7 (8 speaker); brown 20 pin plug, pins 17 - 7 (18 speaker)
Right Front Speaker - With Amp     White/Violet - White/Orange     +,-     Amplifier on driver rear cabin wall, black 20 pin plug, pins 16 - 6 (8 speaker); brown 20 pin plug, pins 14 - 4 (18 speaker)
Left Front Tweeter - With Amp     White - White/Brown (tweeter); Green/Blue - Gray/Blue (mid, 18 speaker)     +,-     Radio, black 32 pin plug, pins 6 - 5 (tweeter); Amplifier on driver rear cabin wall, brown 20 pin plug, pins 16 - 6 (mid)
Right Front Tweeter - With Amp     White/Violet - White/Orange (tweeter); Violet/Gray - Yellow/Gray (mid, 18 speaker)     +,-     Radio, black 32 pin plug, pins 10 - 9 (tweeter); Amplifier on driver rear cabin wall, brown 20 pin plug, pins 12 - 2 (mid)
Left Front Surround - With Amp     Yellow/Orange - White/Brown (headliner, 18 speaker)     +,-     Amplifier on driver rear cabin wall, brown 20 pin plug, pins 20 - 10
Right Front Surround - With Amp     Brown/Yellow - Violet/Green (headliner, 18 speaker)     +,-     Amplifier on driver rear cabin wall, brown 20 pin plug, pins 19 - 9
Left Rear Speaker - With Amp     White/Green - Brown/Yellow     +,-     Amplifier on driver rear cabin wall, black 20 pin plug, pins 20 - 10 (8 speaker); Radio, black 32 pin plug, pins 3 - 2 (18 speaker)
Right Rear Speaker - With Amp     Brown/White - Brown/Blue     +,-     Amplifier on driver rear cabin wall, black 20 pin plug, pins 18 - 8 (8 speaker); Radio, black 32 pin plug, pins 8 - 7 (18 speaker)
Left Rear Surround - With Amp     Violet/Brown - Yellow/Violet (headrest, 18 speaker) (driver and passenger parallel)     +,-     Amplifier on driver rear cabin wall, brown 20 pin plug, pins 18 - 8
Right Rear Surround - With Amp     Green/Blue - Blue/Orange (headrest, 18 speaker) (driver and passenger parallel)     +,-     Amplifier on driver rear cabin wall, black 8 pin plug, pins 6 - 2
Center Channel - With Amp     Green - Gray/Yellow     +,-     Amplifier on driver rear cabin wall, black 20 pin plug, pins 19 - 9 (8 speaker); brown 20 pin plug, pins 13 - 3 (18 speaker)
Subwoofer - With Amp     Green/Violet - Gray     +,-     Amplifier on driver rear cabin wall, black 20 pin plug, pins 15 - 5 (8 speaker); brown 20 pin plug, pins 15 - 5 (18 speaker)
Aux. Audio Input Left (+/-)     Blue - Gray/Orange (SYNC audio)     +,-     Radio, gray 32 pin plug, pins 20 - 31
Aux. Audio Input Right (+/-)     Violet/Green - Brown/White (SYNC audio)     +,-     Radio, gray 32 pin plug, pins 21 - 32
Rearview Camera Video     White/Green - Blue/Gray (8 inch); (coax cable, 12 inch)     +,-     SYNC Module behind radio controls, black 54 pin plug, pins 14 - 15 --or-- Driver Kick, gray 30 pin plug (C263), pins 13 - 12
31 years as a installer. Favorite thing to install/topic are remote starts/car alarms. Stop using test lights!!!
audiokid1
Copper - Posts: 109
Copper spacespace
Joined: March 17, 2003
Location: Indiana, United States
Posted: July 14, 2021 at 11:31 AM / IP Logged Link to Post Post Reply Quote audiokid1

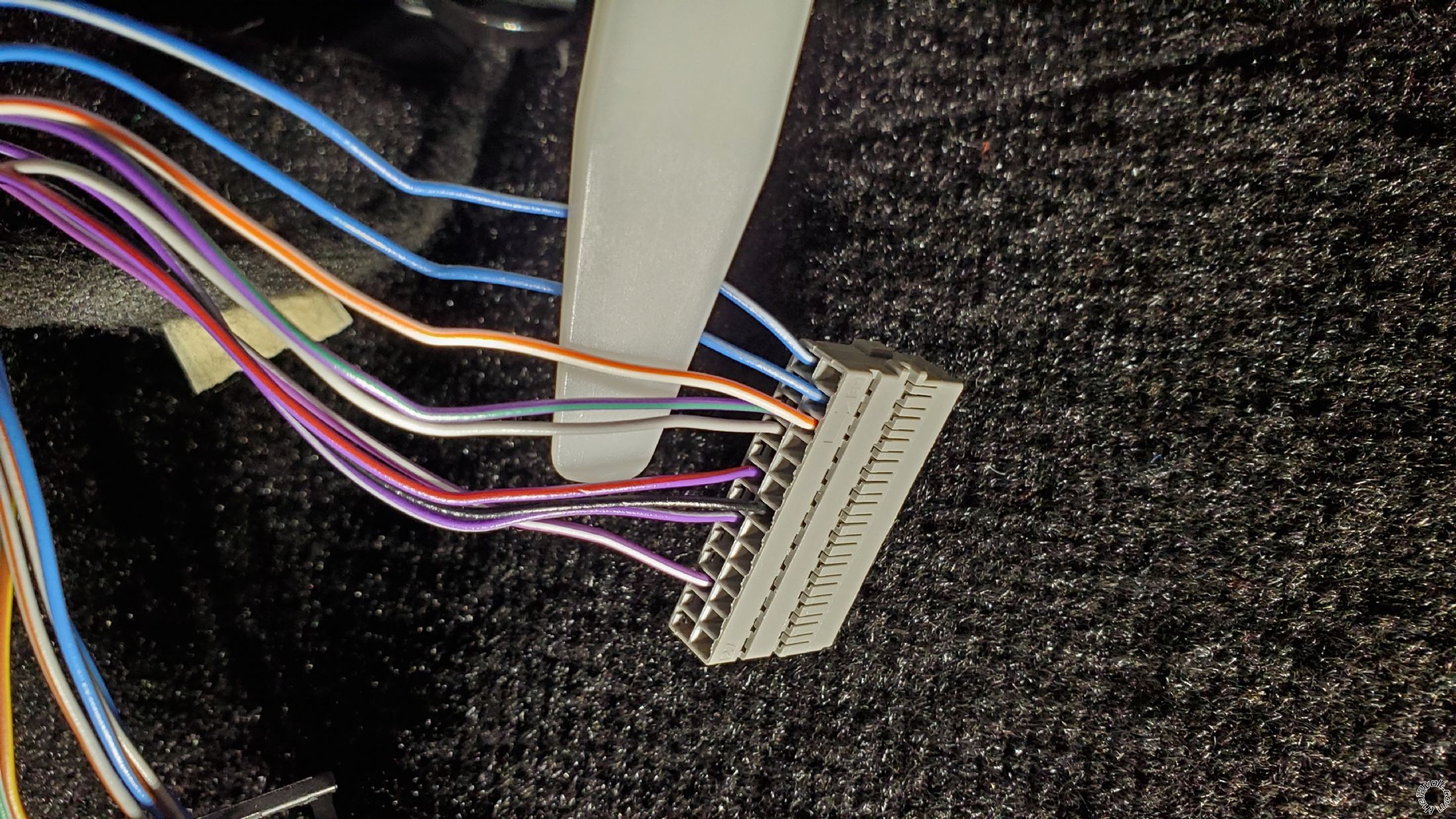

Ignition is located in connector C2280B pin 37 at the BCM in the passenger kick 2021 Ford F-150 Wiring Guide -- posted image.

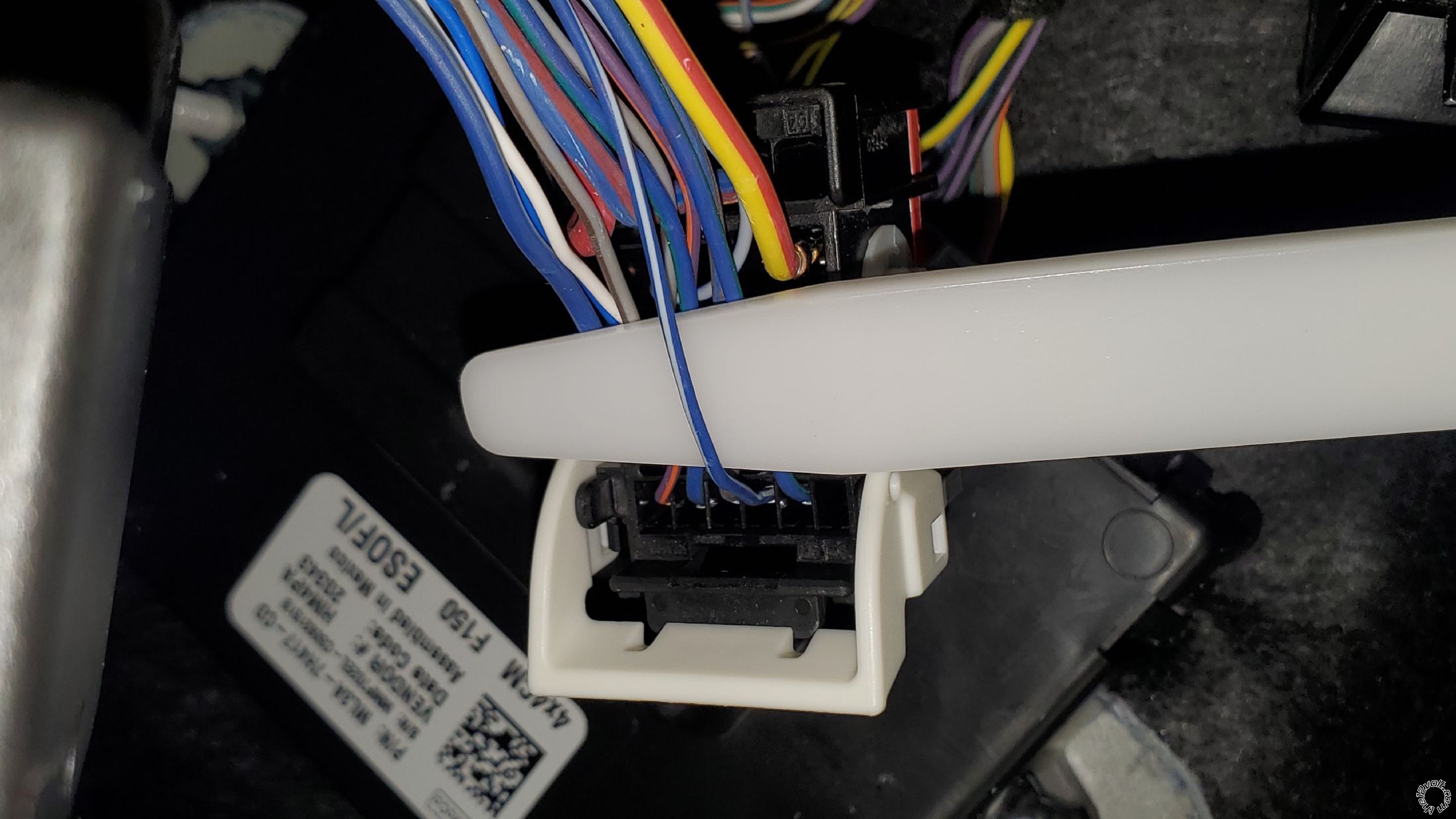

Parking Lights at the headlamp switch are LIN Bus, so you'll have to go to the parking light wires at the BCM Front Parking Lights - C2280G pin 3 2021 Ford F-150 Wiring Guide -- posted image.

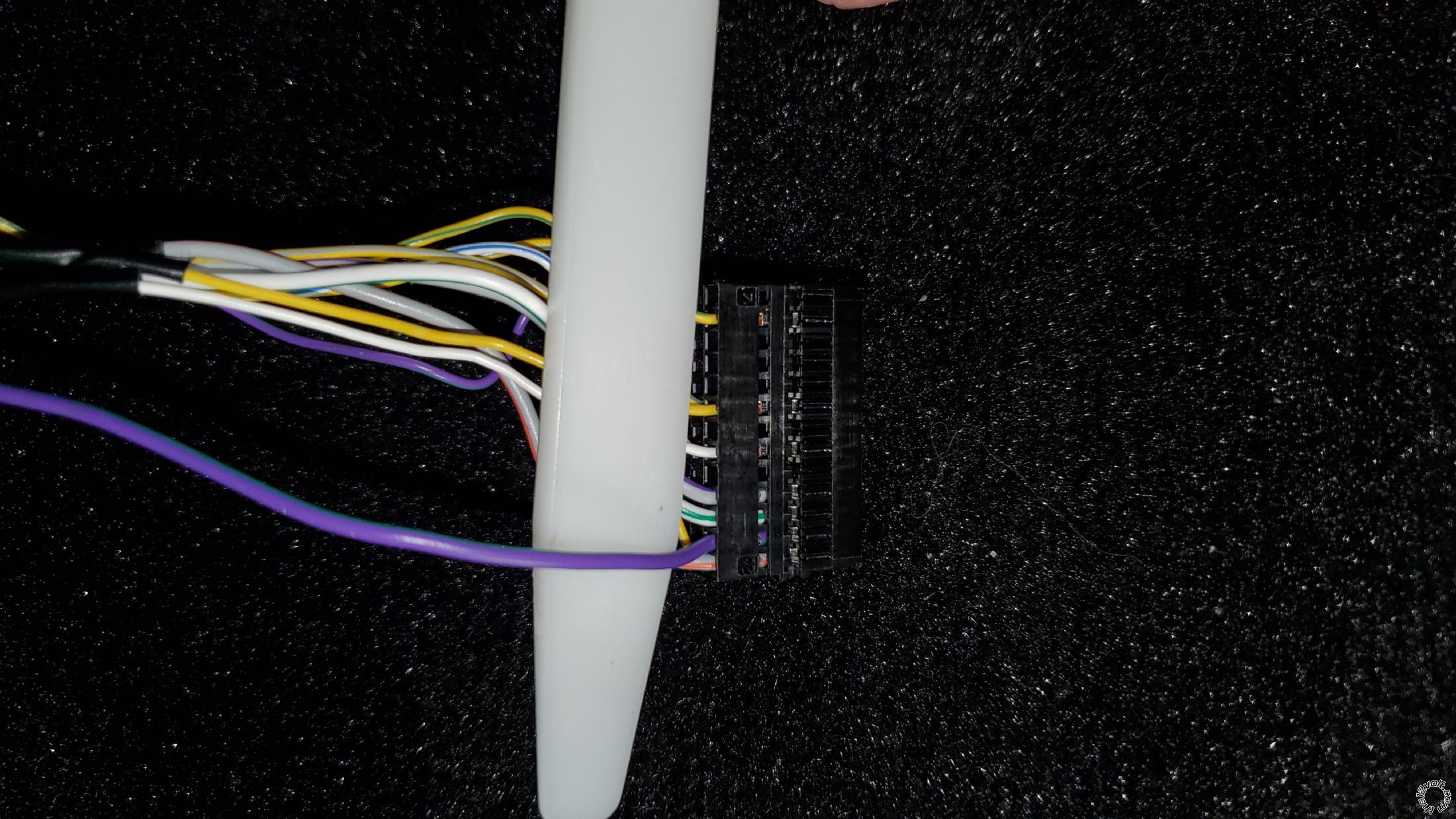

Driver Rear Parking Light - C2280E pin 25 2021 Ford F-150 Wiring Guide -- posted image.

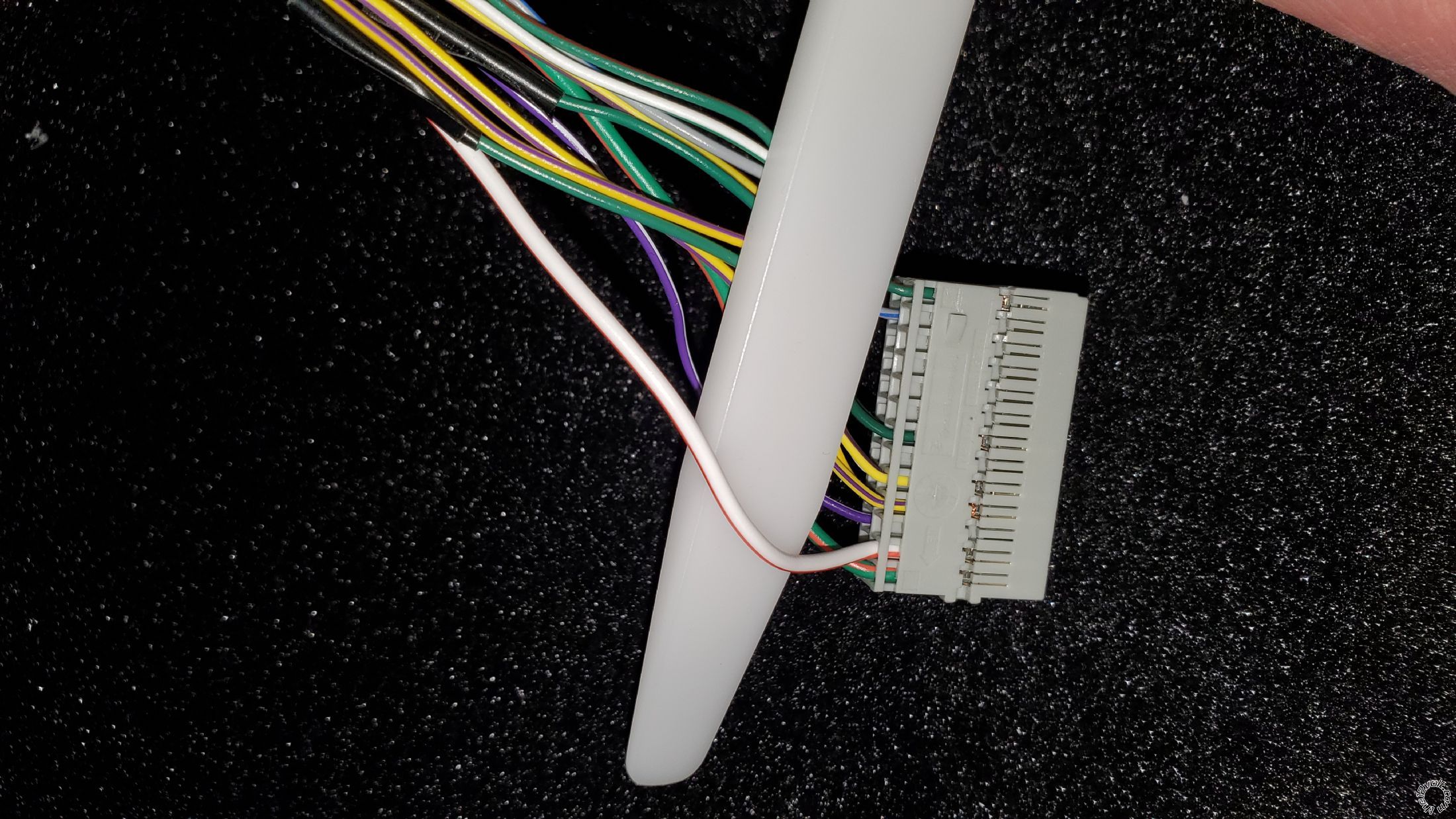

Passenger Rear Parking Light - C2280E pin 51 2021 Ford F-150 Wiring Guide -- posted image.
2021 Ford F-150 Wiring Guide -- posted image.
