2009 Ford Fiesta WS Stereo Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
deutscher89
Member - Posts: 2
Member spacespace
Joined: October 14, 2021
Posted: October 14, 2021 at 7:15 AM / IP Logged Link to Post Post Reply Quote deutscher89
Hi,
Can I get a stereo wiring diagram for a 2009 Ford Fiesta WS.

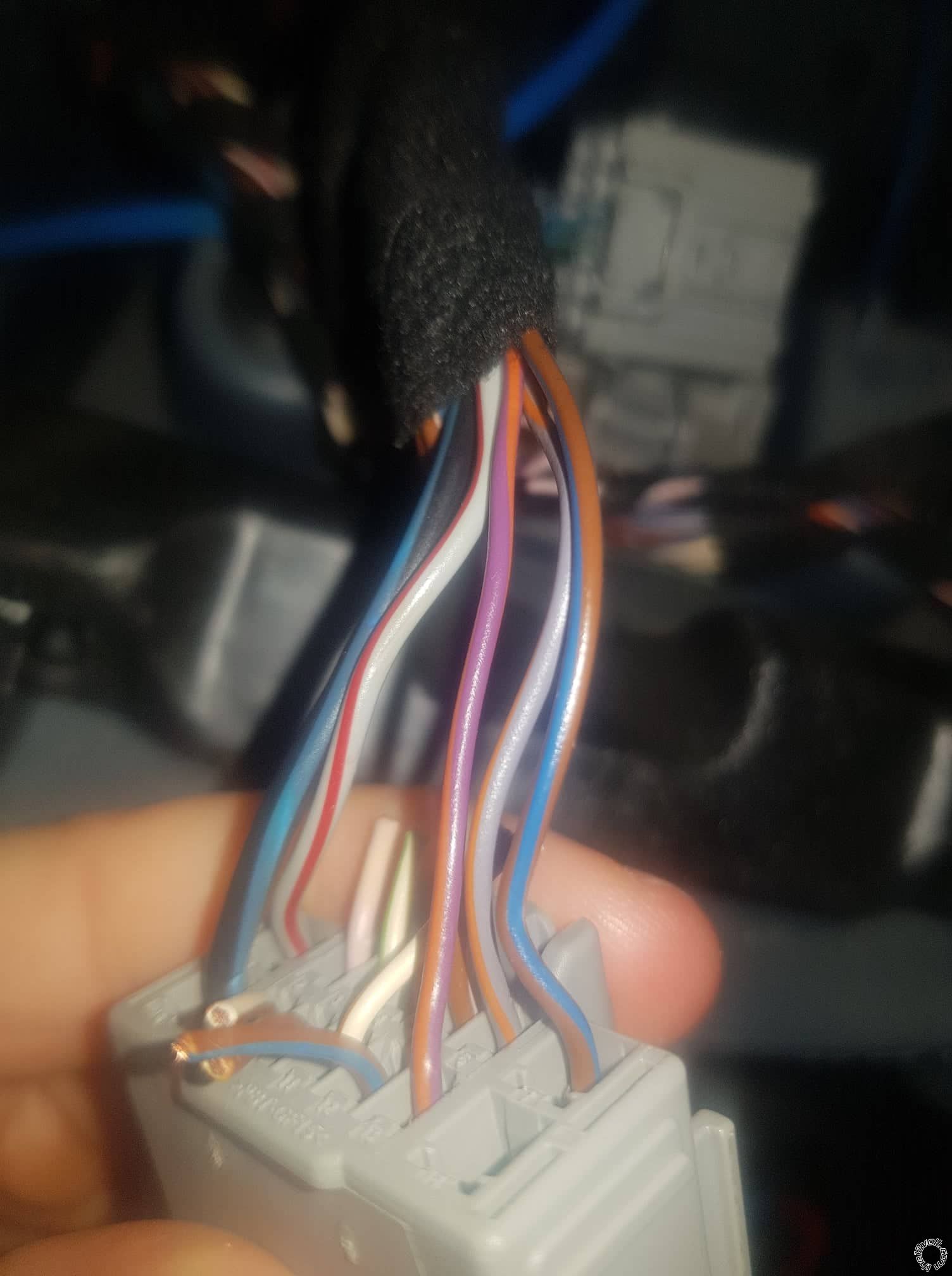

2009 Ford Fiesta WS Stereo Wiring -- posted image.

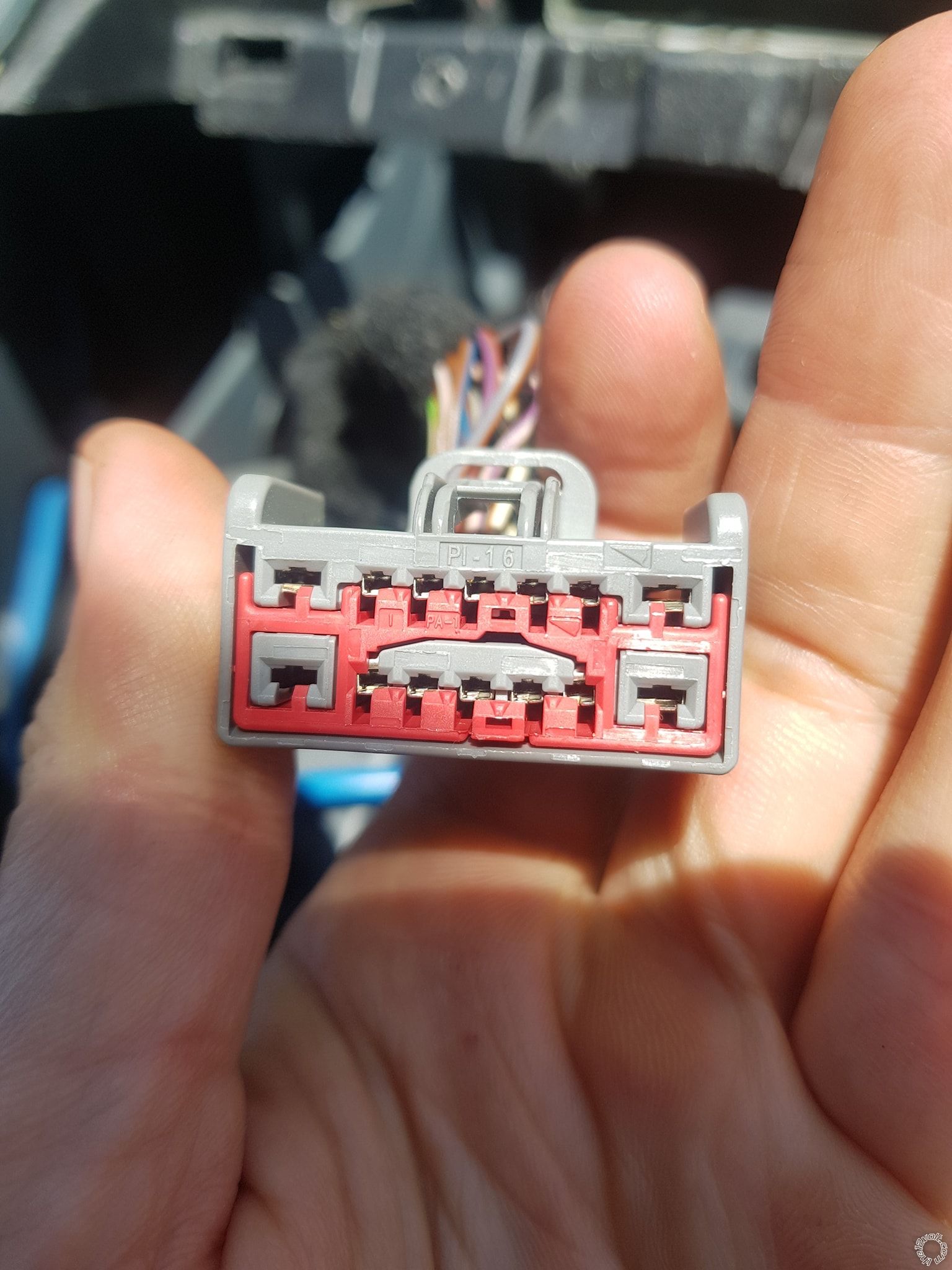

2009 Ford Fiesta WS Stereo Wiring -- posted image.
wysiwyg
Member - Posts: 17
Member spacespace
Joined: September 03, 2007
Location: Louisiana, United States
Posted: October 15, 2021 at 3:45 PM / IP Logged Link to Post Post Reply Quote wysiwyg
What are you trying to do?
It was 2011 before they reintroduced this vehicle here in the states. The plug for the 2011 is not the same as yours.
deutscher89
Member - Posts: 2
Member spacespace
Joined: October 14, 2021
Posted: October 19, 2021 at 8:40 AM / IP Logged Link to Post Post Reply Quote deutscher89
I'm replacing the old stereo headunit with an aftermarket one. I have managed to separate the speaker wires from the rest. Pretty sure the black/blue is the ground and the white/red is the constant power. But not sure about the rest yet. Will buy a test light when I get back to home and could narrow it down. The car doesn't have power antenna. So I'm guessing illumination and dimmer? but a diagram would help.
2009 Ford Fiesta WS Stereo Wiring -- posted image.
