Wiring Confirmation for 5706V Multiple Sensors


Post ReplyPost New Topic
< Prev Topic Next Topic >
gtitonta
Member - Posts: 18
Member spacespace
Joined: November 28, 2021
Location: Illinois, United States
Posted: December 28, 2021 at 10:19 AM / IP Logged Link to Post Post Reply Quote gtitonta
Hello,
I am planning to install multiple sensors with 5706V for my car.
I do not want to draw battery by sensors so I just want to use relay which send power to the sensors only when armed.
I made diagram for this project. Can you someone give me advice? Thanks. appreciate it.

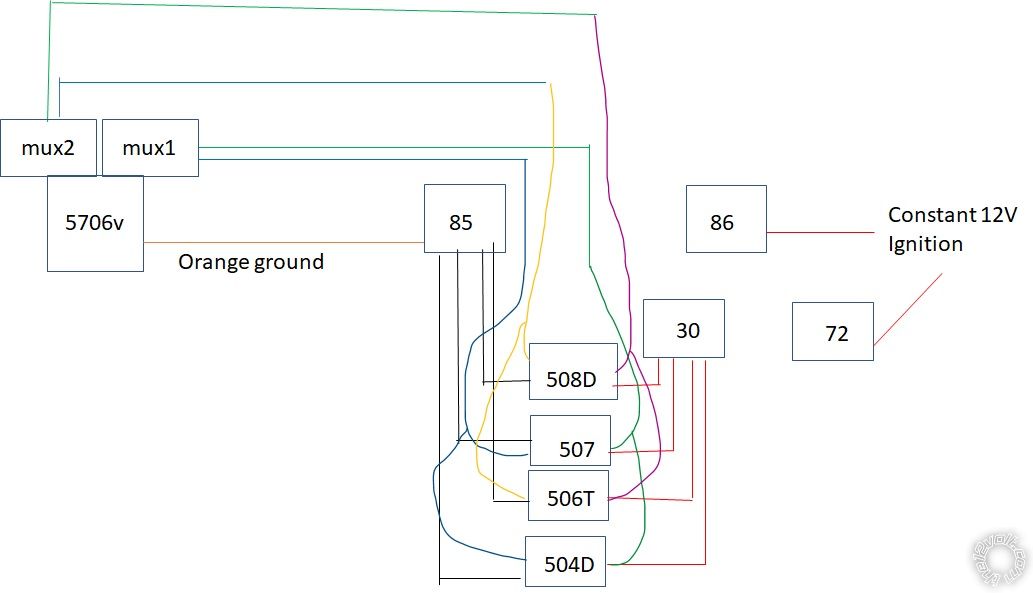

Wiring Confirmation for 5706V Multiple Sensors -- posted image.
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: December 28, 2021 at 8:01 PM / IP Logged Link to Post Post Reply Quote i am an idiot
The relay is going to pull more current than the sensors.
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
gtitonta
Member - Posts: 18
Member spacespace
Joined: November 28, 2021
Location: Illinois, United States
Posted: December 29, 2021 at 3:49 AM / IP Logged Link to Post Post Reply Quote gtitonta
Thanks for response. That is ironic. Well, I should use mux port then. thanks. appreciate it
