Rock Lights To Dome Lights Using Relay, Relay Buzzes While Dimming


Post ReplyPost New Topic
< Prev Topic Next Topic >
bilrob
Member - Posts: 3
Member spacespace
Joined: May 14, 2022
Posted: May 14, 2022 at 2:34 PM / IP Logged Link to Post Post Reply Quote bilrob

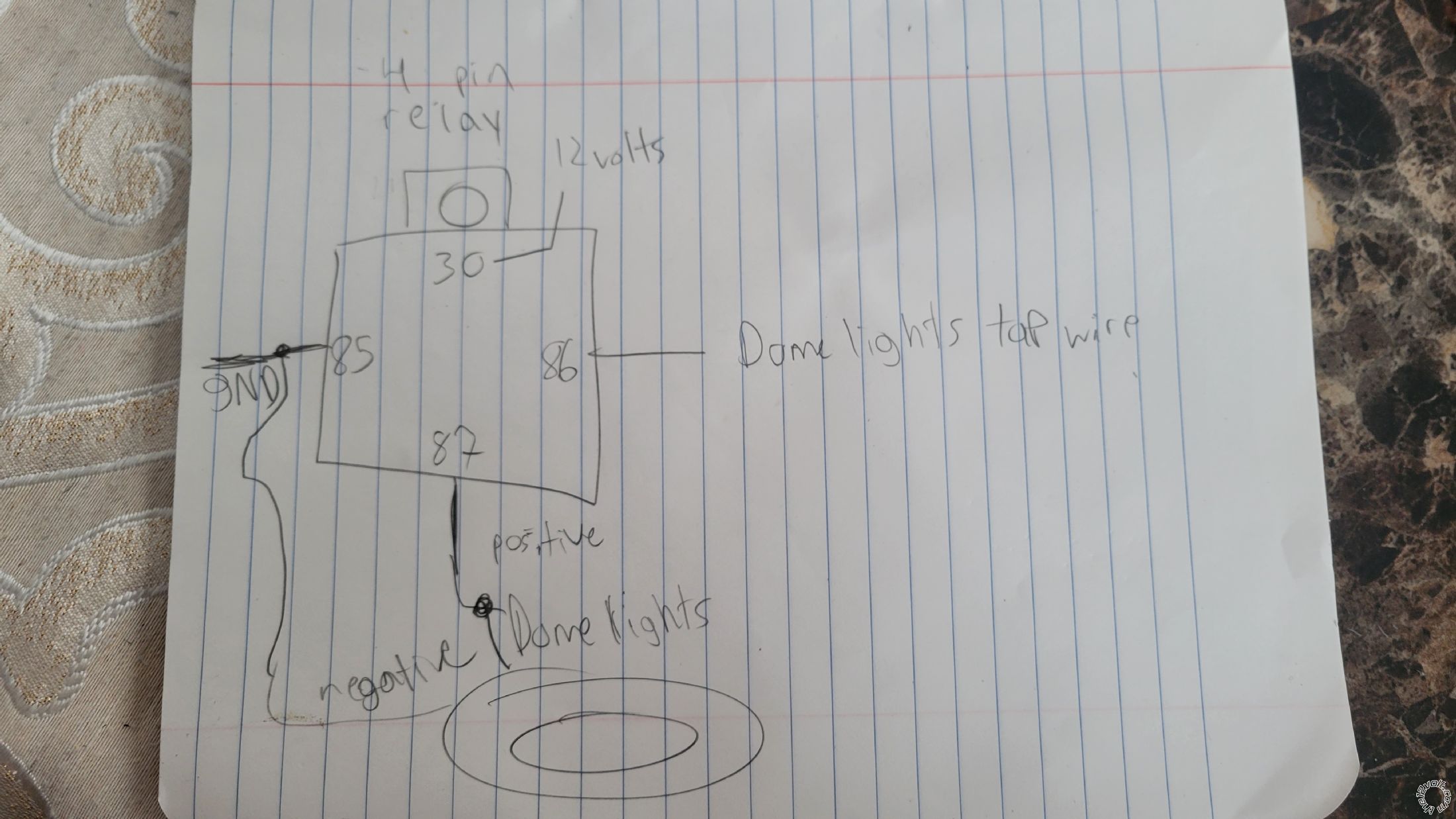

Hi I have my rock lights connected to dome lights with a 4 pin relay. The problem is the relay chatters/buzzes when the lights are dimming. Any solution to this or any other wiring solutions? Thanks. 12 volt battery to pin 30, ground to 85 ,car dome light to 86, and rock lights to pin 87. I have attached a drawing/diagram of my connections.
Rock Lights To Dome Lights Using Relay, Relay Buzzes While Dimming -- posted image.
Abilrob
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: May 14, 2022 at 7:52 PM / IP Logged Link to Post Post Reply Quote geepherder
Why not try a solid state relay?
My ex once told me I have a perfect face for radio.
bilrob
Member - Posts: 3
Member spacespace
Joined: May 14, 2022
Posted: May 14, 2022 at 8:32 PM / IP Logged Link to Post Post Reply Quote bilrob
Okay thank you. how does a ssr work and how would I connect the wires like my diagram? Does it have different numbers for terminals? Do I need any diodes in my connections?
Abilrob
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: May 14, 2022 at 9:04 PM / IP Logged Link to Post Post Reply Quote geepherder
Typically, the input terminals are similar to the coil on a mechanical relay but are terminals 3 and 4. Just make sure it's a DC-DC SSR that meets your voltage and current requirements.
Check Amazon and eBay. You shouldn't need diodes and this may be the simplest solution to do what you want. A transistor could possibly work as long as it meets the power requirements, but you'd need to do some math and find proper resistors as well.
My ex once told me I have a perfect face for radio.
bilrob
Member - Posts: 3
Member spacespace
Joined: May 14, 2022
Posted: May 15, 2022 at 6:52 AM / IP Logged Link to Post Post Reply Quote bilrob

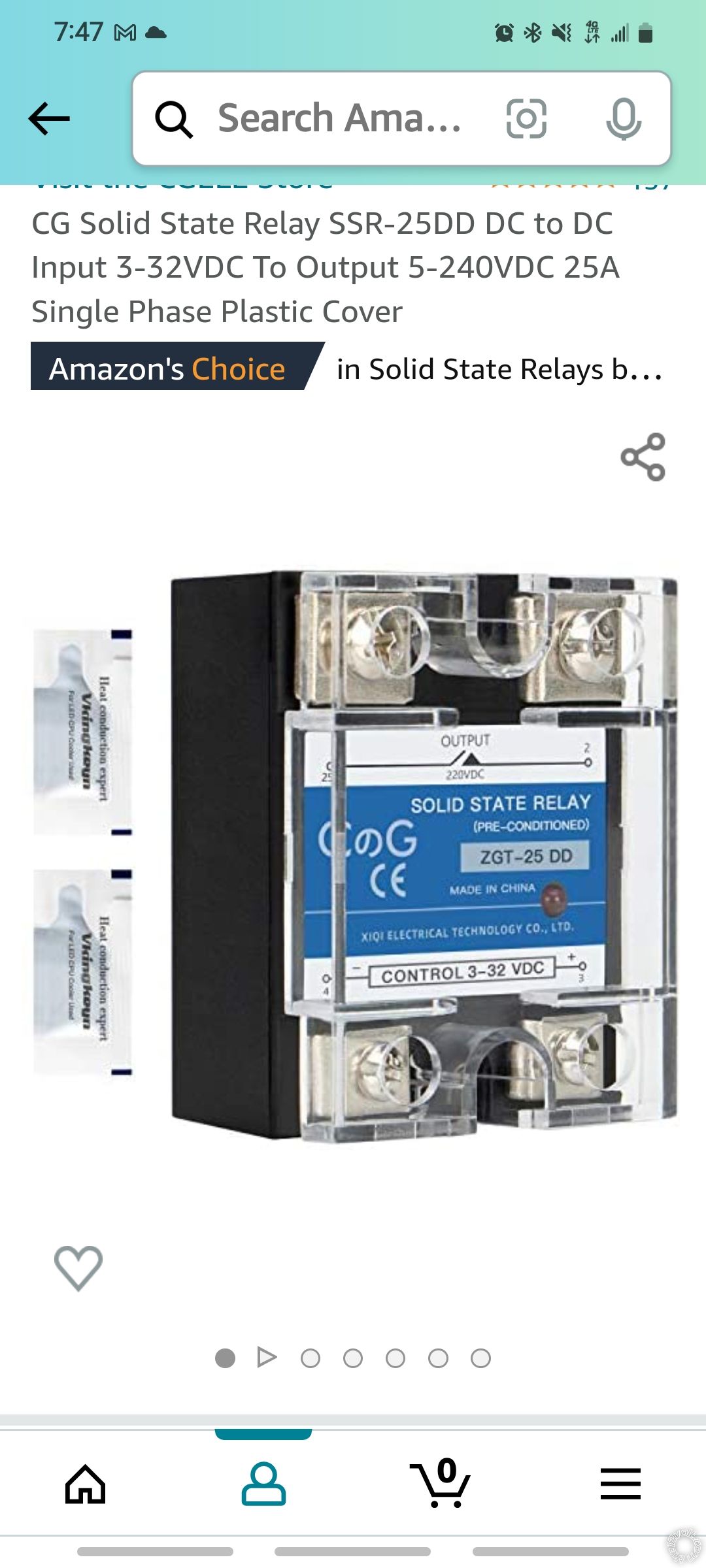

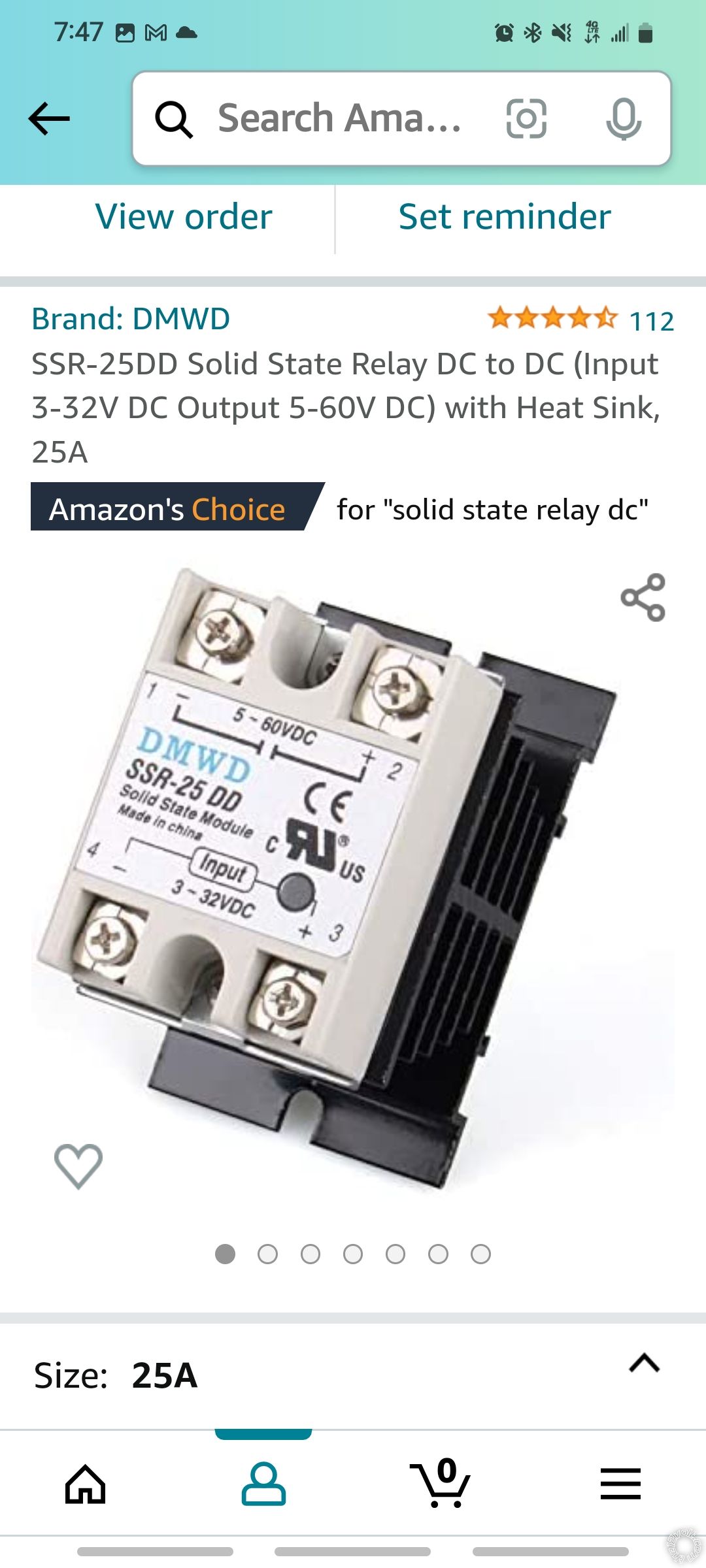

Hi I bought two ssr's from Amazon. Ill let you know how it goes after install this week.
Rock Lights To Dome Lights Using Relay, Relay Buzzes While Dimming -- posted image.
Rock Lights To Dome Lights Using Relay, Relay Buzzes While Dimming -- posted image.
Abilrob
