Hello everyone, I'm from Belgium. This is my first post.
I would like to know what the colored wires of the black and gray pins are for installing a new car radio in a 2018 Opel Mokka X which is the European version of the Buick Encore.
The original car radio is a Intellilink NAVI 900 with HMI NG 2.5.

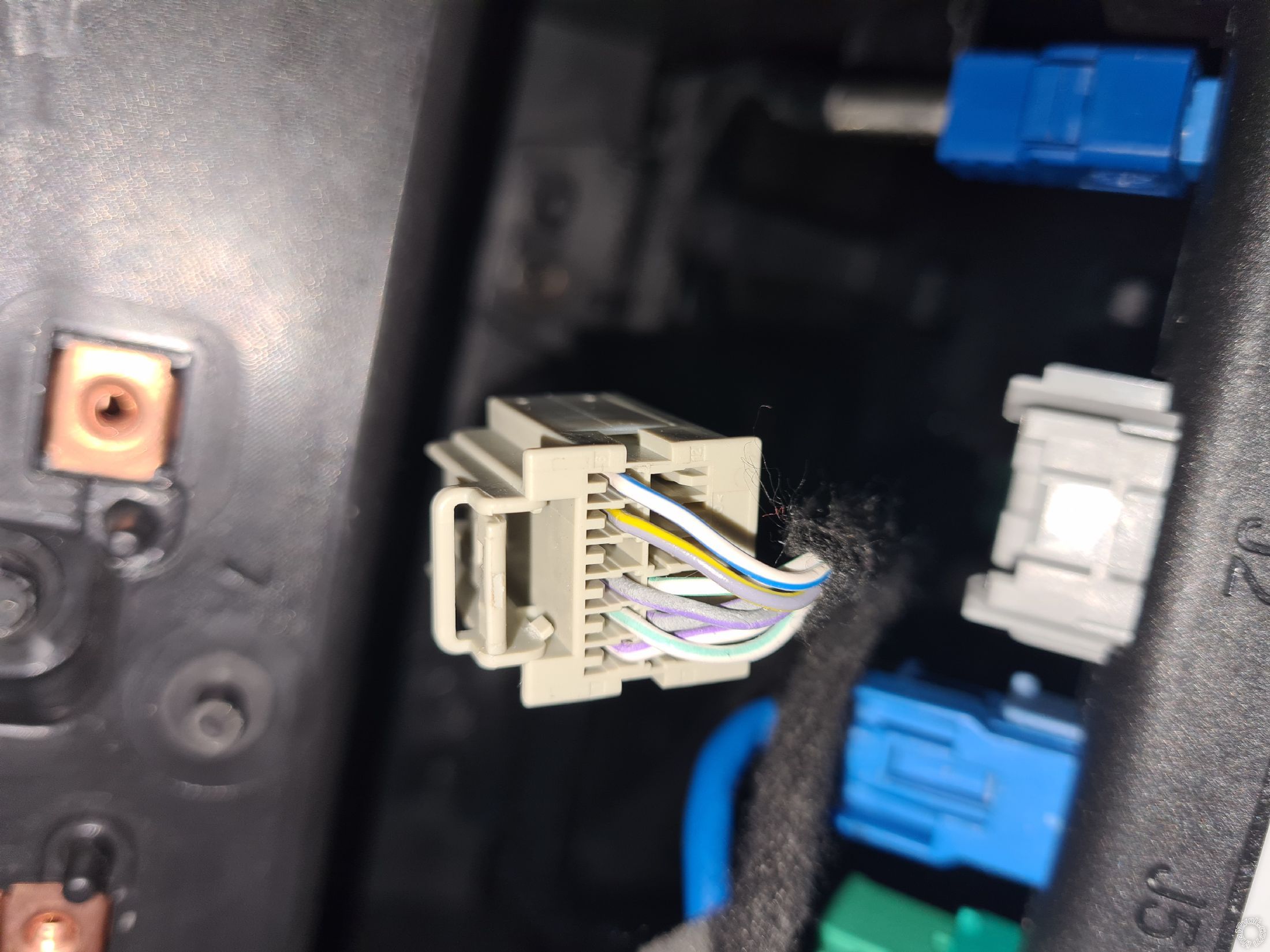

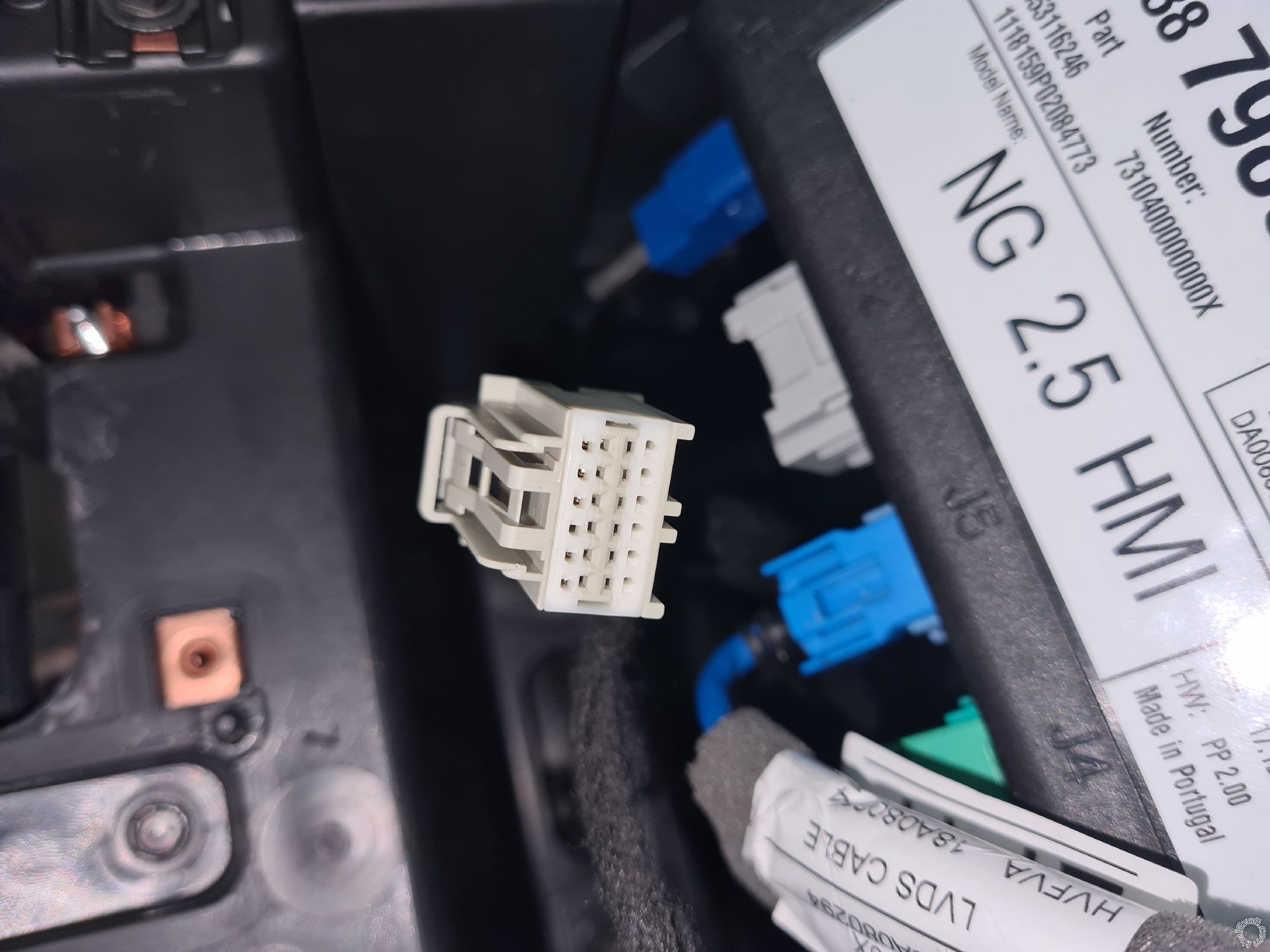

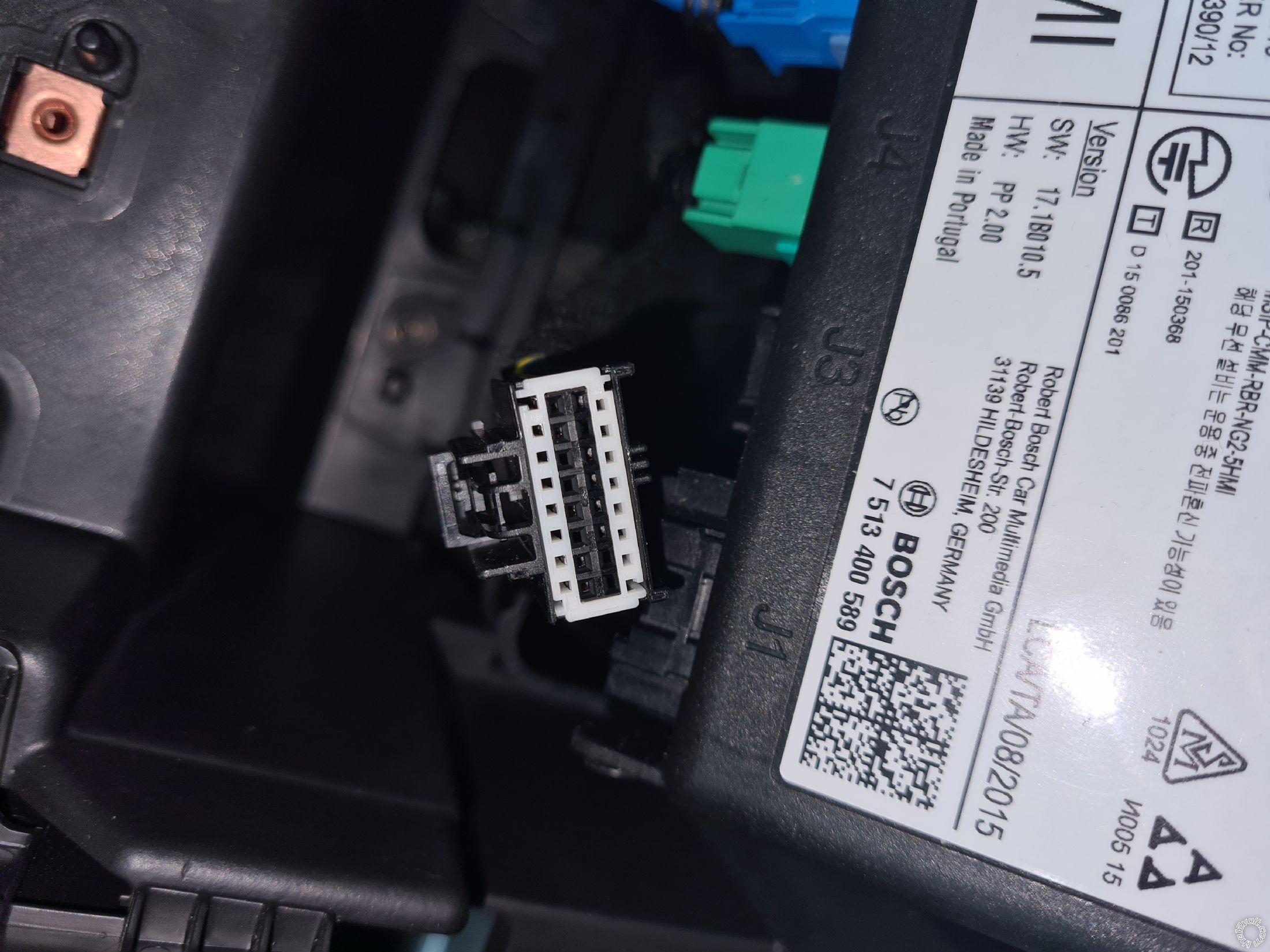

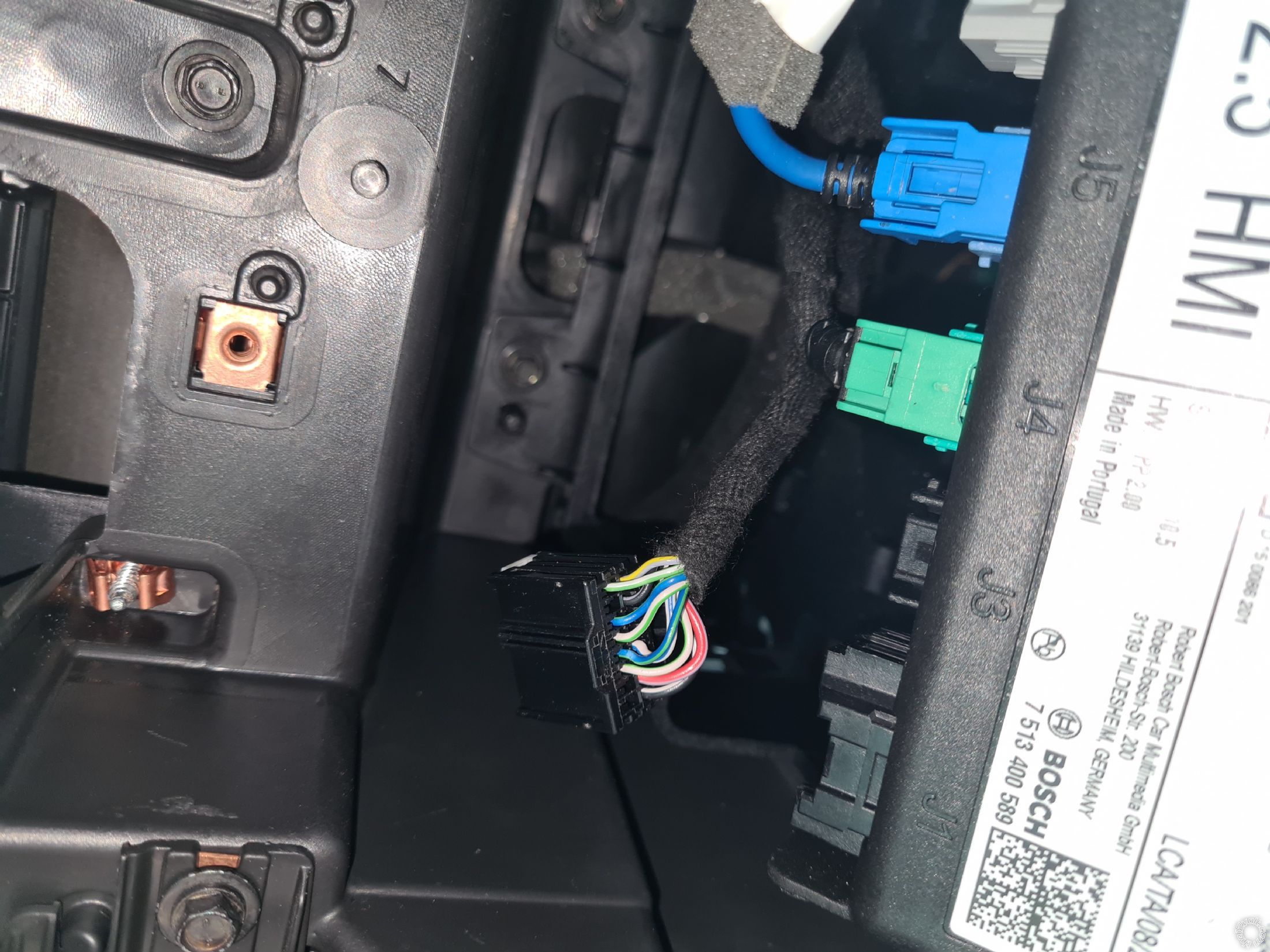

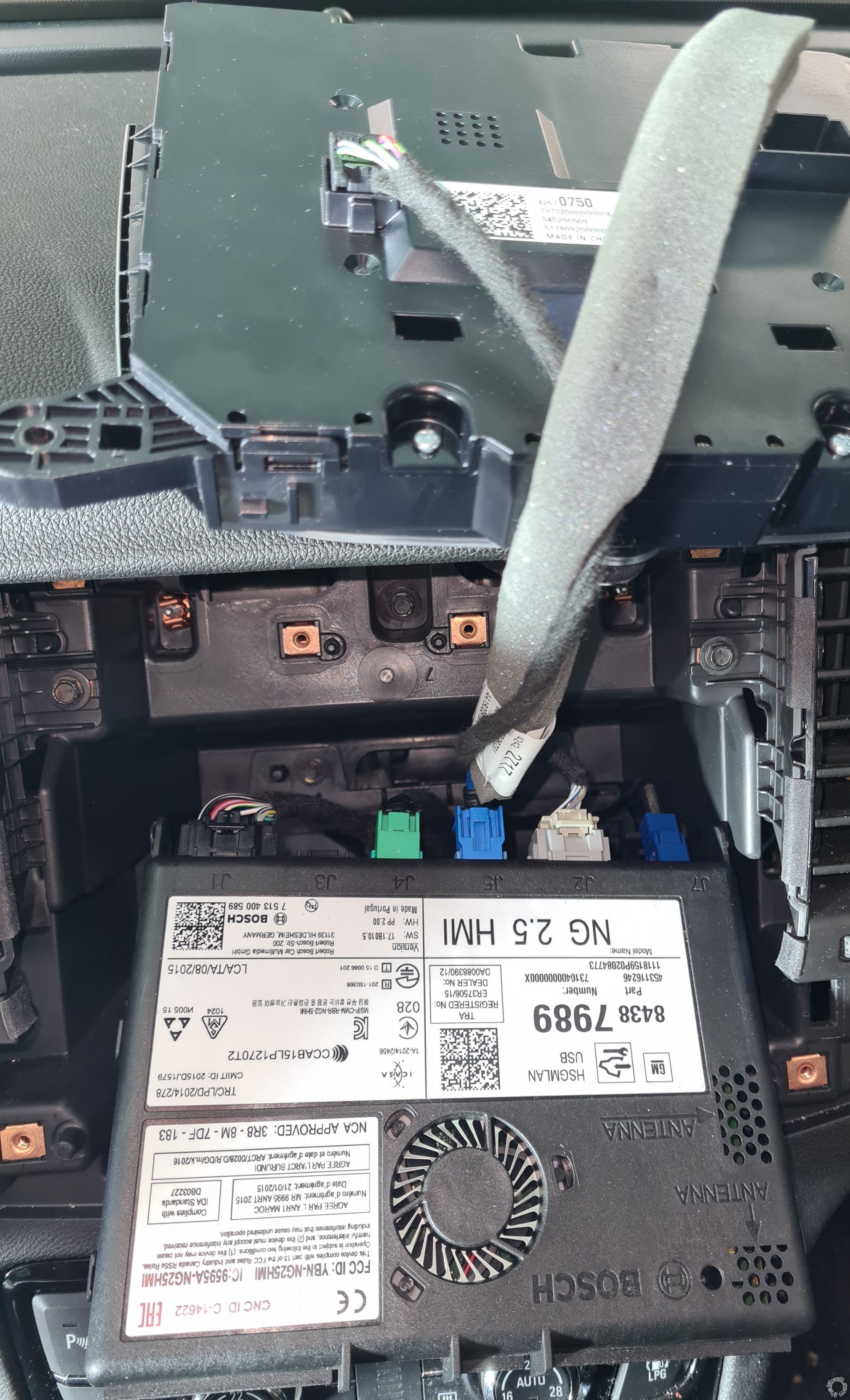

I am attaching photos of the pins. Thank you.
Hugo
2018 Opel Mokka X Stereo Wiring -- posted image.2018 Opel Mokka X Stereo Wiring -- posted image.2018 Opel Mokka X Stereo Wiring -- posted image.2018 Opel Mokka X Stereo Wiring -- posted image.2018 Opel Mokka X Stereo Wiring -- posted image.
i am an idiot
Platinum - Posts: 13,597
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: May 29, 2022 at 6:34 PM / IP Logged Link to Post Post Reply Quote i am an idiot
This is what Directechs has for the Encore.
Radio 12V      Red/Gray      +      Radio, gray 20 pin plug, pin 1
Radio Ground      Black/White      -      Radio, gray 20 pin plug, pin 11
Radio Ignition      (Low Speed GMLAN)
Factory Amp Turn-on      (MOST Serial Data)
Left Front Speaker (+/-)      Blue - Brown/Blue      +,-      Amplifier near rear wheel well, green 16 pin plug, pins 7 - 15
Right Front Speaker (+/-)      Yellow - Yellow/Black      +,-      Amplifier near rear wheel well, green 16 pin plug, pins 6 - 14
Left Rear Speaker (+/-)      Green - Green/Black      +,-      Amplifier near rear wheel well, green 16 pin plug, pins 5 - 13
Right Rear Speaker (+/-)      White - Blue/Black      +,-      Amplifier near rear wheel well, green 16 pin plug, pins 4 - 12
Subwoofer (+/-)      Green/Black - Blue/Gray      +,-      Amplifier near rear wheel well, gray 8 pin plug, pins 7 - 3
Aux. Audio Input Left (+/-)      (USB cable)
Aux. Audio Input Right (+/-)      (USB cable)
Rearview Camera Video      Gray/Yellow - White/Blue      +,-      IntelliLink Module in center of dash, 20 pin plug, pins 5 - 15
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
hugo296
Member - Posts: 2
Member spacespace
Joined: May 29, 2022
Location: Belgique
Posted: May 30, 2022 at 10:03 AM / IP Logged Link to Post Post Reply Quote hugo296
Hello,
Thanks for the help, it really helped me.
Hugo
