2001 Toyota Camry Factory Alarm Removal, Avital 5305L Install


Post ReplyPost New Topic
< Prev Topic Next Topic >
esart
Member - Posts: 11
Member spacespace
Joined: July 30, 2022
Location: Washington, United States
Posted: August 09, 2022 at 10:38 PM / IP Logged Link to Post Post Reply Quote esart
I thought the same about the parking lights ouput, but they flash just fine for some reason.
Thanks for the suggestion.

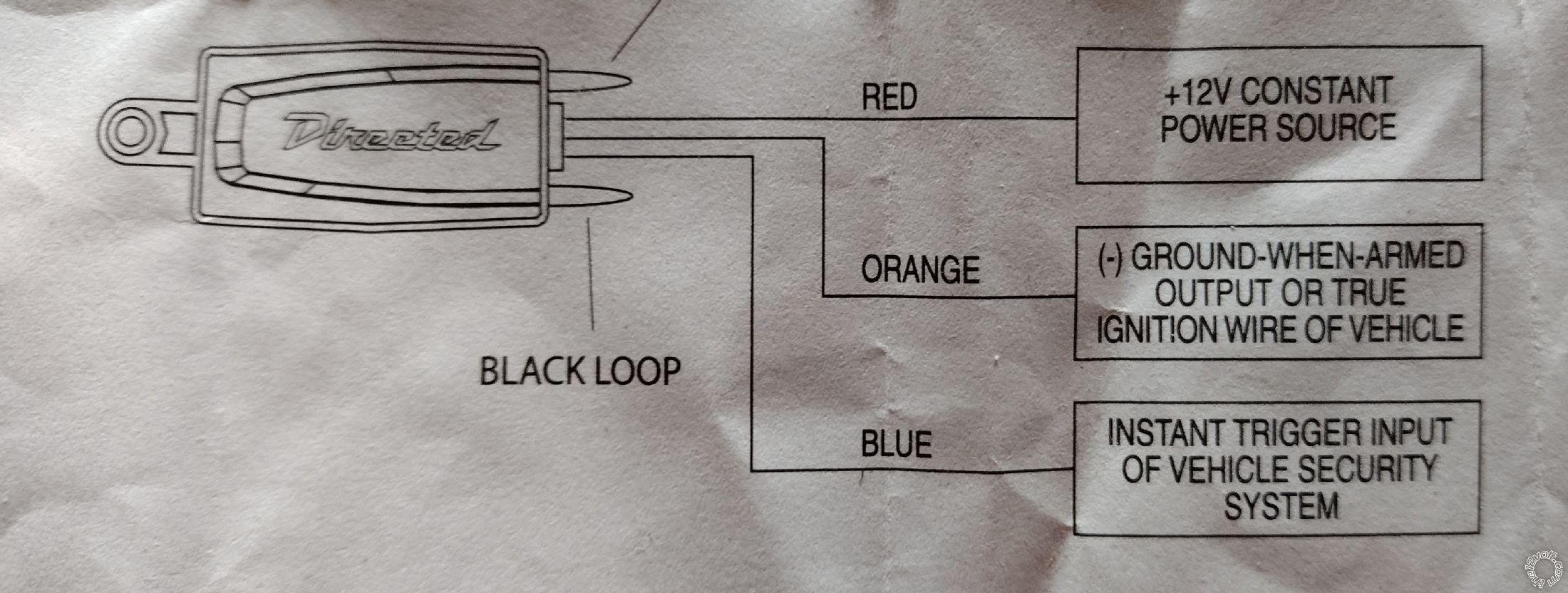

Tomorrow I'll wire in the tilt sensor to the GWA output and reattempt the horn connection.
New to alarm installation.
2001 Camry
1999 Legacy
1992 Civic
esart
Member - Posts: 11
Member spacespace
Joined: July 30, 2022
Location: Washington, United States
Posted: August 13, 2022 at 1:14 AM / IP Logged Link to Post Post Reply Quote esart
Hey guys.
When I was getting out of the car, I accidentally armed it before my passenger shut their door, causing the alarm to trigger.
I disarmed it, rearmed it, then went on my way.
Later, I came back to the car and disarmed it to get inside, but the doors wouldn't unlock though.
Anyone know what would cause that?
At least the key let me in.
New to alarm installation.
2001 Camry
1999 Legacy
1992 Civic
esart
Member - Posts: 11
Member spacespace
Joined: July 30, 2022
Location: Washington, United States
Posted: October 30, 2022 at 9:41 PM / IP Logged Link to Post Post Reply Quote esart

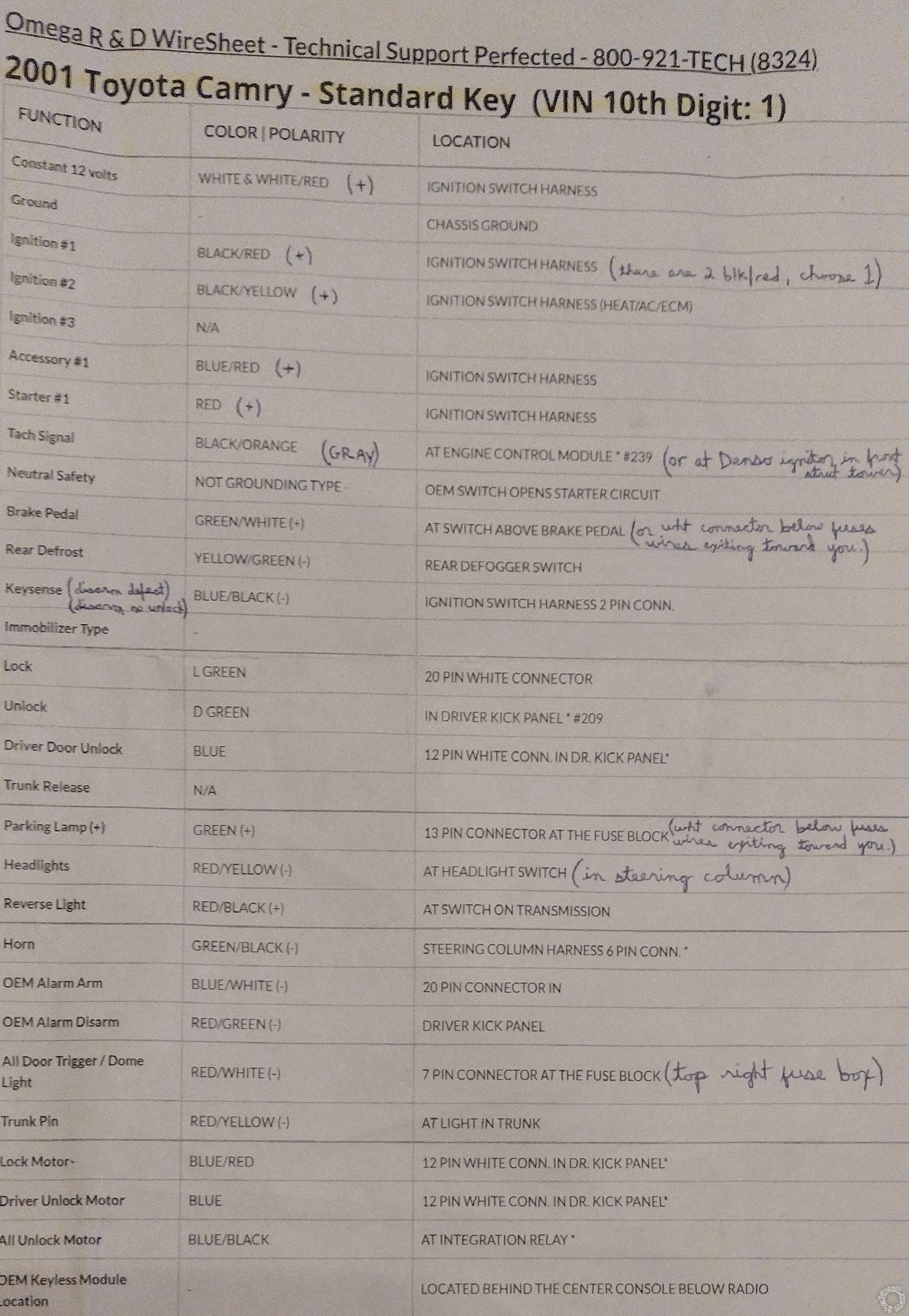

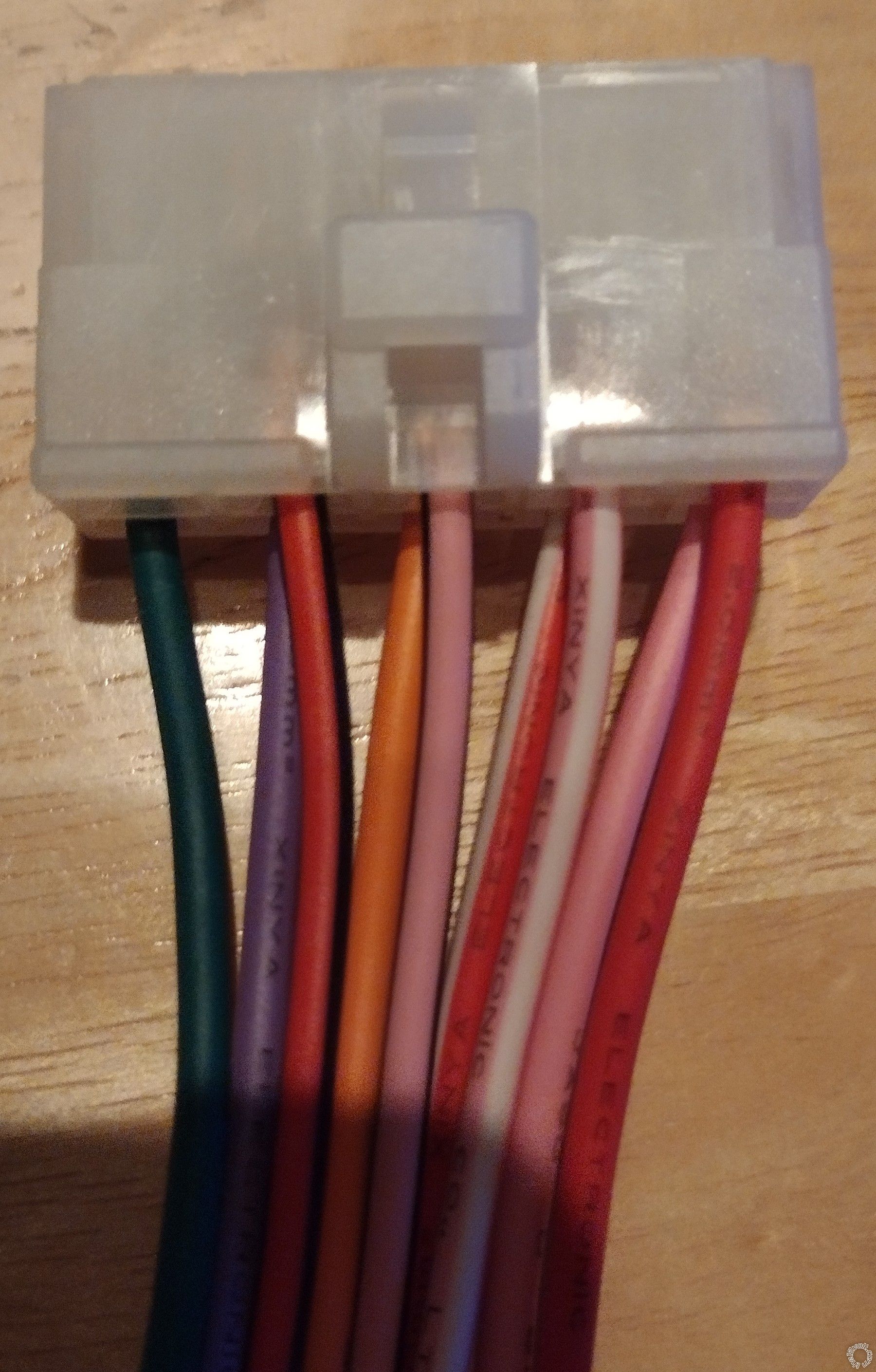

Can someone confirm that I have this harness properly wired:

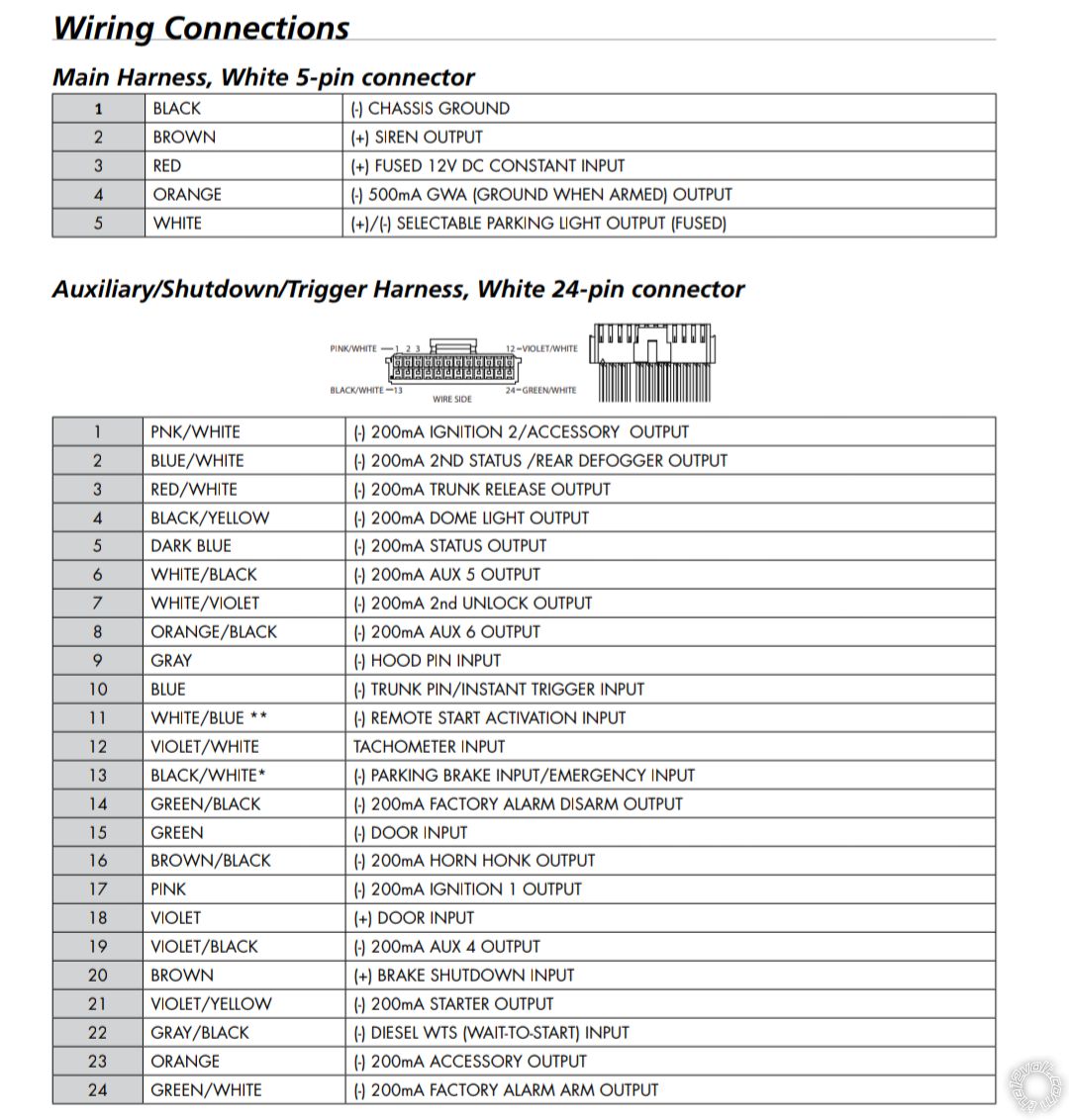

2001 Toyota Camry Factory Alarm Removal, Avital 5305L Install - Page 2 - Last Post -- posted image.

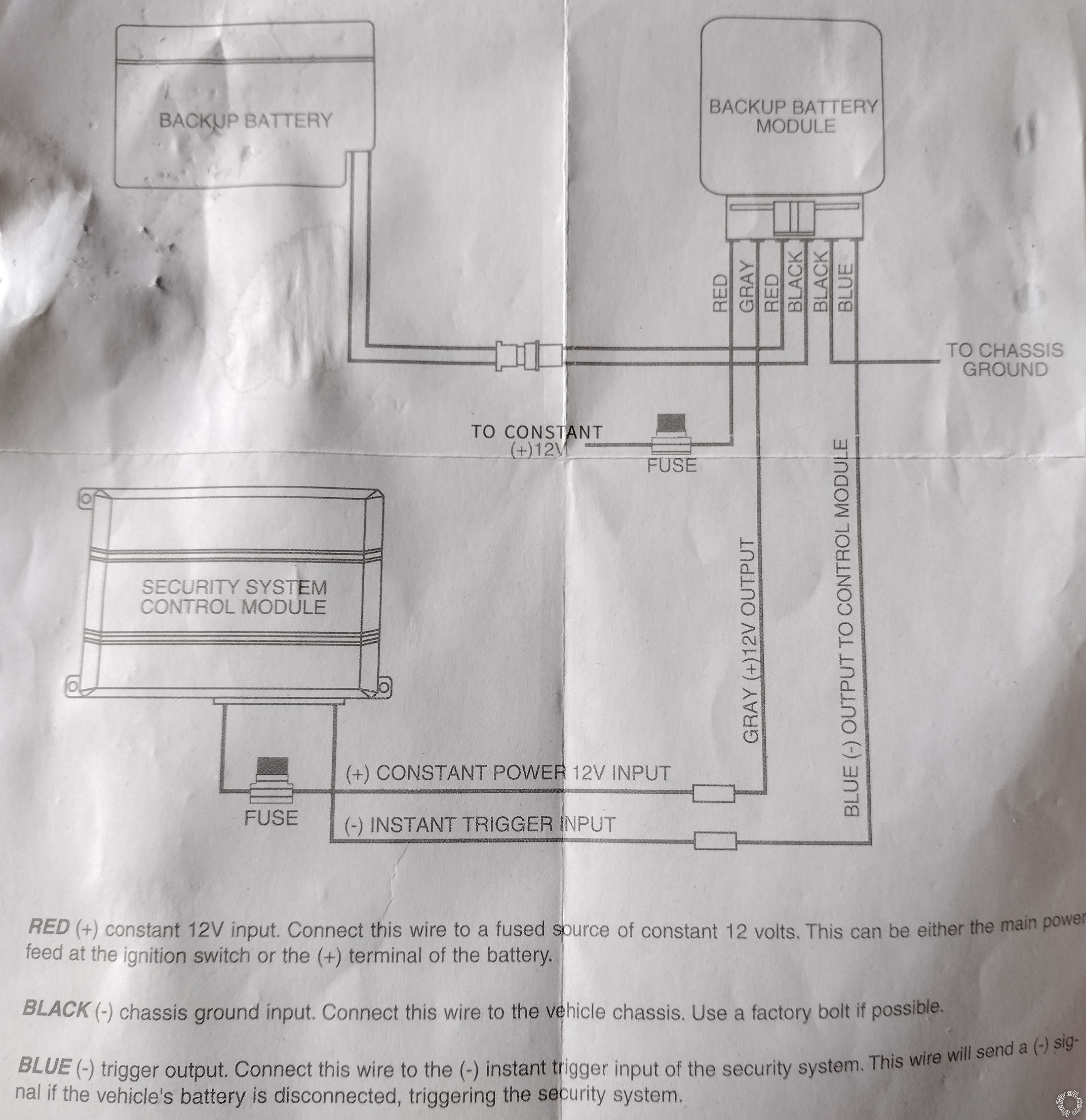

2001 Toyota Camry Factory Alarm Removal, Avital 5305L Install - Page 2 - Last Post -- posted image.
2001 Toyota Camry Factory Alarm Removal, Avital 5305L Install - Page 2 - Last Post -- posted image.
2001 Toyota Camry Factory Alarm Removal, Avital 5305L Install - Page 2 - Last Post -- posted image.
2 red/black to ignition #1 black/red
3 pink/black to not needed?
4 pink/white to also not needed?
5 red to constant 12v white/red
6 green to starter #1 key side of cut red, and relay pin 30 red
7 violet to starter #1 starter side of cut red, and relay pin 87a white, and relay pin 86 orange
8 orange to accessory #1 blue/red
9 red/white to constant 12v white/red
10 pink to ignition #1 black/red
New to alarm installation.
2001 Camry
1999 Legacy
1992 Civic
kreg357
Platinum - Posts: 7,631
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: October 31, 2022 at 9:48 AM / IP Logged Link to Post Post Reply Quote kreg357

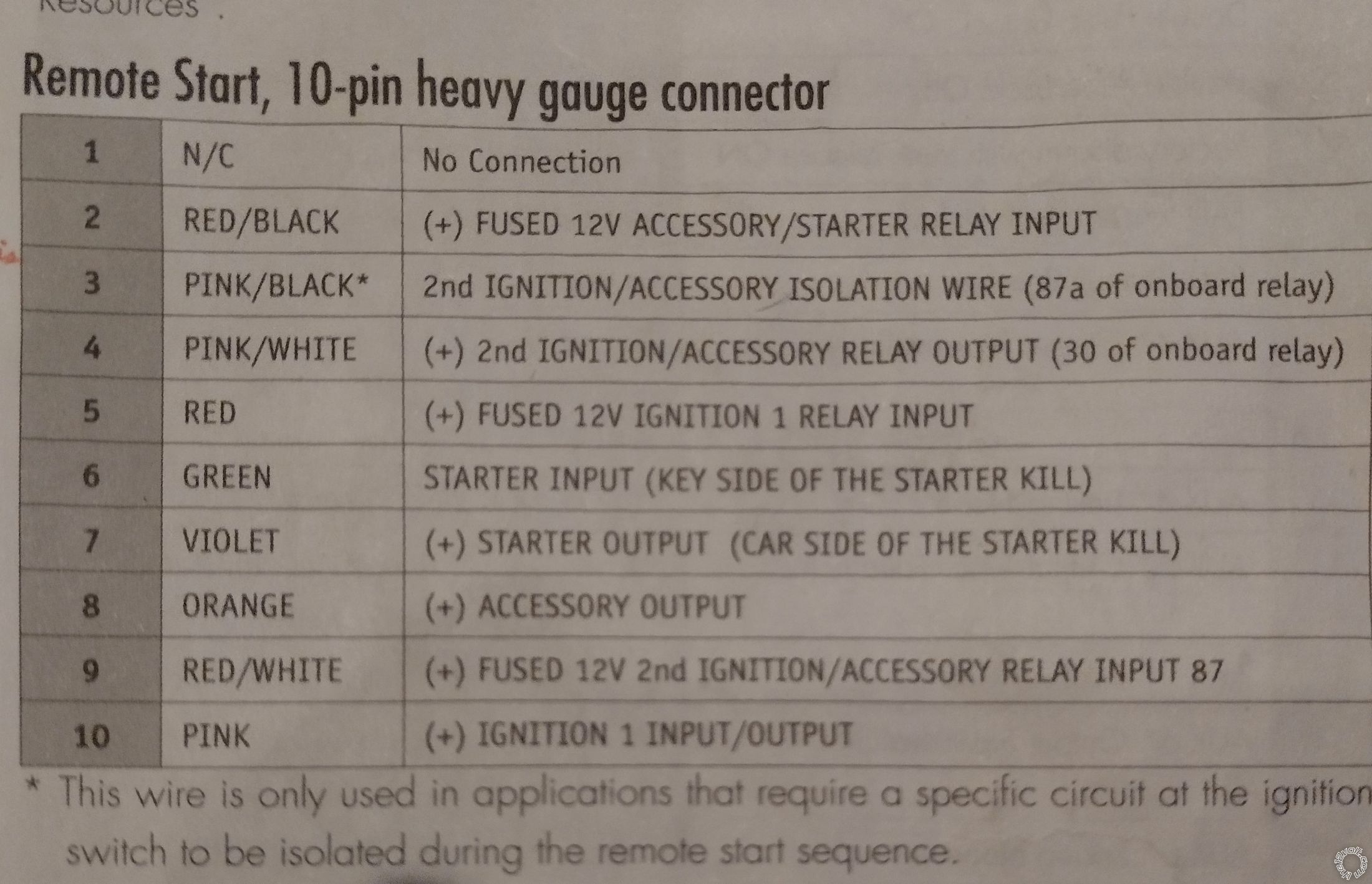

Here is the wiring :
Remote Start, White 10-pin heavy gauge connector
1 No Connection
2 RED/BLACK (+) FUSED 12V ACC/STARTER INPUT          White
3 PINK/BLACK* (+) IGNITION 2 pin 87a   not used
4 PINK/WHITE (+) IGNITION 2 / ACCESSORY2     Black/Yellow
5 RED (+) FUSED 12V IGNITION 1 INPUT              White/Red
6 GREEN (+) STARTER INPUT (KEY SIDE)            Red key side of cut wire
7 VIOLET (+) STARTER OUTPUT (CAR SIDE)       Red    car side of cut wire
8 ORANGE (+) ACCESSORY OUTPUT            Blue/Red
9 RED/WHITE (+) FUSED 12V IGNITION 2              White
10 PINK (+) IGNITION 1 INPUT/OUTPUT Black/Red

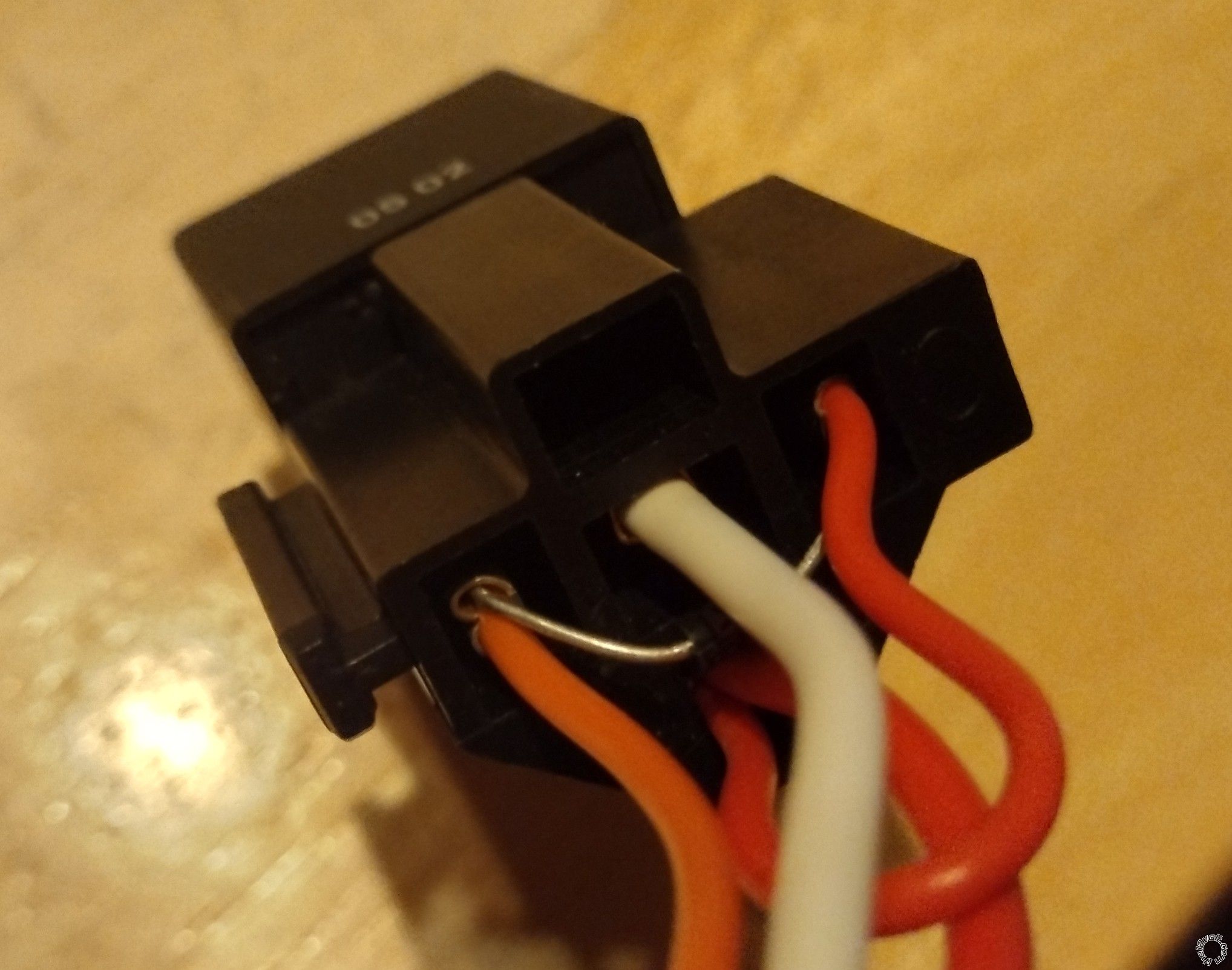

Not positive what you are doing with the external relay but if it's for Starter Kill and Anti-Grind, the 5305L has that built in and that is why you have the Violet and Green wires.
On the Viper controller any wire with a fuse is a +12V input wire and all will be used. This would include the Red wire w/fuse on the 5 Pin harness. You can connect it to the Camry's White/Red wire, too. That way the Vipers load will be split between the two +12V vehicle wires.
Soldering is fun!
esart
Member - Posts: 11
Member spacespace
Joined: July 30, 2022
Location: Washington, United States
Posted: October 31, 2022 at 10:13 AM / IP Logged Link to Post Post Reply Quote esart
Hey, thanks for revising that for me. I wonder what I'd have created had I wired it that way.
I assumed the kill switch needed a relay and didn't consider it having one built in. I think seeing the relay numbers for its pins in the diagram reinforced that idea.
New to alarm installation.
2001 Camry
1999 Legacy
1992 Civic
