2022 Hisun Tactic 550 ATV, Remote Start Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
dylan skora
Member - Posts: 5
Member spacespace
Joined: August 23, 2022
Location: Illinois, United States
Posted: August 23, 2022 at 2:18 PM / IP Logged Link to Post Post Reply Quote dylan skora
Looking for a 2022 Hisun Tactic 550 ATV wiring diagram. I am wanting to install a alarm/remote start and cant find a wiring diagram for it. Any help?
Dylan C SKora
i am an idiot
Platinum - Posts: 13,609
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: August 23, 2022 at 7:39 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Do you have a meter?
How many wires are there on the harness at the ignition switch?
Is the start button remotely mounted or is it on the ignition switch?
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
dylan skora
Member - Posts: 5
Member spacespace
Joined: August 23, 2022
Location: Illinois, United States
Posted: August 23, 2022 at 9:12 PM / IP Logged Link to Post Post Reply Quote dylan skora
I do have a meter.
This is a stock Tactic.
Ignition looks to be 3 wires.
The ATV powers on with a key and starts with a button on the handlebars.
This is the link for the alarm/remote start on Amazon:
https://a.co/d/bY7anab
This looks to be the Service Manual for the ATV:
https://www.hisuniberica.com/images/catalogos/20201124140437.pdf
Dylan C SKora
i am an idiot
Platinum - Posts: 13,609
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: August 24, 2022 at 9:39 PM / IP Logged Link to Post Post Reply Quote i am an idiot
The 3 wires on the ignition switch will be Constant power, Accessory and then Ignition on. Use the meter to determine which wire is which. The start wire will be one of the possible 3 or so wires on the start button wiring.
I can not find a manual for that remote start unit, but if it is capable of virtual tach that should work. If it is not, you will have to find a tach wire. Does the bike have a tachometer?
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
dylan skora
Member - Posts: 5
Member spacespace
Joined: August 23, 2022
Location: Illinois, United States
Posted: August 25, 2022 at 8:20 AM / IP Logged Link to Post Post Reply Quote dylan skora
the ATV does have a tach.
Dylan C SKora
dylan skora
Member - Posts: 5
Member spacespace
Joined: August 23, 2022
Location: Illinois, United States
Posted: August 25, 2022 at 8:24 AM / IP Logged Link to Post Post Reply Quote dylan skora

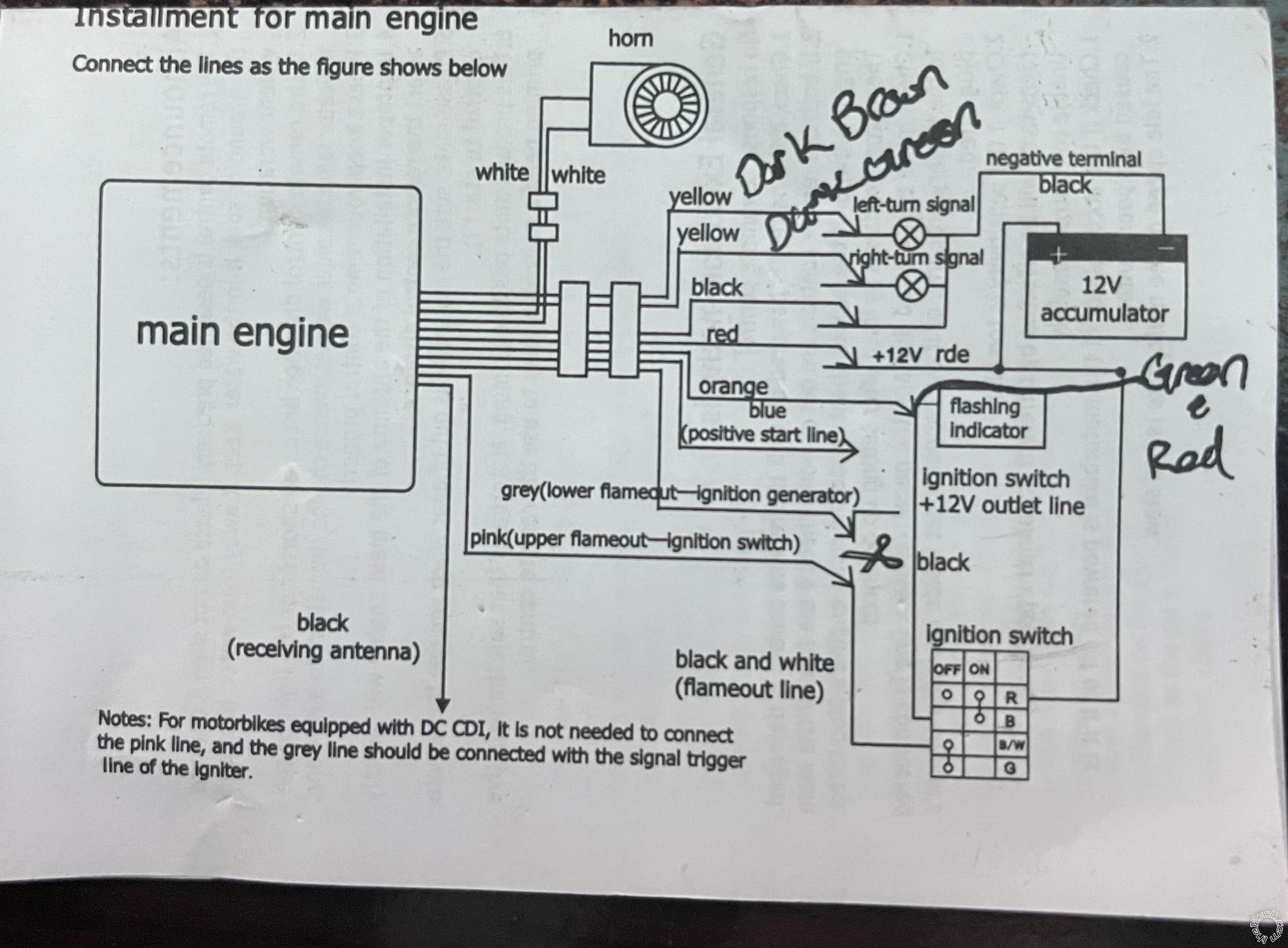

2022 Hisun Tactic 550 ATV, Remote Start Wiring -- posted image.
Dylan C SKora
i am an idiot
Platinum - Posts: 13,609
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: August 27, 2022 at 8:19 PM / IP Logged Link to Post Post Reply Quote i am an idiot
How many wires go to the tach? To find the correct wire, set your meter to DC volts, the 20 volt scale if it is not an auto ranging meter. Start the vehicle and check to see if the voltage on any of the wires increase as the RPMs increase. If none change, set the meter to AC volts and repeat. One of the wires will increase in voltage as the engine revs. Depending on your meter, it may show up when checking AC voltage or DC voltage.
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
dylan skora
Member - Posts: 5
Member spacespace
Joined: August 23, 2022
Location: Illinois, United States
Posted: August 29, 2022 at 9:34 AM / IP Logged Link to Post Post Reply Quote dylan skora
The tach is in an instrument cluster. A plug with multiple wire going to it. SO how the ATV is starts you have a key. The key is switched to on position. Then clutch in and push green start button. So does the ignition wire go to the key or start button? If the start button how does the ATV get power when key off? If ignition goes to the key, how dose the bike start without the start button?
Dylan C SKora
