Additional Lighting And Switches With Diodes And DPDT Circuits

Home / the12volt's Install Bay / Lights, Neon, LEDs, HIDs / Additional Lighting And Switches With Diodes And DPDT Circuits

Welcome Guest :)

Members

Search

Register

Login

< Prev Topic Next Topic >

oldskoolmech

Member - Posts: 1

Joined: September 11, 2022

Location: Washington, United States

Posted: September 12, 2022 at 1:25 PM / IP Logged

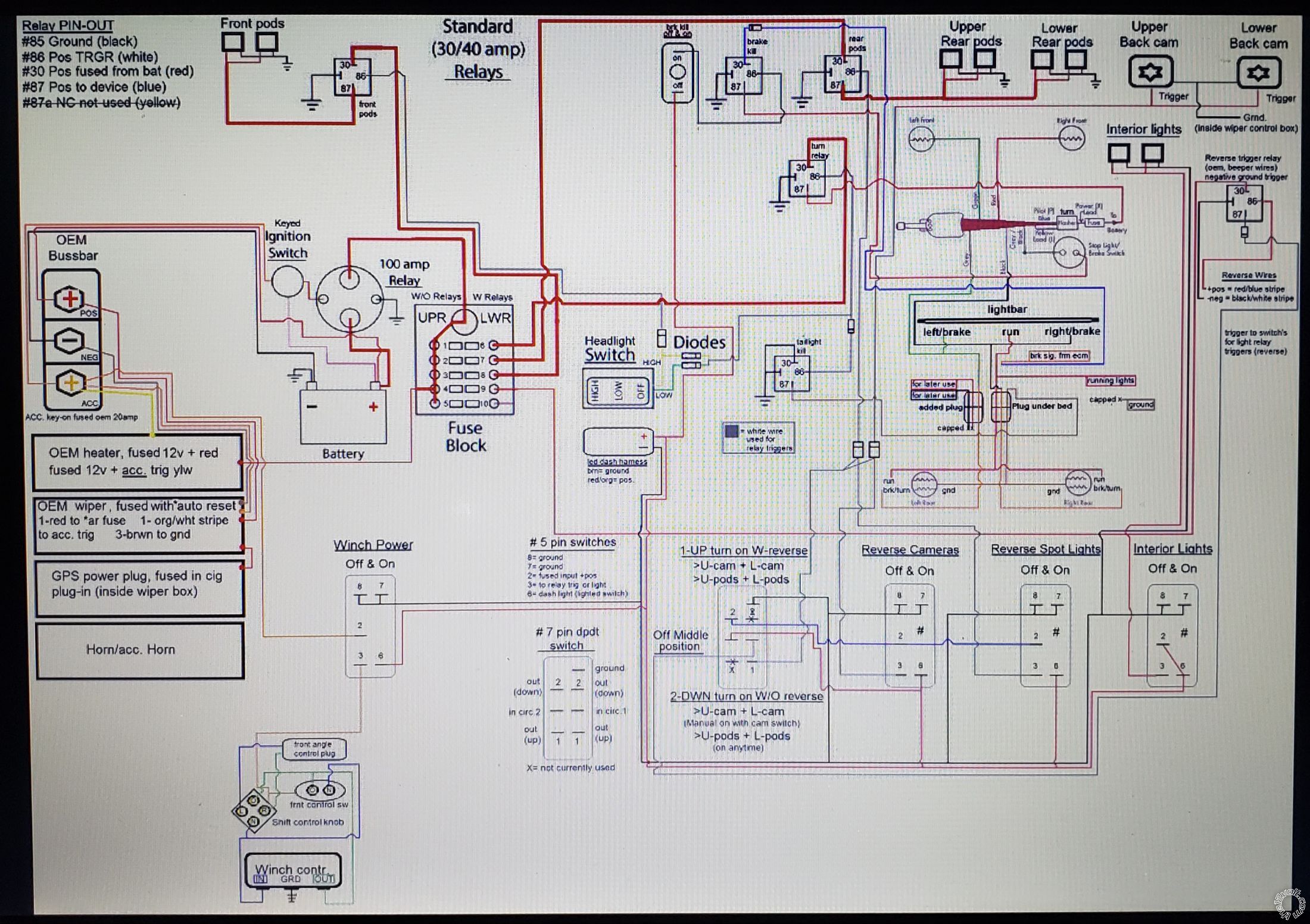

Working on an 18' polaris ranger 900 adding additional lights/ controls etc but doing a little more than my normal at least outside of basic relays and lighting that is... just looking to see if anybody has any input on my logic to my diagram or if I'm over thinking or missing anything on this. Thanks for any input! Additional Lighting And Switches With Diodes And DPDT Circuits -- posted image.

Additional Lighting And Switches With Diodes And DPDT Circuits -- posted image.
