ccole86

Member - Posts: 1

Joined: March 25, 2009

Location: Ohio, United States

Posted: June 11, 2023 at 3:03 AM / IP Logged

I am looking for a wiring diagram with color codes and or pin out for the factory amp in my 2011 Ford Focus Sel. I cannot find it anywhere.

Thank you in advance.

Back to Top

lukeylikesit

Member - Posts: 20

Joined: September 19, 2009

Location: Alberta, Canada

Posted: June 13, 2023 at 4:22 PM / IP Logged

Is this what you are looking for?

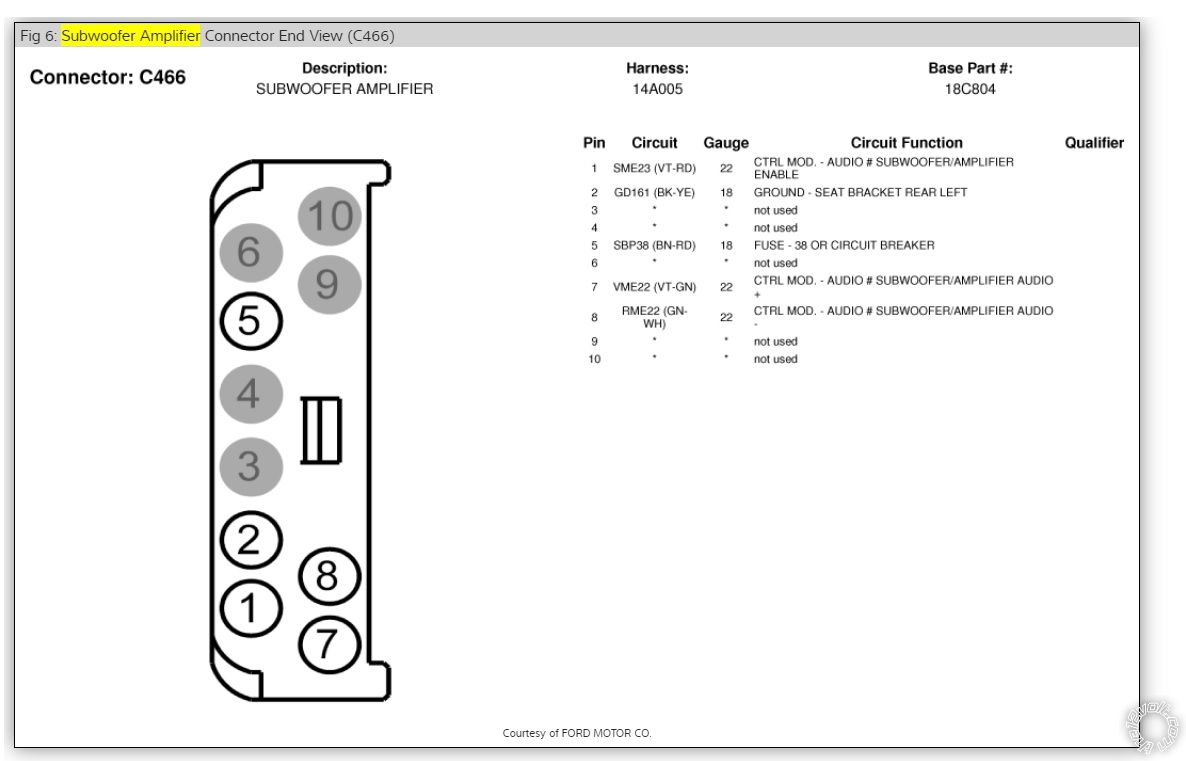

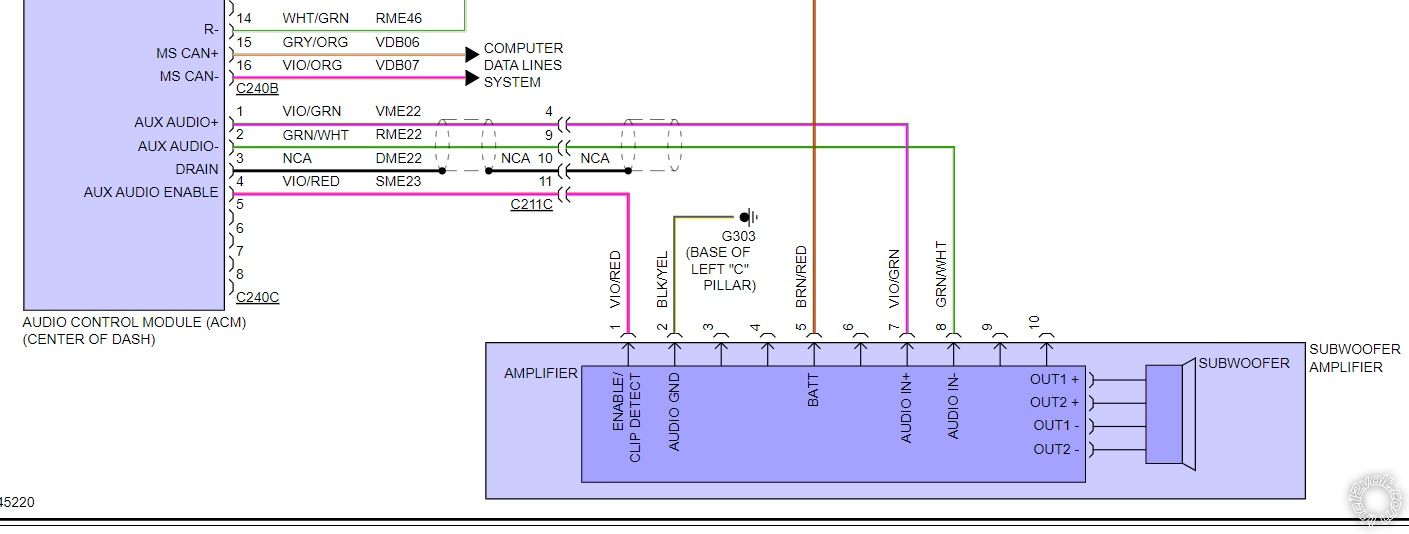

Stereo Wiring For 2011 Ford Focus SEL -- posted image.

Back to Top
